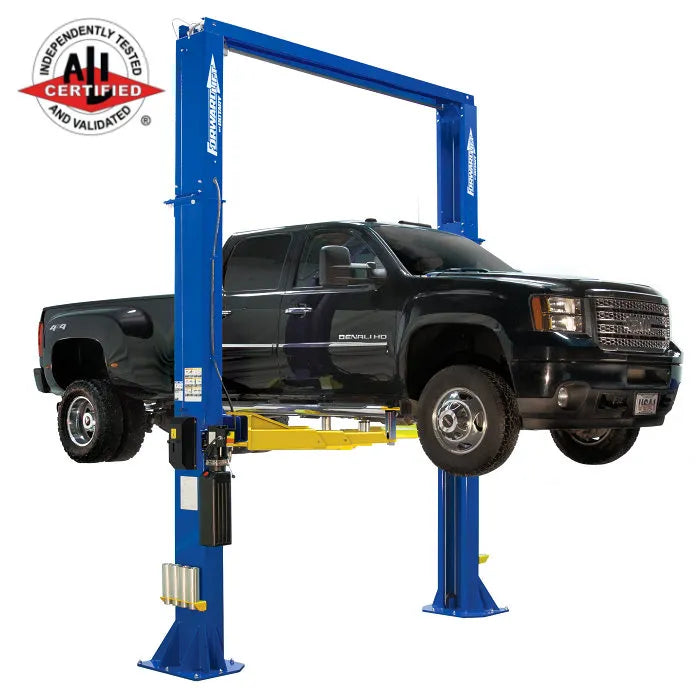

Forward Lift DP15N002 199" Two Post Lift 15,000 lbs. Capacity

Name: Forward Lift DP15N002 199" Two Post Lift 15,000 lbs. Capacity
Brand: ASEDeals
SKU: DP15N002
Price: 17864.0 USD
Availability: InStock

In Stock SKU DP15N002

OUR PRICE: $17,864.00

Regular Price: $18,759.00

$496.22 / mo

INCLUDES FREE SHIPPING*

Short Description

Forward Lift DP15N002 199" Two Post Lift 15,000 lbs. Capacity
Symmetrical Columns with Two-Stage Front & Rear Arms
The Forward Lift DP15 is engineered with high-strength, heavy-gauge steel columns. Forward's 15,000-pound capacity DP15 lift is perfect for servicing work trucks, vans, small buses, and anything else that rolls through your doors. Large gusseting on a substantial base plate foundation provides the stability and support you want with a high-capacity shop lift. With two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize down-time. Cylinders are located in each column concealed within the carriage itself. Durable powder coat finish provides exceptional protection from the wears a shop will see over the years. Forwards spring operated arm restraints are just one feature that keep these heavy duty lift arms constantly performing at their peak. The DP15 Two Post Lift is ALI and ETL Certified.

CURRENT LEAD TIME 4 WEEKS

Description

Forward Lift DP15N002 199" Two Post Lift 15,000 lbs. Capacity
Symmetrical Columns with Two-Stage Front & Rear Arms

The Forward Lift DP15 is engineered with high-strength, heavy-gauge steel columns. Forward's 15,000-pound capacity DP15 lift is perfect for servicing work trucks, vans, small buses, and anything else that rolls through your doors. Large gusseting on a substantial base plate foundation provides the stability and support you want with a high-capacity shop lift. With two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize down-time. Cylinders are located in each column concealed within the carriage itself. Durable powder coat finish provides exceptional protection from the wears a shop will see over the years. Forwards spring operated arm restraints are just one feature that keep these heavy duty lift arms constantly performing at their peak. The DP15 Two Post Lift is ALI and ETL Certified.

The DP15 is a commercial grade heavy grade truck lift and should not be confused with any other cheap two post vehicle lifts. This is a Forward lift so it has been engineered to preform and built to last!

The DP15 lift is certified by ALI (Automotive Lift Institute) to meet American National Standard.

Two Stage Front & Rear Arms
This DP15 features two-stage arms with reinforced gusseting, extendable and retractable from 61" to 38", and a 5-1/2" minimum adapter height from the floor. Forward's spring-operated arm restraints are just one feature that keeps these heavy-duty lift arms constantly performing at their peak.

Truck Adapter Extensions Make Spotting Easy
The DP15 comes with eight aircraft grade aluminum truck adapter extensions. Four 5" and four 10" adapters allow you to lift a wide range of vehicles. These are heavy duty adapters without the "heavy". Because they're made of aluminum you'll be able to place and maneuver them without strain. They have a convenient column bracket for storage.

Three Height Model Options
The DP15 offers two different height options, for the lower ceiling option DP15N000 the overhead cross member mounts directly to the column without a column extension to fit a 154-3/4" (12' 11-3/4") ceiling height. The DP15N001 fits a 176" (14' 8") ceiling height. The extended height DP15N002 fits a 199" (16' 8") ceiling height. With these options it's easy to choose the best package to fit into your existing shop.

Low Profile Arms
Forward's new HD two post arms feature a low profile adapter engagement area. This allows for greater flexibility of this lift. You'll be able to encompass more service built around a lift that can handle most trucks and vans. The arms have heavy duty gusseting, are two stage that can easily be extended (61" Length) and retracted (38" Length) while lying on the floor to spot. Couple that with the light adapter extensions and you win the spotting large vehicle battle!

Reliable Cylinders
The cylinders on this lift are well-engineered and reliable. There are hydraulic cylinders in each column. They operate using direct pull-lifting technology. They are top-mounted and full-stroke. The cylinder rod is concealed inside the carriage.

Easy To Operate
This lift features a single-point lock release for easy operation.

Engineering Excellence
Forward's U.S. engineers have over 29 years of combined experience designing automotive lifts for service and repair shops. Forward's philosophy is to own our designs rather than use someone else's off the shelf product.

Product Integrity
21st century design tools allow us to create, control and validate our designs to ensure maximum performance. Forward lifts are thoroughly tested to meet quality and durability standards. All product families are proof load tested to 1-1/2 times rated capacity and rigorously cycle tested.

Features & Specs

Features

15,000 lbs. Lifting Capacity
Symmetrical Column Design
2-Stage Front and 2-Stage Rear Arms
Heavy-Duty Reinforced Gusseted Arms
Three Height Configuration Models For Most Ceiling Heights
Overhead Cable Equalization
Single Point Lock Release
Hydraulic Cylinders In Each Column
Top-Mounted Cylinder Rod Concealed Inside Carriage
Spring-Operated Arm Restraints Disengage At Floor Level
Includes Threaded Truck Adapters
Includes 5" And 10" Extensions
Includes Adapter Storage Bracket
Durable Powder Coated Oven Baked Finish
Third Party Tested by ETL And Certified By ALI

Specifications

Model Number	DP15PN000	DP15N001	DP15N002
Lifting Capacity	15,000 lbs.	15,000 lbs.	15,000 lbs.
Maximum Rise	83-1/4"	83-1/4"	83-1/4"
Overall Height	154-3/4"	175"	199"
Overall Width	154-3/8"	154-3/8"	154-3/8"
Drive Through Clearance	108-1/4"	108-1/4"	108-1/4"
Overhead Switch Height	147-1/4"	167-1/4"	191-1/4"
Arm Configuration	2-Stage Front 2-Stage Rear	2-Stage Front 2-Stage Rear	2-Stage Front 2-Stage Rear
Front Arm Reach Min / Max	38" / 61"	38" / 61"	38" / 61"
Rear Arm Reach Min / Max	38" / 61"	38" / 61"	38" / 61"
Minimum Adapter Height	5-1/2"	5-1/2"	5-1/2"
5" Stackable Adapter Height	10-1/2"	10-1/2"	10-1/2"
10" Stackable Adapter Height	15-1/2"	15-1/2"	15-1/2"
Width Inside Columns	119-5/8"	119-5/8"	119-5/8"
Voltage / Amps	208-230V, 20 Amps	208-230V, 20 Amps	208-230V, 20 Amps
Motor / Phase	2 HP, 1 Ph	2 HP, 1 Ph	2 HP, 1 Ph
Ceiling Height Required	12' 11-3/4"	14' 8"	16' 8"
Colors Available	Blue, Red or Black	Blue, Red or Black	Blue, Red or Black

Specifications subject to change without notice or liability.
*Optional 3-phase available at additional cost.

Warranty: (5) Years on Structure, (1) Year on Parts, (1) Year Labor

Forward Lift Warranty Statement
All Forward Lift products are warranted to the original owner. Forward lifts are warranted for 5 years from invoice date on structural components (columns, arms, runways, and carriages) to be free of defects in material and workmanship. Non-structure items (cylinder, power unit and parts) are warranted for 12 months from invoice date. Forward Lift shall pay for reasonable costs of labor and transportation for replacement of said parts for the first twelve months.

All accessories are warranted for 1 year from invoice date to the original owner (parts only). Optional twenty four month Extended parts warranty (non-structural items) is available upon request at an additional charge. This warranty shall not apply unless the product is installed, operated, used and maintained in accordance with Forward Lift specifications set forth in the installation, operation and maintenance instructions. This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall Forward Lift or any sales agent be liable for any special, consequential or incidental damages of any kind including damages for breach of or delay in performance of the warranty. This warranty shall be governed under the laws of the State of Indiana, and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson. This warranty does not apply to the following:

Normal wear and tear items such as cables, sheaves, sliders, plastic and rubber components.
Normal maintenance and adjustments as required by the owner's manual.
Failure to follow installation and operation instructions or user neglect or abuse.
Damage to components incurred during transportation or unloading.
Any lift that has been altered from the original design or improperly repaired.
Cosmetic defects or blemishes that do not interfere with functionality of the lift.
Damage caused by improper lifting or overloading.
Damage caused by corrosion of any kind.

*Specifications subject to change without notice or liability.
