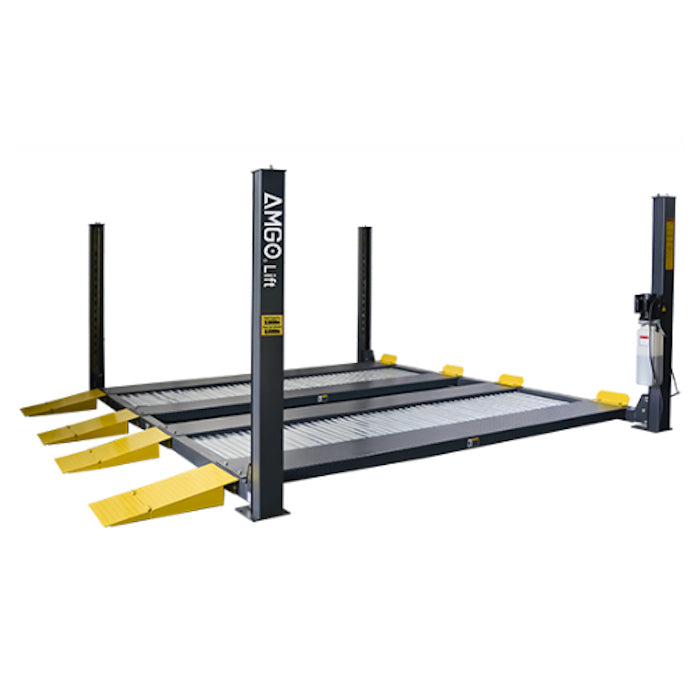

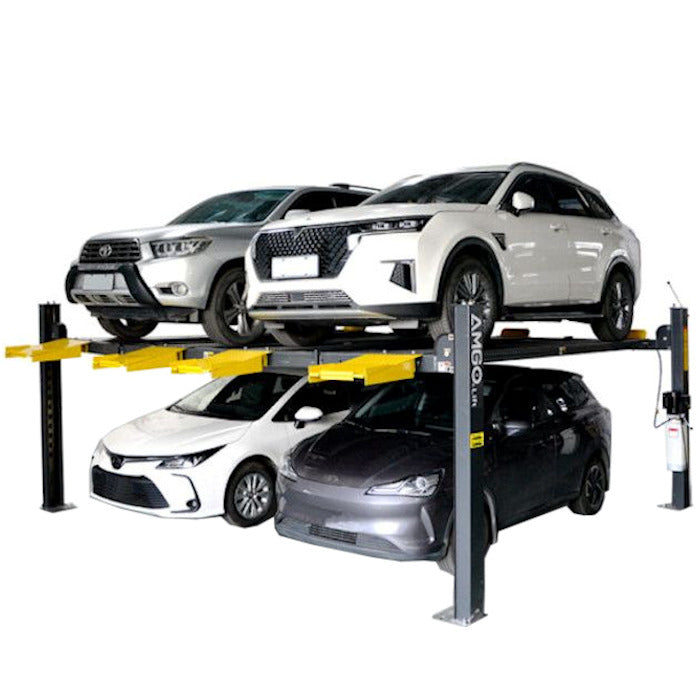

AMGO 409-DP Double Parking Four Post Lift

Features & Specs

Features

• Lifting Capacity: 9,000 lbs.
• Maximum Car Weight: 6,000 lbs.
• Maximum Lifting Height: 73 11/16"
• Low Profile Design, Minimum Platform Height Only 6 3/32"
• Both Primary and Slack-Cable Safety Devices as Standard

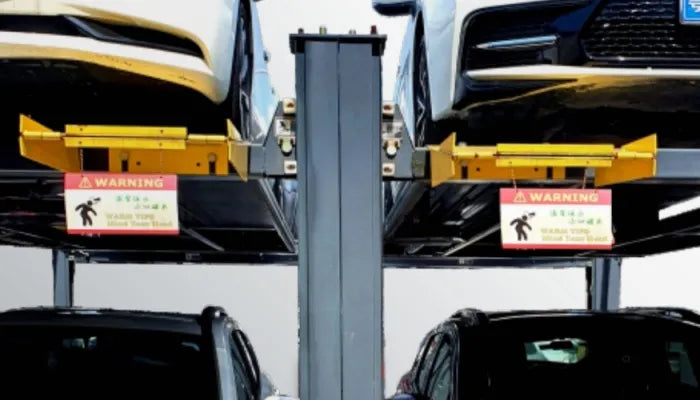

• Special Structure Design to Allow Back-To-Back Installation
• 90å¡ Motor Installation Plate

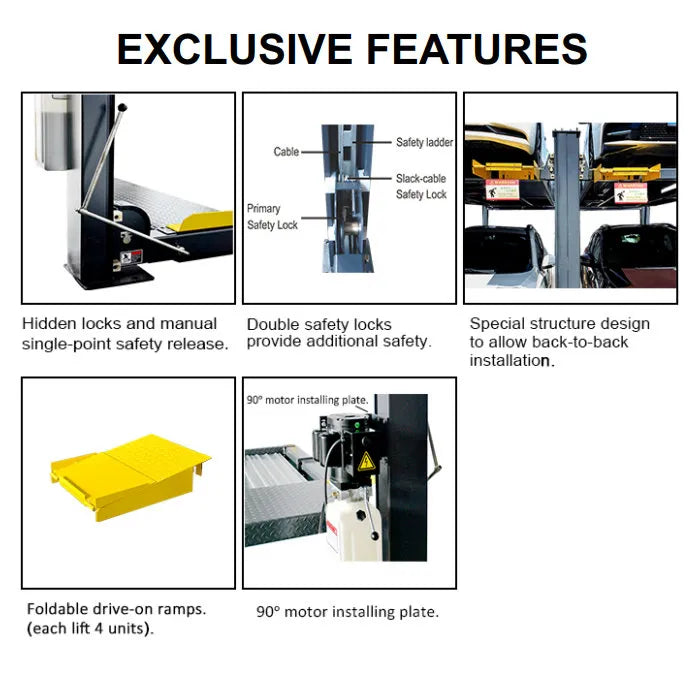

• Exclusive: Hidden Safety Locks and Manual Single-Point Safety Release
• Exclusive: Foldable Drive-On Ramps of 4 Units
• Exclusive: Ingenious Designs to Minimize the Package Size
• Reduced Transportation Charge and Storage Cost
• Exclusive: Double-S Shaped Columns for Increased Strength
• Non-Slip Diamond Platforms
• Adjustable Multiple Safety Ladders
• AMGO 5-3-2 Warranty

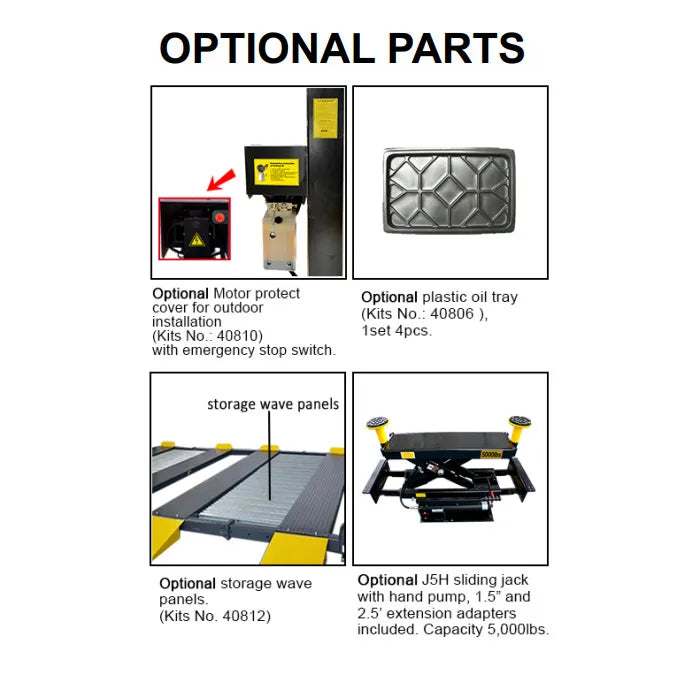

Optional Accessories

• #40806 Plastic Oil Tray Set 4pcs.
• #40812 Storage Wave Panels
• #40810 Outdoor Motor Protection Cover
• #J5H Manual Rolling Jack 5,000 lbs. Capacity

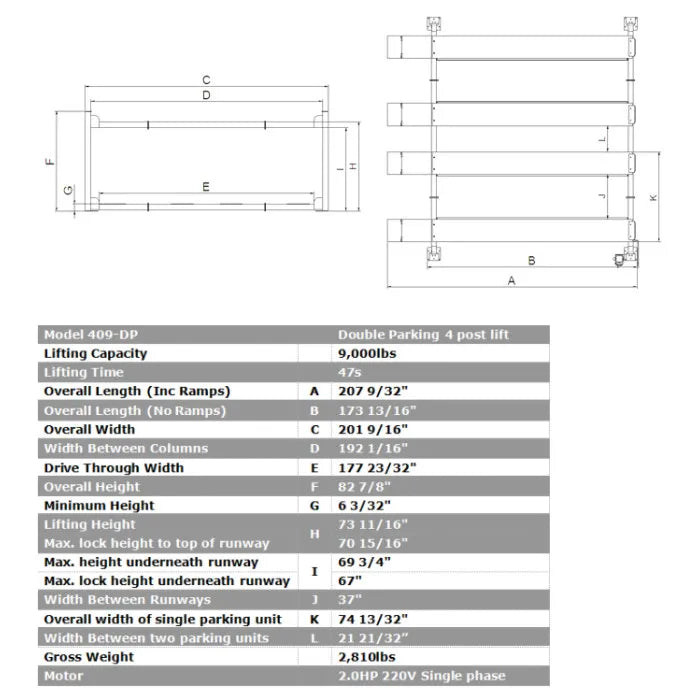

Specifications

• Model: 409-DP
• Lifting Capacity: 9,000 lbs.
• Lifting Time: 47s
• Overall Length (Inc Ramps): 207 9/32"
• Overall Length (No Ramps): 173 13/16"
• Overall Width: 201 9/16"
• Width Between Columns: 192 1/16"
• Drive Through Width: 177 23/32"
• Overall Height: 82 7/8"
• Minimum Height: 6 3/32"
• Lifting Height: 73 11/16"
• Max. Lock Height to Top of Runway: 70 15/16"
• Max. Height Underneath Runway: 69 3/4"
• Max. Lock Height Underneath Runway: 67"
• Width Between Two Parking Units: 37"
• Motor: 2.0HP 220V Single Phase
• Gross Weight: 2,810 lbs. (1,275 kg)

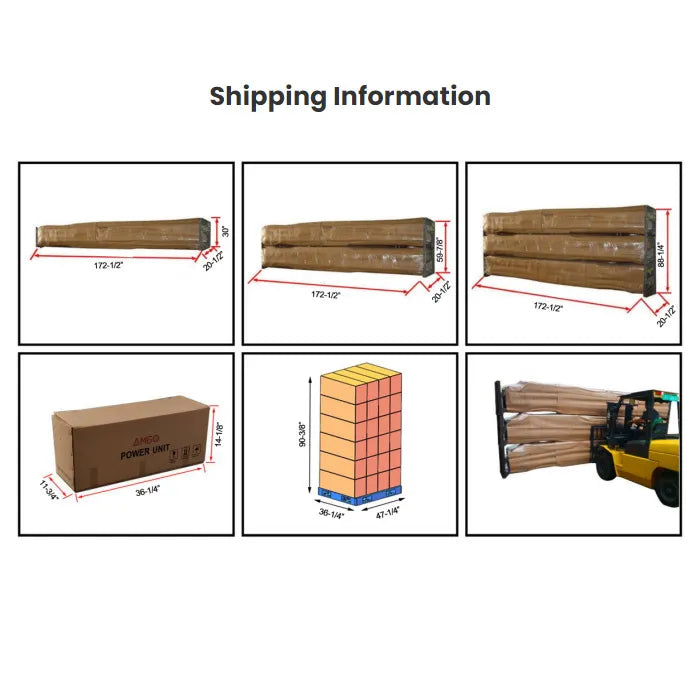

• Shipping Dimensions Lift: 20 1/2" W x 172 1/2" L x 30" H
• Shipping Dimensions Power Unit: 11 3/4" W x 36 1/4" L x 14 1/8" H
• Warranty: (5) Years Steel Structure, (3) Years Hydraulic Parts, (2) Years Electrical Components, No Labor

*Available in 110 Volt Upon Request

AMGO Hydraulics offers the Best Warranty in the Industry
5 Year Warranty for Steel Structure
3 Year Warranty for Hydraulic Parts
2 Year Warranty for Electrical Components

Any items received that fall into the warranty category, (inoperable, or manufacturer's defect) should be handled under manufacturer‰۪s written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, topbeam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five (5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three (3) Years. 3. Other Parts (not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two (2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer's responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
