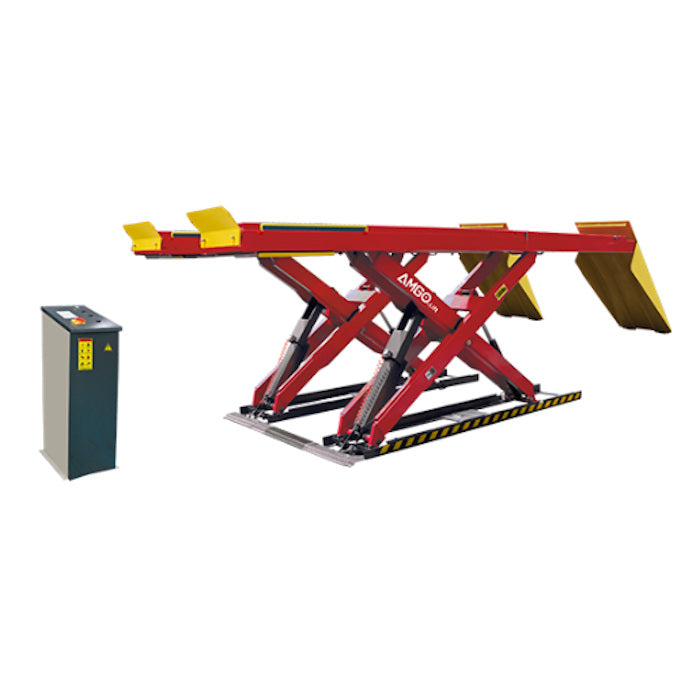

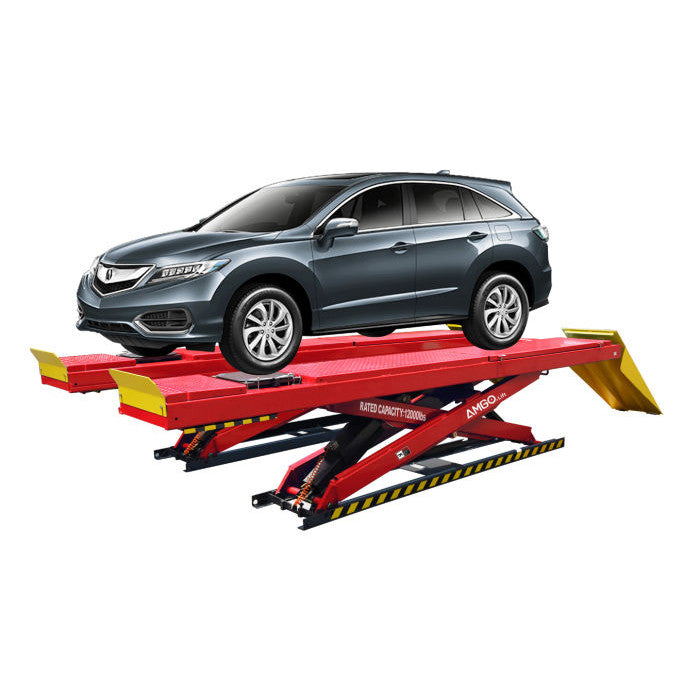

AMGO AX-12A Scissor Alignment Lift

Name: AMGO AX-12A Scissor Alignment Lift
Brand: ASEDeals
SKU: AX-12A
Price: 17425.0 USD
Availability: InStock

In Stock SKU AX-12A

OUR PRICE: $17,425.00

Regular Price: $18,299.00

$484.02 / mo

INCLUDES FREE SHIPPING*

Short Description

AMGO AX-12A Commercial GradeåÊ
Scissor Alignment 12,000 lbs. CapacityåÊ
The AMGO AX-12A Scissor Alignment Lift is a great lift to expand your shops capacity for larger vehicles and greater workload with its rugged design and increased dependability. The hefty 6 ton lifting capacity provides the heavy-duty workload needed for mechanics to increase efficiency and productivity for greater long-run profits. This heavy-duty scissor lift has four cylinders and each dual cylinder is designed work synchronously and to assure the optimal lifting level on both platforms. The AX-12A is made stronger, more versatile, and easier to use and can lift 12,000 lbs.

Description

AMGO Hydraulics

AMGO AX-12A Commercial Grade Scissor Alignment Lift 12,000 lbs. Capacity

The AMGO AX-12A Scissor Alignment Lift is a great lift to expand your shops capacity for larger vehicles and greater workload with its rugged design and increased dependability. The hefty 6 ton lifting capacity provides the heavy-duty workload needed for mechanics to increase efficiency and productivity for greater long-run profits. This heavy-duty scissor lift has four cylinders and each dual cylinder is designed work synchronously and to assure the optimal lifting level on both platforms. The AX-12A is made stronger, more versatile, and easier to use and can lift 12,000 lbs.

Features & Specs

Features

12,000 lbs. lifting capacity
(2) dual synchronous cylinders are used to assure the optimal lifting level on both platforms

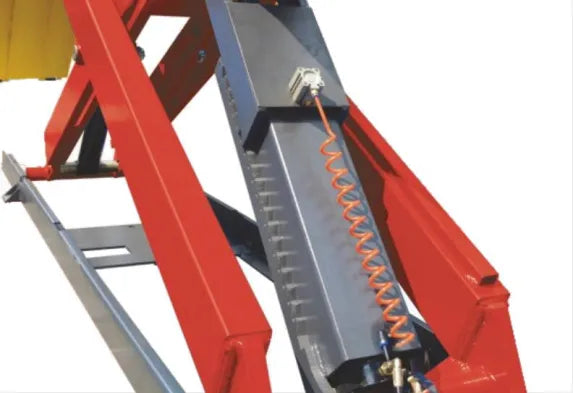

Electronic-air control system, which operates the self-locking safety mechanism
Heavy-duty design, the X serial scissor lift uses a 5-7/8" x 3" (150 x 75mm) tube to make it stronger and assures the runways remain level during operations
Skid proof diamond platform provides traction for tires to stay put
Pull-out shelf for extra room during service
Options:

J6A: 6,000 lbs with Pneumatic Pump

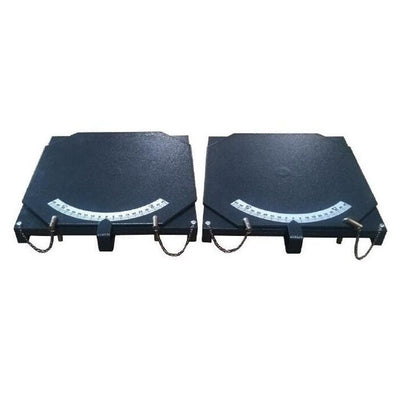

Turnplate Set No.: 40101

Specifications
Dimensions

Style: Alignment
Lifting Capacity: 12,000 lbs. (5,500 kg)
Lifting Time: 75 s
A: Overall Length (Inc. Ramps): 258" (6554mm)
B: Overall Length (No Inc. Ramps): 197-1/2" (5018mm)
C: Overall Width: 90-1/8" (2290mm)
D: Lifting Height: 11-3/4" - 73-5/8" (300 - 1870mm)
E: Runway Width: 24-5/8" (625mm)
F: Width Between Runway: 37-5/8" (955mm)
G: Min. Four Wheel Align: 81-7/8" (2080mm)
H: Max. Four Wheel Align: 167-3/4" (4260mm)
I: Min. Two Wheel Align: 174" (4420mm)
Motor: 2.0HP 220V/60Hz Single Phase
Gross Weight: 5,785 lbs. (2,624 kg)
Warranty: (5) Years Steel Structure, (3) Years Hydraulic Parts, (2) Years Electrical Components, No Labor

AMGO Hydraulics offers the Best Warranty in the Industry
5 Year Warranty for Steel Structure
3 Year Warranty for Hydraulic Parts
2 Year Warranty for Electrical Components

Any items received that fall into the warranty category, (inoperable, or manufacturer's defect) should be handled under manufacturer‰۪s written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, topbeam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five (5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three (3) Years. 3. Other Parts (not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two (2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer's responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
