AMGO MRL09 Mid-Rise Scissor Lift

Name: AMGO MRL09 Mid-Rise Scissor Lift
Brand: ASEDeals
SKU: MRL09
Price: 4995.0 USD
Availability: InStock

In Stock SKU MRL09

OUR PRICE: $4,995.00

Regular Price: $5,249.00

$138.75 / mo

INCLUDES FREE SHIPPING*

Short Description

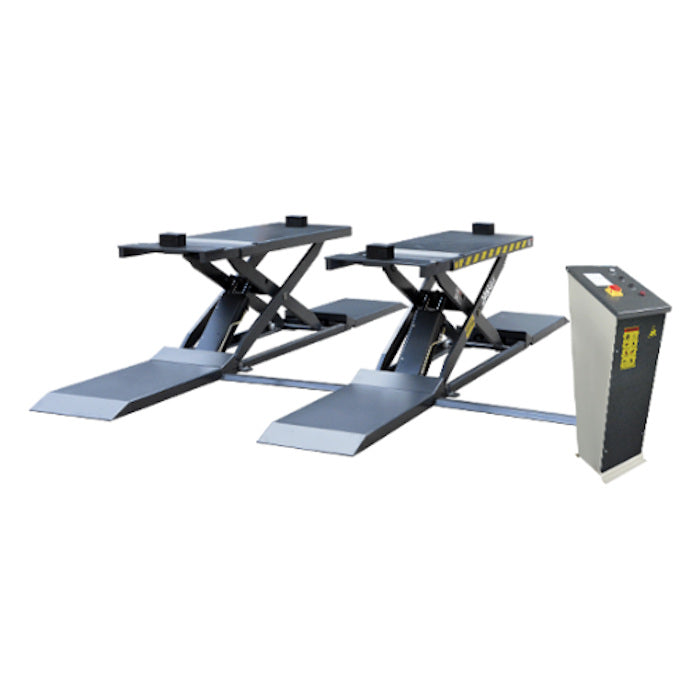

AMGO MRL09 Mid-Rise Scissor Lift 9,000 lbs. Capacity

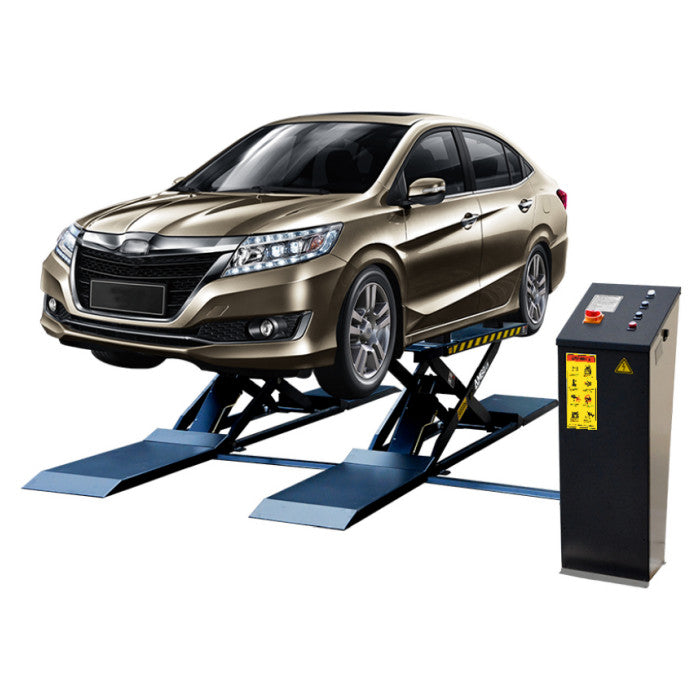

AMGO's MRL09 Mid-Rise Scissor Lift is designed with dual hydraulic synchronization and hydraulic locking system, adjustable platform length, and double entrance drive-in ramps which are suitable for ultra-low chassis vehicles. The MRL09 model raises vehicles to a 47-14". Simply drive the vehicle over the approach ramps and place the rubber support blocks under the vehicle's lifting points. The MRL09 has a 9,000 lbs. lifting capacity that is perfect for quick services such as tire and brake jobs. With great features, such as its adjustable platform length, ultra-low drive clearance and hydraulic lock, you can rest assured that this reliable lift can help with most any job you need.

Description

AMGO Hydraulics

AMGO MRL09 Mid-Rise Scissor Lift 9,000 lbs. Capacity

AMGO's MRL09 Mid-Rise Scissor Lift is designed with dual hydraulic synchronization and hydraulic locking system, adjustable platform length, and double entrance drive-in ramps which are suitable for ultra-low chassis vehicles. The MRL09 model raises vehicles to a 47-14". Simply drive the vehicle over the approach ramps and place the rubber support blocks under the vehicle's lifting points. The MRL09 has a 9,000 lbs. lifting capacity that is perfect for quick services such as tire and brake jobs. With great features, such as its adjustable platform length, ultra-low drive clearance and hydraulic lock, you can rest assured that this reliable lift can help with most any job you need.

Features & Specs

Features

9,000 lbs. (4,000 kg) lifting capacity
24V Safety voltage control

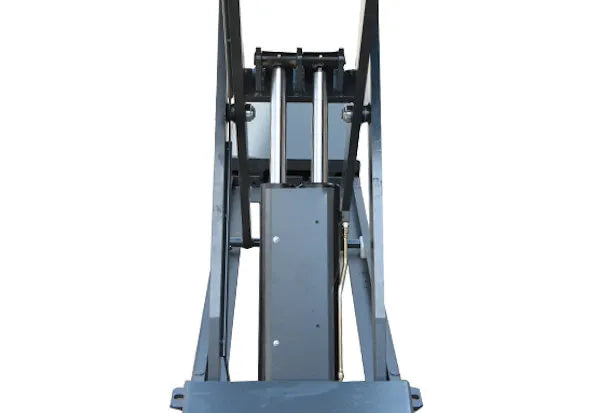

Dual hydraulic synchronization & hydraulic locking system
The lifting scissors are made of thickened steel which is more strong

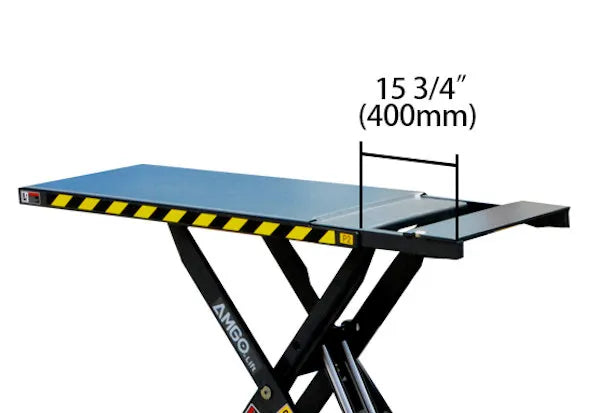

Adjustable lift platform length, applicable to vehicles with different wheelbases

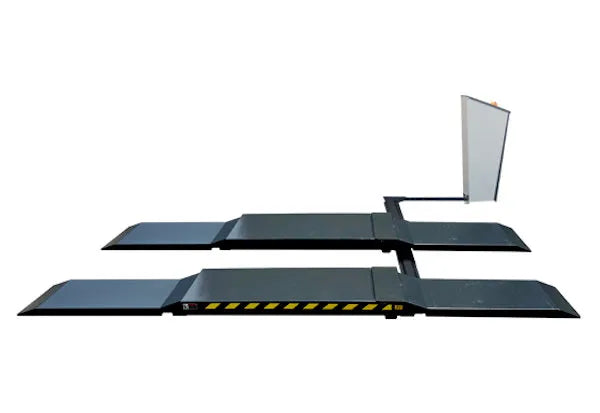

Two-stage drive in ramps, suitable for lifting ultra-low chassis vehicles
Flexible structure design, users can choose either flush mount or surface mount installation
Standard ETL certificated power unit

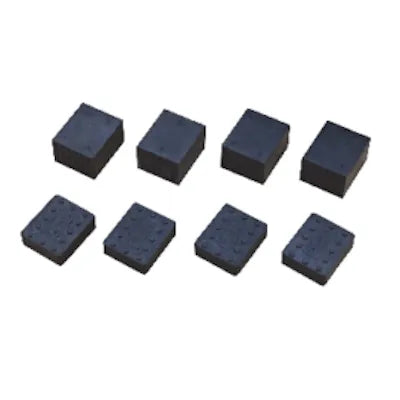

Includes (4) 1-1/2" and (4) 3" Rubber Pads

Specifications

Dimensions

Lifting Capacity: 9,000 lbs. (4,000 kg)
Lifting Time: 29 s
A: Max. Lifting Height: 47-1/4" (1200mm)
B: Minimum Height: 5-3/8" (135mm)
C: First Stage Ramp Height: 2-1/2" (65mm)
D: Overall Length (Inc. Ramps): 156-3/4" (3980mm)
E: Overall Width: 76-3/4" (1950mm)
F: Width Between Runways: 29-1/2" (750mm)
G: Runway Length: 61-3/8" - 77-1/8" (1560mm - 1960mm)
Motor: 2.0HP 220V/60Hz single phase
Gross Weight: 1,788 lbs. (811 kg)
Warranty: (5) Years Steel Structure, (3) Years Hydraulic Parts, (2) Years Electrical Components, No Labor

AMGO Hydraulics offers the Best Warranty in the Industry
5 Year Warranty for Steel Structure
3 Year Warranty for Hydraulic Parts
2 Year Warranty for Electrical Components

Any items received that fall into the warranty category, (inoperable, or manufacturer's defect) should be handled under manufacturer‰۪s written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, topbeam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five (5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three (3) Years. 3. Other Parts (not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two (2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer's responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
