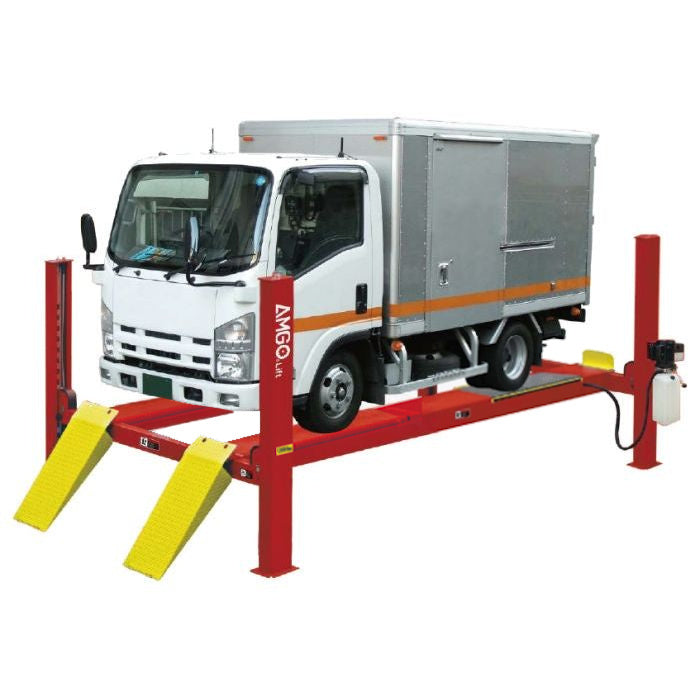

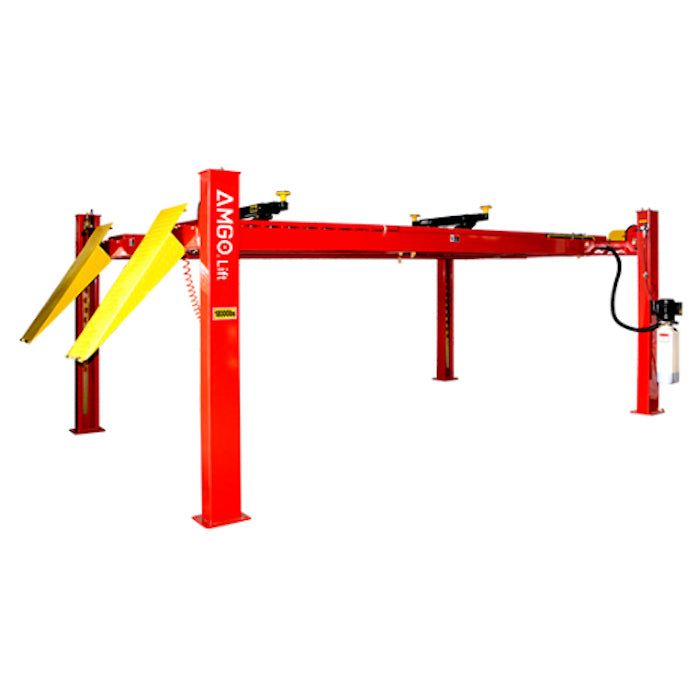

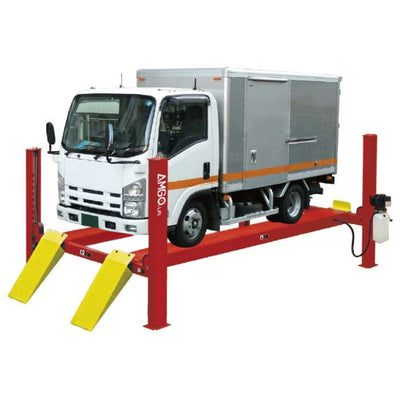

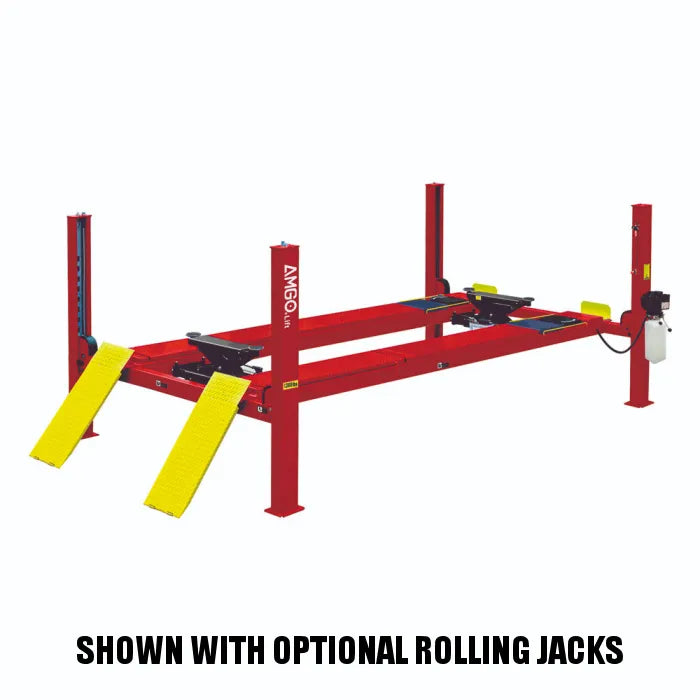

AMGO PRO-18A Commercial Four Post Alignment Lift

In Stock SKU PRO-18A

OUR PRICE: $13,980.00

Regular Price: $14,679.00

$388.33 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

AMGO PRO-18A Commercial Grade Four Post Alignment Lift
18,000 lbs. Capacity

The AMGO PRO-18A Commercial Grade Four Post Lift is the perfect choice of lift, with the combination of great performance and safety, for your heavy-duty commercial services. The newly engineered PRO-18A four post lift is made stronger, more versatile, and easier to use than most other lifts while able to lift up to 18,000 lbs.

Description

AMGO Hydraulics

AMGO PRO-18A Commercial Grade Four Post Alignment Lift
18,000 lbs. Capacity


The AMGO PRO-18A Commercial Grade Four Post Alignment Lift is the perfect choice of lift, with the combination of great performance and safety, for your heavy-duty commercial services. The newly engineered PRO-18A four post lift is made stronger, more versatile, and easier to use than most other lifts while able to lift up to 18,000 lbs.

AMGO's powerful four-post models provide a 18,000 lbs. lifting capacity and feature extra wide runways to accommodate a wide variety of vehicle types. With a double locking safety device, heavy duty design and built to latest manufacturing technology, these lifts are more superior in the competitive lift market.

AMGO Hydraulic Corporation has comprehensive services that specializes in the manufacturing and R&D of high-quality vehicle lifts, hydraulic equipment and industrial "green" products. Our company focus is on a variety of lifts, hydraulic power units, cylinders and industrial LED lights. We also provide the OEM design of hydraulic cylinders, power units, valves and fittings for different industries, ranging from manufacturing, engineering, construction and more. At AMGO, we aim to continuously innovate and improve the products we offer while providing the best service possible at the best possible price.

AMGO Hydraulic Corporation pays special attention to product design, material purchasing, and manufacturing technology. We perform all work in-house which enables us to control costs while providing high-quality products. We hold each process to a high standard to provide you with the best, time-tested, highest-quality products possible. All AMGO products are made to high-quality standards while using high-quality parts, self-lubricating UHMW Polyethylene sliders, bronze bushings, and NOK seals, just to name a few. This commitment to quality makes our products more reliable, with greater longevity, while requiring less service.

Not only does AMGO Hydraulic Corporation aim to continuously innovate and improve the products we offer, but we also seek to provide the best possible service before, during, and after the sale. We provide after sales service to give our customers quick responses through our manufacturing and service center, located in Manning, South Carolina. Whether you are a large service center with locations throughout the globe, or a weekend hobbyist, our goal is of complete world-wide customer satisfaction. If a problem does exist in any way with our products you can expect a prompt and courteous response, with your satisfaction being our end goal.

AMGO Hydraulic Corporation's dedication to quality, innovation, safety, and service is what sets us apart form the competitors. We have one goal in mind, making the best products available with complete customer satisfaction, and we will not rest until this goal is achieved. When you decide to take the next step in safety, performance, and quality turn to the professionals of AMGO Hydraulic Corporation to find and produce the right products for your business.

Features & Specs

Features

  • 18,000 lbs. capacity

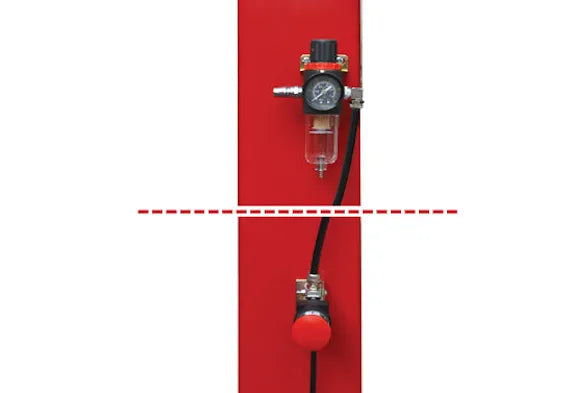

  • Air-released safety lock for convenient operation and reliability

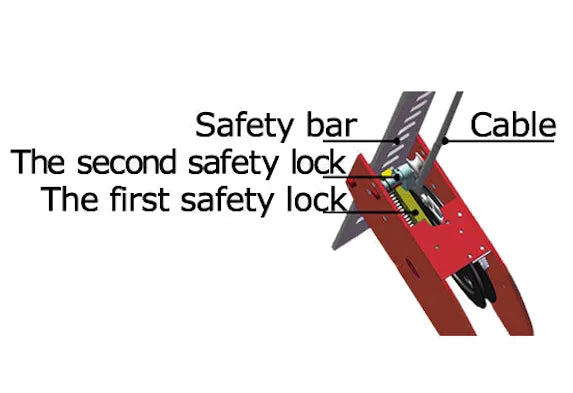

  • Mechanical self-lock and cable-breaking protection
  • 1/2" aircraft quality cable
  • Skid proof diamond platform

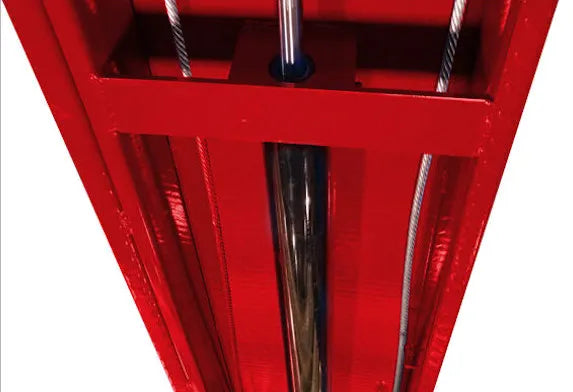

  • Hydraulic cylinders are designed and made to high quality standards
  • Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed

Optional Accessories

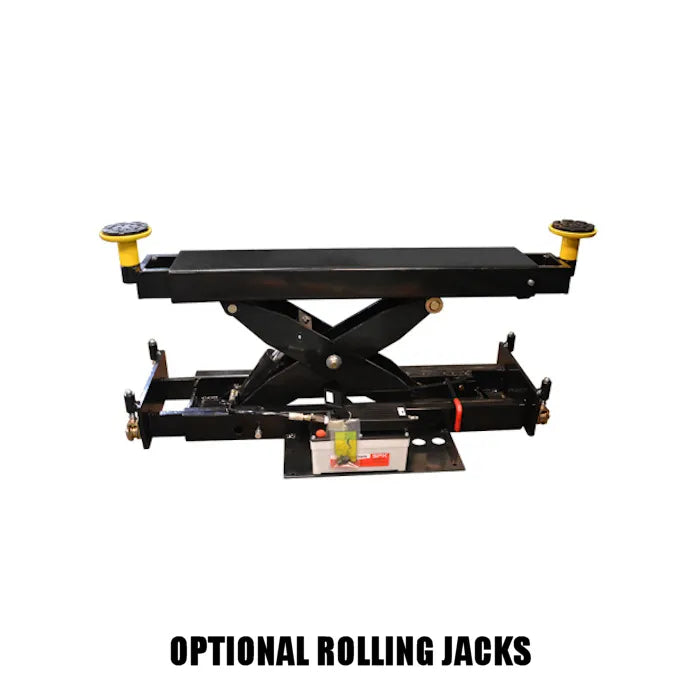

  • RJ-10A Pneumatic Hydraulic Rolling Jacks 10,000lbs (4,500kg)

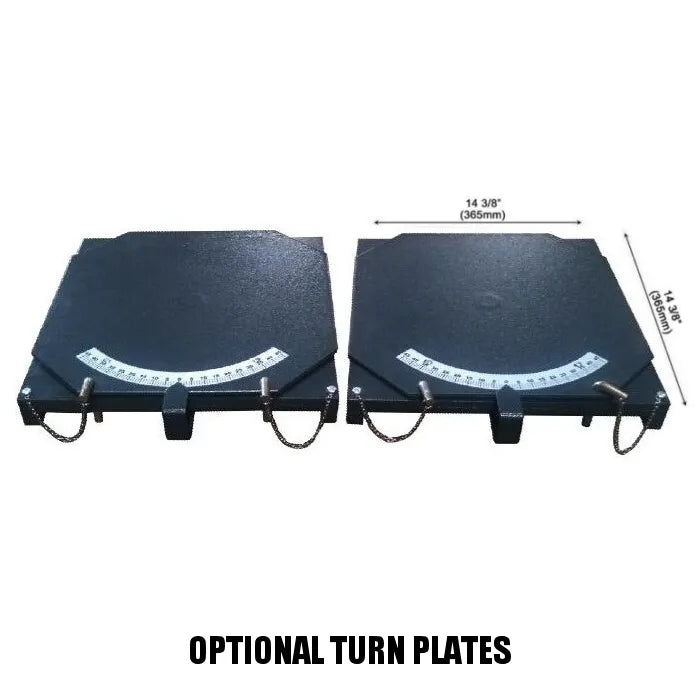

  • Turnplate Kit #40101

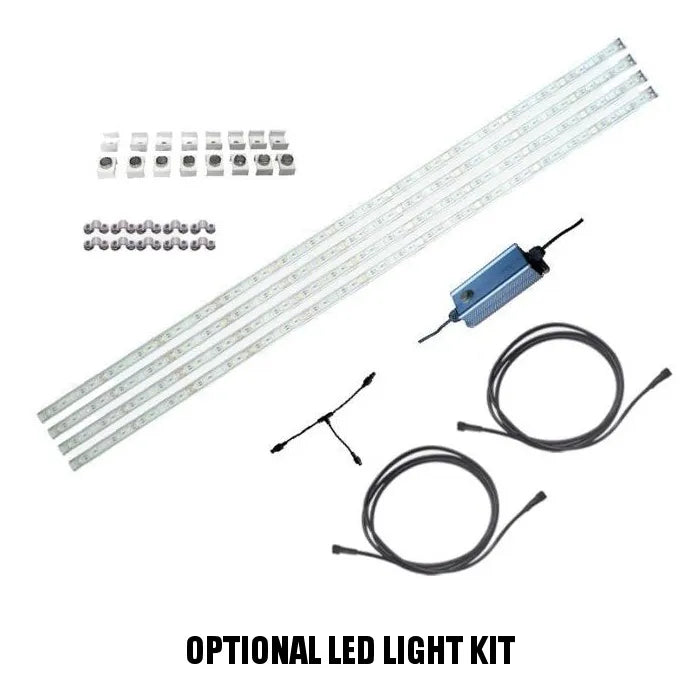

  • LED Light Kit #40102001

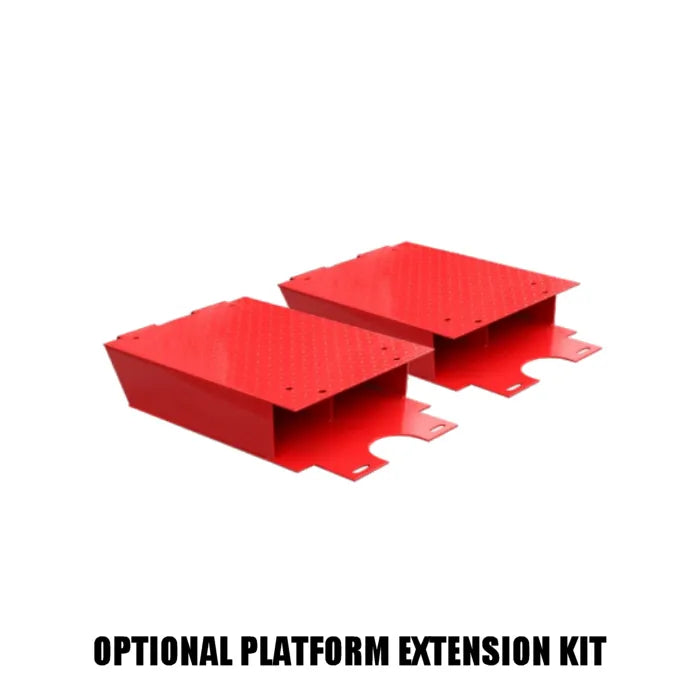

  • Length Extension Kits #41801

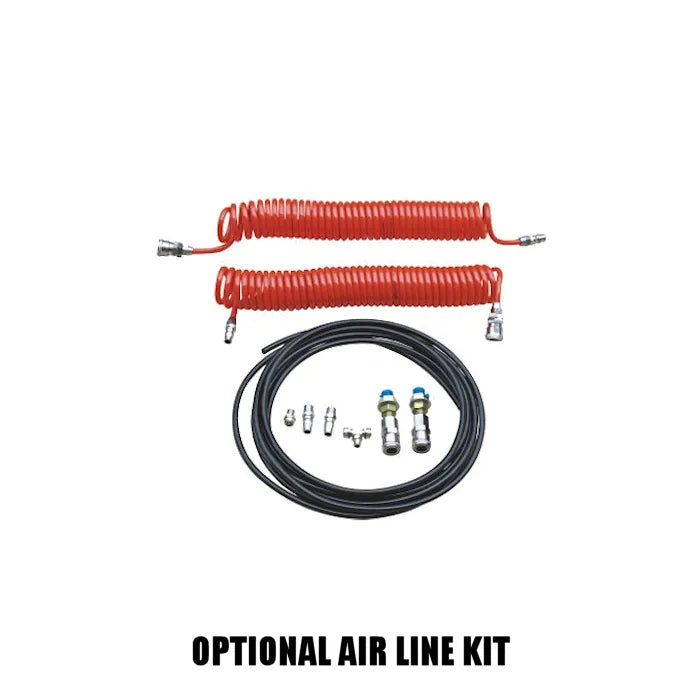

  • Air Line Kit #40106

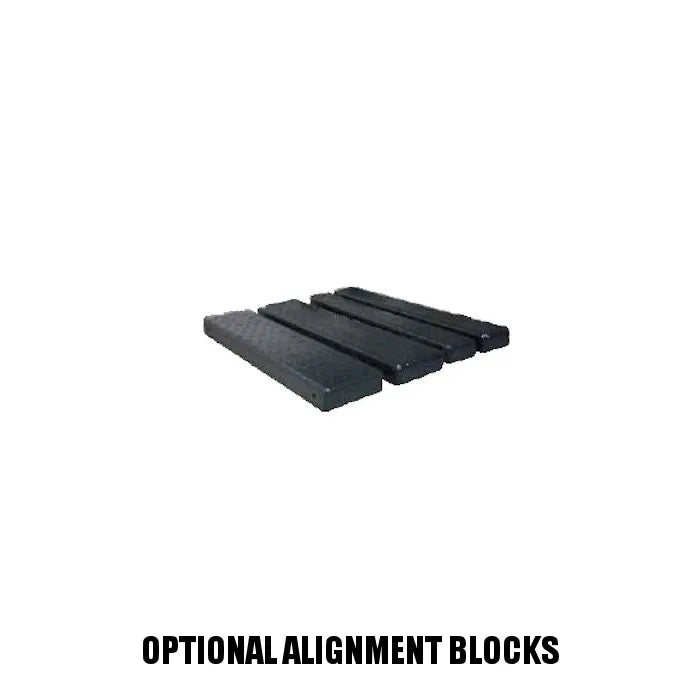

  • Adjustable Blocks #41803

Specifications

Dimensions

  • Style: Alignment
  • Lifting Capacity: 18,000 lbs (8,000 kg)
  • Lifting Time: 92S
  • A: Overall Length (Inc.Ramps): 293 1/4" (7449mm)
  • B: Overall Length (No.Ramps): 252 1/4" (6408mm)
  • C: Overall Width: 137 1/8" (3482mm)
  • D: Width Between Columns: 122 3/8" (3108mm)
  • E: Max. Lifting Height: 75 3/8" (1915mm)
  • F: Overall Height: 86" (2185mm)
  • G: Minimum Height: 9 7/8" (250mm)
  • H: Max. Underneath Height: 66 5/8" (1692mm)
  • I: Drive-Thru Clearance: 108 1/4" (2750mm)
  • J: Width Between Runways: 51 1/4" (1302mm)
  • K: Outside Edge of Runways: 95 1/4" (2418mm)
  • L: Min. Four Wheel Align: 99 5/8" (2530mm)
  • M: Max. Four Wheel Align: 182 5/8" (4640mm)
  • N: Max. Two Wheel Align: 209 1/8" (5310mm)
  • Motor: 2.0HP, 220V/60Hz Single Phase
  • Gross Weight: 4,429lbs (2,009kg)
  • Warranty: (5) Years on Steel Components, (3) Years on Hydraulic Parts, (2) Years on Electrical Components
AMGO 5/3/2 Warranty AMGO Hydraulics offers the Best Warranty in the Industry
AMGO Hydraulics offers the Best Warranty in the Industry
5 Year Warranty for Steel Structure
3 Year Warranty for Hydraulic Parts
2 Year Warranty for Electrical Components

Any items received that fall into the warranty category, (inoperable, or manufacturer‰۪s defect) should be handled under manufacturer‰۪s written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five (5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three (3) Years. 3. Other Parts(not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two (2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer‰۪s responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
