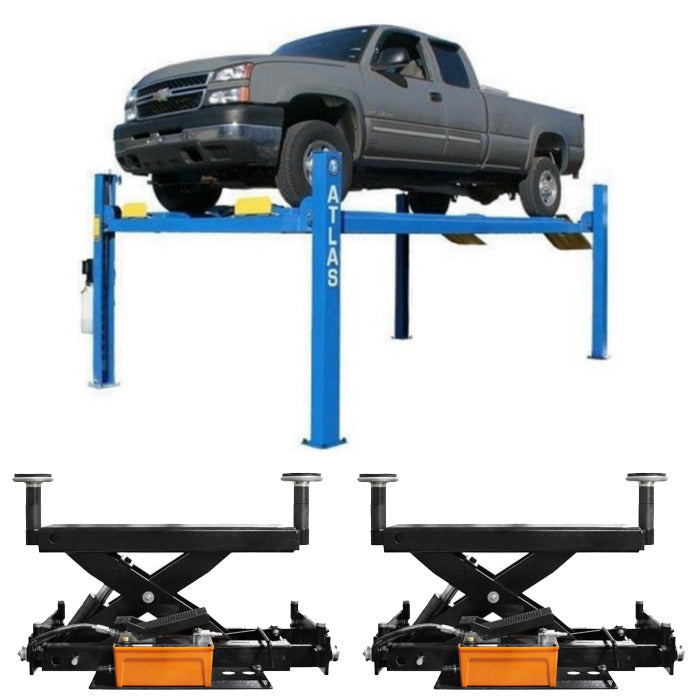

Atlas 412 Four Post Lift + RJ6BK Rolling Jacks Combo

Description

Atlas 412 Commercial Grade Four Post Lift 12,000 lbs. Capacity +
RJ6BK Air Hydraulic Rolling Jacks 6,000 lbs. Capacity Combo

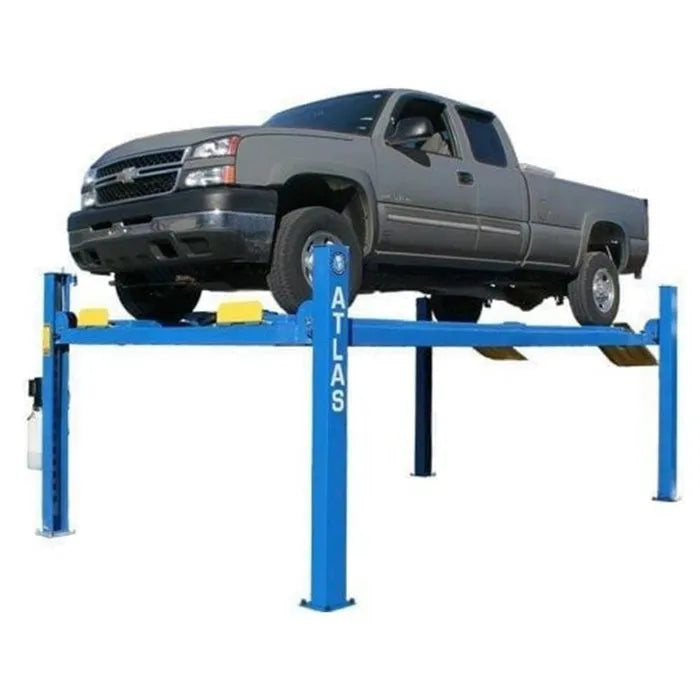

Atlas 412 Commercial Grade Four Post Lift
12,000 lbs. Capacity

The Atlas 412 12,000 pound capacity heavy duty four post lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas lifts offer many exclusive features not found on many other competitor's lifts.

The Atlas 412 incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas 412 is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas 412 has been manufactured to the same exacting specifications for many years.

High Strength Cable System
The Atlas 412 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an "old style" chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to "level" properly and the exposed hydraulic cylinder is responsible for numerous "door dings".

Lock Ladder Column Design
This Atlas Lift has a commercial grade lock ladder. We believe that the lock ladder system is the safest locking system for any four post lift. The lock ladder system also provides an infinite number of runway locking positions. The "old-style" welded locks could not be adjusted. The lock ladder is adjustable inside the column so that our customers can "micro-manage" the correct runway height to accommodate any vehicle. The "lock ladder" column system is the same column system found on professional grade lifts found in car dealerships and automotive service centers.

Automatic Shut Off Switch
Shut off switch turns the lift off when maximum height is reached.


Air Operated Lock Release
The Single Point Air Operated Lock Release was designed for the Atlas Lifts and offers many more features than the locking systems on other four post lifts.

5 Year Structural & 2 Year Hydraulic Warranty
This Atlas product is warranted for five (5) years on structural components and one (2) year on electric or air / hydraulic power units and cylinders effective from date of invoice. Wear items carry a 90 day warranty.

CE Tested and Approved

Finally, the Atlas 412 features "tracks" between the runways to allow the use of a rolling bridge jack (such as the Atlas RJ6BK or Atlas RJ6BKAH) on the lift.

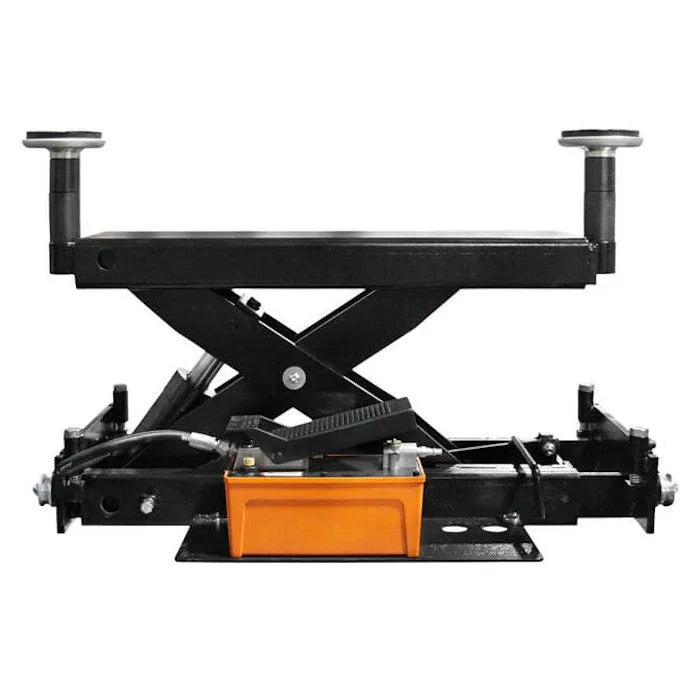

Atlas RJ-6000 Air Hydraulic Rolling Center Jack 6,000 lbs. Capacity
with Truck Adapters

The Atlas RJ6BK (Air/Hydraulic) is a heavy duty rolling jack designed to lift and support 6,000 lbs. The commercial grade RJ6BK (Air/Hydraulic) rolling jack can be used to raise the front or rear portion of a vehicle; allowing the operator of a four post above ground lift to perform wheel and brake service. Most commercial shops buy two of these hydraulic rolling jacks, so that the entire vehicle can be supported in the air at the same time.

The Atlas RJ6BK (Air/Hydraulic) has telescoping arms that can be extended over the runways of the four post lift. The lift pads at the end of these arms can be positioned under the LIFTING POINTS that are located over the runways of the four post lift. The Atlas RJ6BK (Air/Hydraulic) rolling bridge is equipped with expandable supports which adjust to fit many different brands of four post above ground lifts. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle. The large heavy steel wheels allow the rolling jack to be positioned under the correct lifting points in a matter of seconds.

The Atlas RJ6BK (Air/Hydraulic) comes standard with a set of peg style truck adapters which increases the lifting height of the lift pads. These truck adapters will allow the Atlas RJ6BK rolling hydraulic jack to raise most pick up and larger trucks that will sit higher than the average passenger car.

The Atlas RJ6BK (Air/Hydraulic) is equipped with an air/hydraulic pump. The air/hydraulic pump requires a supply of compressed air (air compressor) to work properly.

Important: The Atlas RJ6BK is designed and engineered to operate on "delivered" air pressure of between 70-95 PSI. If you exceed 95 PSI, you may damage your jack. For more information on the recommended operating air pressure of the Atlas RJ6BK, see below Specifications.

The Atlas RJ6BK (Air/Hydraulic) rolling hydraulic jack features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions of the Atlas RJ6BK (Air/Hydraulic) are engaged, the hydraulic pressure from the lifting cylinder of the jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).

Accessories/Options
