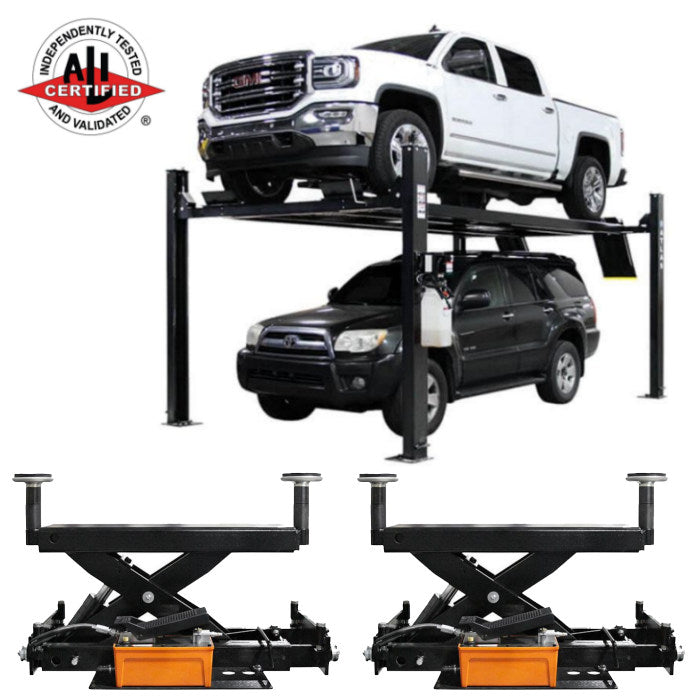

Atlas Apex 9 ALI Certified Four Post Lift + RJ6BK Rolling Jacks Combo

Description

Atlas Apex 9 ALI Certified Four Post Lift 9,000 lbs. Capacity +
RJ6BK Air Hydraulic Rolling Jacks 6,000 lbs. Capacity Combo

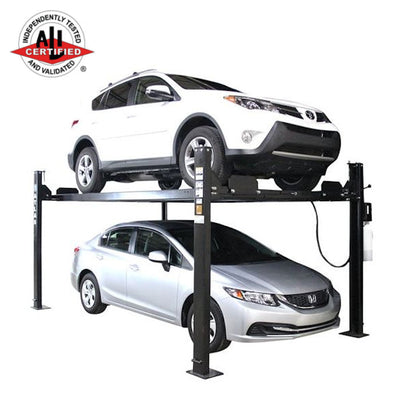

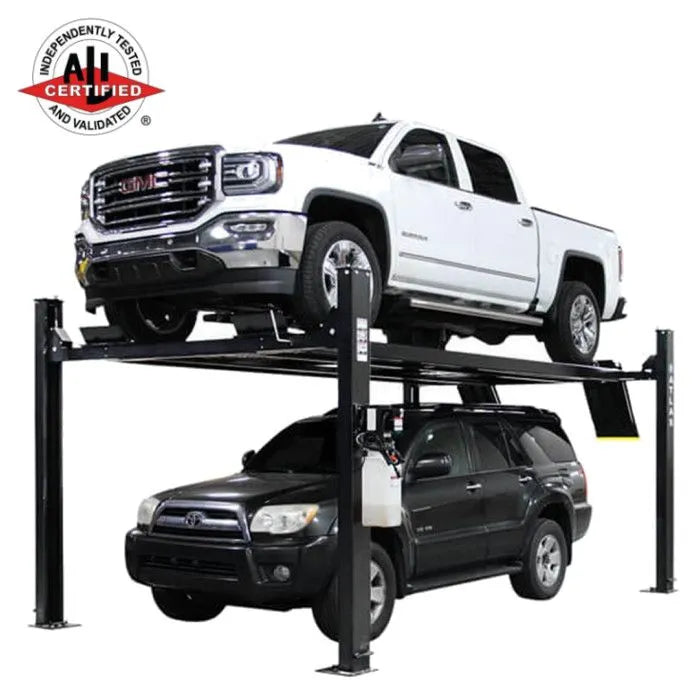

Atlas Apex 9 ALI Certified Four Post Lift
9,000 lbs. Capacity

All Atlas portable four post lifts (9,000 lbs. capacity) are designed and built for use by Mr. Homeowner or restoration shop. These lifts are not designed to work in commercial repair shops that raise and lower a lift several times per day. If you have questions about which lift will best suit your application, please contact us.

Single Point Lock Release
This Atlas Storage Lift has a manual single point release that allows the operator to release all the safety locks at one time. The spring loaded lock handle and power unit dump valve must be activated at the same time. (two hand operation) If the lock handle is released and the dump valve handle is still being pressed, the lift will continue to descend and all locks will automatically re-engage at the next lower lock point.

Double Lock Safety System
This Atlas Lift locking system offers a unique two position locking mechanism found only in commercial grade cable style four post lifts. The Double Lock Safety System is designed to ensure that if a lifting cable becomes slack (for any reason), the secondary locking mechanism automatically engages. This Double Lock Safety System is found only on other four post above ground lifts costing hundreds of dollars more.

Includes Heavy Duty Jack Tray
The sturdy jack tray allows for the use of floor jacks or bottle jacks to raise part of any vehicle positioned on the lift. The versatile Jack Tray is also great for holding tools when working under a vehicle or as a catch tray when changing fluids or replacing parts. The jack tray features a heavy duty design for safe, reliable support. The jacking tray can also be easily moved from one end of the lift to the other so you can position it where necessary for each job.

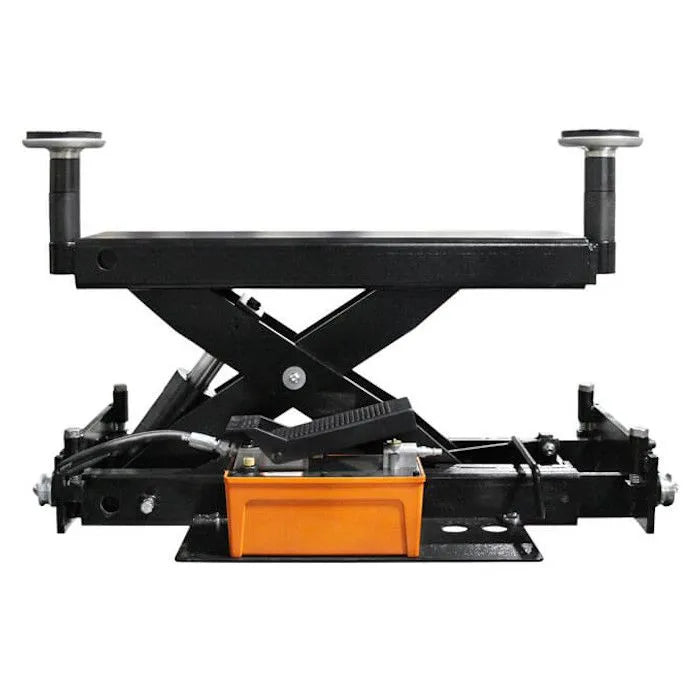

Atlas RJ-6000 Air Hydraulic Rolling Center Jack 6,000 lbs. Capacity
with Truck Adapters

The Atlas RJ6BK (Air/Hydraulic) is a heavy duty rolling jack designed to lift and support 6,000 lbs. The commercial grade RJ6BK (Air/Hydraulic) rolling jack can be used to raise the front or rear portion of a vehicle; allowing the operator of a four post above ground lift to perform wheel and brake service. Most commercial shops buy two of these hydraulic rolling jacks, so that the entire vehicle can be supported in the air at the same time.

The Atlas RJ6BK (Air/Hydraulic) has telescoping arms that can be extended over the runways of the four post lift. The lift pads at the end of these arms can be positioned under the LIFTING POINTS that are located over the runways of the four post lift. The Atlas RJ6BK (Air/Hydraulic) rolling bridge is equipped with expandable supports which adjust to fit many different brands of four post above ground lifts. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle. The large heavy steel wheels allow the rolling jack to be positioned under the correct lifting points in a matter of seconds.

The Atlas RJ6BK (Air/Hydraulic) comes standard with a set of peg style truck adapters which increases the lifting height of the lift pads. These truck adapters will allow the Atlas RJ6BK rolling hydraulic jack to raise most pick up and larger trucks that will sit higher than the average passenger car.

The Atlas RJ6BK (Air/Hydraulic) is equipped with an air/hydraulic pump. The air/hydraulic pump requires a supply of compressed air (air compressor) to work properly.

Important: The Atlas RJ6BK is designed and engineered to operate on "delivered" air pressure of between 70-95 PSI. If you exceed 95 PSI, you may damage your jack. For more information on the recommended operating air pressure of the Atlas RJ6BK, see below Specifications.

The Atlas RJ6BK (Air/Hydraulic) rolling hydraulic jack features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions of the Atlas RJ6BK (Air/Hydraulic) are engaged, the hydraulic pressure from the lifting cylinder of the jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).
