Atlas CycleLift Motorcycle Lift with Dropout Panel

In Stock SKU ATEHT-CYCLELIFT UPC 810524020411

OUR PRICE: $1,599.00

Regular Price: $1,679.00

$44.41 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

Atlas CycleLift Motorcycle Lift with Dropout Panel
1,000 lbs. Capacity Air Operated

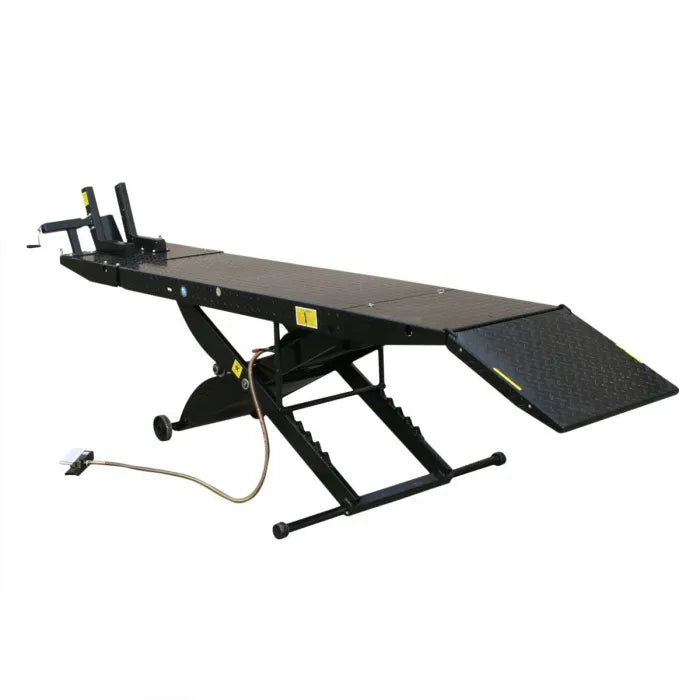

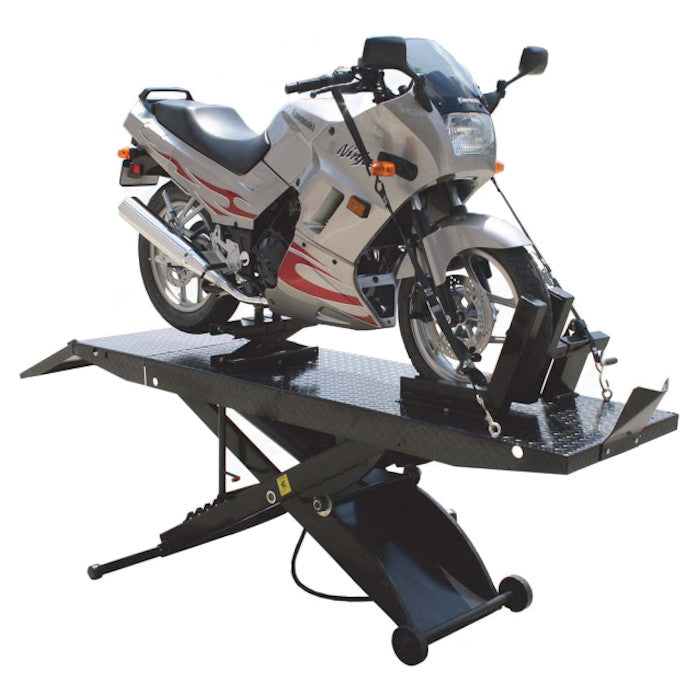

The Atlas CycleLift Motorcycle lift has one of the industry's longest (standard) platforms to accommodate extra long motorcycles. The motorcycle lift has a heavy gauge diamond plated platform length of 93 inches and an additional 20 inch removable approach ramp. Includes removeable rear drop out panel, padded front wheel vise, stabilizer bar, heavy-duty air operated foot valve, and approach ramp. ATVs can be accommodated with optional side extension kit.

Also Available With Side Extensions

Description

Atlas Automotive Equipment

Atlas CycleLift Motorcycle Lift with Dropout Panel
1,000 lbs. Capacity Air Operated

The Atlas CycleLift Motorcycle lift has one of the industry's longest (standard) platforms to accommodate extra long motorcycles. The motorcycle lift has a heavy gauge diamond plated platform length of 93 inches and an additional 20 inch removable approach ramp.

The Atlas CycleLift is air operated and requires between 90-100 PSI to operate. The CycleLift is the perfect addition to any service department of professional motorcycle dealers or is a great motorcycle lift for the person who wants to work on his personal bike in their own garage.

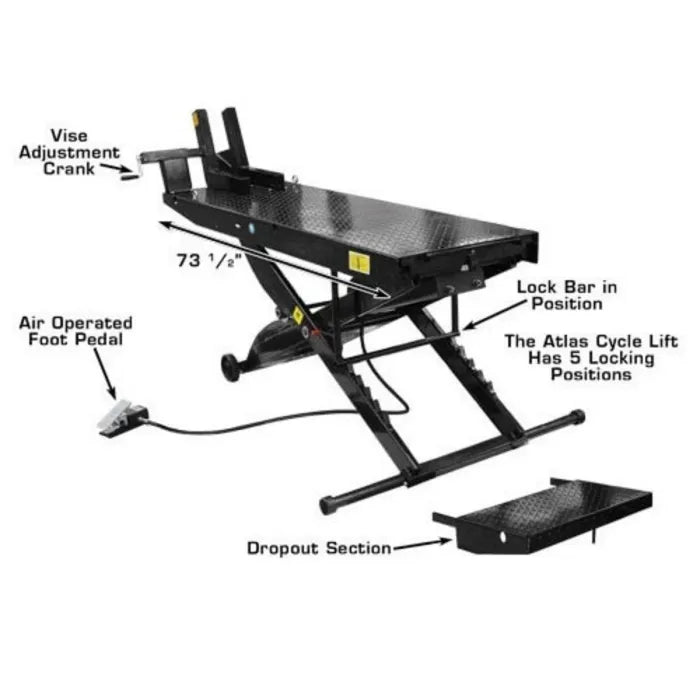

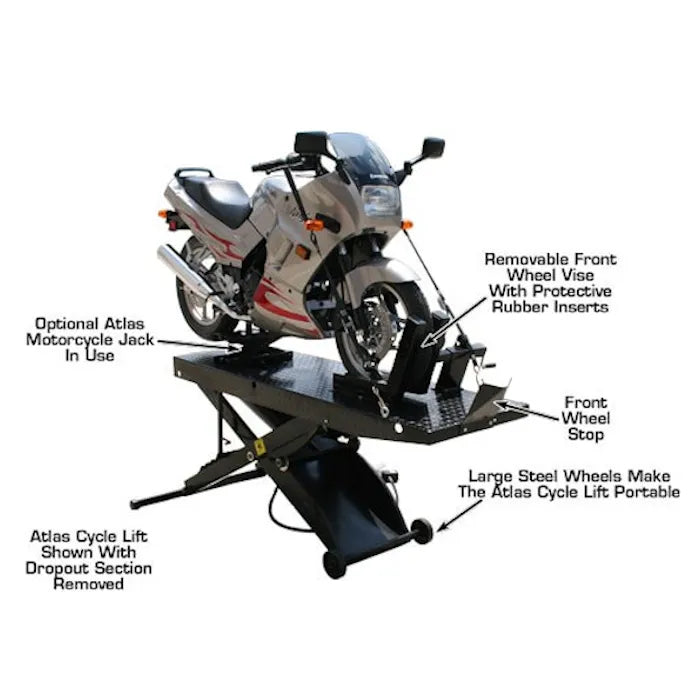

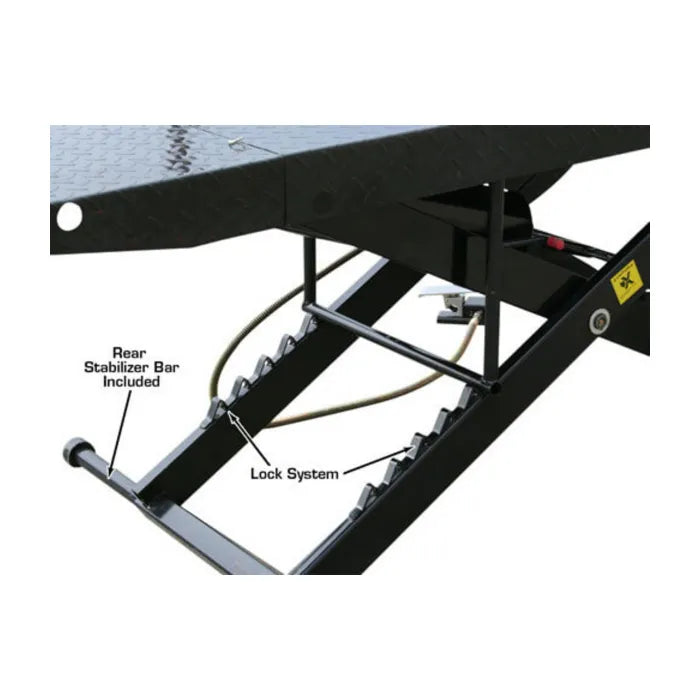

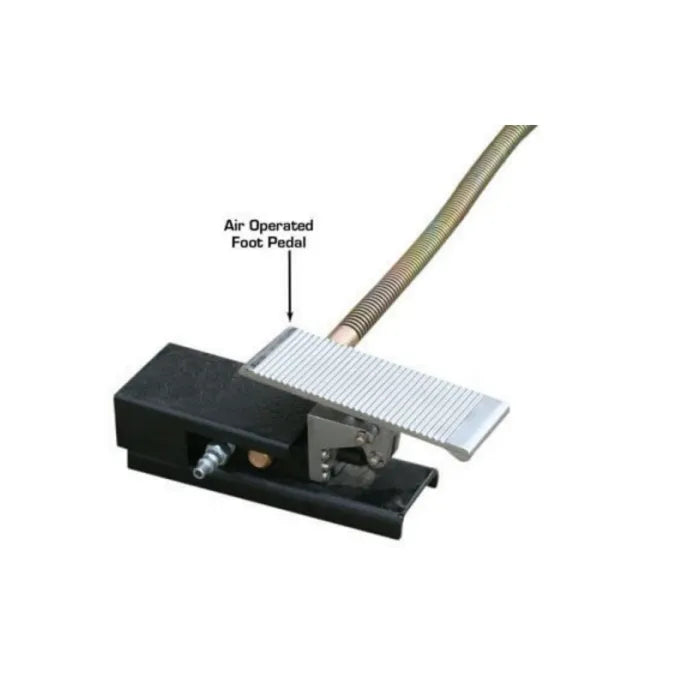

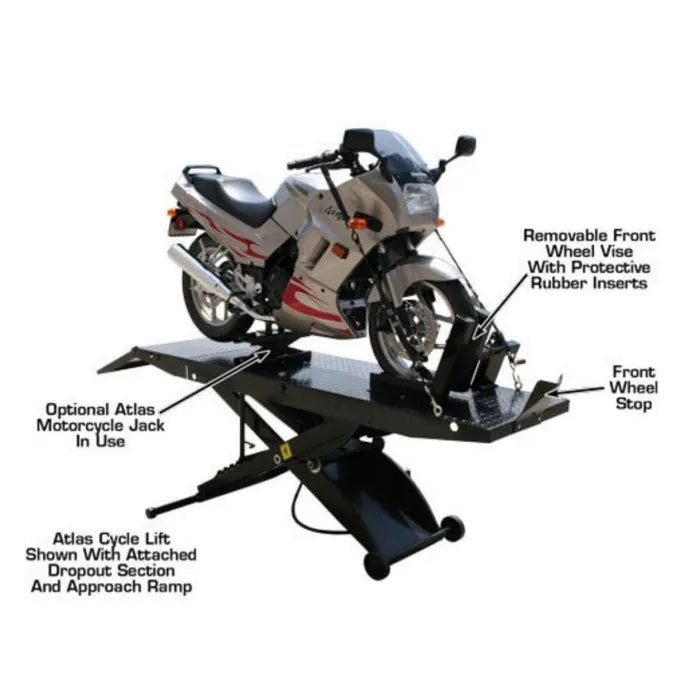

This is a complete motorcycle lift that includes an adjustable front (padded) wheel vise and a heavy duty air operated foot valve for easy raising and lowering. The stabilizing bar is included at no extra charge. This bar provides greater stability for the raised platform by increasing the "footprint" of the lift. Many companies do not include this very important stabilizing bar in their "lift package".

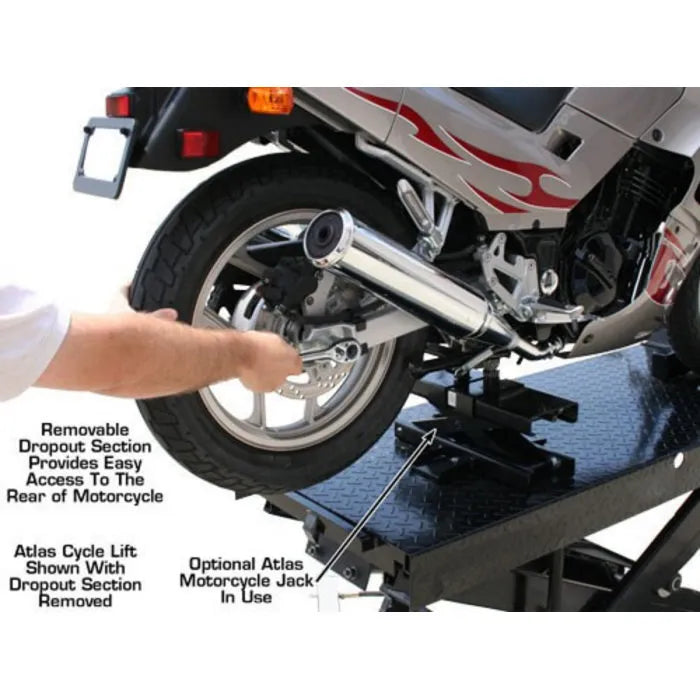

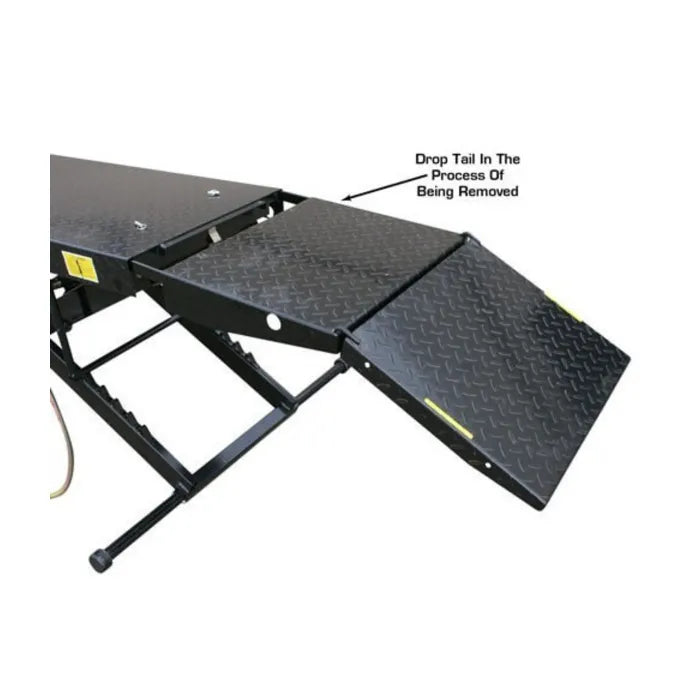

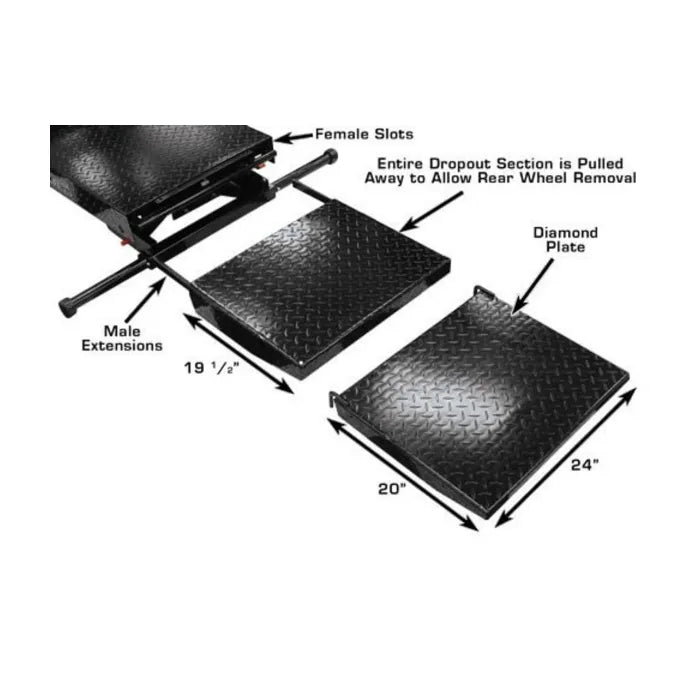

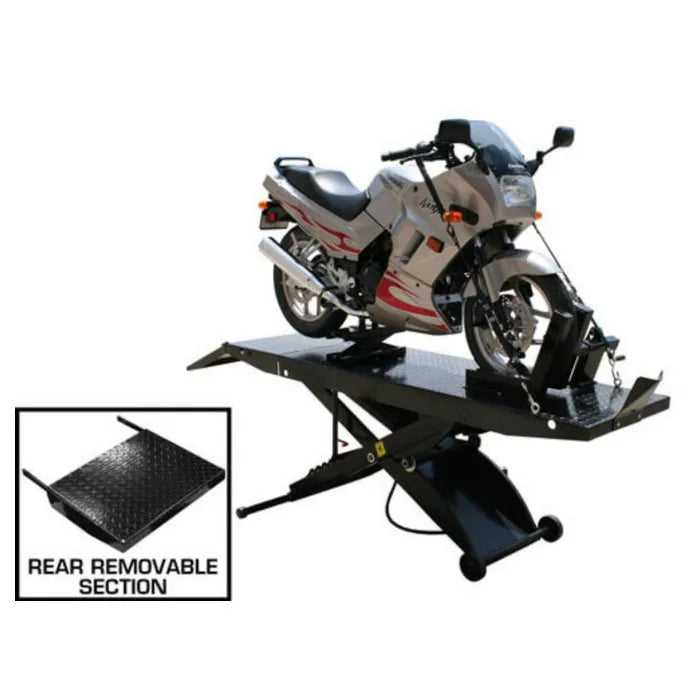

The Atlas CycleLift motorcycle lift comes standard with a 20" removable rear section. This 20" section can be easily removed so that a rear tire can be "dropped straight down" from the rear axle. Since the entire platform width is removed, any sized rim can be lowered from the axle.

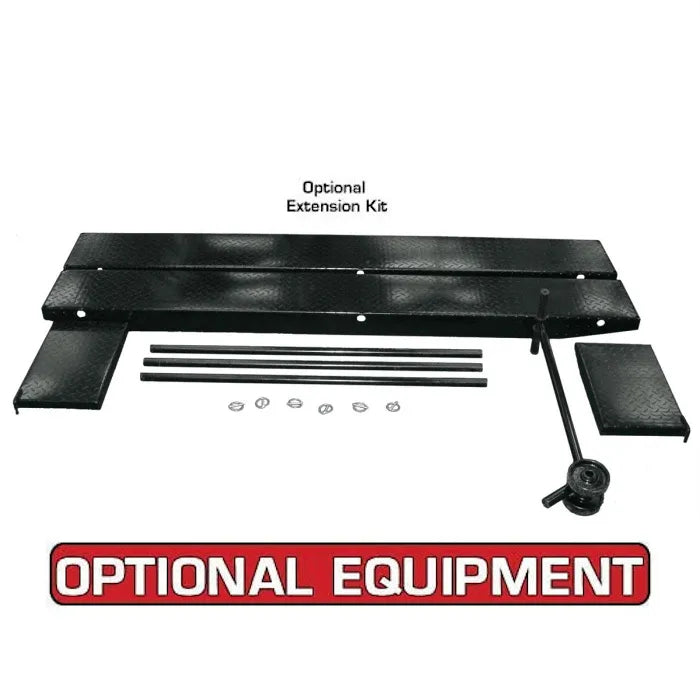

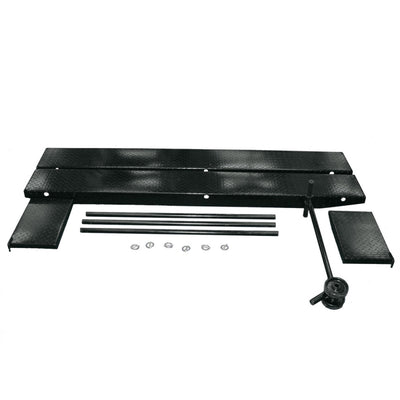

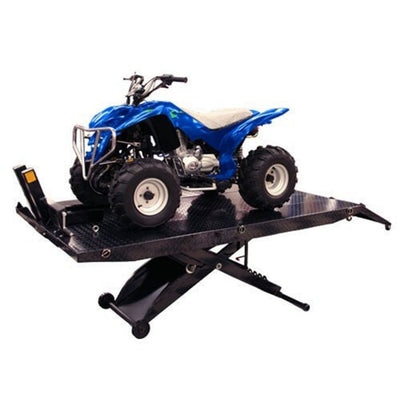

For those customers looking for more width to pick up ATVs, UTVs, Golf Carts, and other wider vehicles the Atlas CycleLift can be equipped with the Atlas CycleLift Side Extension Kit to increase the width up to 4 feet.

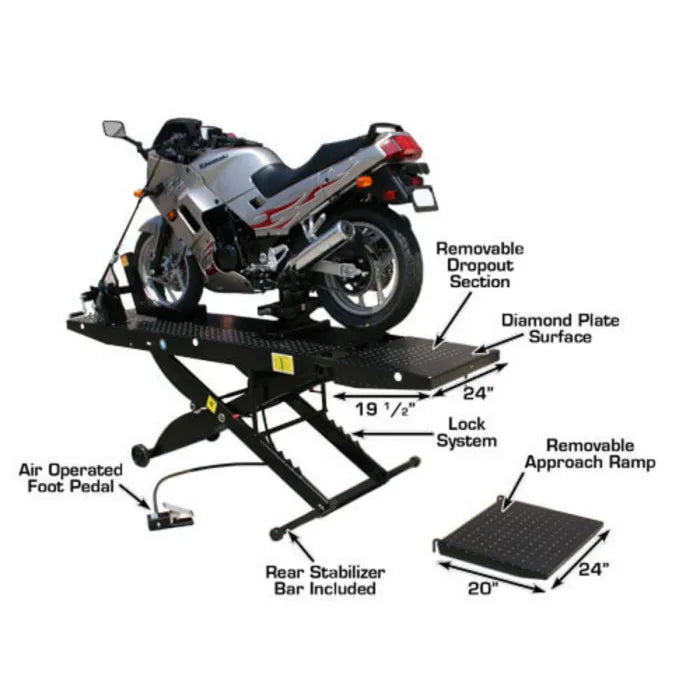

Features & Specs

Features

  • 1,000 lbs. Capacity
  • 93" Extended Table Length Accommodates Extra Long Motorcycles
  • Additional 20" Removeable Approach Ramp
  • 33" Full Lift Height
  • Diamond Plate Surface
  • Air Operated (External Air Supply Required)
  • Removeable Rear Section for Wheel Removal
  • Heavy-Duty Foot Pedal Control Included
  • Stabilizing Bar Included
  • Padded Front Wheel Vise Included

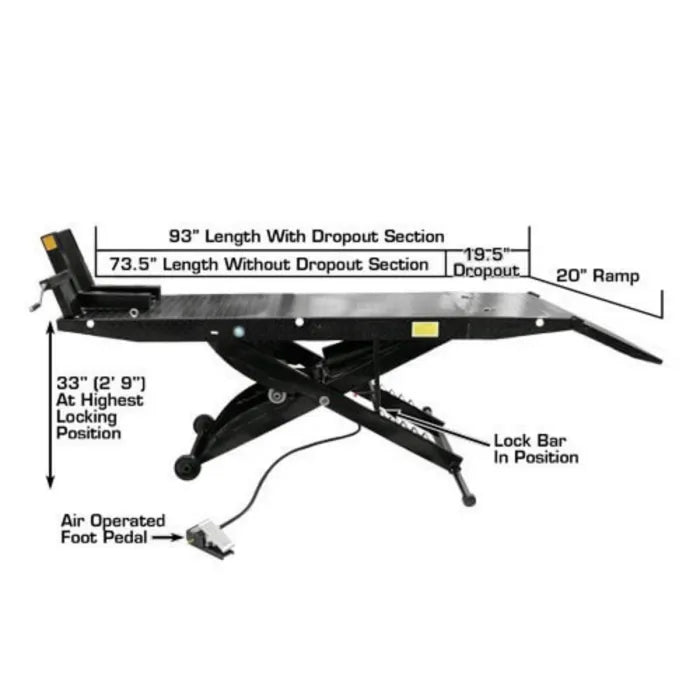

Specifications

  • Weight Capacity: 1,000 lbs.
  • Length With Ramp: 113" (9' 5")
  • Table Length Without Ramp: 93" (7' 9")
  • Width: 24" (2')
  • Lift Height: 33" (2' 9")
  • Lowered Height: 7 1/4"
  • Removable Approach Ramp: 20"

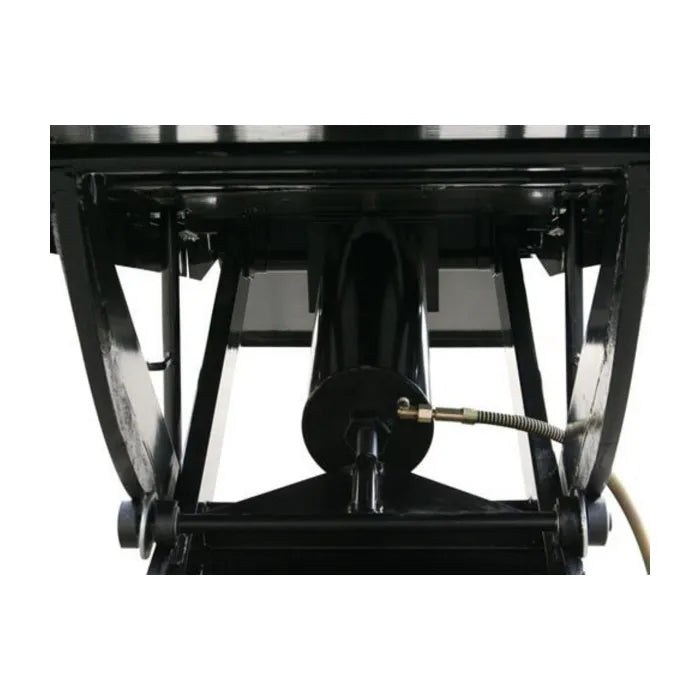

  • Cylinder: 7" (Internal Size = 6")
  • Air Requirements: 90 - 100 psi

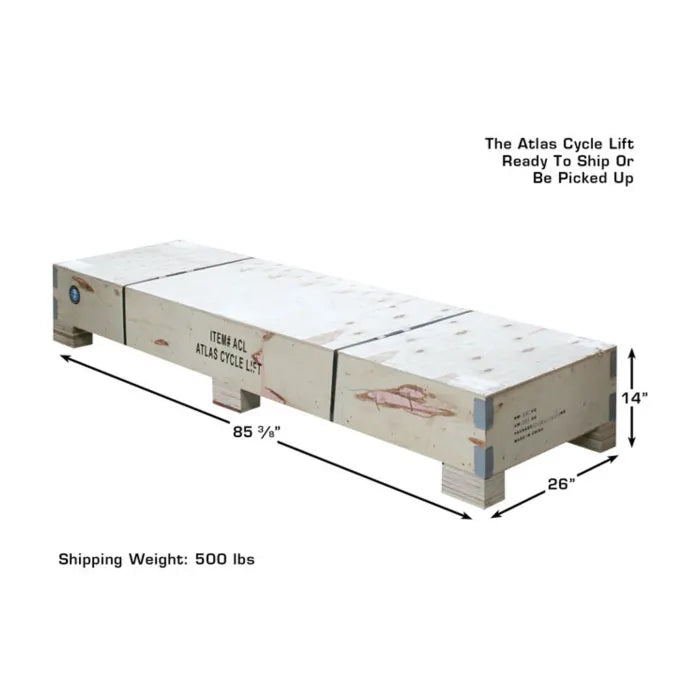

  • Shipping Weight: 500 lbs.
  • Warranty: (1) Year Limited Parts Only

Optional Accessories

  • Side Extension Kit

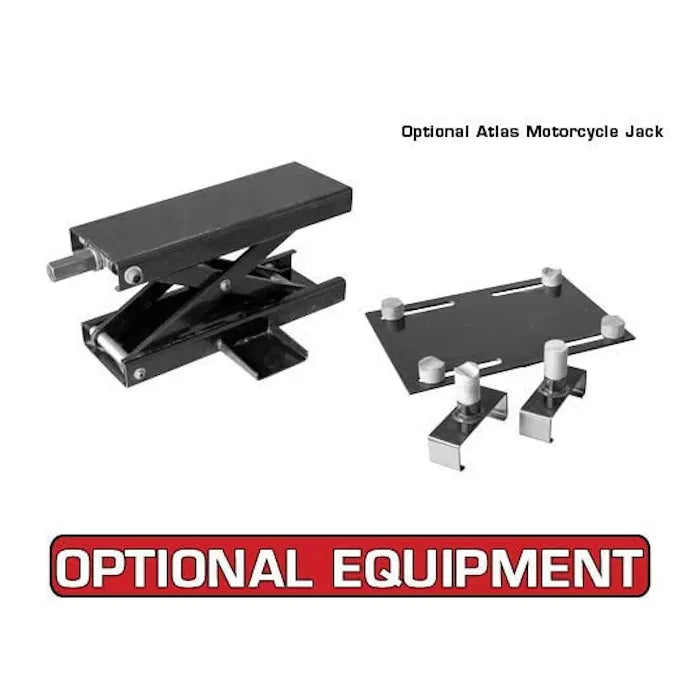

  • Motorcycle Jack

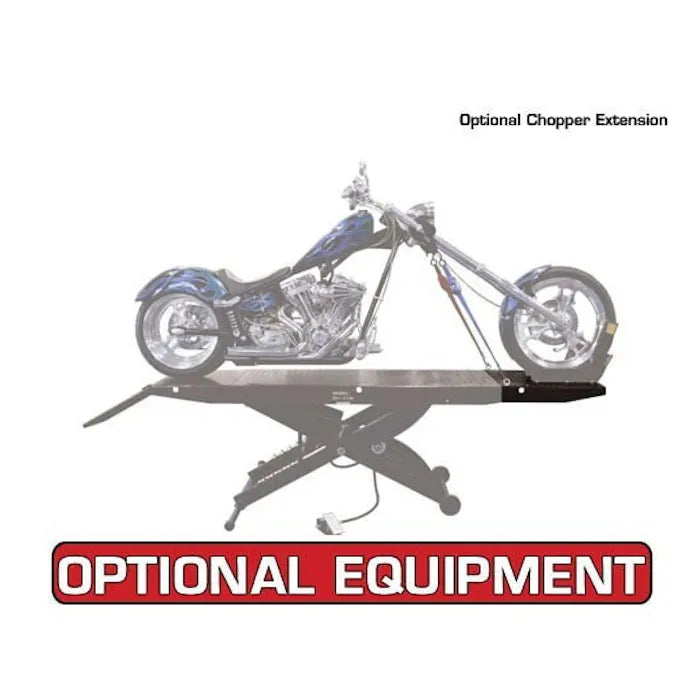

  • Chopper Extension
