Atlas HI-RISE 1500 Motorcycle ATV Lift

In Stock SKU ATEHT1005-KIT UPC 810524000000

OUR PRICE: $2,899.00

Regular Price: $3,049.00

$80.52 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

Atlas HI-RISE 1500 Motorcycle ATV Lift
1,500 lbs. Capacity Air Operated
The Atlas HI-RISE 1500 Motorcycle ATV Lift is one of the industry's most popular motorcycle and ATV lifts. This lift has a manufacturer rating of 1,650 lbs. but we rate the lift at 1,500 lbs., because we always under rate our weight capacities. The HI-RISE 1500 is powered by a high quality air/hydraulic pump which is included. This lift requires 100 PSI from an outside air source (not included). This is a complete motorcycle/ATV lift and includes an adjustable front padded wheel vise, removeable rear drop out section, chopper extension, and four retractable casters.

Description

Atlas Automotive Equipment

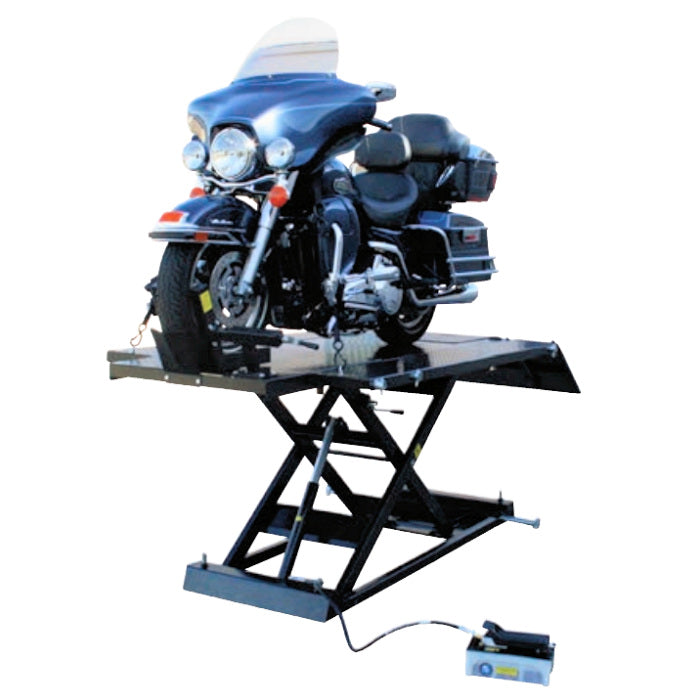

Atlas HI-RISE 1500 Motorcycle ATV Lift
1,500 lbs. Capacity Air Operated

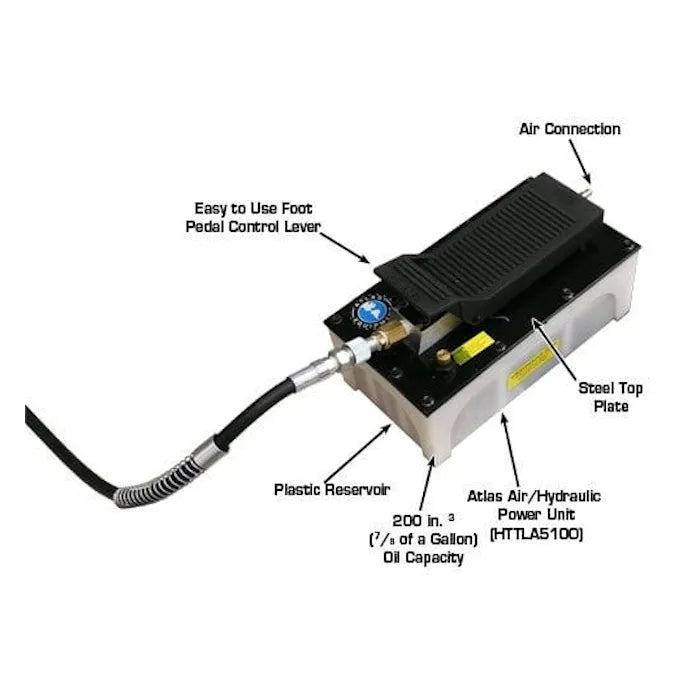

The Atlas HI-RISE 1500 Motorcycle ATV Lift is one of the industry's most popular motorcycle and ATV lifts. This lift has a manufacturer rating of 1,650 lbs. but we rate the lift at 1,500 lbs., because we always under rate our weight capacities. The HI-RISE 1500 is powered by a high quality air/hydraulic pump which is included. This lift requires 100 PSI from an outside air source (not included).

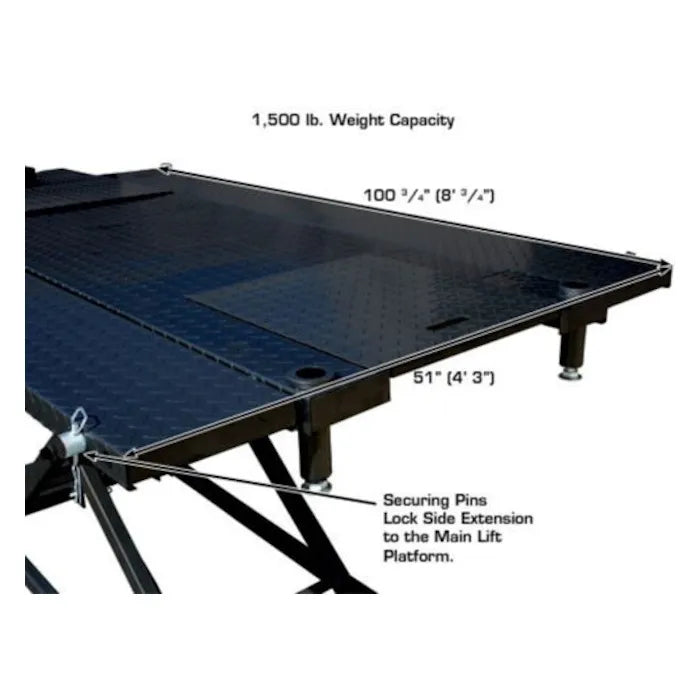

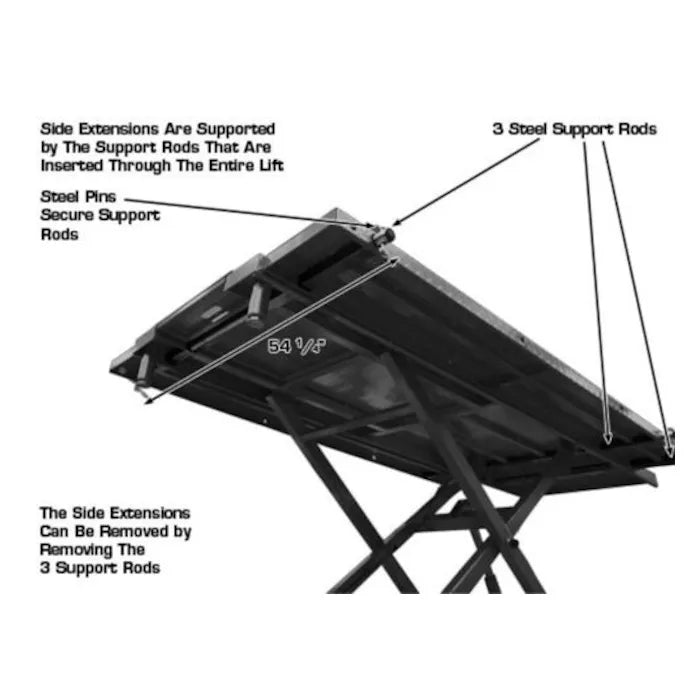

The Atlas HI-RISE 1500 has an extra tall lift height of 43 inches. This increased lifting height makes it easier to work on vehicles while the operator is standing. This lift comes standard with a chopper extension making the center table 100 3/4 inches long and able to accept some of the longest choppers. The lift also comes standard with a side extension kit, with an overall table width of 51 1/8 inches, and is able to easily lift ATVs, UTVs, Golf Carts, Lawnmowers and other four wheel vehicles. The HI-RISE 1500 is the perfect addition to any service department of professional motorcycle dealers or equipment service shop or even a homeowner who wants to work on bikes or ATVs in their own garage.

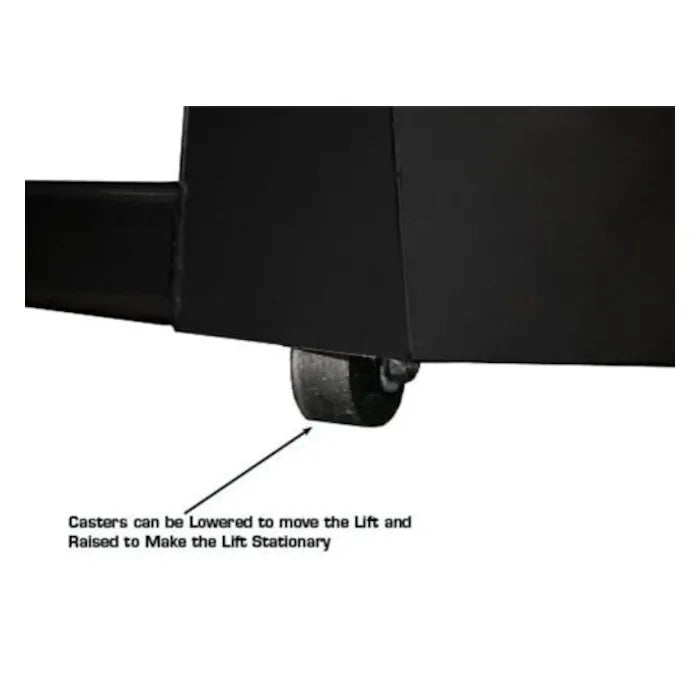

This is a complete motorcycle/ATV lift and besides the features above includes an adjustable front (padded) wheel vise and a removeable rear drop out section. The Atlas HI-RISE 1500 has a wide solid base for greater stability and which incorporates screw casters that can be lowered to move the lift and retracted when working.

Features & Specs

Features

  • 1,500 lbs. Capacity

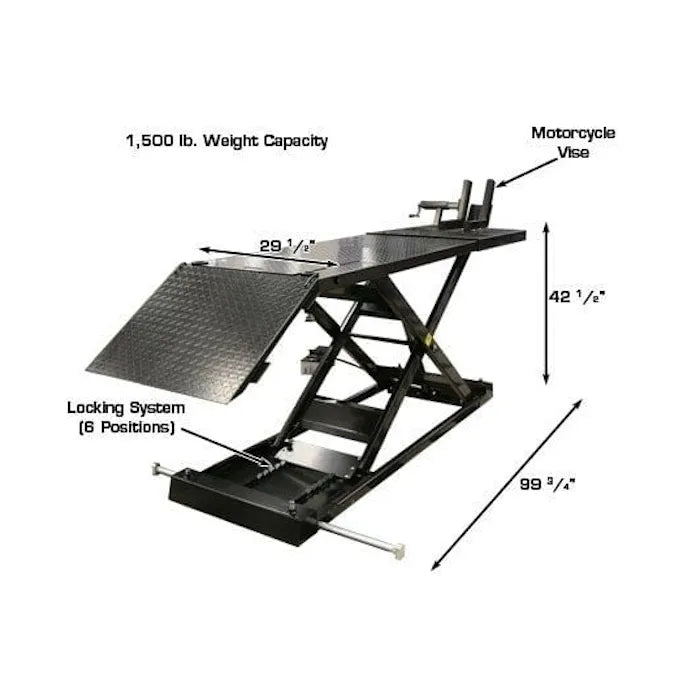

  • Extra Tall 42 1/2" Full Rise Height

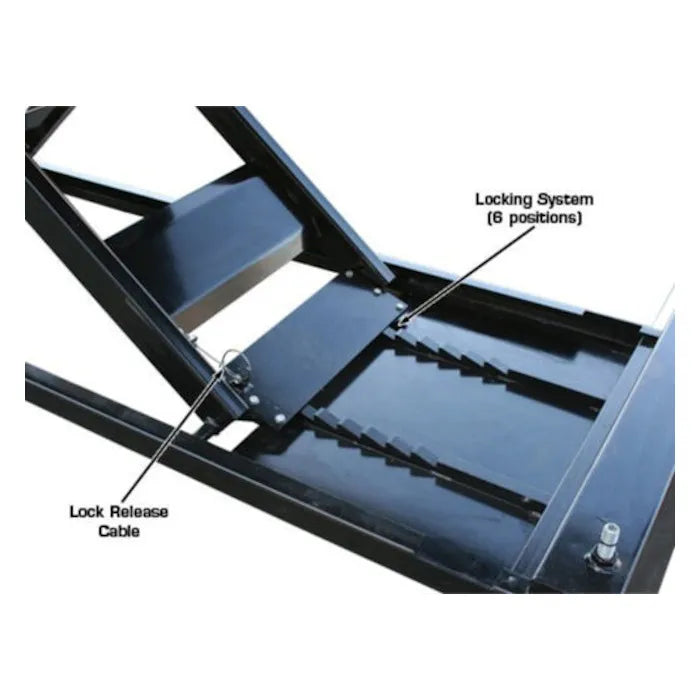

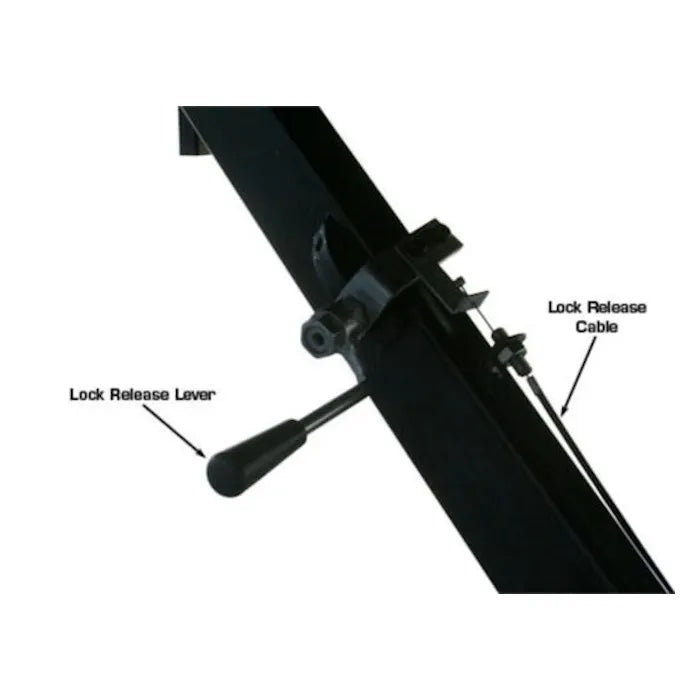

  • 6 Locking Height Positions

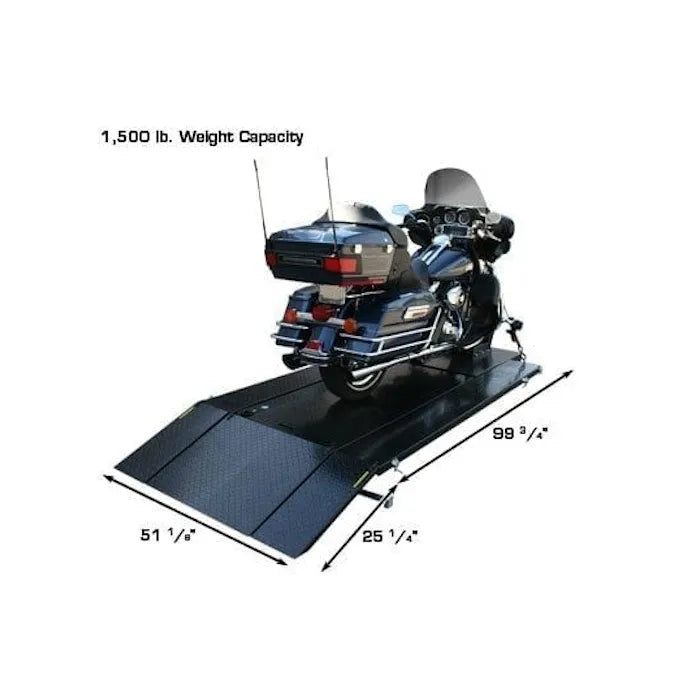

  • 51 1/8" Table Width (With Extension Kit Installed)
  • 99 3/4" Extended Table Length Accommodates Extra Long Motorcycles
  • Full Width Removeable Approach Ramps
  • Diamond Plate Surface
  • Air Operated (External Air Supply Required)
  • Removeable Dropout Panel for Wheel Removal
  • Portable With 4 Retractable Casters
  • Chopper Extension Included

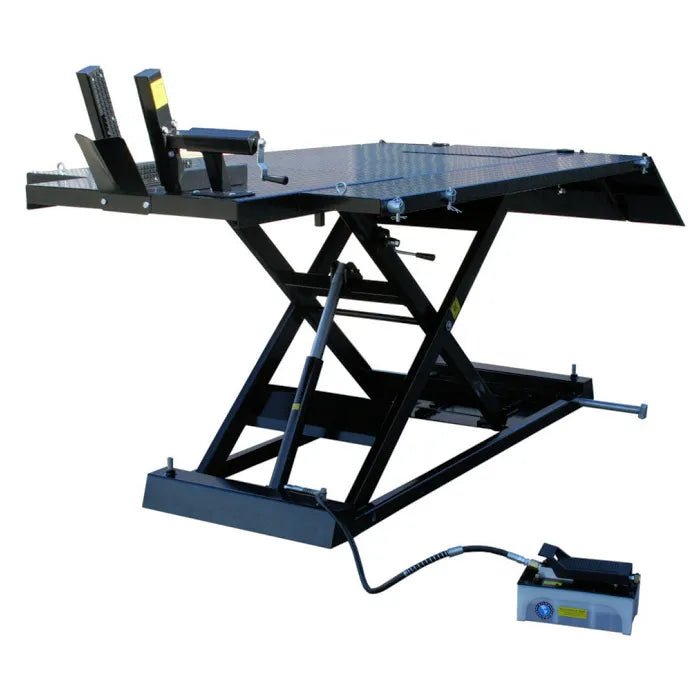

  • Heavy-Duty Foot Pedal Control Included

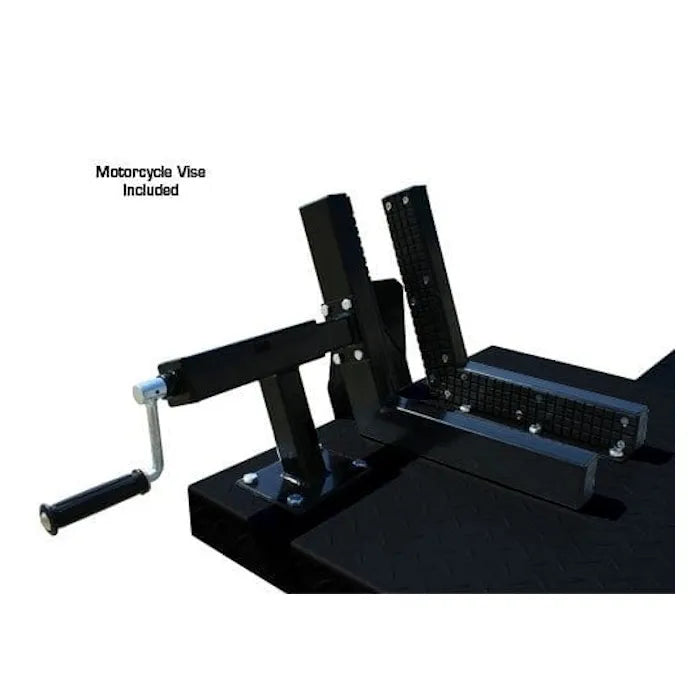

  • Padded Front Wheel Vise Included

Specifications

  • Weight Capacity: 1,500 lbs.

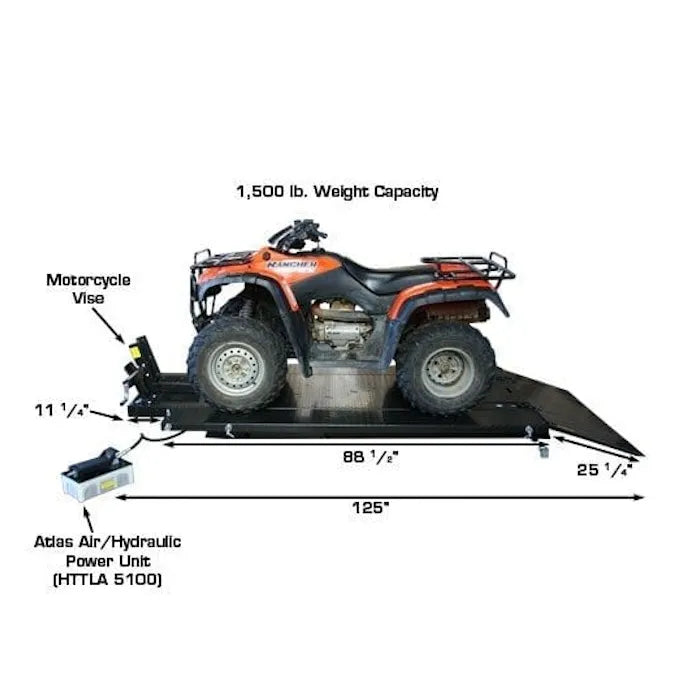

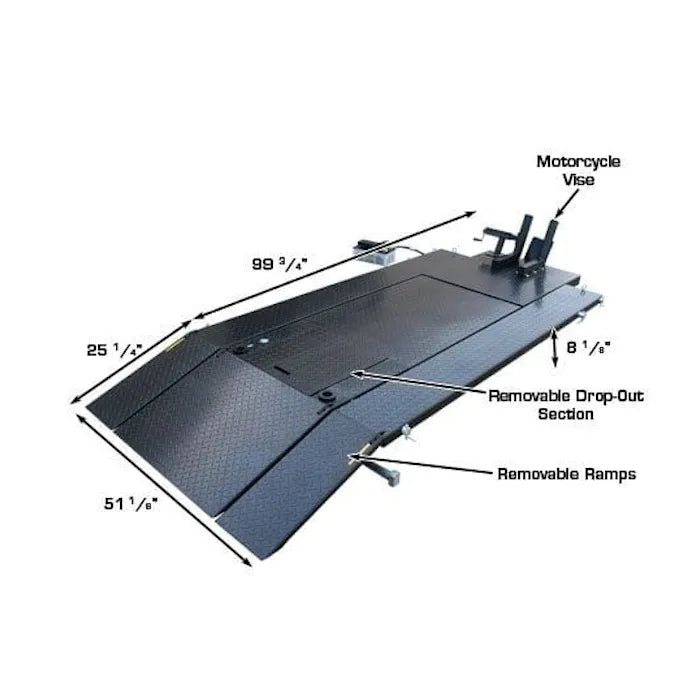

  • Length With Ramp: 125" (10' 5")
  • Center Table Length Without Ramp: 99 3/4" (8' 3 3/4")
  • Side Extension Length Without Ramp: 88 1/2" (7' 4 1/2")
  • Center Table Width With Side Extensions: 51 1/8" (4' 3 1/8")
  • Side Extension Width With Side Extensions: 29 1/2" (2' 5 1/2")

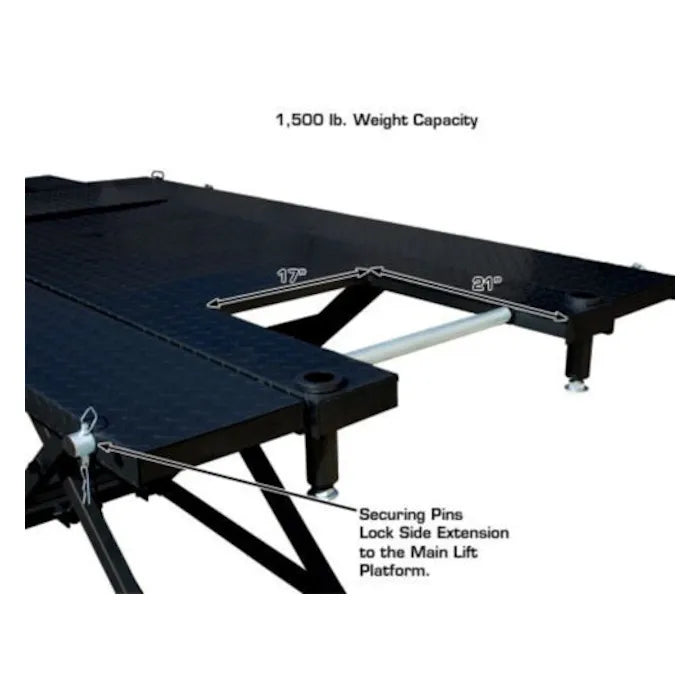

  • Rear Drop Out: 17" x 20"

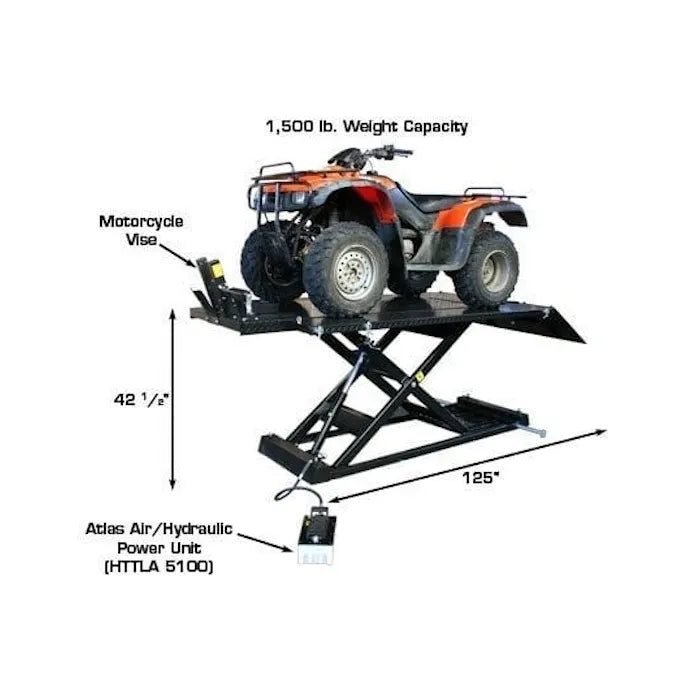

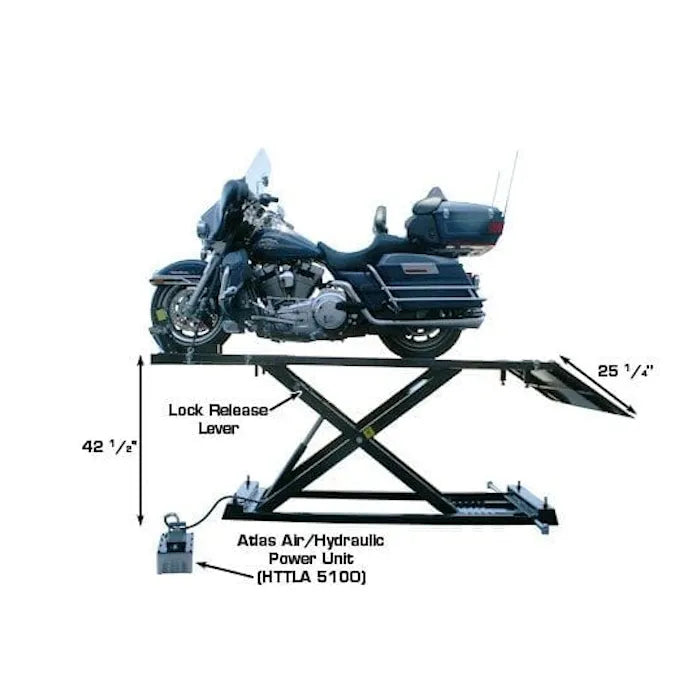

  • Height Fully Raised: 42 1/2" (3' 6 1/2")
  • Lowered Height: 8 1/8"
  • Air Requirements: 90 - 100 psi
  • Shipping Weight: 800 lbs.
  • Warranty: (1) Year Limited Parts Only
