REDUCED!
Atlas ML-6045BC Wired Mobile Column Lifts Set of 6
In Stock SKU ATEML-6045BC
OUR PRICE: $46,533.00
Regular Price: $48,859.00
Short Description
Atlas ML-6045BC Wired Mobile Column Lifts Set of 6
99,000 lbs. Lifting Capacity Battery Powered

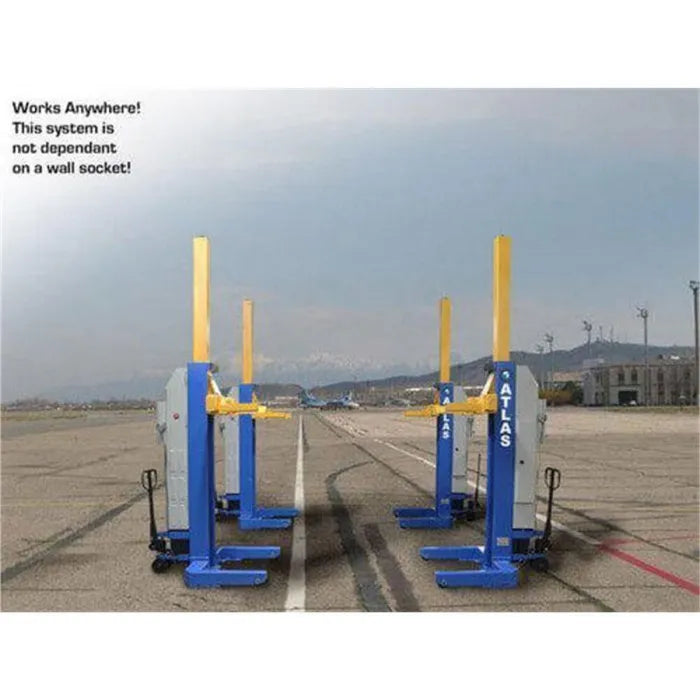

The Maxima Mobile Column Lift System from Atlas Automotive Equipment is the perfect choice for any repair shop that needs to safely raise those heavier trucks but has limited bay space. Each heavy duty mobile column is powered by a 2.2 Kw DC motor and equipped with a pair of rechargeable batteries. This, coupled with the hydraulic pallet jack system on each column, allows for unparalleled freedom of movement. The columns may even be moved outside for use on a level concrete surface with a minimum thickness of six (6) inches. The mobile columns can be easily stored out of the way when not in use. Atlas Mobile Column Lifts are ALI and ETL Certified.
Description

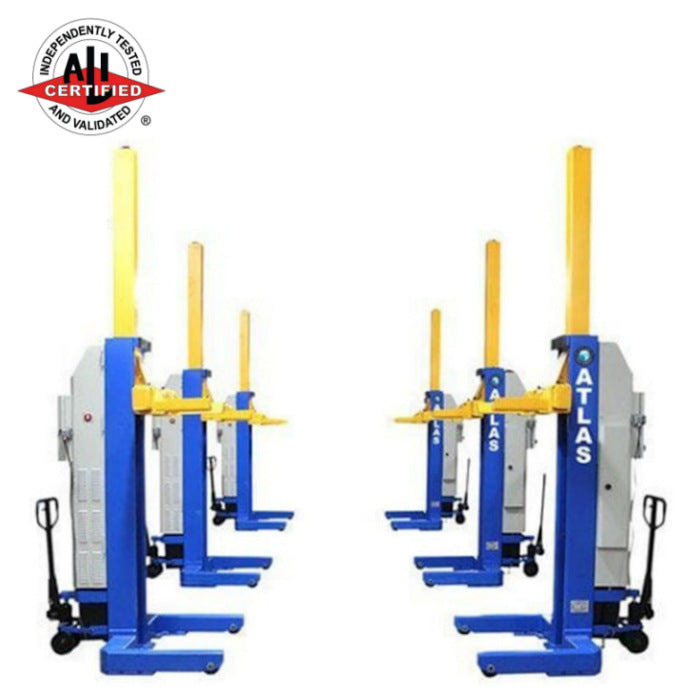

Atlas ML-6045BC Wired Mobile Column Lifts Set of 6
99,000 lbs. Lifting Capacity Battery Powered

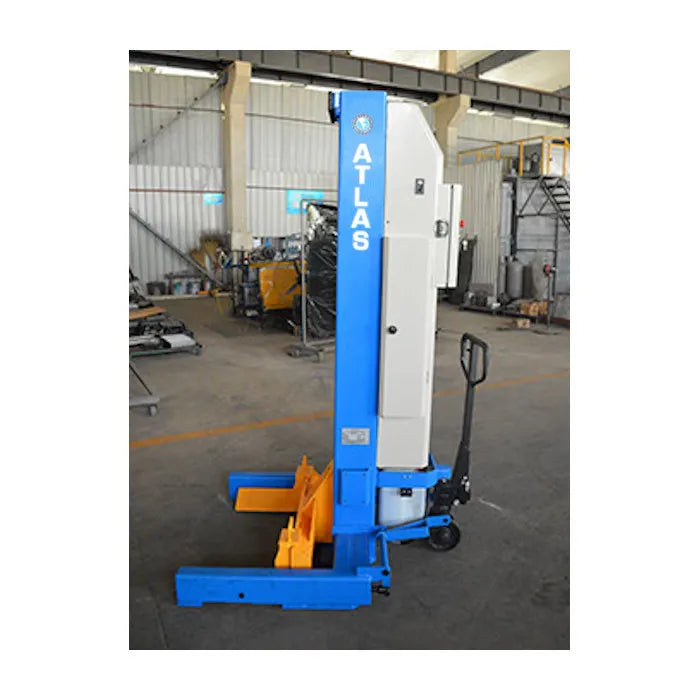

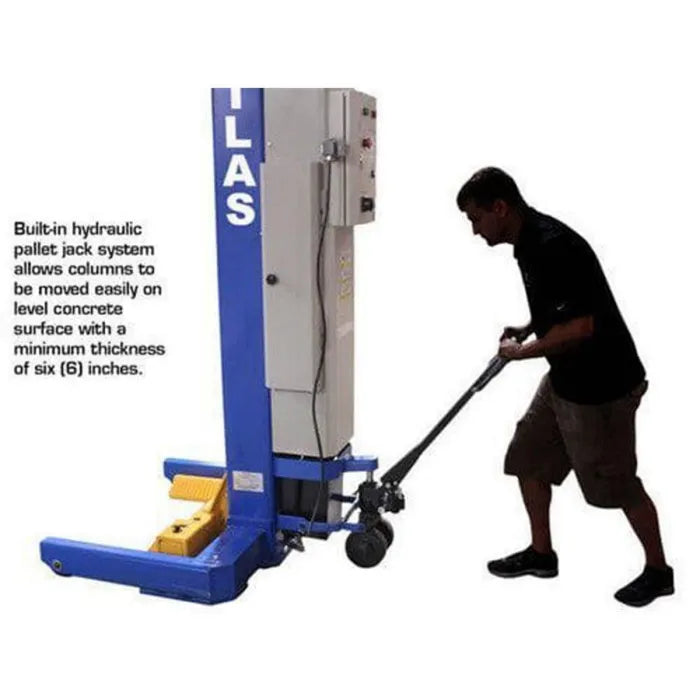

The Maxima Mobile Column Lift System from Atlas Automotive Equipment is the perfect choice for any repair shop that needs to safely raise those heavier trucks but has limited bay space. Each heavy duty mobile column is powered by a 2.2 Kw DC motor and equipped with a pair of rechargeable batteries. This, coupled with the hydraulic pallet jack system on each column, allows for unparalleled freedom of movement. The columns may even be moved outside for use on a level concrete surface with a minimum thickness of six (6) inches. The mobile columns can be easily stored out of the way when not in use. Atlas Mobile Column Lifts are ALI and ETL Certified.
The ML-6045BC Wired Mobile Column Lift Set of 6 offers you full lifting capacity for both short and long wheel base vehicles. The lifting capacity and maximum vehicle wheelbase length may be increased by adding 2 extra columns. Easily adjustable forks can accommodate tire diameters from 19 inches to 44 inches. Each solid one-piece powder coated column is equipped with an LCD screen, double safety locks, an emergency stop button, and has a lifting capacity of 16,500 lbs.

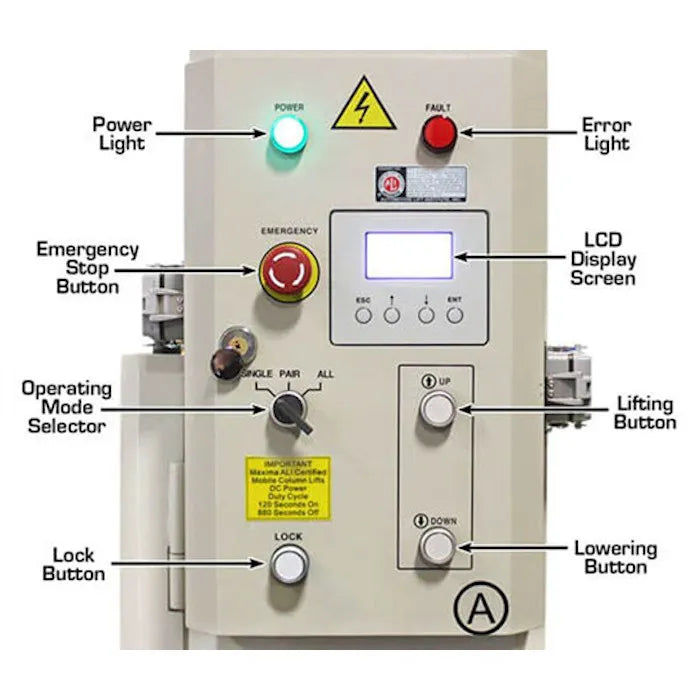

The onboard smart system features simultaneous operation of all columns, exact lifting height of each column, self-diagnostics, self-calibrations, an electronic controlled trolley lock system and a dual redundant PLC electronic synchronizing system for level columns.

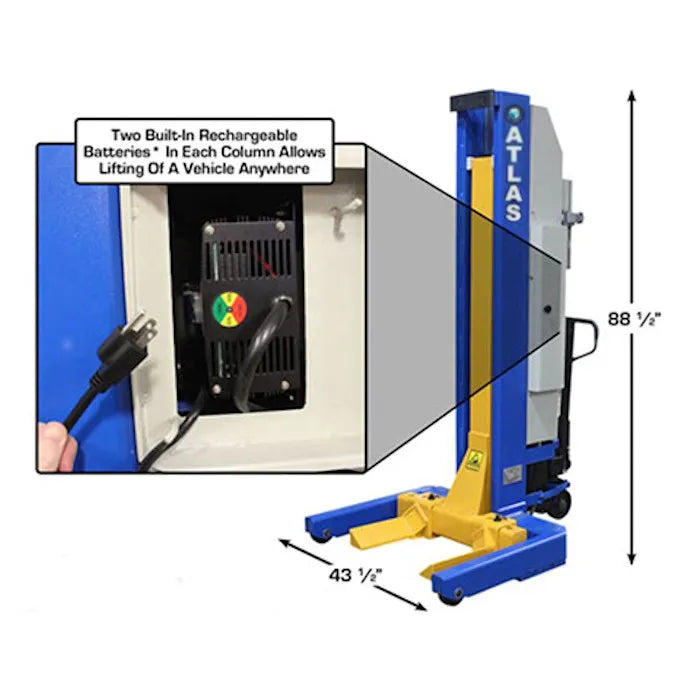

Battery power lasts 10-20 lifts depending on load and is recharged with attached 110V Single (1) phase cord. Two industrial grade deep cycle gel batteries are included for each column and has an auto charge feature for fast battery recharging. Optional Tripod Support Stands can be used to support vehicles for wheel service. THIS PRODUCT DROP SHIPS FROM THE MANUFACTURER.
Features & Specs
Features
- Lifting Capacity Per Column 16,500 lbs.
- Expandable To Four, or Six Column Configuration
- Four Column System 66,000 lbs. Capacity

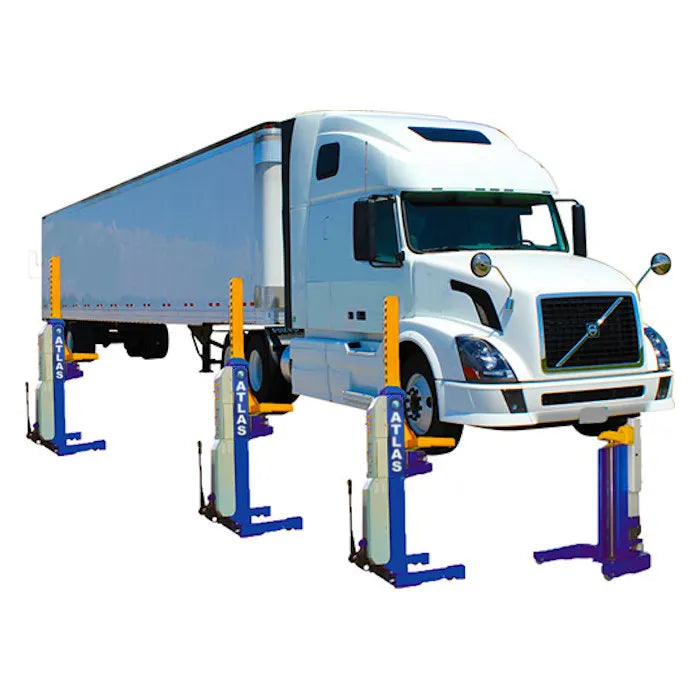

- Six Column System 99,000 lbs. Capacity
- Eight Column System 132,000 lbs. Capacity
- Supports Light Duty Passenger Vehicles Up To Heavy-Duty Trucks
- Simultaneous Operation Of All Columns
- LCD Screen Shows Exact Lifting Height Of Each Column
- Smart System Features Self-Diagnostics And Self-Calibration Functions
- Electronic Controlled Trolley Lock System For Level Columns
- Double-Safety Guaranteed By Both Hydraulic Flow Control And Mechanical Locks
- Dual Redundant PLC Electronic Synchronizing For Level Lifting
- Each Column Equipped With Warning Light And Audible Alarm
- Portable Columns Make Your Work Easy And Comfortable

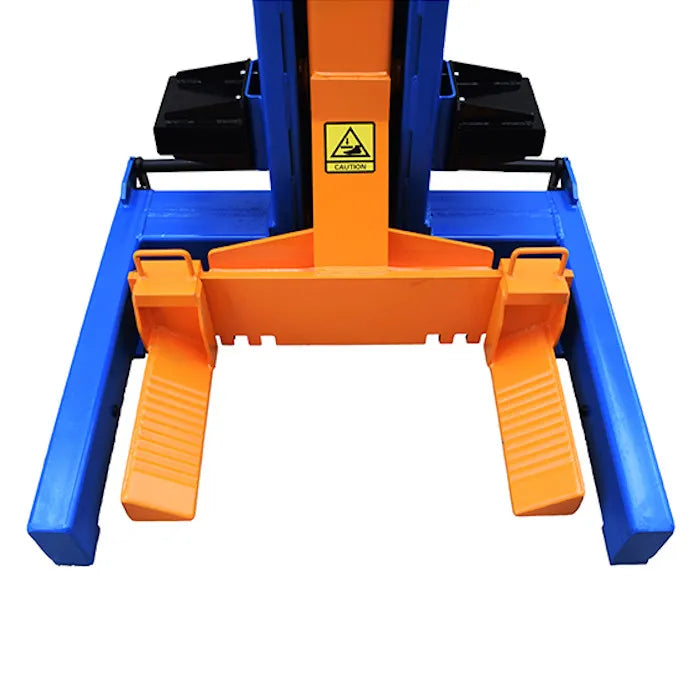

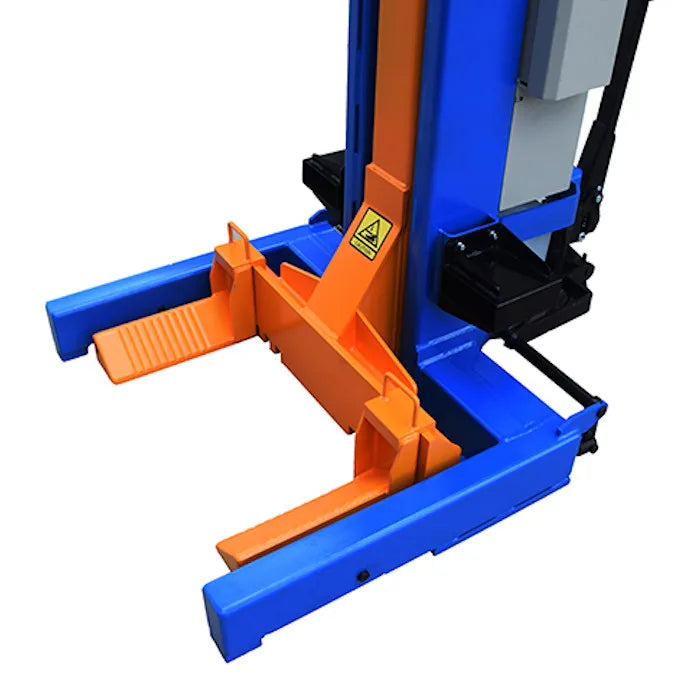

- Adjustable-Width Wheel Forks With Locking Pins

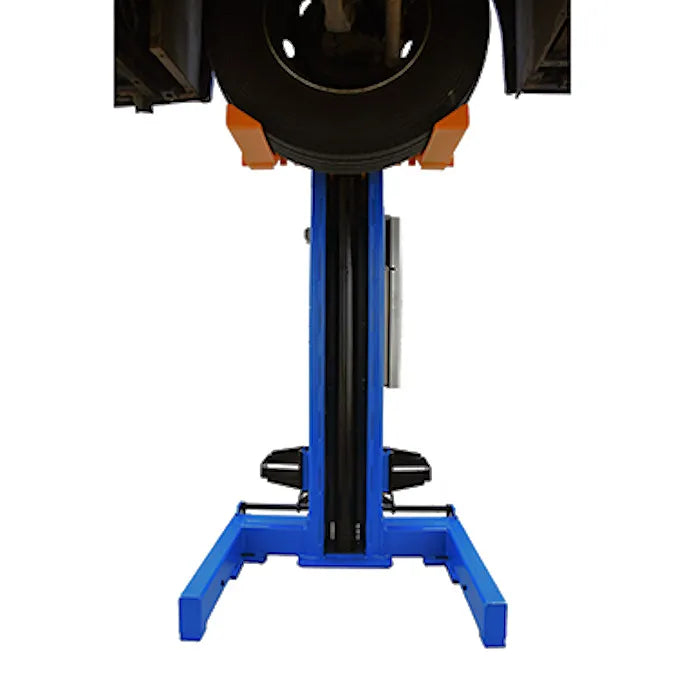

- Accommodate Widest Range Of Wheels From 19" To 44"
- Solid One-Piece Column And Heavy-Duty Guide Bearings For Smooth Operation
- Emergency Stop Button On Every Column
- 2.2 Kw 24V DC Motor With Two Batteries Per Column
- Industrial Grade Deep Cycle Gel Batteries Included
- Auto Charge Feature For Fast Battery Recharging
- Powder Coated Paint For Extra-Long Protection

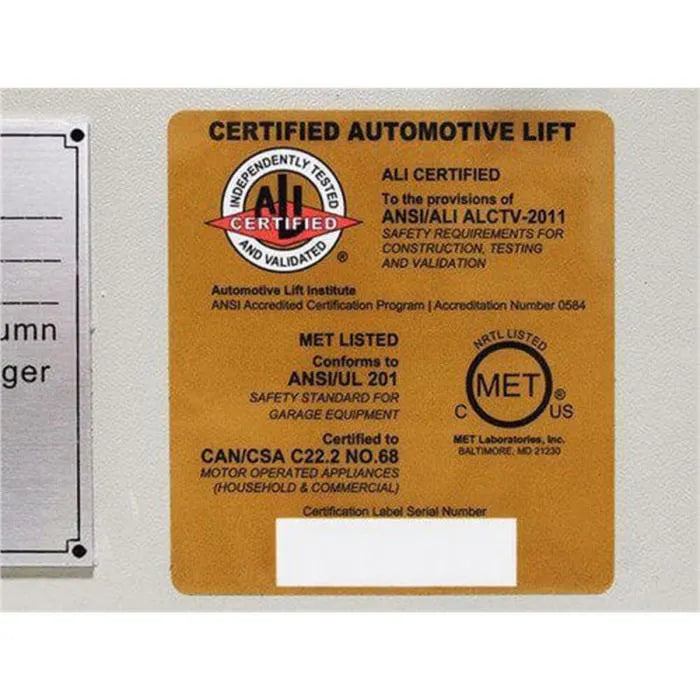

- ALI Certified
Specifications
| Model Number | ML-4030BC | ML-6045BC | ML-4034BC | ML-6051BC |
|---|---|---|---|---|
| Lifting Capacity per Column | 16,500 lbs. (7,500 kg) |
16,500 lbs. (7,500 kg) |
18,500 lbs. (8,400 kg) |
18,500 lbs. (8,400 kg) |
| Column Configuration | Pair / Four | Pair / Four / Six | Pair / Four | Pair / Four / Six |
| Maximum Lifting Capacity | 66,000 lbs. (30,650 kg) |
99,000 lbs. (44,900 kg) |
74,000 lbs. (33,560 kg) |
111,000 lbs. (50,350 kg) |
| Overall Height | 145" (368 cm) | 145" (368 cm) | 145" (368 cm) | 145" (368 cm) |
| Maximum Lifting Height | 67" (170 cm) | 67" (170 cm) | 67" (170 cm) | 67" (170 cm) |
| Resting Height | 88.5" (225 cm) | 88.5" (225 cm) | 88.5" (225 cm) | 88.5" (225 cm) |
| Width | 43.5" (110.5 cm) | 43.5" (110.5 cm) | 43.5" (110.5 cm) | 43.5" (110.5 cm) |
| Length | 55.5" (141 cm) | 55.5" (141 cm) | 55.5" (141 cm) | 55.5" (141 cm) |
| Column Width | 13.25" (33.6 cm) | 13.25" (33.6 cm) | 13.25" (33.6 cm) | 13.25" (33.6 cm) |
| Max Load Lifting Time | 80 Seconds | 80 Seconds | 90 Seconds | 90 Seconds |
| Max Load Lowering Time | 120 Seconds | 120 Seconds | 130 Seconds | 130 Seconds |
| Carriage Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Minimum Tire Diameter | 19" (43 cm) | 19" (43 cm) | 19" (43 cm) | 19" (43 cm) |
| Maximum Tire Diameter | 44" (112 cm) | 44" (112 cm) | 44" (112 cm) | 44" (112 cm) |
| Power Unit | 24V DC Electric Hydraulic | 24V DC Electric Hydraulic | 24V DC Electric Hydraulic | 24V DC Electric Hydraulic |
| Batteries per Column | Dual 12V Deep Cycle | Dual 12V Deep Cycle | Dual 12V Deep Cycle | Dual 12V Deep Cycle |
| Charging System per Column | 120V Charging | 120V Charging | 120V Charging | 120V Charging |
| Hydraulic Oil Required | 13 Gallons (49.2 Liters) Clean New AW-32 |
19.5 Gallons (73.8 Liters) Clean New AW-32 |
15 Gallons (56.8 Liters) Clean New AW-32 |
22.5 Gallons (85.2 Liters) Clean New AW-32 |
| Shipping Dimensions | 49" L x 47" W x 89" H (125 x 119 x 226 cm) |
49" L x 47" W x 89" H (125 x 119 x 226 cm) |
49" L x 47" W x 89" H (125 x 119 x 226 cm) |
49" L x 47" W x 89" H (125 x 119 x 226 cm) |
| Shipping Weight per Column | 1,605 lbs. (730 kg) |
1,606 lbs. (730 kg) |
1,700 lbs. (771 kg) |
1,701 lbs. (771 kg) |
| Shipping Weight Combined | 6,420 lbs. (2,912 kg) |
9,630 lbs. (4,368 kg) |
6,800 lbs. (3,084 kg) |
10, 200 lbs. (4,626 kg) |
| Warranty | (2) Years Limited | (2) Years Limited | (2) Years Limited | (2) Years Limited |
Maxima Mobile Column Lift (2) Year Limited Warranty
MIT Automobile, Inc. (MIT) Maxima ML Series Mobile Column Lifts models are warranted to the original owner for a period of two (2) years from date of invoice. MIT will repair or replace, at MIT's option, for the full warranty period those parts that are returned to the factory (freight prepaid) that prove upon inspection by MIT to be defective.
This warranty shall not apply unless the lift is installed, operated, used and maintained in accordance with MIT's specifications as set forth in the Maxima installation, operation and maintenance manual.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, freight damage, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when unauthorized repairs or alterations have been attempted or made to the lift or lift parts. Consumable items are not covered by this warranty.
This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of MIT.
The remedies described are exclusive and in no event shall MIT be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty.
This warranty shall be governed by the State of California and shall be subject to the exclusive jurisdiction of the Court of the State of California in the County of Los Angeles.
Accessories/Options

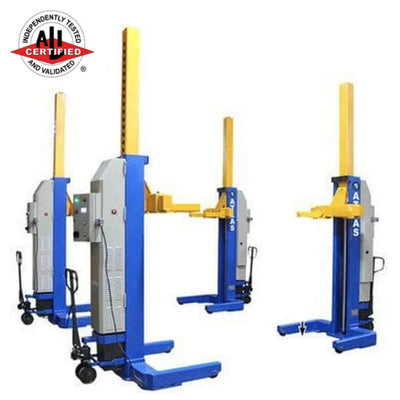

Atlas ML-4030BC Wired Mobile Column Lifts Set of 4
