Atlas Platinum 6PL Open Center Low Rise Scissor Pit Lift
6,000 lbs. Capacity

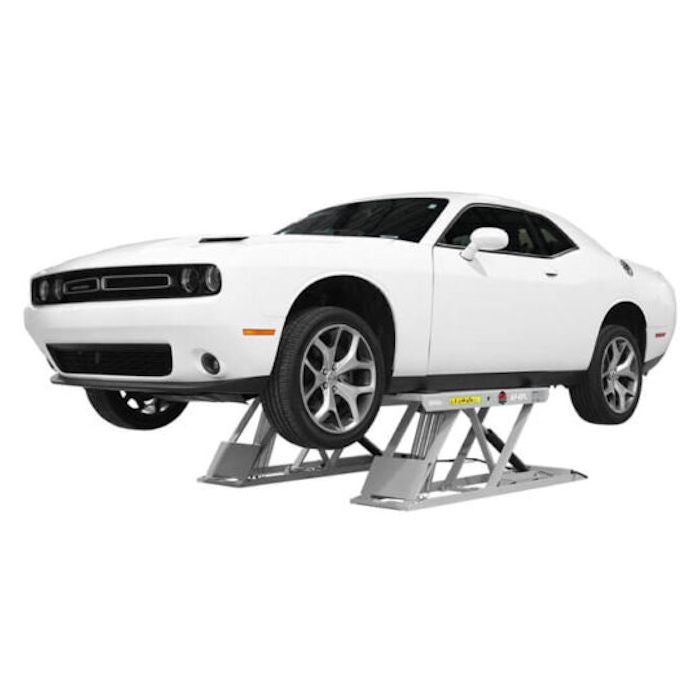

The Atlas Platinum AP-6PL 6,000 lb. low rise pit lift is ideal for quick service work situations involving tire and brake work. The 6PL comes with non-slip pads that provide a great contact surface and a set of four high density rubber blocks that help protect lifting points on most vehicles. When looking for automotive equipment that combines the best value and quality, Atlas lifts and garage equipment should be your first choice.

CURRENT LEAD TIME 10-12 WEEKS

CALL US NOW FOR AN EVEN BETTER DEAL!

Description

Atlas Platinum 6PL Open Center Low Rise Scissor Pit Lift
6,000 lbs. Capacity

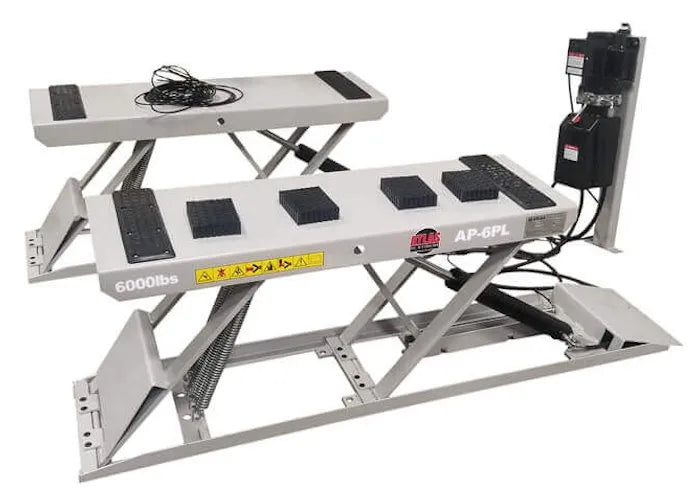

The Atlas Platinum 6PL 6,000 lb. low rise lift is ideal for quick service work situations involving tire and brake work. The 6PL comes with non-slip pads that provide a great contact surface and a set of four high density rubber blocks that help protect lifting points on most vehicles.

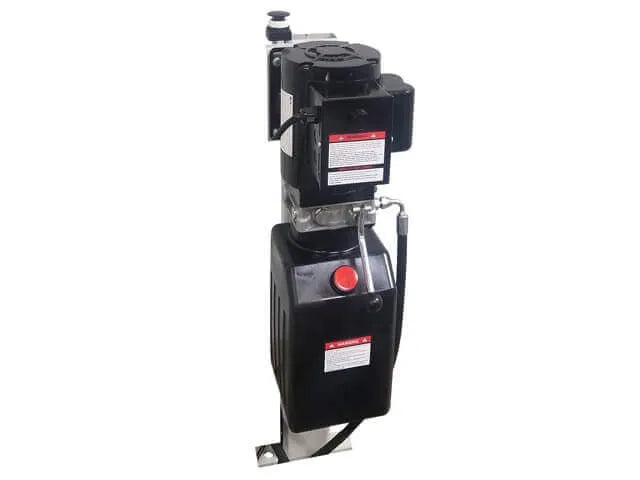

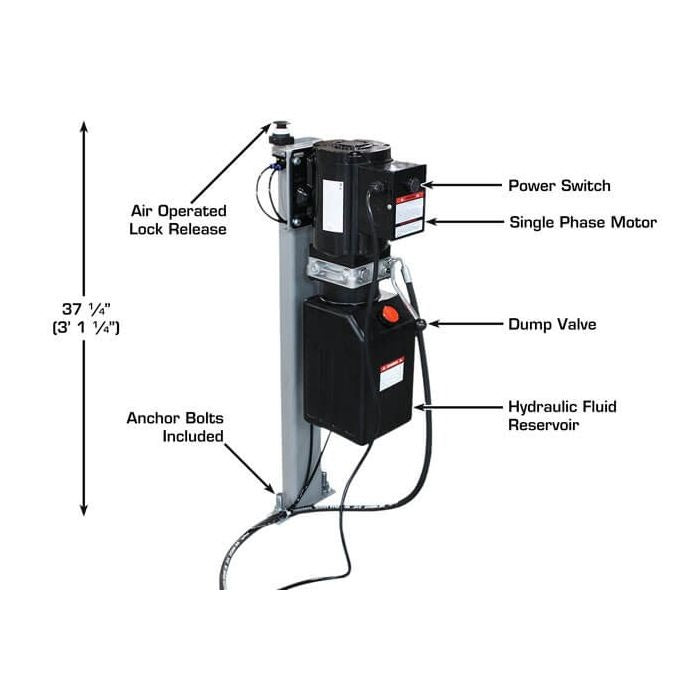

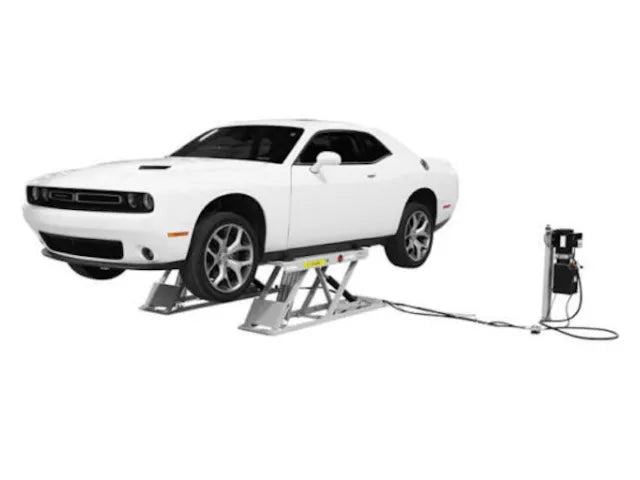

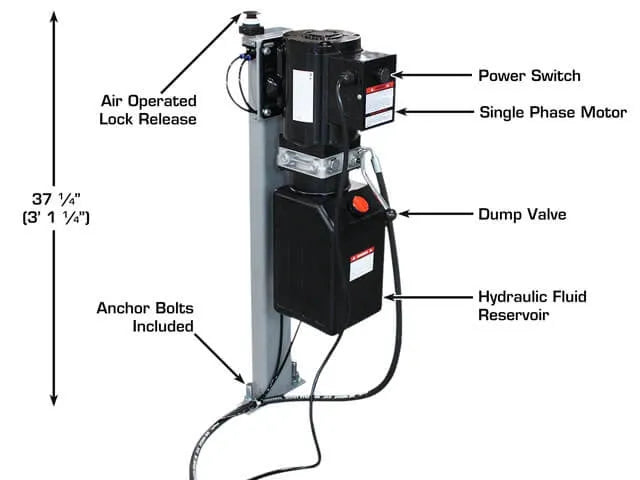

Simply drive the car over the 6PL and position the rubber blocks (if needed) under the correct lifting points of the vehicle. Press the button on the unit and lift the vehicle to the desired work height. Depress the "dump valve lever" on the power unit and the lift lowers slightly to the next lower mechanical lock position.

This durable lift is built on a heavy-duty steel frame that provides rock solid support for a lifting base. The dual cylinders deliver enough power to lift a 6,000 lb. vehicle with ease. This lift operates on 110 volt (single phase) electricity.

The best way to position any vehicle on a scissor lift (with horizontal cylinders) is to allow some space (2-6 inches) between the lifting surface of the lift and vehicle's lifting points.

Features & Specs

Features

6,000 lbs. Capacity
Commercial Grade Quality
(4) Non-Slip Pads
Drive-Over Ramps
Great for Tire and Brake Work

Specifications

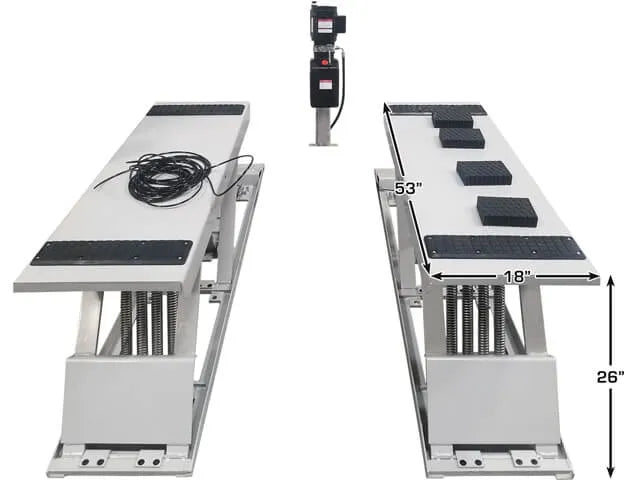

Capacity: 6,000 Lbs.

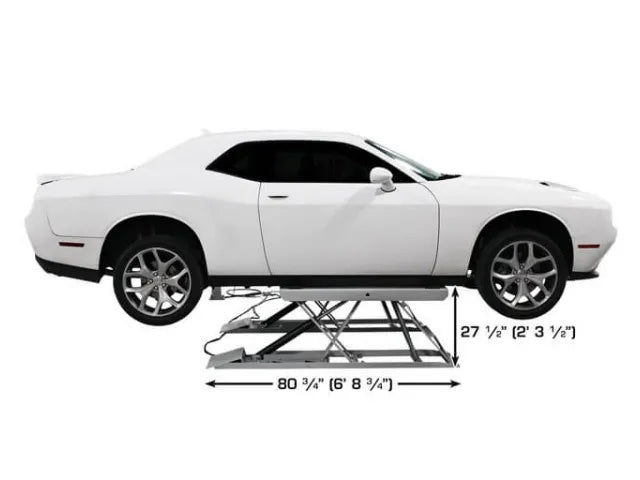

Maximum Lifting Height: 26"
Minimum Lifting Height: 4-1/2"
Overall Dimensions: Coming Soon

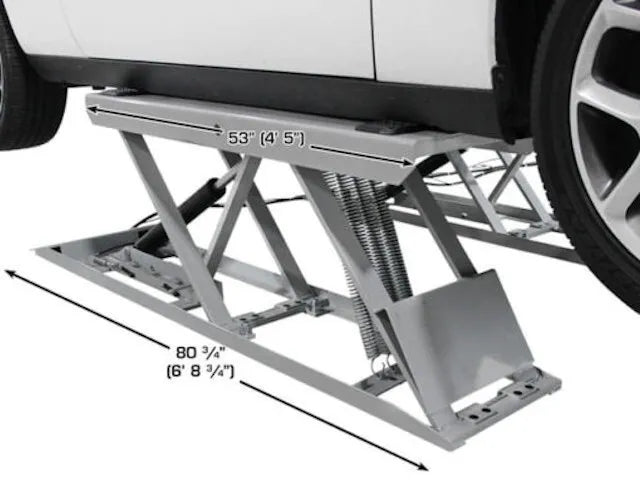

Platform Dimensions: 53" x 18"
Ramp Length: Coming Soon

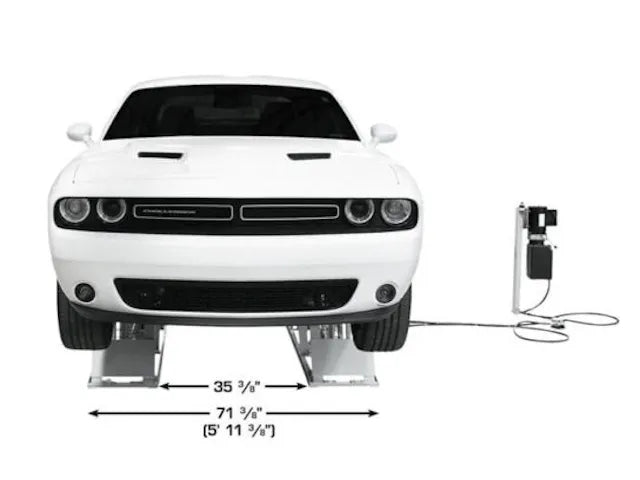

Between Runways: 36-1/2" (Variable)
Air Requirement: 85-120 PSI
Motor Requirement: 120 volt single (1) phase
Electrical Requirement: 30 amp Breaker is Required
Oil Requirement: 3.5 Gallons AW32/AW46

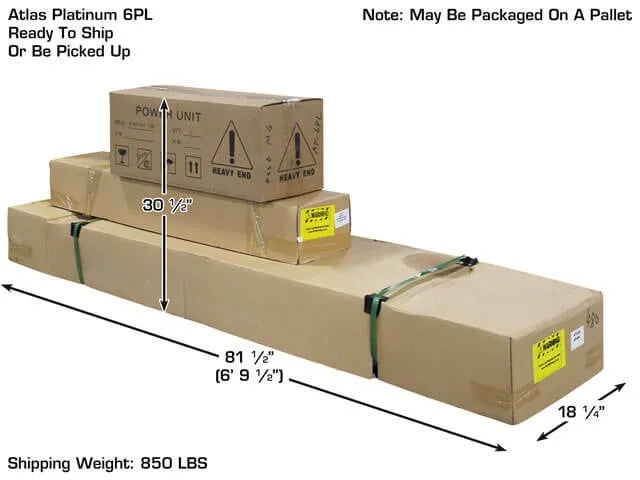

Shipping Dimensions: 18-1/4" W x 81-1/2" L x 30-1/2" H
Shipping Weight: 850 lbs.
Warranty: 5 Years Structure, 1 Year Hydraulic Power Units & Cylinders, No Labor

5 Year Structural & 1 Year Hydraulic Warranty
This Atlas product is warranted for five (5) years on structural components and (1) year on hydraulic power units and cylinders from invoice date. Wear items are covered by a 90 day warranty.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.
