Atlas Platinum PVL14 ALI Four Post Lift + RJ7 Rolling Jacks Combo

Description

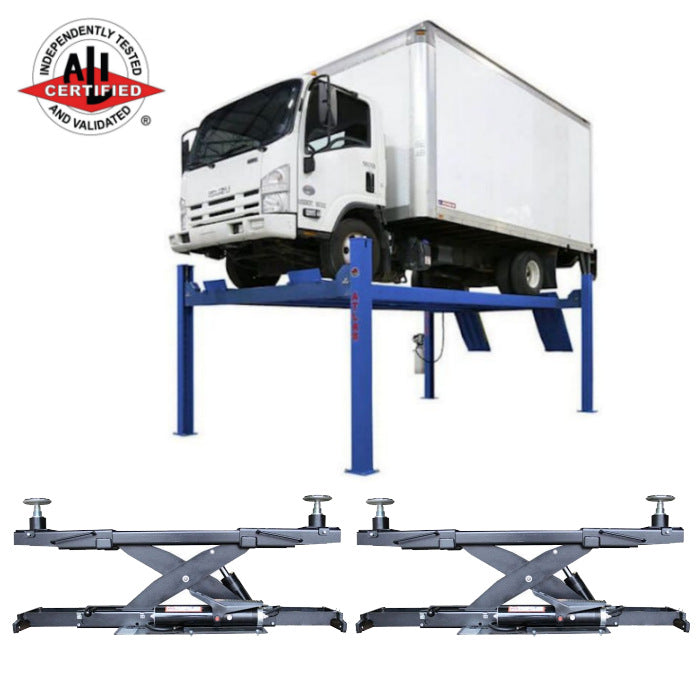

Atlas Platinum PVL14 ALI Certified Four Post Lift 14,000 lbs. Capacity +
RJ7 Air Hydraulic Rolling Jacks 7,000 lbs. Capacity Combo

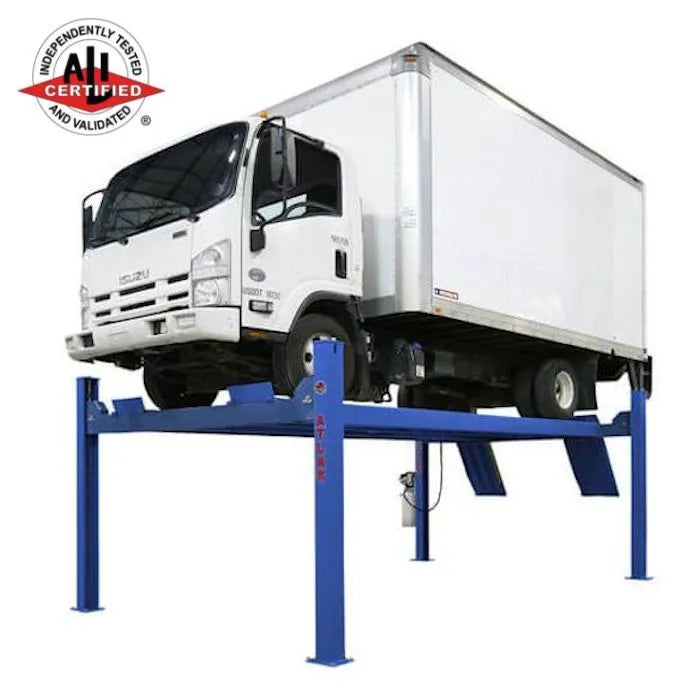

Atlas Platinum PVL14 ALI Certified Commercial Grade
Four Post Lift 14,000 lbs. Capacity

The Atlas Platinum PVL14 is a four post commercial grade, heavy-duty lift designed with the professional shop in mind. This lift can accommodate a variety of cars, vans, SUVs, trucks, and even some light & medium duty commercial vehicles. The PVL14 is also ALI Certified and backed by one of the industry's best warranties for an added peace of mind. This lift comes with a 5 year structural warranty and 2 year hydraulic warranty and features a double lock safety system. The PVL14 four post lift is ALI and ETL Certified.

The Platinum PVL14 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an "old style" chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to "level" properly and the exposed hydraulic cylinder is responsible for numerous "door dings".

The Atlas Platinum PVL14 features "tracks" between the runways to allow the use of a rolling bridge jack (recommended is the Atlas Platinum RJ7000) on the lift. Rolling jacks sold separately.

The Atlas Platinum PVL14 is also ALI certified and backed by one of the industry's best warranties for an added peace of mind.

This product features an ALLY Hydraulic AL2650 power unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

FEATURES INFORMATION:

ALLY Hydraulic Power Unit:

5 Year Structural & 2 Year Hydraulic Warranty

CE Tested & Approved

Lock Ladder Column Design: This Atlas Lift has a commercial grade lock ladder. We believe that the lock ladder system is the safest locking system for any four post lift. The lock ladder system also provides an infinite number of runway locking positions. The "old-style" welded locks could not be adjusted. The lock ladder is adjustable inside the column so that our customers can "micro-manage" the correct runway height to accommodate any vehicle. The "lock ladder" column system is the same column system found on professional grade lifts found in car dealerships and automotive service centers.

Electrical Requirement: The electric motor for the power unit requires 220 Volt (single phase) 60 Hz (+/- 5%, so 209-231 volts). We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit may or may not have a short pigtail (no plug) that can be wired to either an optional quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is required.

Atlas Apex RJ7 Air Hydraulic Rolling Jack 7,000 lbs. Capacity

The Atlas Platinum RJ7000 air / hydraulic rolling jack has telescoping arms that can be extended over the runways of a four post lift. The lift pads at the end of these arms can be positioned under the lifting points that are located over the runways of that four post lift. This rolling jack is equipped with expandable rail supports which adjust to fit between the runways of many different four post above ground lifts. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle.

The Atlas Platinum RJ7000 is an ALI Certified Accessory recommended for the Atlas Platinum line of ALI Certified Four Post lifts.

IMPORTANT: The Atlas AP-RJ7000 is designed and engineered to operate on "delivered" air pressure of between 70-115 PSI. If you exceed 115 PSI, you may damage your jack.

Accessories/Options
