Atlas PSP-6000 Portable Single Post Lift

Name: Atlas PSP-6000 Portable Single Post Lift
Brand: ASEDeals
SKU: ATEXH-PSP-6000
Price: 5649.0 USD
Availability: InStock

In Stock SKU ATEXH-PSP-6000 UPC 707543505640

OUR PRICE: $5,649.00

Regular Price: $5,939.00

$156.91 / mo

INCLUDES FREE SHIPPING*

Short Description

Atlas PSP-6000 Portable Single Post Lift
6,000 lbs. Capacity Pallet Jack Style with Built-In Ramps

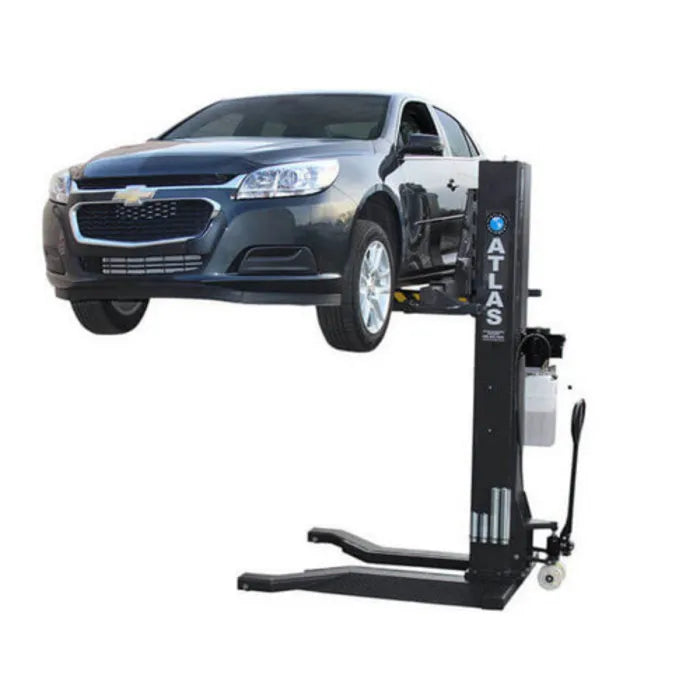

The Atlas PSP-6000 Portable Single Post Lift is the perfect choice for the commercial service shop or the Mr. Homeowner who does not want to tie up a bay space with a permanently mounted above ground lift. This portable vehicle lift allows the operator to walk under the vehicle or move around the vehicle to perform wheel service. When the Atlas PSP-6000 is not in use, it may be rolled out of the way into a corner. The PSP-6000 also has a built-in ramp allowing vehicles to drive over it, further maximizing garage space.

CALL OUR EXPERTS NOW FOR UNBEATABLE, EXCLUSIVE PRICING!

Description

Atlas PSP-6000 Portable Single Post Lift
6,000 lbs. Capacity Pallet Jack Style with Built-In Ramps

The Atlas PSP-6000 Portable Single Post Lift is the perfect choice for the commercial service shop or the Mr. Homeowner who does not want to tie up a bay space with a permanently mounted above ground lift. This portable vehicle lift allows the operator to walk under the vehicle or move around the vehicle to perform wheel service. When the Atlas PSP-6000 is not in use, it may be rolled out of the way into a corner. The PSP-6000 also has a built-in ramp allowing vehicles to drive over it, further maximizing garage space.

The Portable Single Post Lift rolls easily on a level concrete surface and can be used either inside or outside of your garage. The column fits under a 9 foot (108 inch) ceiling and allows the operator to raise most vehicles high enough to access many parts of the vehicle that would not be accessible with a mid-rise lift.

The Atlas PSP-6000 column is equipped with the chain break mechanism that automatically locks the carriage into place in the unlikely event of a chain failure.

Features & Specs

Standard Features

6,000 lbs. Capacity
Portable Pallet Jack Style
Low Profile Design
Rigid Base Construction

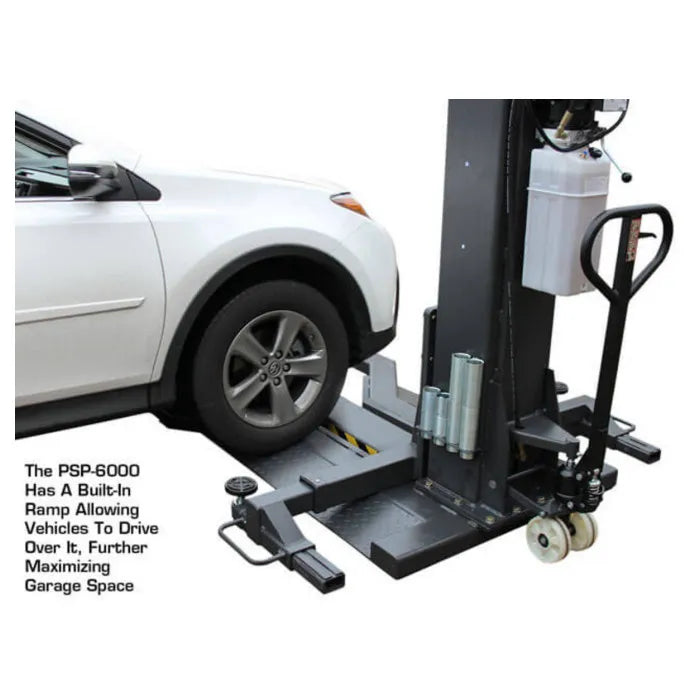

Built in Drive-Over Ramps
Single Point Lock Release

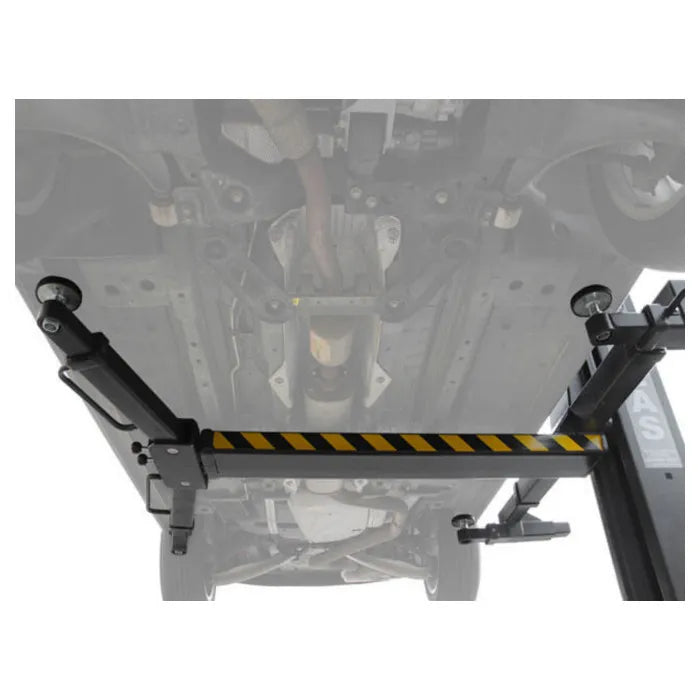

Two-Stage Telescoping Swing Arms
Locking Arm Restraints
71 2/3" Lifting Height
Convenient 110V Electric Operation
Includes 8 Piece Truck Adapter Set

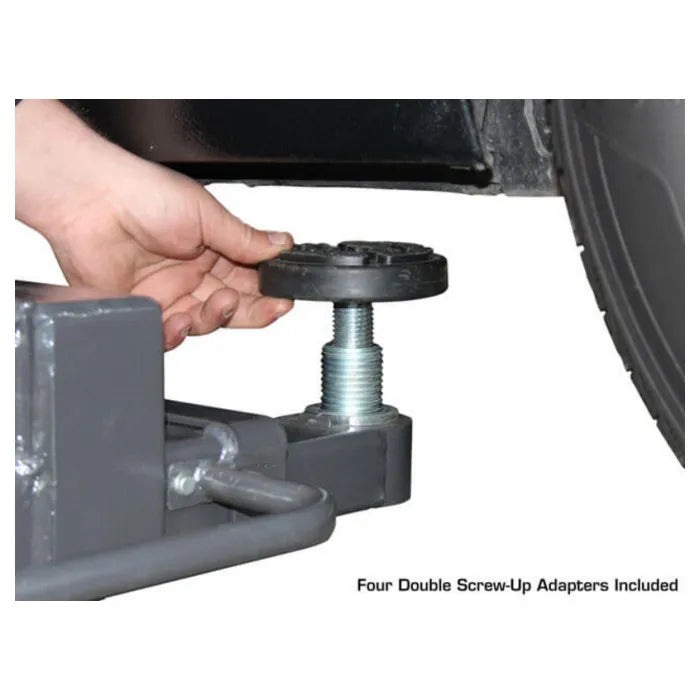

Includes Double Screw-up Adapters

Specifications

Capacity: 6,000 lbs.

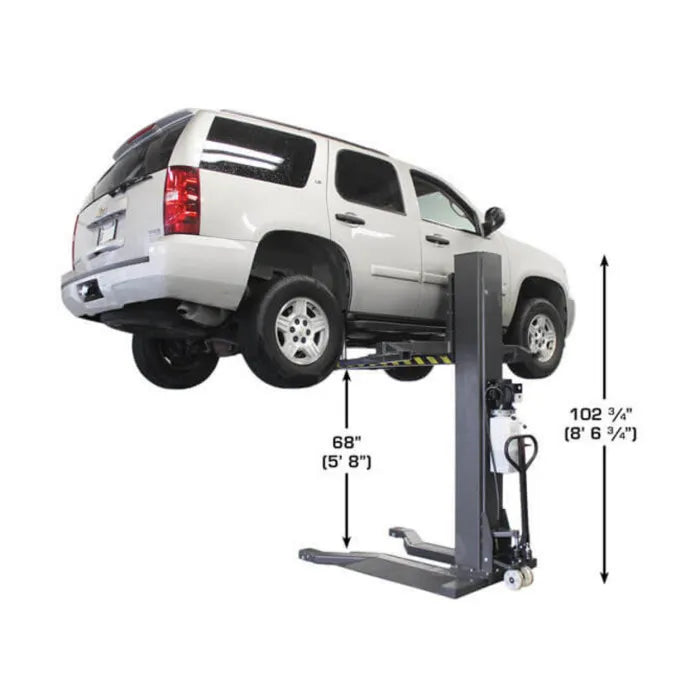

Overall Height: 102 3/4" (8' 6 3/4")

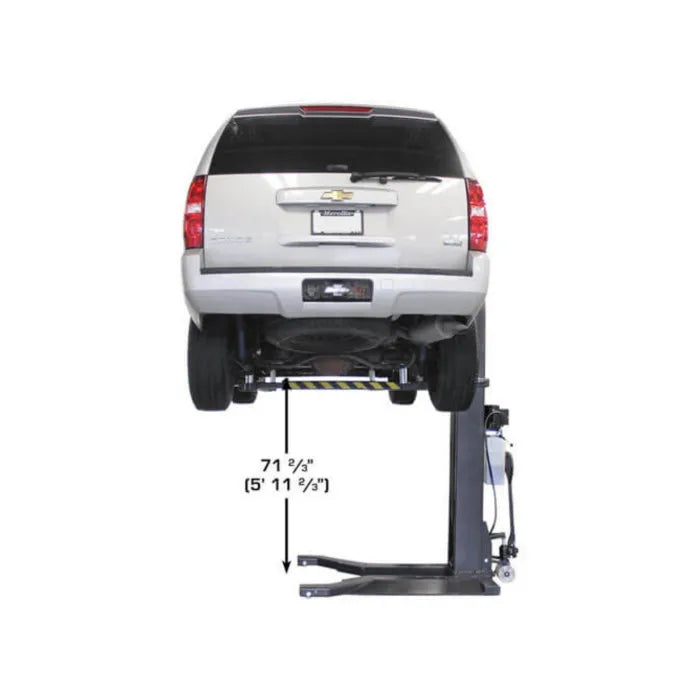

Max. Lifting Height (Without Truck Adapters): 71 2/3" (5' 11 2/3")
Max. Clearance: 68" (5' 8")
Minimum Height: 5"

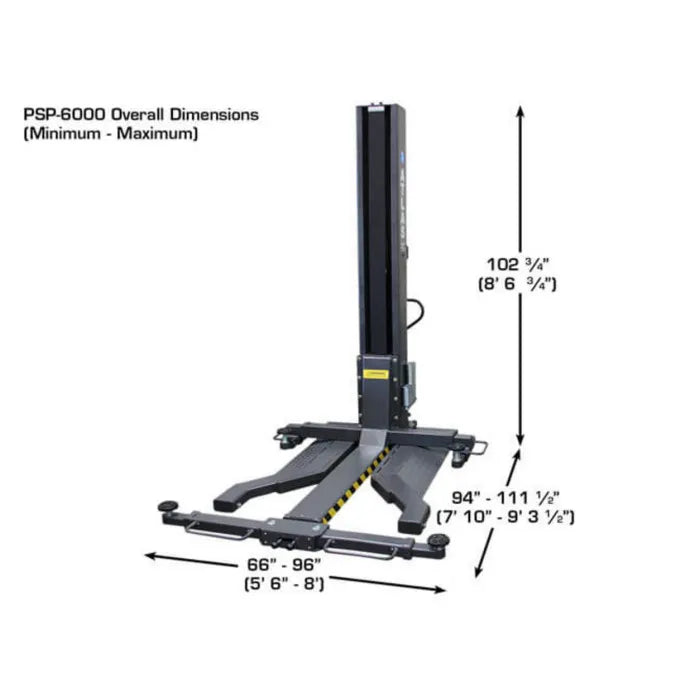

Overall Maximum Dimensions: 111 1/2" L x 96" W x 102 3/4" H
Column Size: 10 1/2" x 12 1/2"

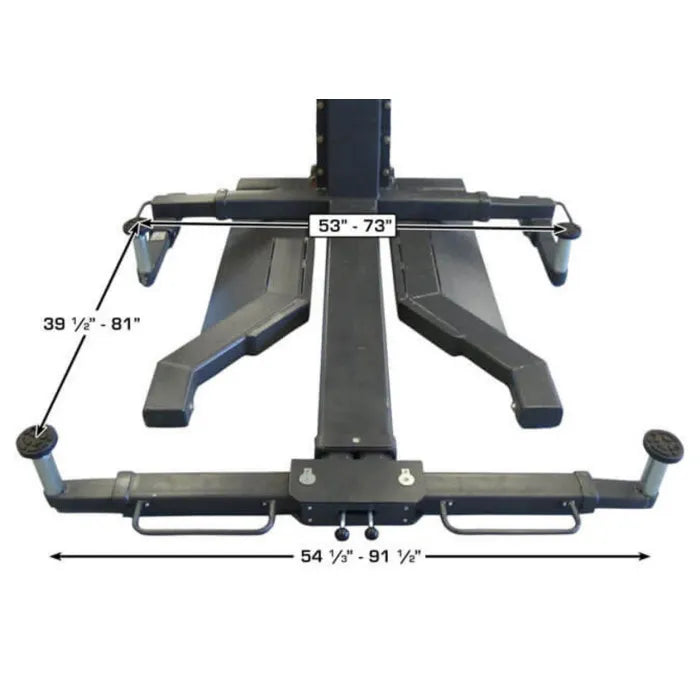

Distance Between Lifting Pads (Column Side to Offside): 39 1/2" to 81"
Distance Between Lifting Pads (Column Side to Column Side): 53" to 73"
Distance Between Lifting Pads (Offside Side to Offside): 54 1/3" to 91 1/2"
Adapter Heights: 4 Each 2.75", 6"
Arm Hole/Adapter Peg Size: 2"
Motor/Electric Requirement: 110V
Electrical Requirement: 30 Amp Breaker Required
Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)

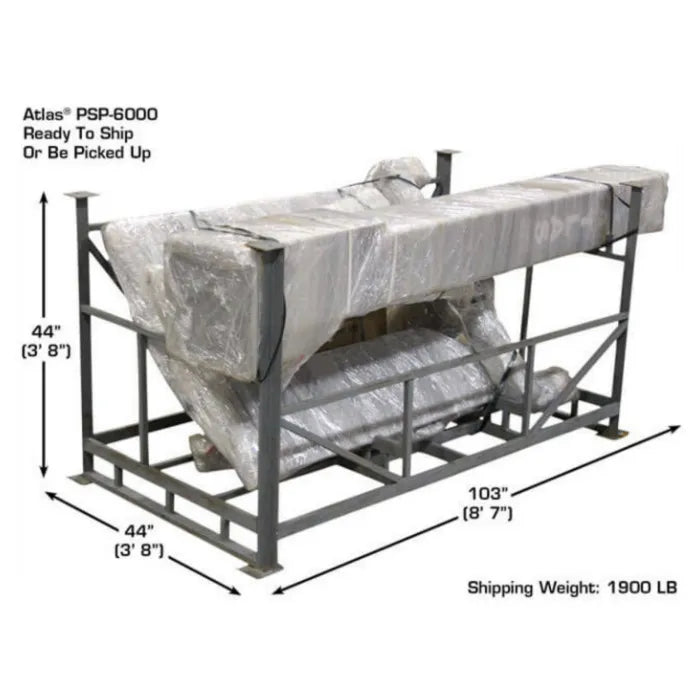

Shipping Dimensions: 103" L x 44" W x 44" H
Shipping Weight: 1,900 lbs.
Warranty: 2 Years Structure, 1 Year Hydraulic, No Labor

2 Year Structural & 1 Year Hydraulic Warranty
This item is warranted for two (2) years on structural components and one (1) year on air or electric hydraulic power units, pneumatic power units, cylinders and major components from date of invoice. Wear items are covered by a 90 day warranty.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.
