Atlas SPINS Auto Body Rotisserie with Adapter Kit

Atlas SPINS Auto Body Rotisserie with Adapter Kit
3,000 lbs. Capacity Includes Specialty Adapters

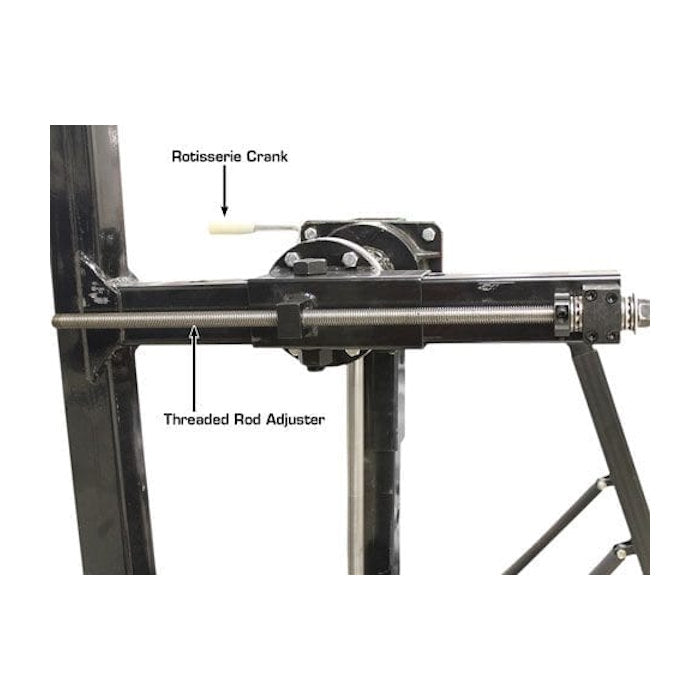

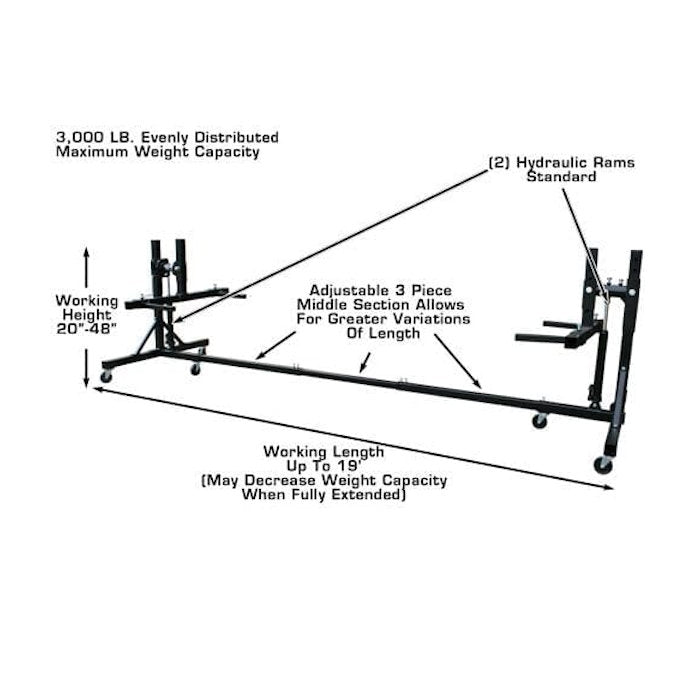

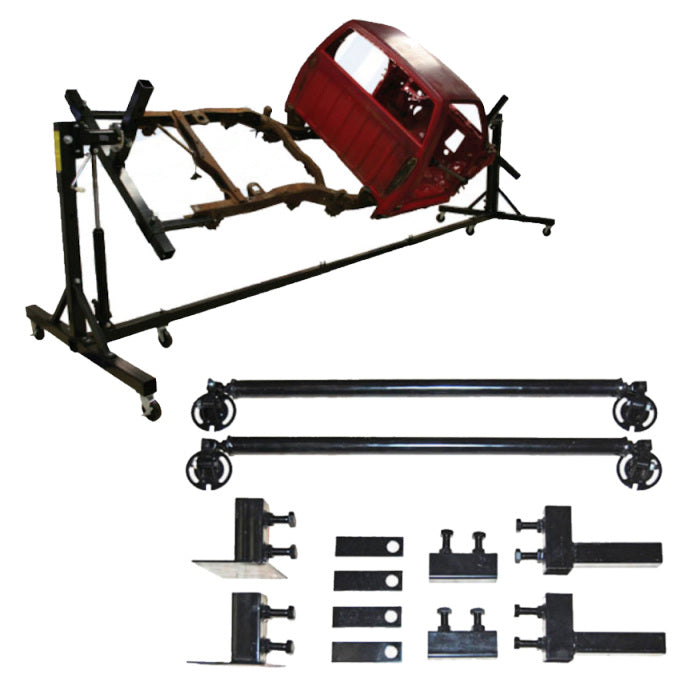

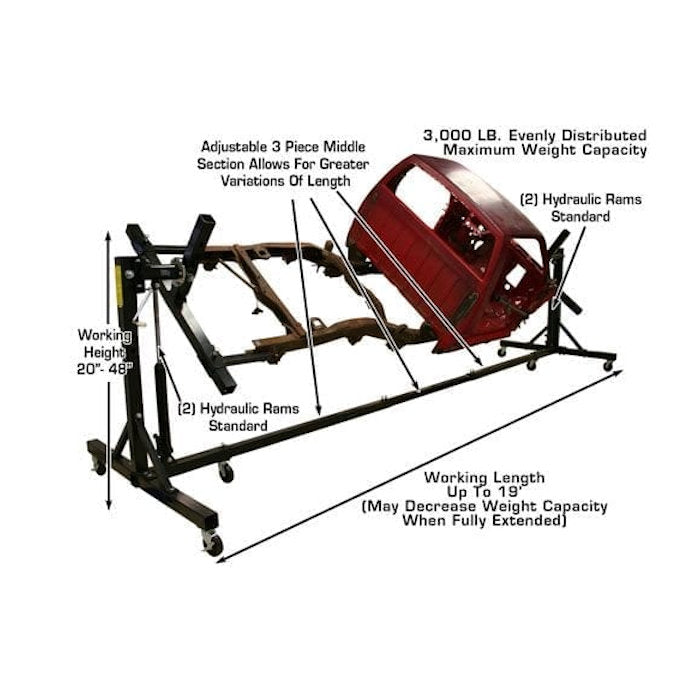

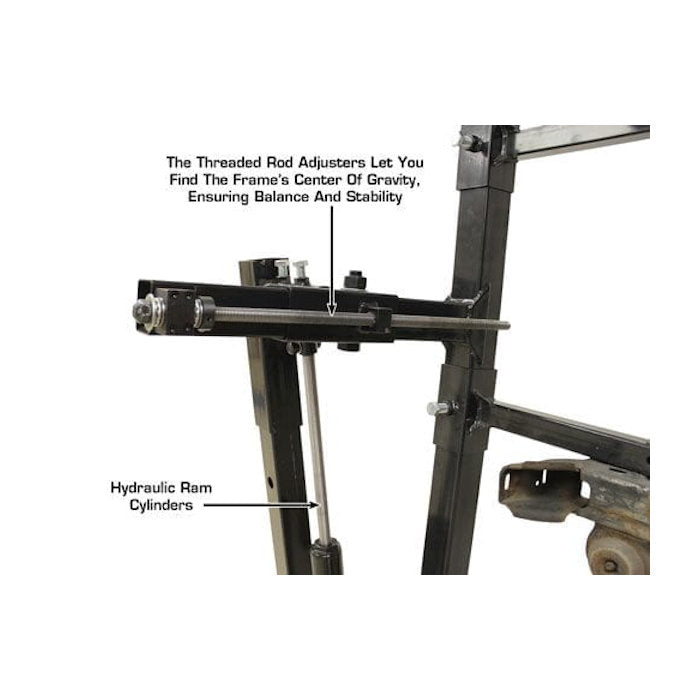

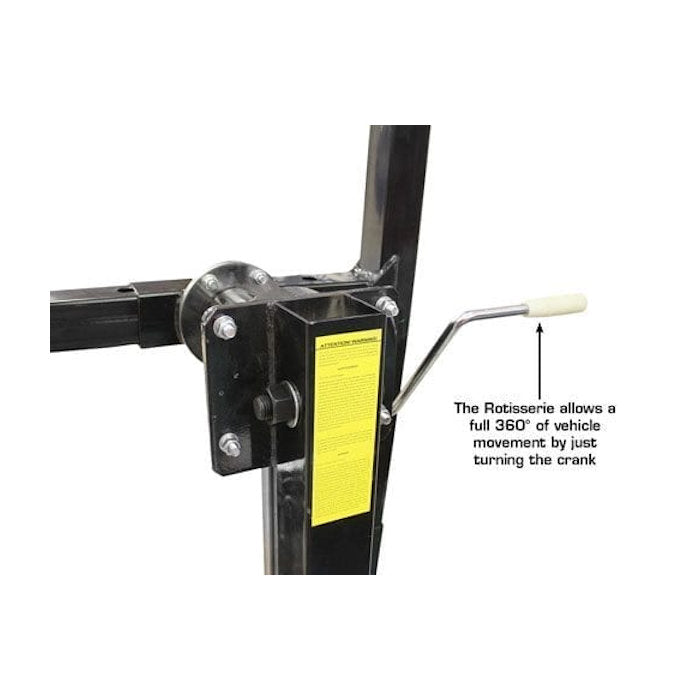

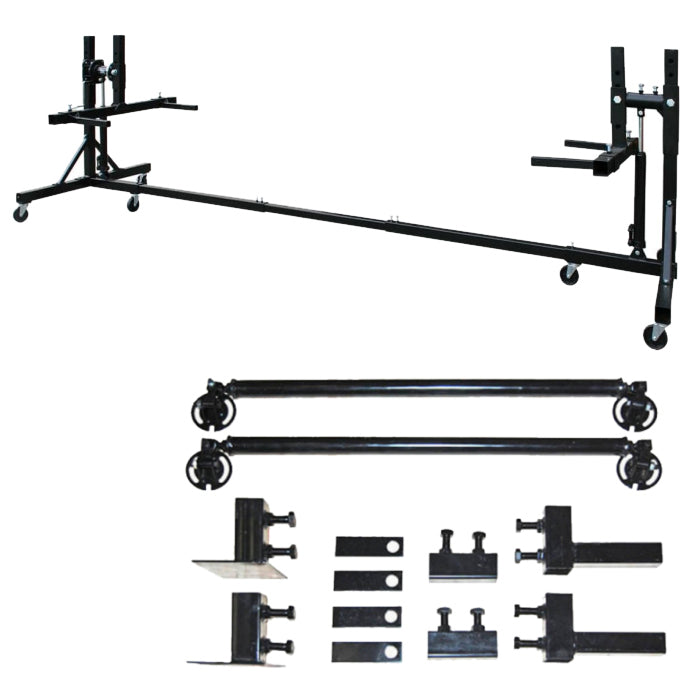

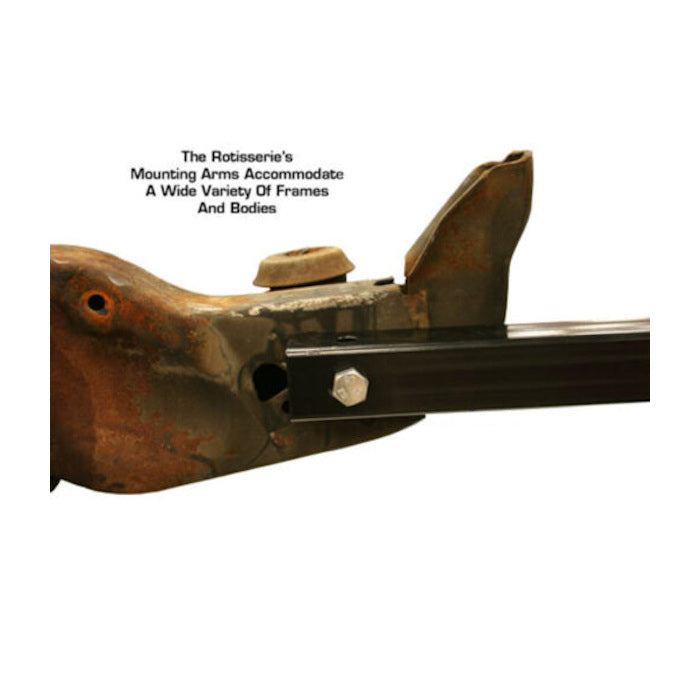

The Atlas SPINS (Simple Position In Seconds) Auto Body Rotisserie is great for anyone wanting to restore a car or truck body or frame. The rotisserie allows a full 360° of vehicle movement by just turning the crank. When the vehicle is properly mounted and positioned, the Auto SPINS allows the operator to have easy access to all parts of the body for welding, sandblasting, or any other work that needs to be done. This unit is adjustable not only in width and length, but with two hydraulic rams, is also adjustable in height. The two hydraulic rams make it easy to mount and lift the vehicle so that it can be rotated into the proper position. And the new threaded rod adjusters let you find the frame's center of gravity, ensuring balance and stability. Specialty Adapter Kit includes (2) Universal Door Bars, (2) Leaf Spring Adapters, (2) Unibody Adapters, (2) Valance Adapters and (4) Adapter Mounting Plates.

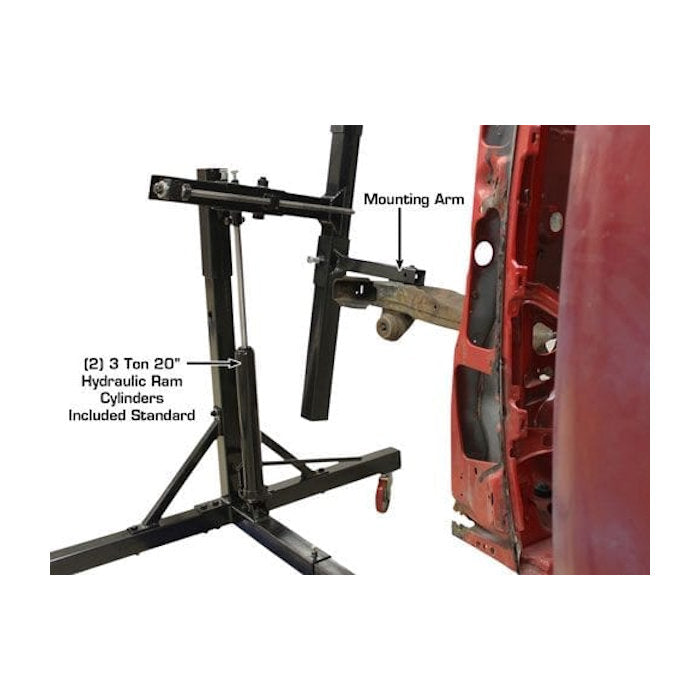

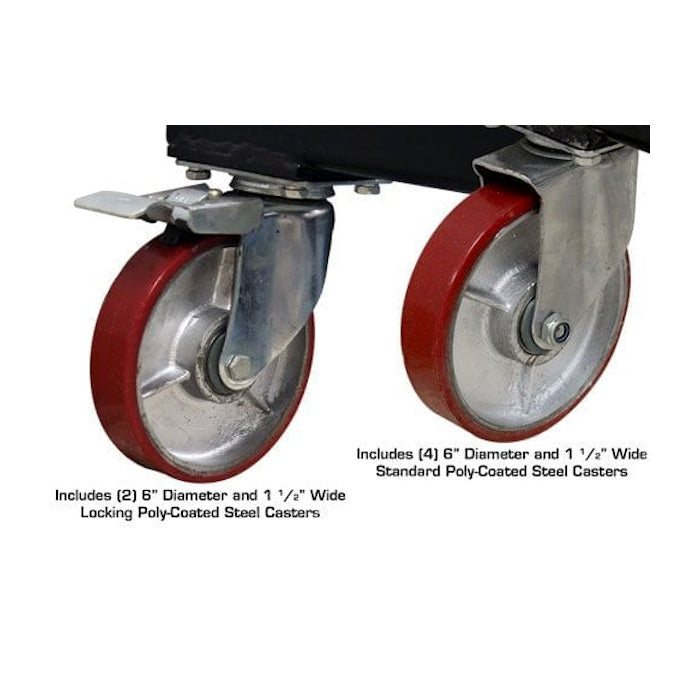

The two hydraulic rams also make it easier to mount an auto body; lifting the body or frame straight from jack stands to the desired working height removing the need for any other equipment. The rotisserie is also easy to roll because of the three (3) swivel caster wheels on each end. This versatile auto rotisserie is a must have for any hobbyist or professional restorer.

Specialty Adapters Included

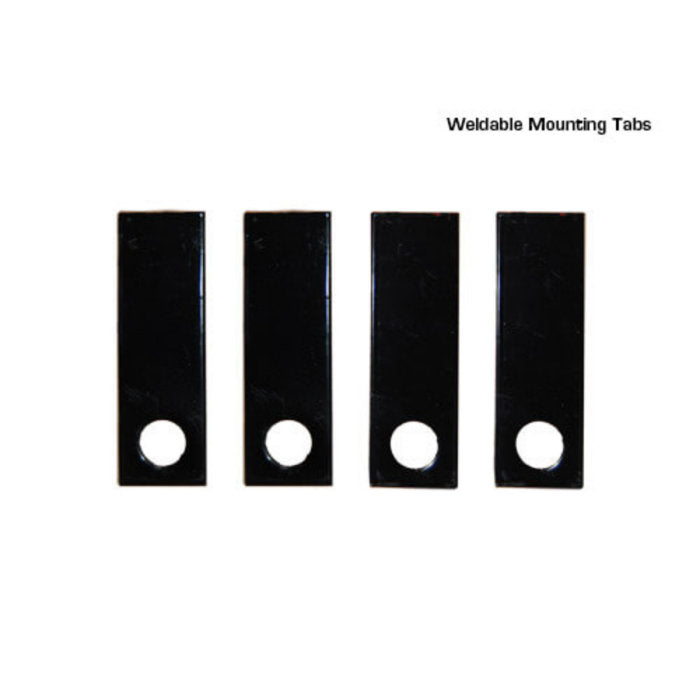

These rotisserie adapters are a great addition to the Auto SPINS Auto Rotisserie and will also fit many other brand name auto rotisseries on the market. Included in this adapter kit are (2) Universal Door Bars, (2) Leaf Spring Adapters, (2) Unibody Adapters, (2) Valance Adapters and (4) Adapter Mounting Plates.

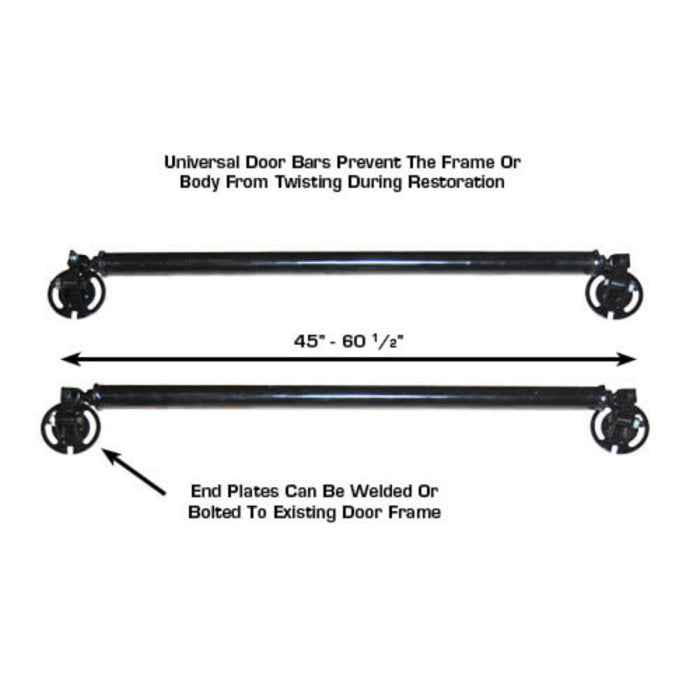

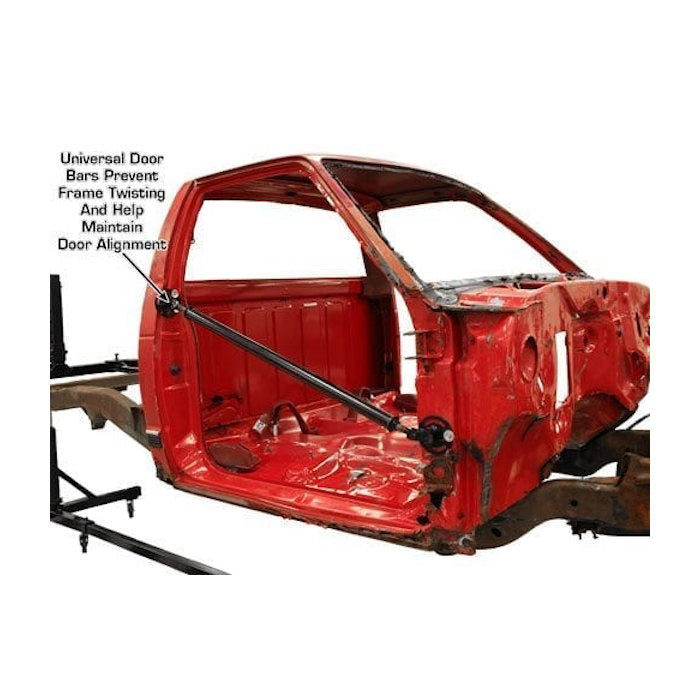

Universal Door Bars
When used during a job, these door bars help maintain door alignment and prevent the "twisting" of a vehicle frame. These door bars are not powder coated. The universal door bars are easy to use, simply extend the bars to the proper length and either weld or bolt them into position.

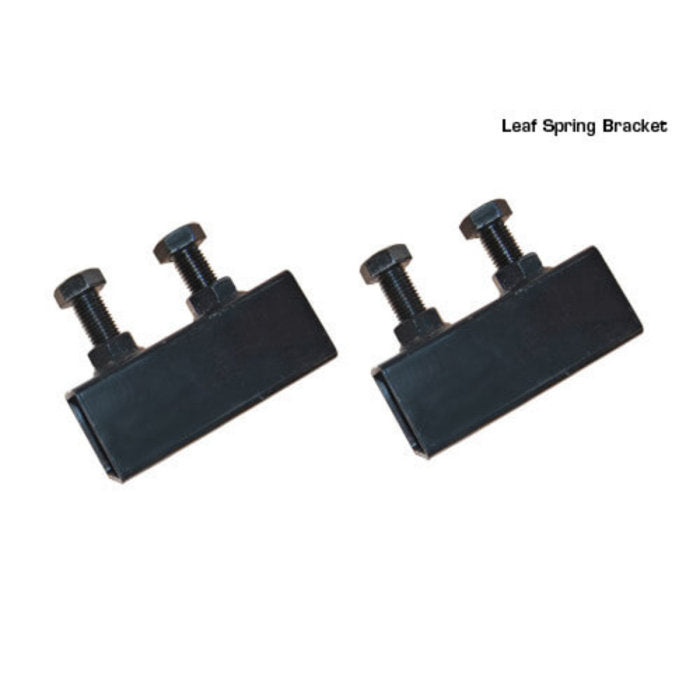

Leaf Spring Adapters
These adapters allow you to attach a vehicle to the rotisserie by connecting to the leaf spring rails instead of the standard mounting locations. These adapters are not powder coated. The leaf spring brackets are easy to use and simply fit over the standard mounting brackets of your rotisserie.

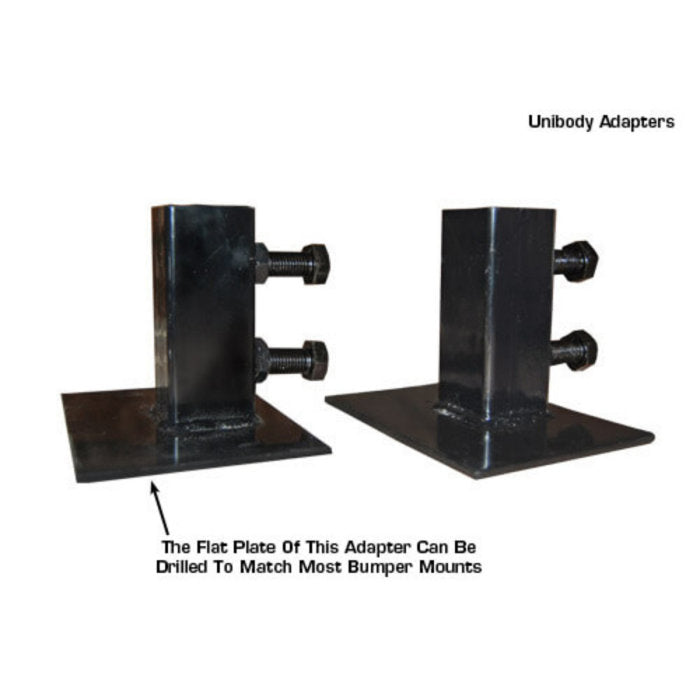

Unibody Adapters
These adapters allow you to easily attach onto the rotisserie any uni-body type frames which have a vertical bumper mounting pad at the rear of the vehicle. Alternatively, some vehicles may require a set of the uni-body adapters at both ends. These adapters are not powder coated. The uni-body adapters are easy to use and simply fit over the standard mounting brackets of your rotisserie. These versatile adapters are powder coated and come un-drilled so that you can drill the holes to fit your specific application.

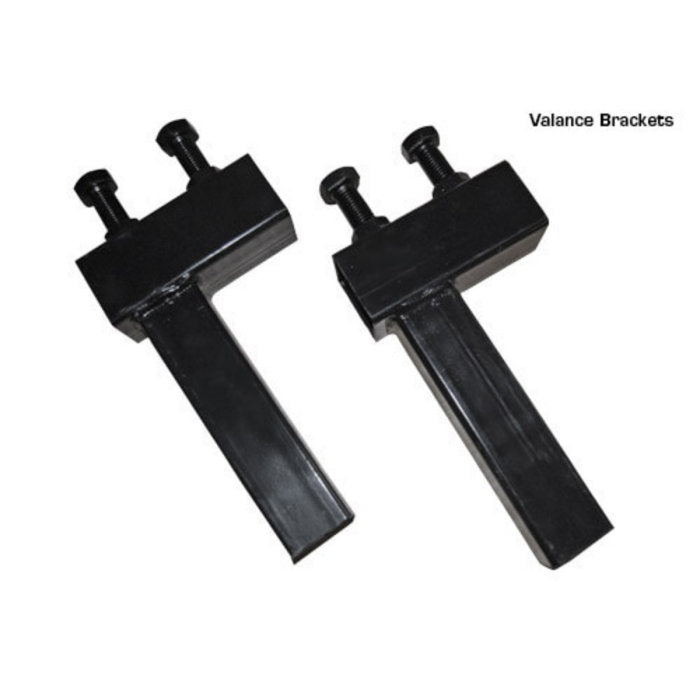

Valance Adapters
These "L" shape of these adapter brackets make it easy to get to those attachment points that are out of the way and hard to reach. The valance adapters are great for attaching a vehicle which has welded on valance panels, hotrods which have tail pans, or even for working around the cab of a truck. These adapters are not powder coated. The valance adapters are easy to use and simply fit over the standard mounting brackets of your rotisserie.
