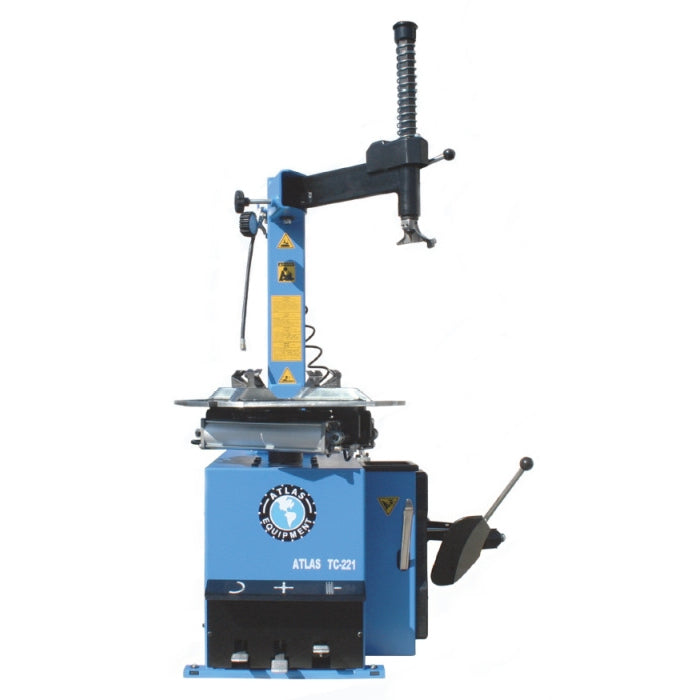

Atlas TC221 Wheel Clamp Tire Changer

In Stock SKU ATEATTC221 UPC 810524020466

OUR PRICE: $2,099.00

Regular Price: $2,209.00

$58.30 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

Atlas TC221 Electric/Pneumatic Wheel Clamp Tire Changer
The Atlas TC 221 wheel clamp swing arm tire changer is the perfect changer for a small commercial garage or an ATV/motorcycle dealer.
NOTE - This model does not have the Jet Blast feature.

CALL OUR EXPERTS NOW FOR UNBEATABLE, EXCLUSIVE PRICING!

Description

Atlas Automotive Equipment

Atlas TC221 Electric/Pneumatic Wheel Clamp Tire Changer

The Atlas TC221 wheel clamp swing arm tire changer is the perfect changer for a small commercial garage or an ATV/motorcycle dealer.

The Atlas wheel clamp tire changers are designed to change the tires on both high priced alloy wheels and steel wheels without damaging the rim or the tire. The powerful bead breaker located on the side of the tire changer is designed to break even the most stubborn and rusted beads without damage to the rim. The turntable jaws (which can be covered with the standard protective plastic inserts) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slides of the turntable to either increase or decrease the clamping range of the Atlas TC221.

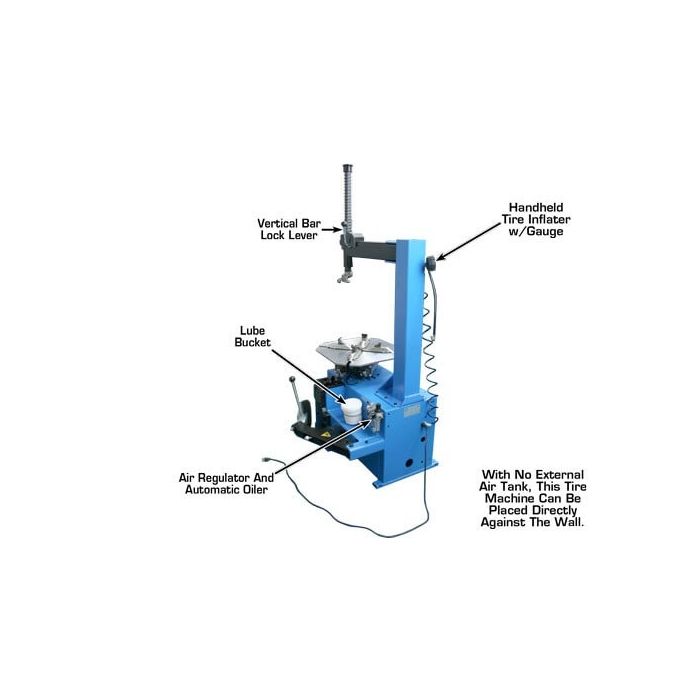

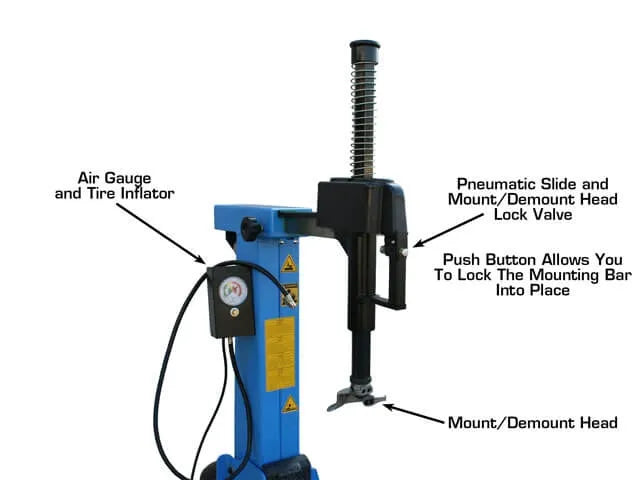

The Atlas TC221 comes standard with an inflator hose and gauge.

Features Information:

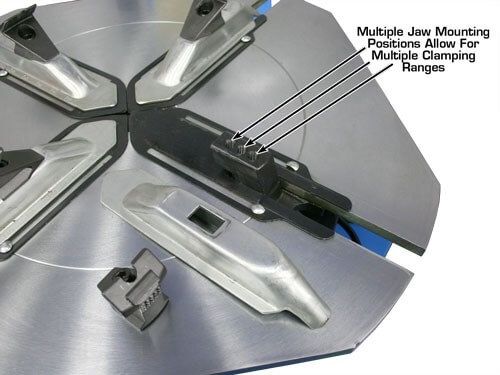

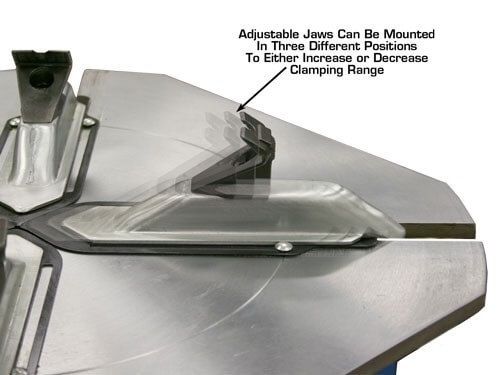

3 Positions For Clamping Jaw: Clamping jaws can be moved to three different positions along the slides of the turntable to either increase or decrease the clamping range.
CE Tested and Approved

Features & Specs

Features

  • Tire Inflator
  • 3 Positions For Clamping Jaws
  • Oil, Filter, Regulator Included
  • 90-110 PSI
  • 110V

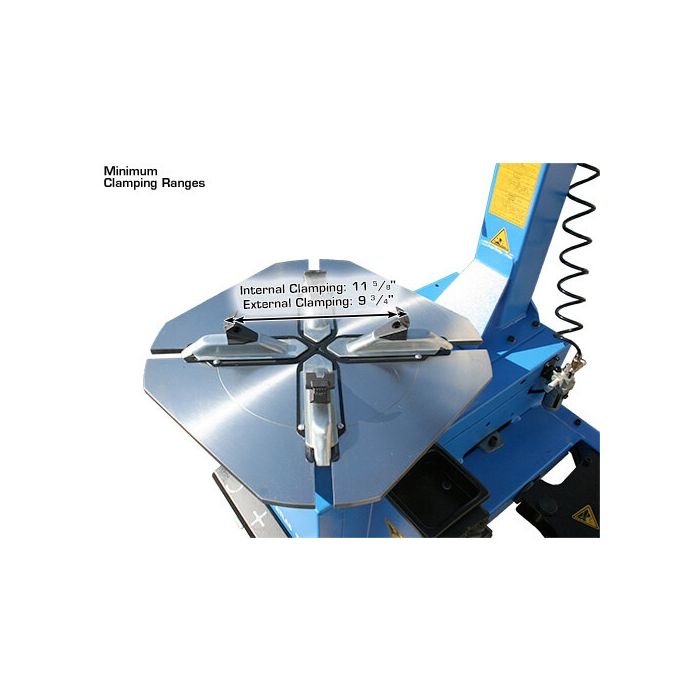

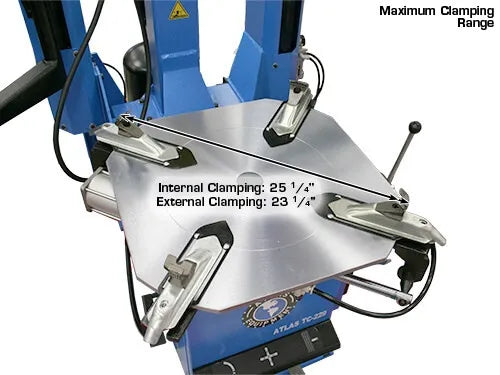

  • Inner Clamp: 11 5/8" - 25 1/4"
  • Outer Clamp: 9 3/4" - 23 1/4"
  • Max Tire Diameter: 39"
  • Max Wheel Width: 13"

Specifications

  • Rims: Steel, Aluminum, Alloy
  • External Locking Rim Dimension: Position 1) 9 3/4" - 21 5/8"
  • External Locking Rim Dimension: Position 2) 10 3/4" - 22 1/2"
  • External Locking Rim Dimension: Position 3) 11 5/8" - 23 1/4"
  • Internal Locking Rim Dimension: Position 1) 11 5/8" - 23 1/4"
  • External Locking Rim Dimension: Position 2) 12 5/8" - 24 1/4"
  • External Locking Rim Dimension: Position 3) 13 1/2" - 25 1/4"

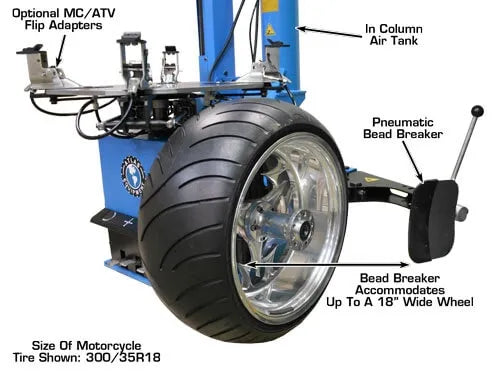

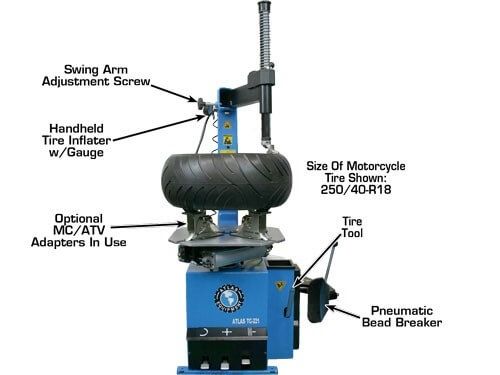

With Flip Adapters In The ATV Configuration

  • External Locking Rim Dimension: Position 1) 2 7/8" - 14 3/4"
  • External Locking Rim Dimension: Position 2) 3 3/4" - 15 5/8"
  • External Locking Rim Dimension: Position 3) 4 5/8" - 16 5/8"

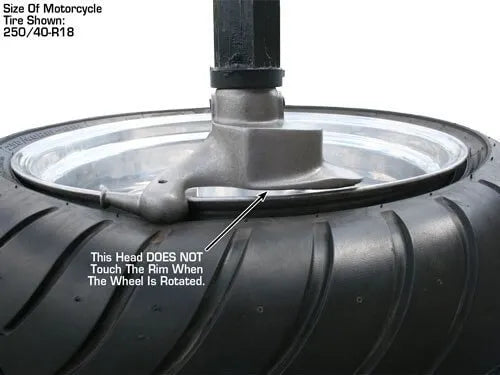

With Flip Adapters In The Motorcycle Configuration

  • External Locking Rim Dimension: Position 1) 12 5/8" - 24 1/2"
  • External Locking Rim Dimension: Position 2) 13 5/8" - 25 1/2"
  • External Locking Rim Dimension: Position 3) 14 1/2" - 26 3/8"
  • Maximum tire diameter: 39"
  • Operating voltage: 110V 1Ph
  • Maximum wheel width (Bead Breaker): 13"
  • Air pressure: 90-110 psi
  • Maximum Inlet Pressure not to exceed: 140 PSI*
  • Turntable Rotating Torque: 885 ft/lbs.
  • Wheel clamping: 4 jaws: internal/external

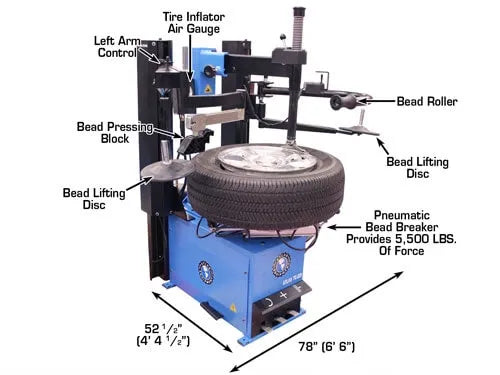

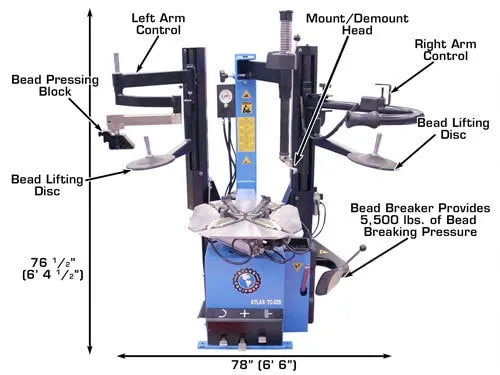

  • Bead breaker: Pneumatic 5,500 LB. force

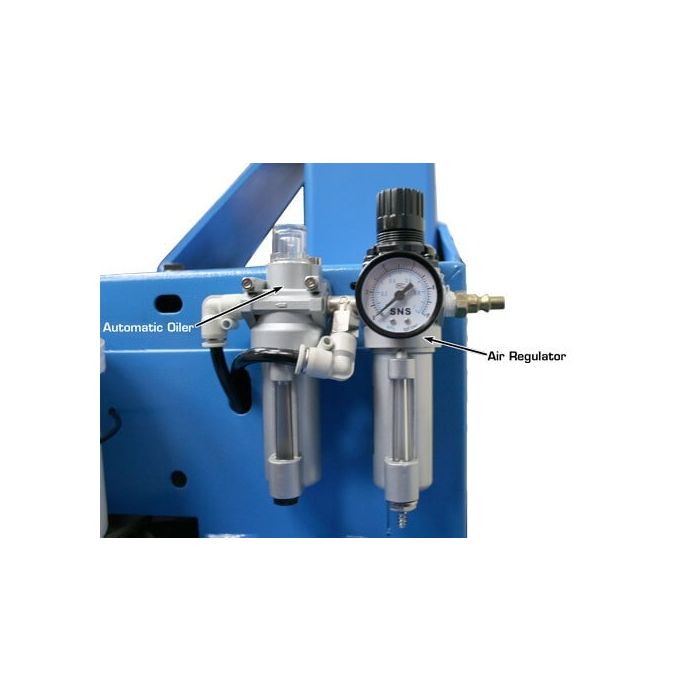

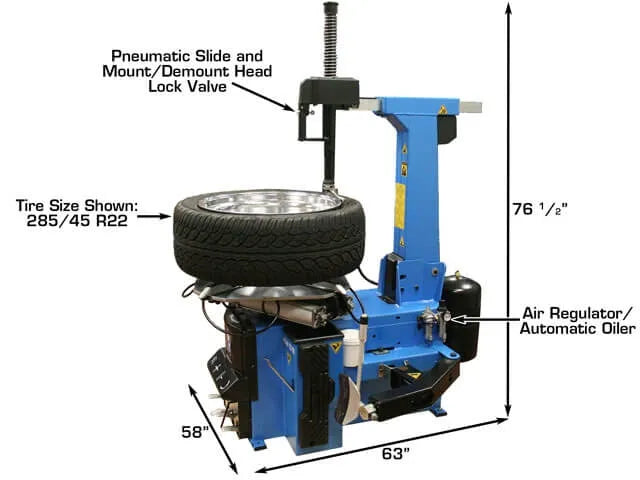

  • Oiler, filter, regulator: Included
  • Soap reservoir: Included
  • Bead Blast - NO

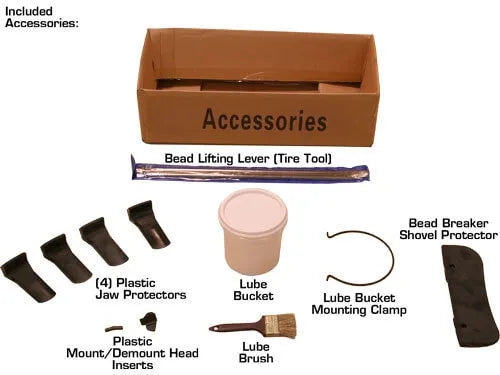

  • 4 Black plastic rim protectors: Included

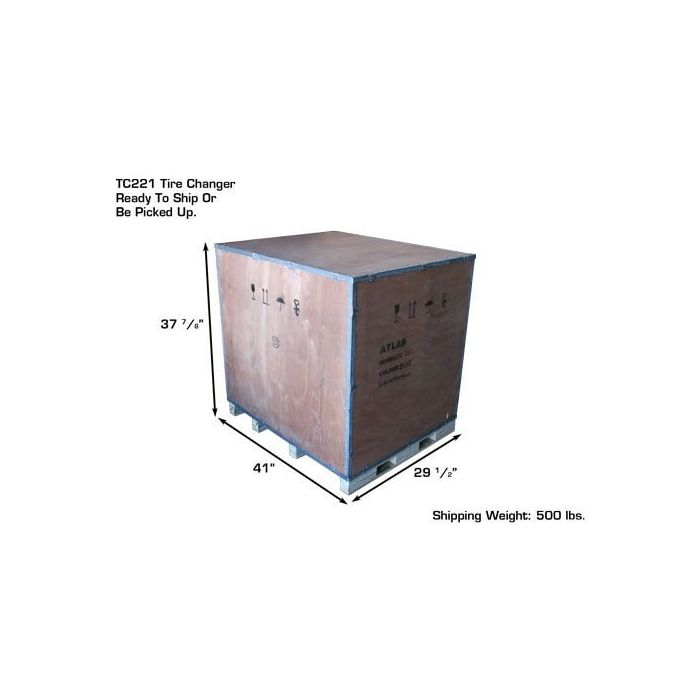

  • Shipping Weight: 500 lbs

Warranty: 1-Year Limited

*Inlet pressure is the amount of air pressure that your air compressor is supplying.
