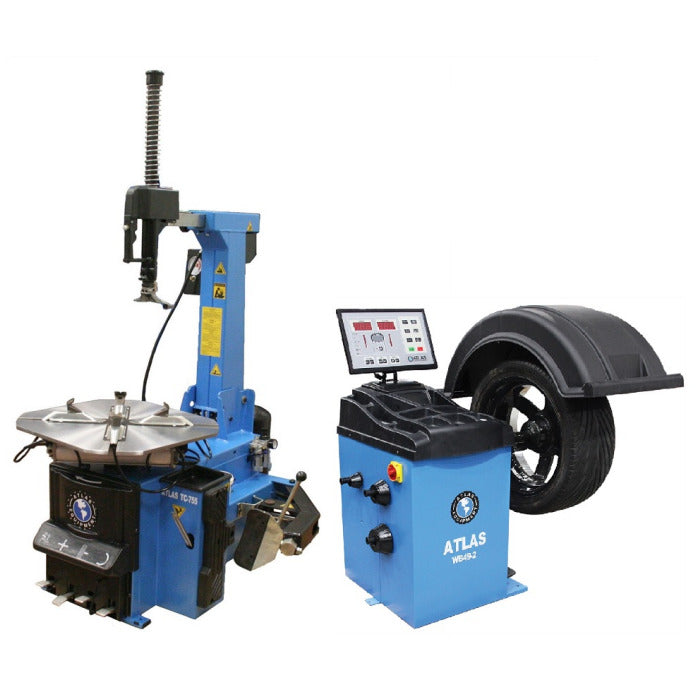

Atlas TC755 Wheel Clamp Tire Changer + WB49-2 2D Computer Wheel Balancer Combo

In Stock SKU ATETCWB-COMBO3 UPC 810524029056

OUR PRICE: $6,149.00

Regular Price: $6,459.00

$170.80 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

Atlas TC755 Tilt-Back Wheel Clamp Tire Changer +
Atlas WB49-2 2D Computer Wheel Balancer Combo

The Atlas TC755 is our "professional tire dealer" or "large car dealership" tilt back wheel clamp tire changer. The clamping range of the Atlas TC 755 allows the operator to "clamp" most 26 inch chrome rims without purchasing additional adapter sets.

The Atlas WB49-2 represents the very latest generation of Atlas Wheel Balancer. Boasting Automatic 2D Data Entry, the offset and diameter are entered automatically using the inner measuring gauge, and the all-new 'monitor-style' large LED display and new design chassis give the balancer a far more practical and aesthetically improved design. Luxury features are included as standard with the WB49-2, such as Split-Weight Function for discreetly locating the weights behind the spokes, and automatic LED light to illuminate the inside of the rim when applying the weights.

CALL OUR EXPERTS NOW FOR UNBEATABLE, EXCLUSIVE PRICING!

Description

Atlas TC755 Tilt-Back Wheel Clamp Tire Changer +
Atlas WB49-2 2D Computer Wheel Balancer Combo

Atlas Automotive Equipment

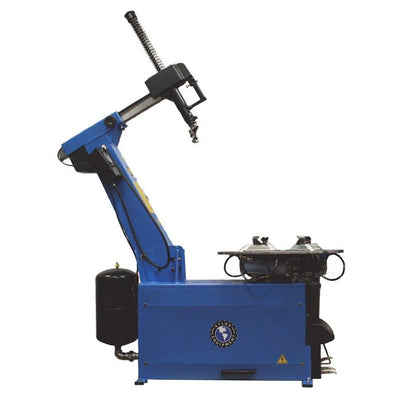

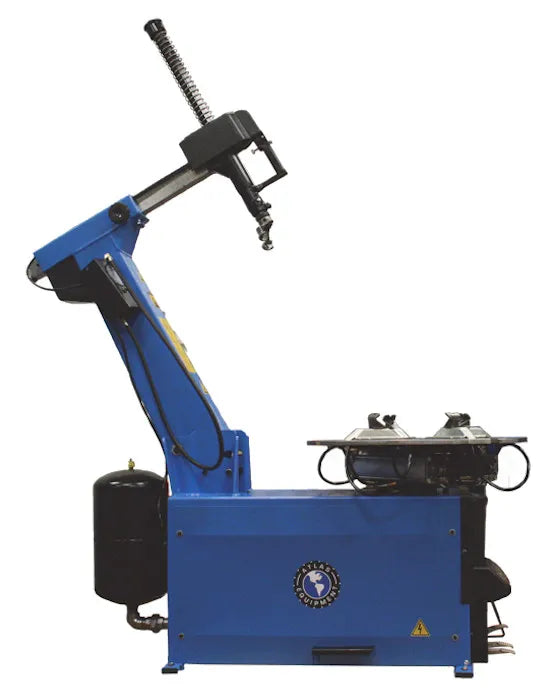

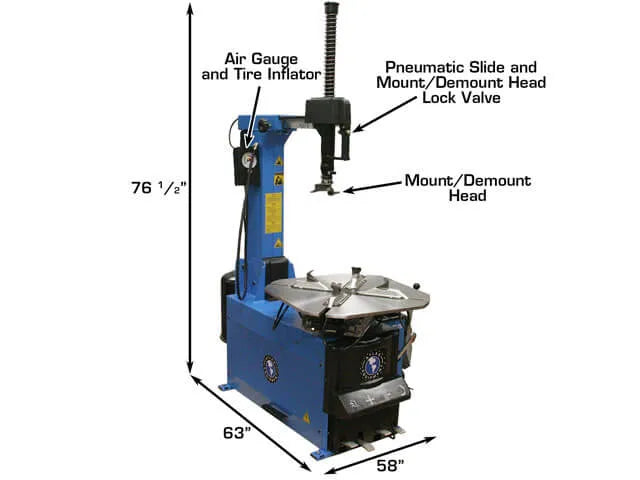

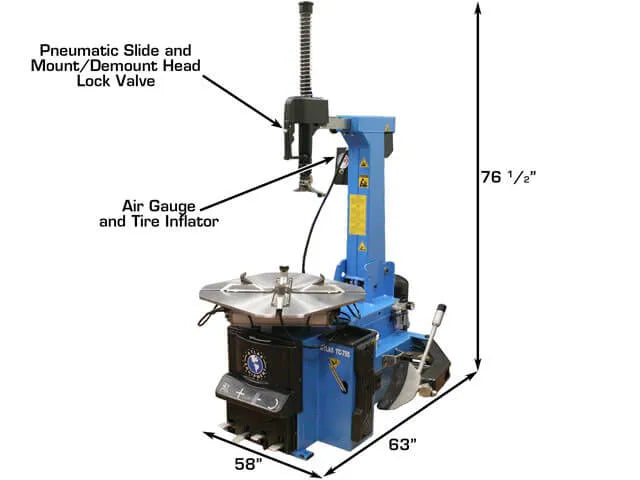

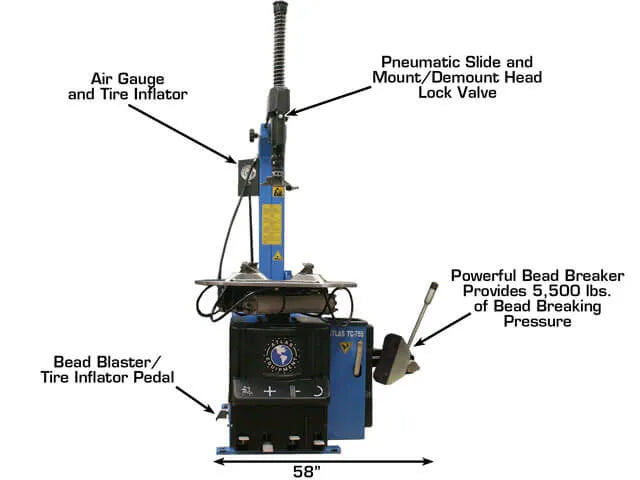

Atlas TC755 Tilt-Back Wheel Clamp Tire Changer

The Atlas TC755 is our "professional tire dealer" or "large car dealership" tilt back wheel clamp tire changer. The clamping range of the Atlas TC755 allows the operator to "clamp" most 26 inch chrome rims without purchasing additional adapter sets.

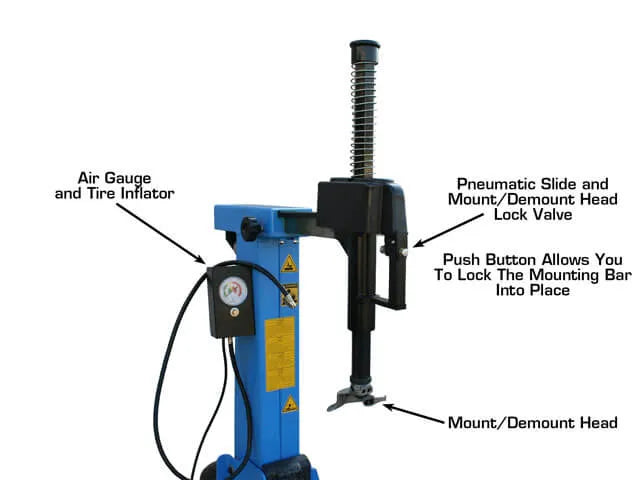

The turntable jaws (which can be covered with the standard protective plastic inserts) hold the rim securely without damaging the surface of the rim. The Atlas TC755 comes standard with an inflator hose and gauge and powerful built-in Bead Blaster to seat the beads on the most stubborn tires.

Atlas Automotive Equipment

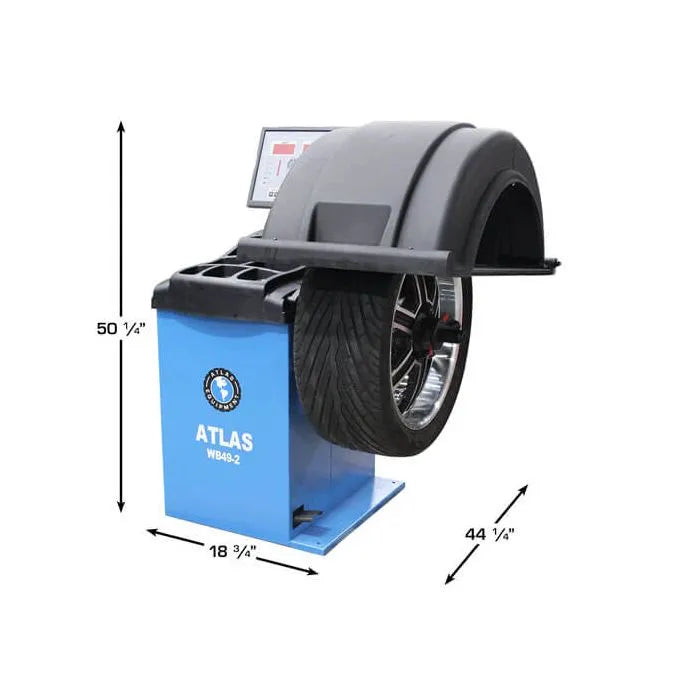

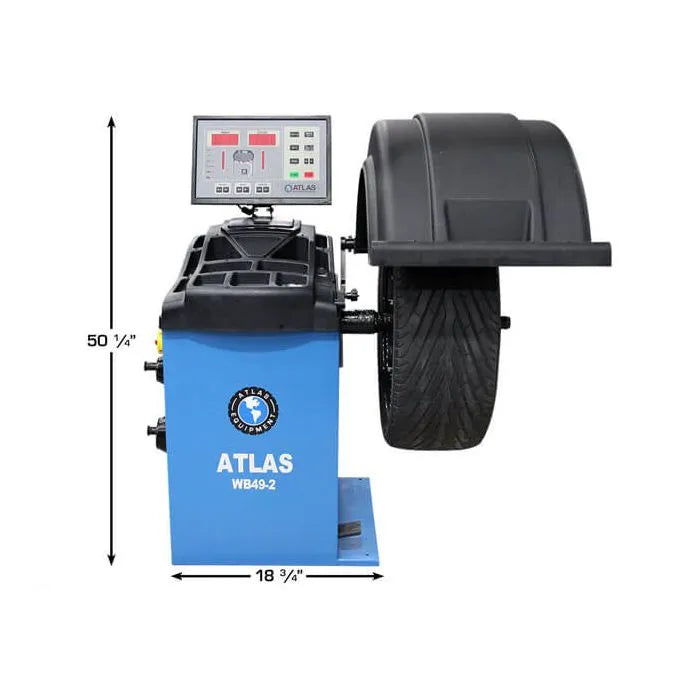

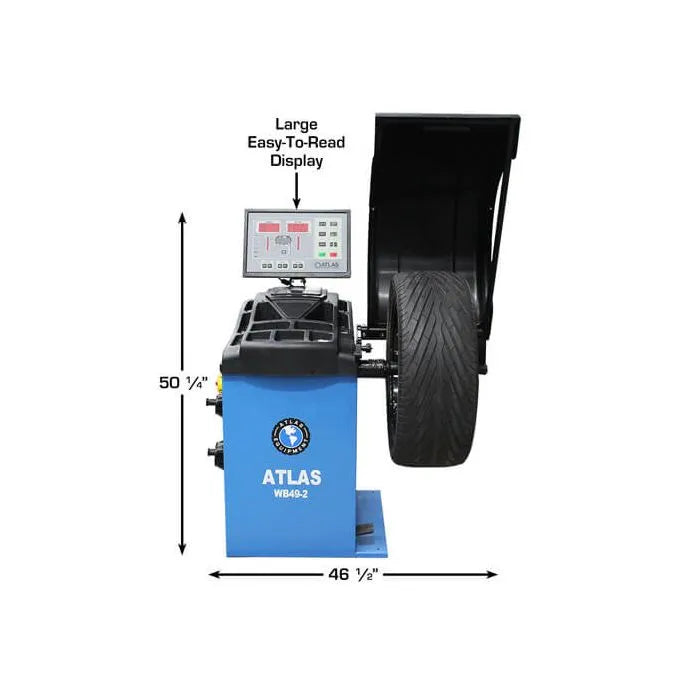

Atlas WB49-2 2D Computer Wheel Balancer

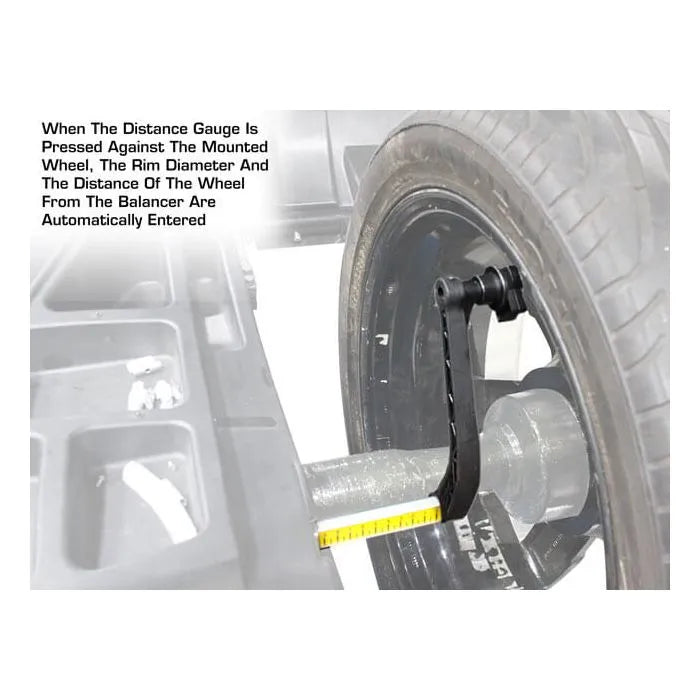

The Atlas WB49-2 represents the very latest generation of Atlas Wheel Balancer. Boasting Automatic 2D Data Entry, the offset and diameter are entered automatically using the inner measuring gauge, and the all-new 'monitor-style' large LED display and new design chassis give the balancer a far more practical and aesthetically improved design.

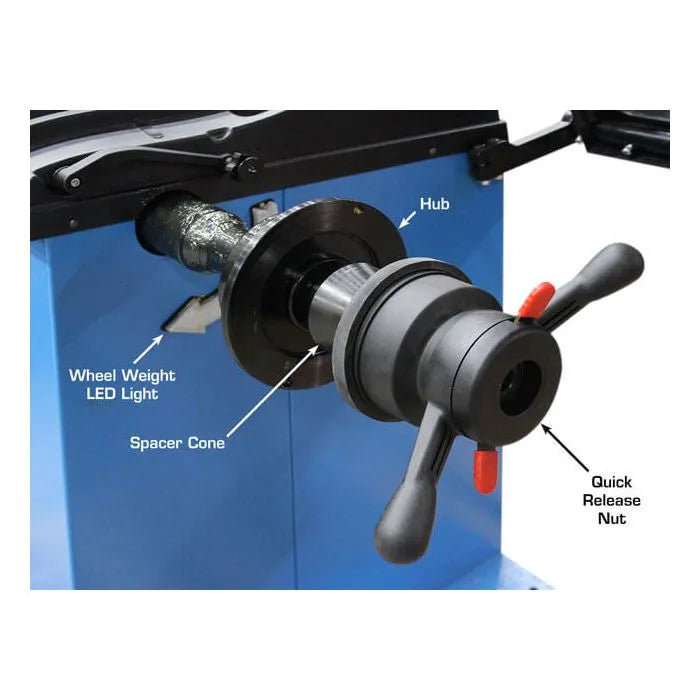

Luxury features are included as standard with the WB49-2, such as Split-Weight Function for discreetly locating the weights behind the spokes, and automatic LED light to illuminate the inside of the rim when applying the weights.

"Split-Weight" Feature: The WB49 has the automatic data entry feature not found on the Atlas WB41 . The measuring guide rod for the automatic data entry is also used to determine the placement of wheel weights when used with the "split-weight" feature of the WB49. The WB41 does not have the split weight feature programmed into its software.

Many custom rims have decorative spokes and certain customers do not want any wheel weights to be "seen" on these fancy wheels. The only place to "hide" the stick-on weights is behind the spokes of the wheel.

The "split-weight" feature allows the operator to "split" the correct amount of weight and "hide" these weights behind the spokes. The measuring guide rod is used to pinpoint the placement of the weights and the WB49's software determines the amount of weight that needs to be applied.

Features & Specs

TC755 Wheel Clamp Tire Changer Features

  • Tilt-Back Column
  • Tire Inflator

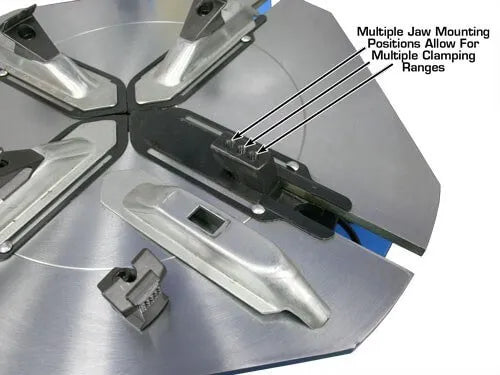

  • 3 Positions For Clamping Jaws
  • Oil, Filter, Regulator Included
  • 90-110 PSI
  • Bead Blaster
  • 110V
  • Inner Clamp: 14" - 30"
  • Outer Clamp: 12" - 28"
  • Max Tire Diameter: 47 1/2"
  • Max Wheel Width: 15"

TC755 Wheel Clamp Tire Changer Specifications

  • Rims: Steel, Aluminum, Alloy

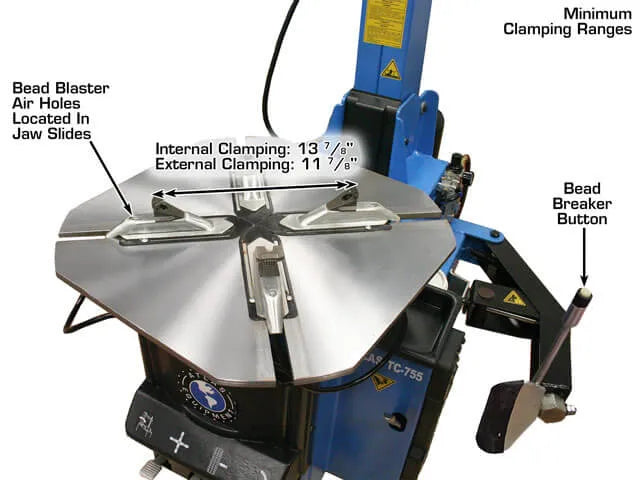

  • External Locking Rim Dimension: Position 1) 11 7/8" - 26"
  • External Locking Rim Dimension: Position 2) 12 7/8" - 27"
  • External Locking Rim Dimension: Position 3) 13 3/4" - 28"
  • Internal Locking Rim Dimension: Position 1) 13 7/8" - 27 7/8"
  • External Locking Rim Dimension: Position 2) 14 5/8" - 28 7/8"
  • External Locking Rim Dimension: Position 3) 15 5/8" - 29 7/8"
  • Bead Blaster: Yes
  • Maximum tire diameter: 47 1/2"
  • Operating voltage: 110V 1Ph
  • Maximum wheel width (Bead Breaker): Position 1) 14 3/4"
  • Maximum wheel width (Bead Breaker): Position 2) 18 1/2"
  • Air pressure: 90-110 psi
  • Wheel clamping: 4 jaws: internal/external

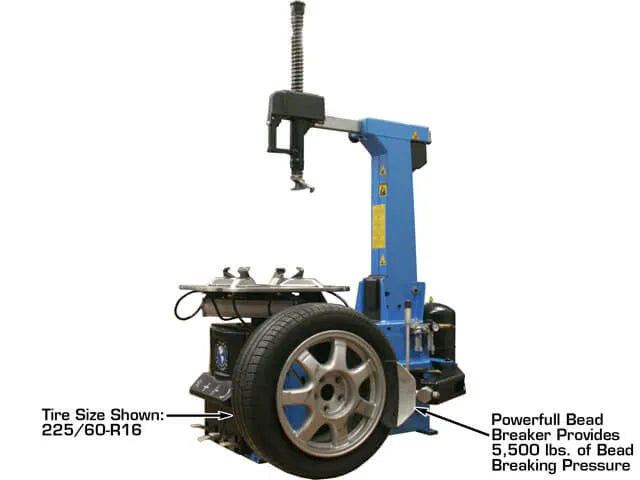

  • Bead breaker: Pneumatic 5,500 LB. force

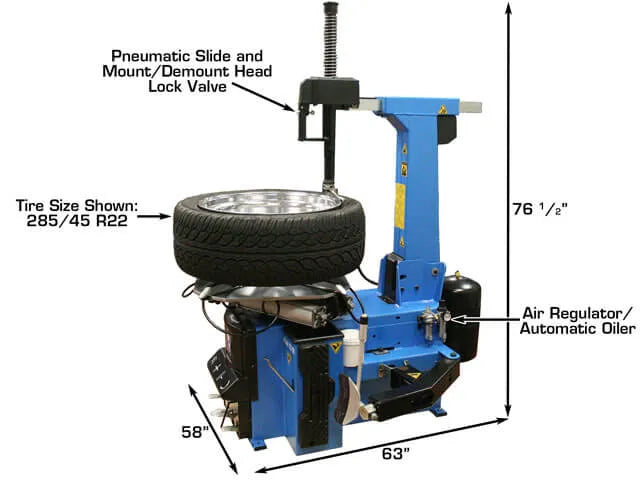

  • Oiler, filter, regulator: Included
  • Soap reservoir: Included

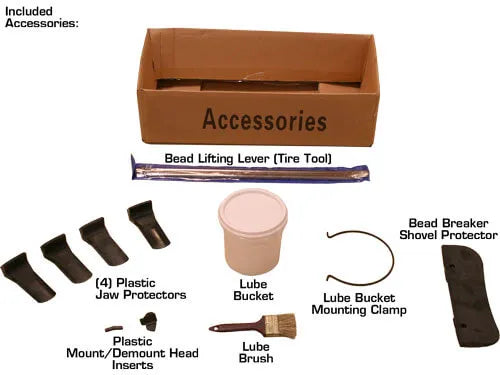

  • 4 Black plastic rim protectors: Included
  • Shipping Weight: 700 lbs

Warranty: 1-Year Limited

WB49-2 2D Computer Wheel Balancer Features

  • Split-Weight Feature
  • Automatic Data Entry

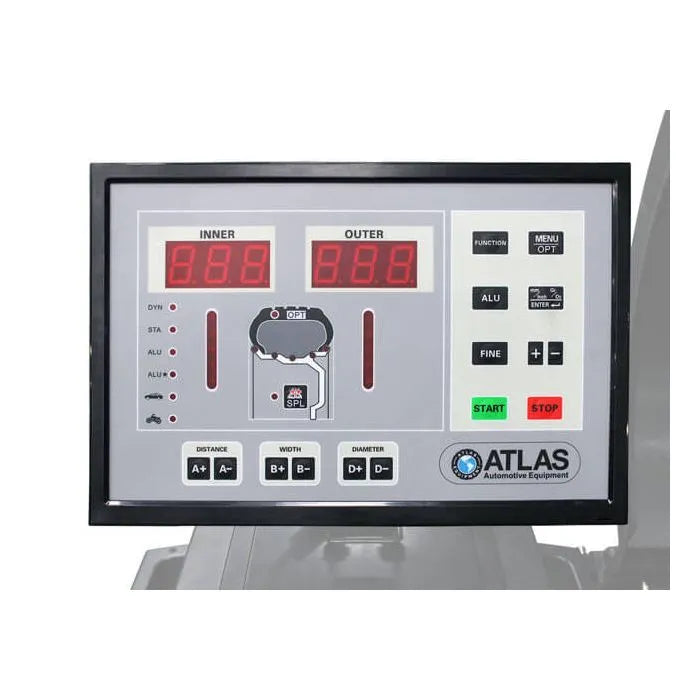

  • Easy To Read Display
  • Large Weight Tray
  • Auto Positioning
  • Auto / Pedal Brake
  • Auto Start / Stop
  • Static And Dynamic Balancing Modes
  • Rapid Optimization
  • Self-Diagnosis
  • Self-Calibration
  • Exceptional Stability In Reading The Unbalance Between Planes
  • Metric And Standard
  • No Anchor-Down Installation

WB49-2 2D Computer Wheel Balancer Specifications

  • Max Tire Diameter: 39" (3" 6')
  • Rim Sizes (Cars And Light Trucks): 10"-32" (2" 8') *
  • Rim Width: 1 1/2"-20" (1" 8')
  • Shaft Size: 40mm
  • Max. Wheel Weight: 150 lb.
  • Balancing Speed: 150 rpm
  • Truck Adapter Set: Optional
  • Power Supply: 110 V 1Ph
  • Motor: 1/4 HP
  • Display: Standard Or Metric
  • Accuracy: 1g
  • Weight Position Resolution: 1.4 Degrees
  • Self Calibration: Yes
  • Shipping Weight: 300 lb.

Warranty: 1-Year Limited
*Requires manual input of some data from 23" - 32"

Accessories/Options

More Information

Atlas TC755 Tire Changer Manual (.pdf)

Atlas TC755 Tire Changer Assembly (.pdf)

Atlas TC755 Tire Changer Parts (.pdf)

Atlas Tire Changer FRL Guide (.pdf)

Atlas WB49 2 Pro Wheel Balancer Manual (.pdf)

Atlas WB49 Wheel Balancer Quick Start (.pdf)
