Atlas 6MR Portable Mid-Rise Scissor Lift
In Stock SKU ATEATTD-6MR-P UPC 810524020251
OUR PRICE: $2,999.00
Regular Price: $3,149.00
Short Description
Atlas 6MR Portable Mid-Rise Scissor Lift
6,000 lbs. Capacity - Now Includes New! Longer 24" Arms!

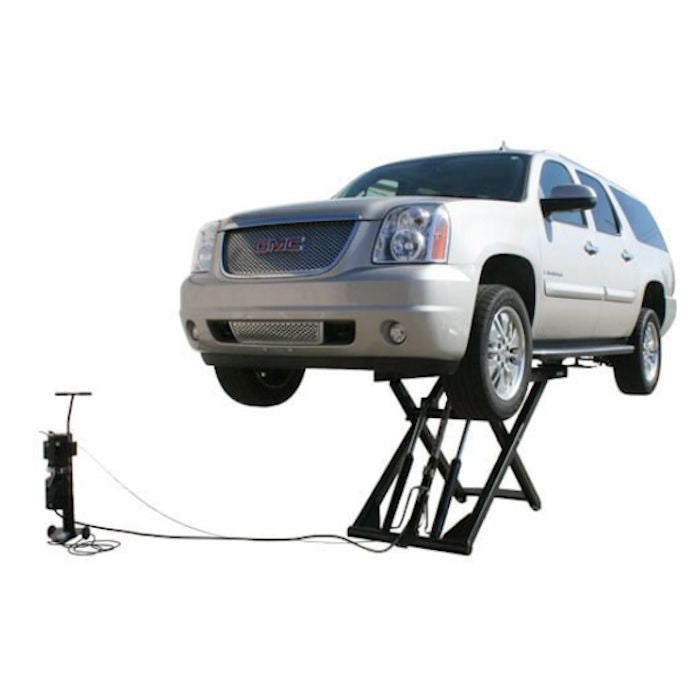

The Atlas 6MR is a free standing 6,000 lb. capacity portable scissor lift. The Atlas 6MR is the perfect lift for body shops and wheel service specialists that need extra lifting height. This portable lift easily raises a 6,000 LB. car or truck to a comfortable working height. The unique platform design of the Atlas 6MR allows access to some areas on the underside of the car not easily accessible with other portable mid-rise lifts. The new arms for the 6MR are now 24" long - longer than most competing models. These longer arms allow you to reach longer vehicle jacking points.
CALL US NOW FOR AN EVEN BETTER DEAL!
Description
Atlas 6MR Portable Mid-Rise Scissor Lift
6,000 lbs. Capacity - Now Includes New! Longer 24" Arms!

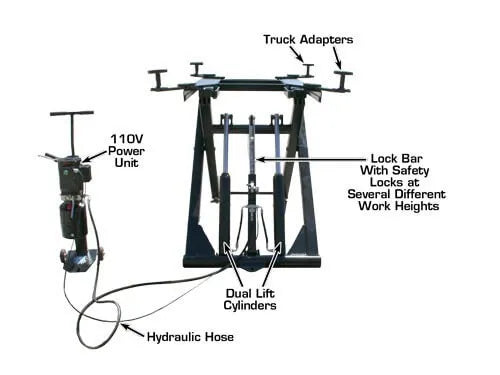

The Atlas 6MR is a free standing 6,000 lb. capacity portable scissor lift. The Atlas 6MR is the perfect lift for body shops and wheel service specialists that need extra lifting height. This portable lift easily raises a 6,000 lbs. car or truck to a comfortable working height. The unique platform design of the Atlas 6MR allows access to some areas on the underside of the car not easily accessible with other portable mid-rise lifts. The new arms for the 6MR are now 24" long - longer than most competing models. These longer arms allow you to reach longer vehicle jacking points. The dual power cylinders and the solid safety lock bar, with several different lock positions, make the Atlas 6MR one of the most popular mid-rise lifts sold in the USA and Canada.

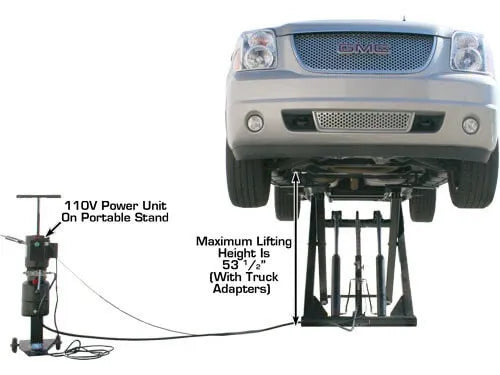

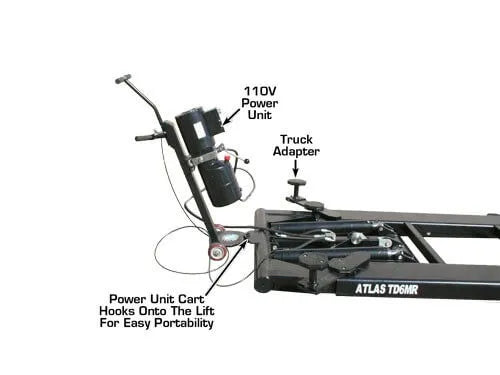

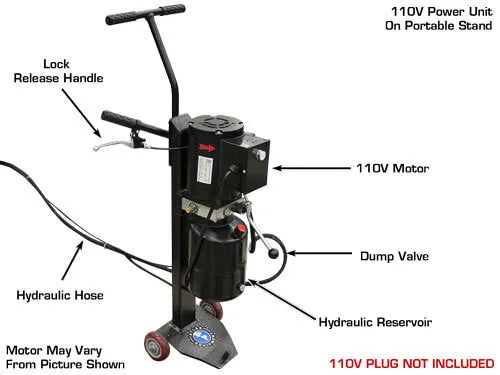

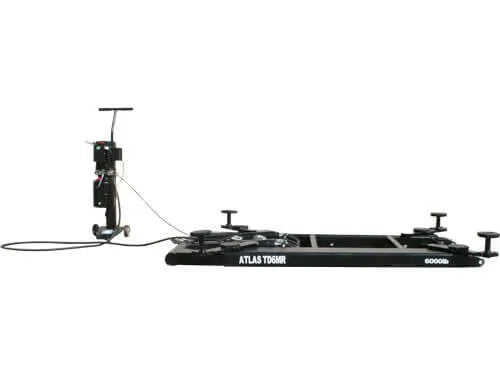

Our Atlas 6MR has been thoroughly tested to meet Industry standards. The Atlas 6MR mid-rise lift is powered by a 110 volt power unit that is mounted on a movable cart. The power unit can be remotely located around the lift for maximum efficiency. This cart is also used to move the Atlas 6MR on a smooth surface. The lift can easily be rolled from an inside work bay to an outside concrete apron work area.

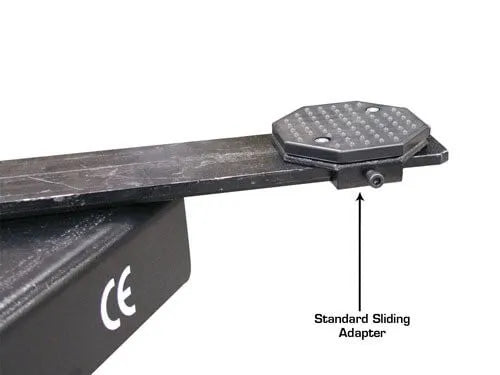

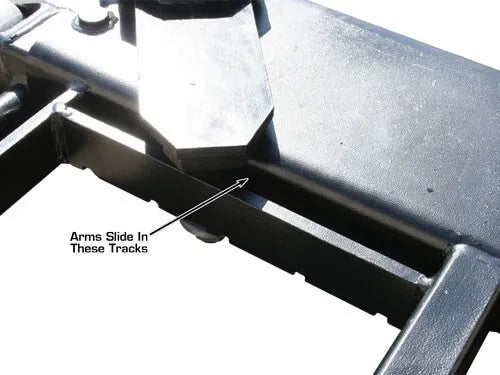

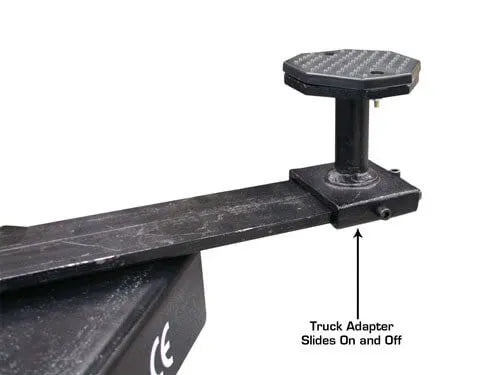

The Atlas 6MR is a complete mid-rise lift that includes one set (4) of truck adapters and another set of sliding car adapters. The arms can be adjusted to an infinite amount of positions in order to accommodate unique lifting points found on certain vehicles.

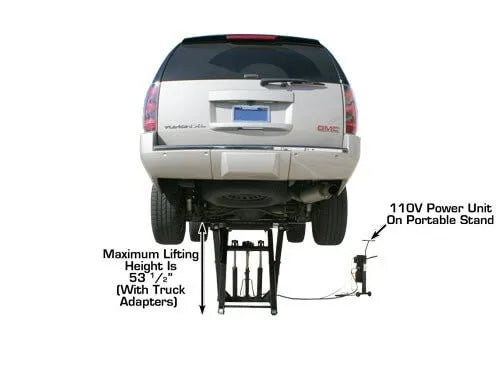

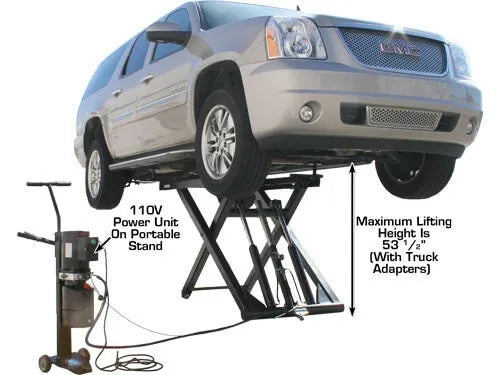

The large "foot print" of the Atlas Pro 6MR creates a steady platform for the raised vehicle. The Atlas 6MR has a lifting height of over 53" and remains rock solid at all safety lock positions.
Due to the horizontal cylinder configuration of the Atlas 6MR it is important to allow some space (2-6 inches) between the lifting surface of the lift and the vehicle's lifting points.
Features & Specs
Features
- Full 6,000 lbs. Capacity
- Commercial Grade
- Atlas Powder Coat Finish
- Single Point Lock Release
- Now Includes Longer 24" Arm Length
- Longer Arms Allows You to Reach Longer Vehicle Jacking Points
- Portable, Easy to Move
- Two Hydraulic Cylinders
- Safety Locks at Any Work Height

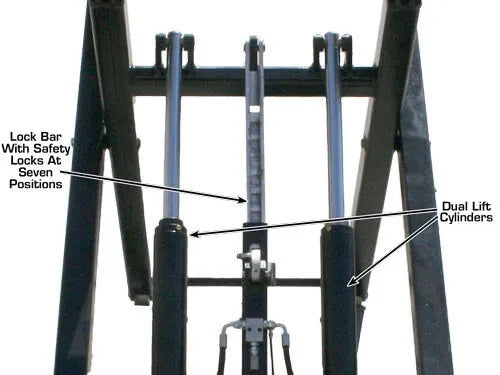

- 7 Locking Positions
- Truck Adapters Included
- Free Standing
- Separate Motor Stand Included

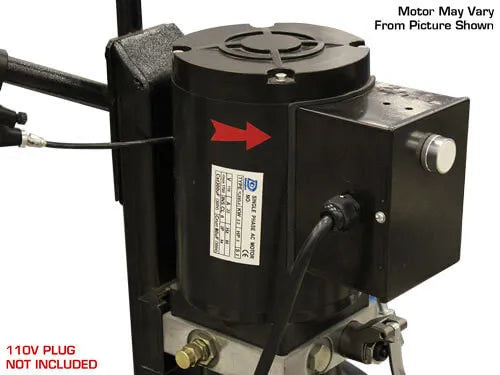

- 110V Motor (Plug Not Included)

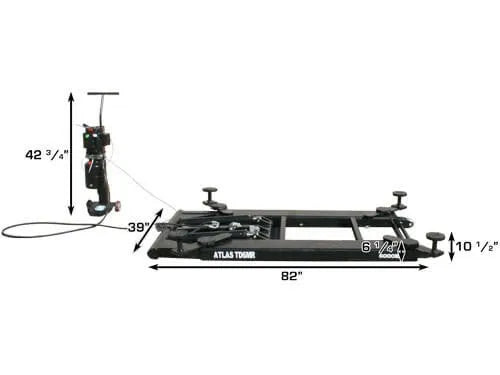

Specifications
- Capacity: 6,000 lbs.

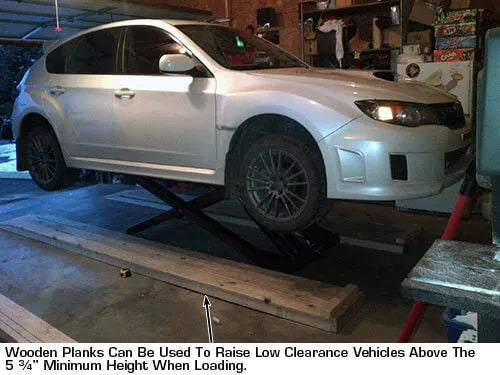

- Height-Lowered (Swing Arms): 5-3/4"

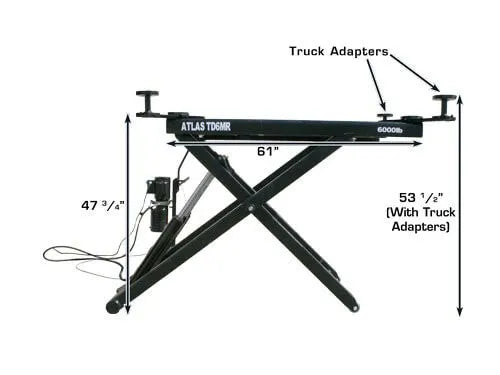

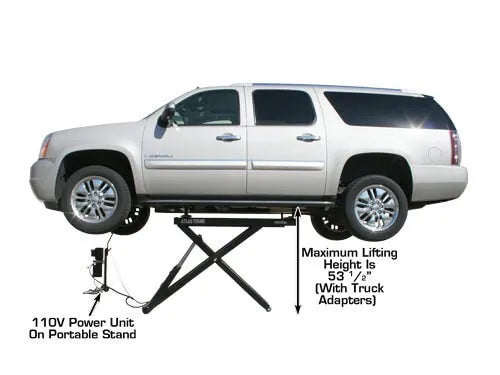

- Height-Raised Maximum: 53-1/2" (4' 5-1/2")

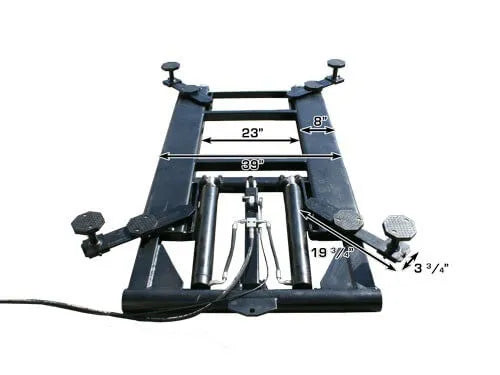

- Width: 39" (3' 3")
- Length: 82" (6' 10")
- Arm Length: 24" New! - Longer Arms!
- Small Truck Adapter: 1-1/2"
- Large Truck Adapter: 5-3/4"

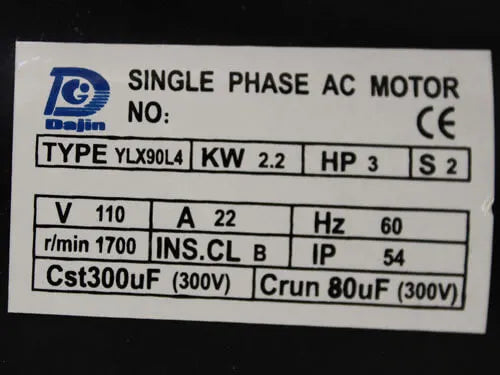

- Motor: 110V
- Oil Requirement: 1.5 Gallons AW32/AW46
- Shipping Weight: 1,050 lb.
- Shipping Dimensions: 85" x 40" x 27"
- Warranty: 2 Years Structure, 2 Years Hydraulic, No Labor
2 Year Structural & 2 Year Hydraulic Warranty
This Atlas product is warranted for two (2) years on structural components and two (2) years on hydraulic power units and cylinders from invoice date. Wear items are covered by a 90 day warranty.
This LIMITED warranty policy does not include a labor warranty.
NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.
The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.
This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.
