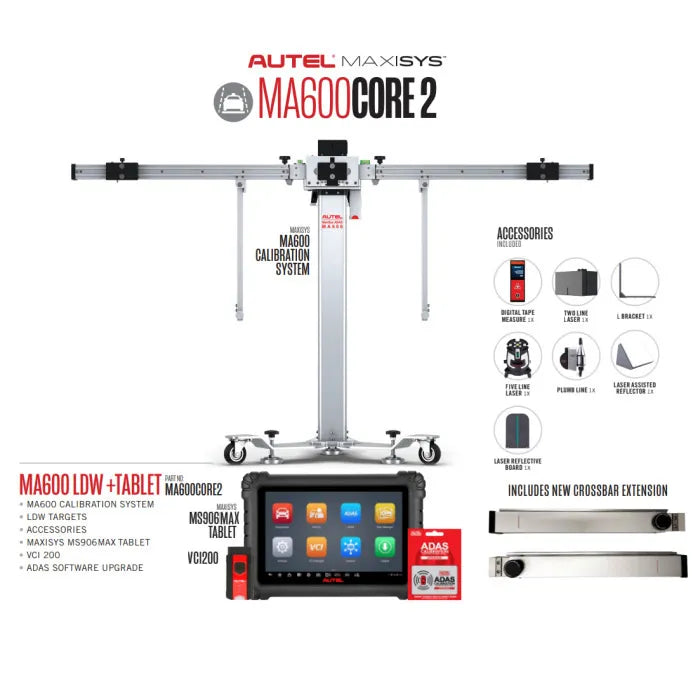

Autel ADAS MA600CORE2 LDW System with MS906MAX Tablet Package

Features & Specs

Features

• Portable - Easily foldable frame create freedom to calibrate faster in many locations
• Precise - The new distance laser and accessories provide a quicker leveling process with vehicle for Millimeter Ruler Accuracy
• Adjustable - Fine-tuning nobs to easily

Hardware Features

• Precise millimeter-level accuracy with multiple laser positioning and measurement tools
• Portable flexible and easy for storage: quickly folded for transport
• Affordable modular frame assembled with accessory tools for calibration
• Affordable easy to move

Software Features

• Smart compatible use with leveling lift adjustment
• Accurate regular updates of latest OE-level diagnostic and calibration software
• Accurate correct calibration
• Intuitive tutorial graphics and step-by-step instructions
• Intuitive Pre-Scan and Post-Scan Reports (ADAS module identification, calibration)
• Expansive wider vehicle coverage
• Expansive extend camera calibration to AVM and RCW systems with purchase of oversize patterns

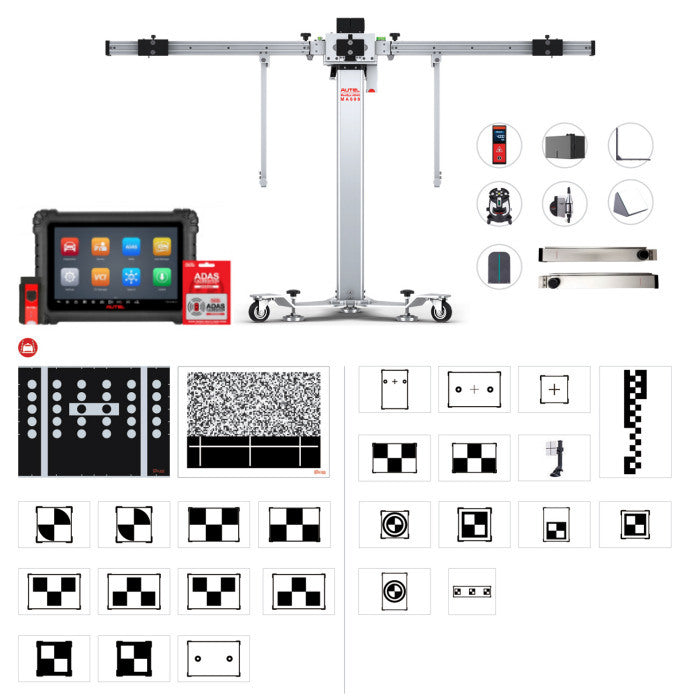

Package Includes

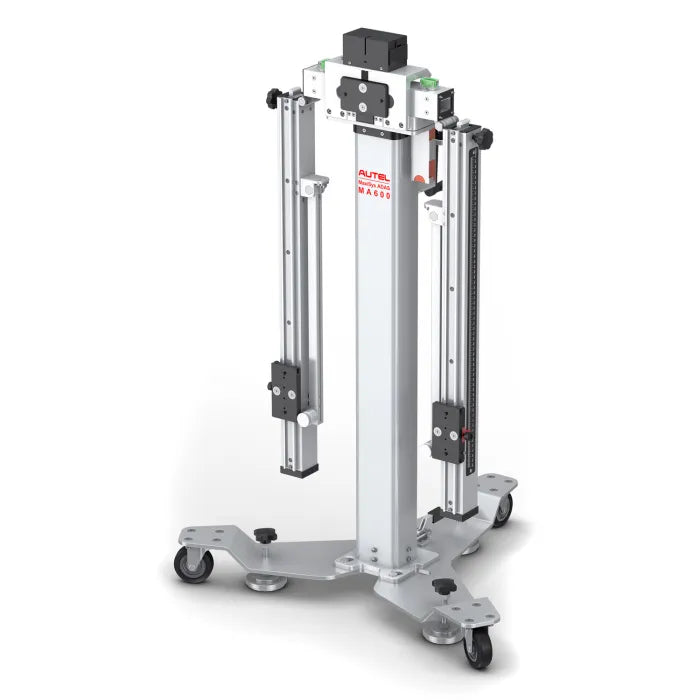

• MA600 Calibration System

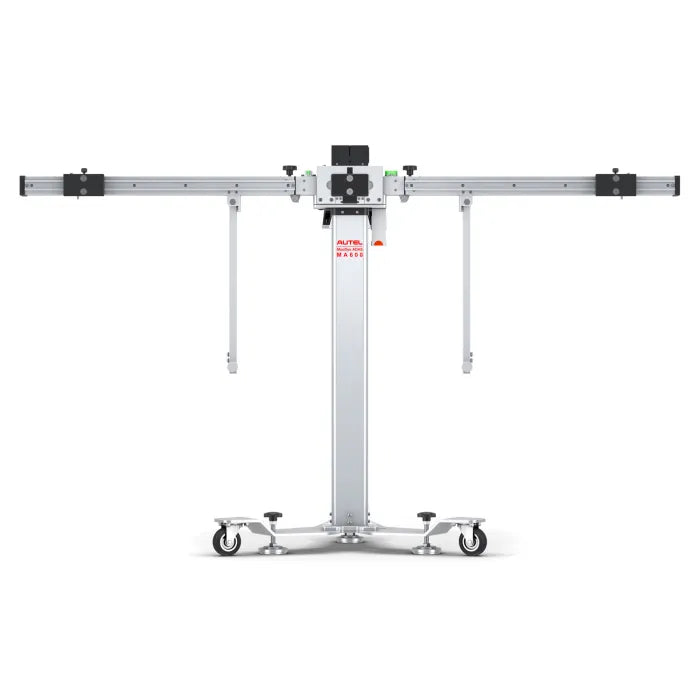

• Calibration Frame
• Digital Tape Measure
• Two Line Laser
• L Bracket
• Five Line Laser
• Plumb Line
• Laser Assisted Reflector
• Laser Reflective Board
• New Crossbar Extension

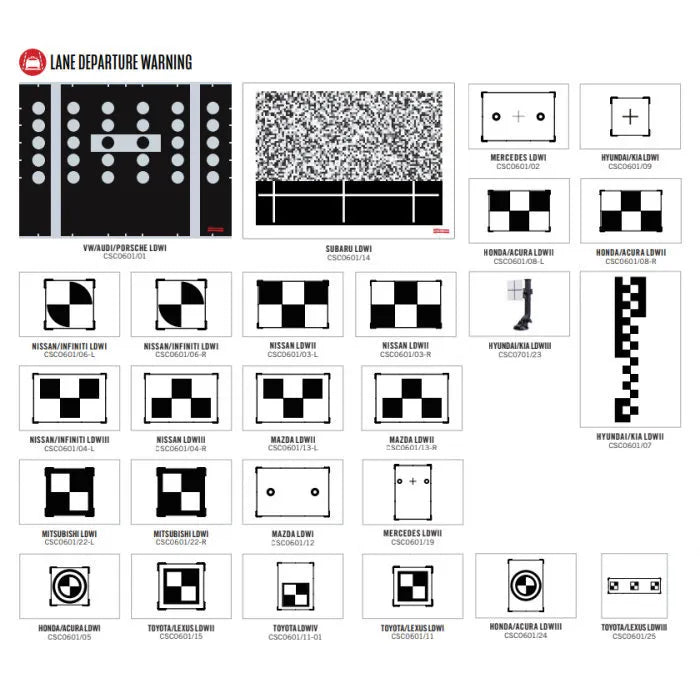

• LDW Targets
• Volkswagen, Porsche, Subaru, Nissan, Infiniti, Mazda, Mitsubishiu,
• Mercedes, Hyundai, Kia, Honda, Acura, Toyota, Lexus

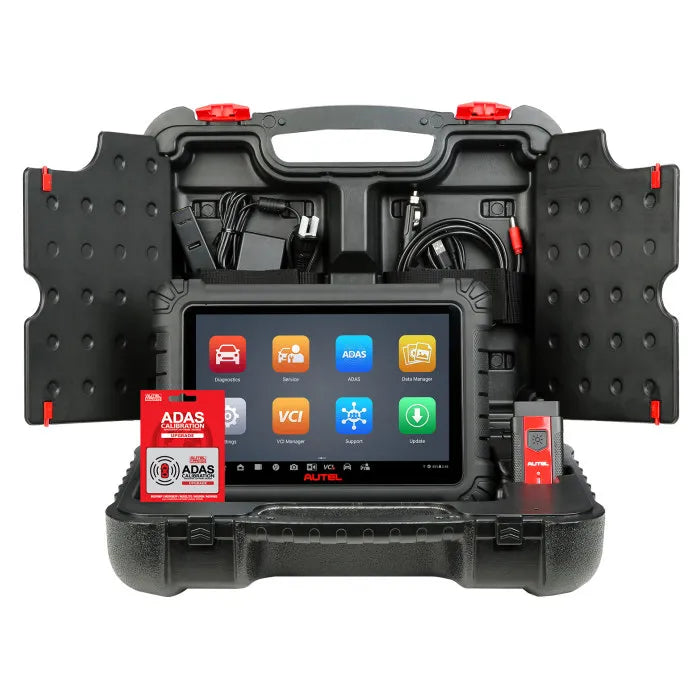

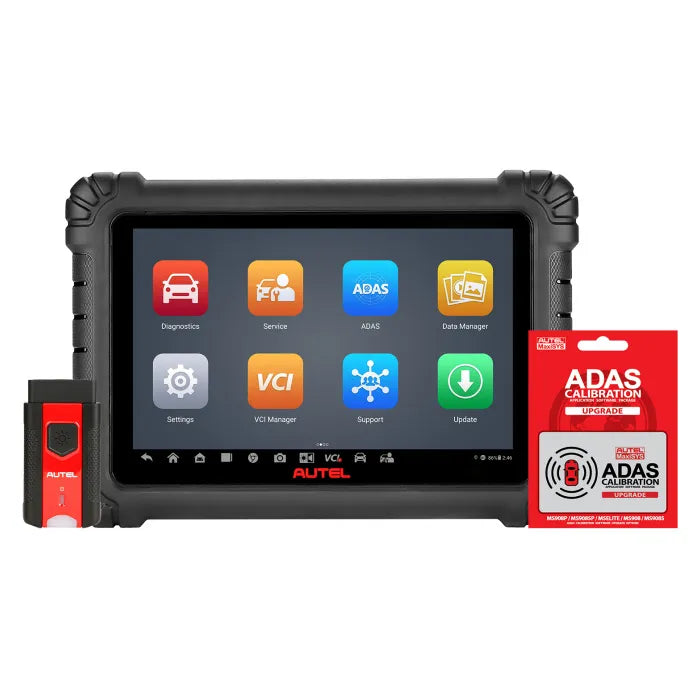

• MaxiSys MS906MAX Tablet

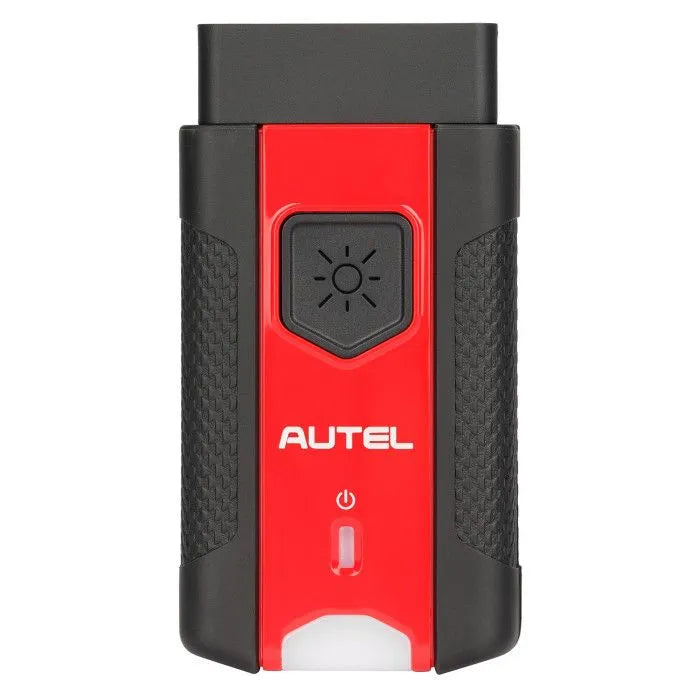

• MaxiVCI V200 Bluetooth Vehicle Communication Interface

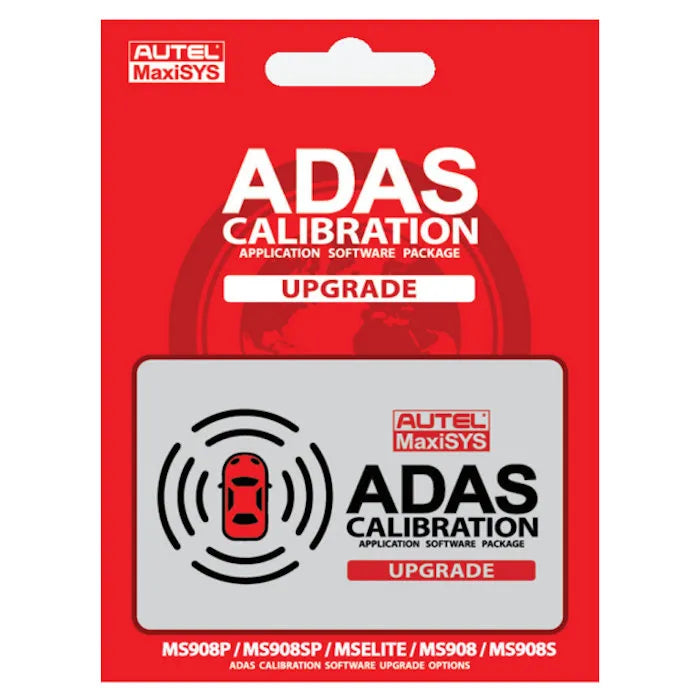

• ADAS Software Upgrade

Specifications

• Shipping Dimensions: 43" W x 59" L x 48" H
• Shipping Weight: 396 lbs.

Pattern Board Specifications

• Pattern Board Size (LxW): 1360mm (53.54") x 960mm (37.80")
• Rated Power: 24V, 3A
• Laser Rated Power: 3V, 25mA
• Laser Battery Type: AA 2x1.5V
• Calibration Frame Working Temp: 0℃ to 50℃
• Calibration Frame Storage Temp: -20℃ to 60°C
• Laser Class: Class 2
• Certification: CE, FCC, RoHS

One-Year Limited Warranty
Autel warrants to its customers that this product will be free from all defects in materials and workmanship for a period of one (1) year from the date of the original purchase, subject to the following terms and conditions:

1. The sole responsibility of Autel under the Warranty is limited to either the repair or, at the option of Autel, replacement of the scan tool at no charge with Proof of Purchase. The sales receipt may be used for this purpose.
2. This warranty does not apply to damages caused by improper use, accident, flood, lightning, or if the product was altered or repaired by anyone other than the Manufacturer Service Center.
3. Autel shall not be liable for any incidental or consequential damages arising from the use, misuse, or mounting of the scan tool. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
4. All information in this manual is based on the latest information available at the time of publication and no warranty can be made for its accuracy or completeness. Autel reserves the right to make changes at any time without notice.

One-Year Limited Warranty: Store or dealer receipt acts as proof of purchase. In lieu of proof of purchase, tool or tablet is warranted one (1) year from tool/tablet registration.

Repair Cost: If under warranty, your Autel tool will be repaired or replaced free of charge unless damaged (including but not limited to a cracked screen, broken case, chemical exposure or liquid damage) to accident, abuse, misuse, natural disaster, insufficient or excessive electrical supply, abnormal mechanical or environmental conditions or unauthorized disassembly, repair or modification. If the repaired unit is out of warranty, the customer will be contacted and will be responsible for the repair fee.
