Autel IA1000 Alignment & ADAS System with Tablet

Description

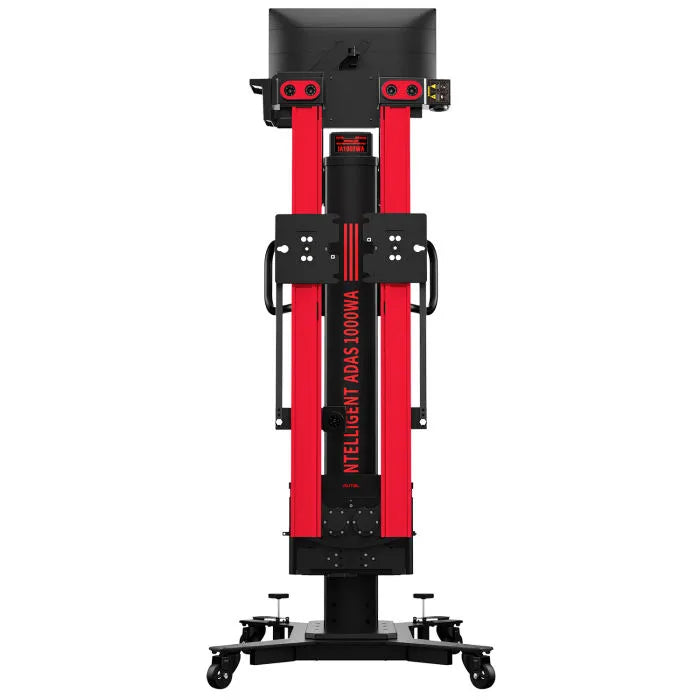

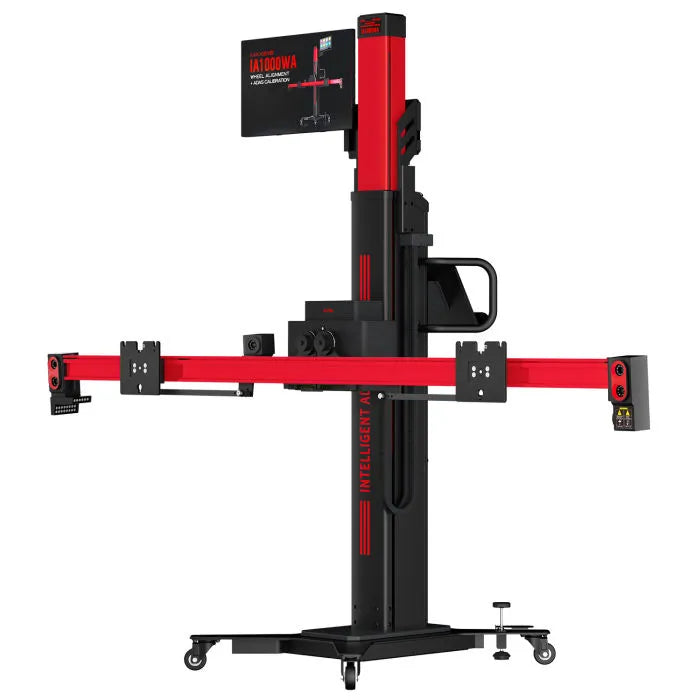

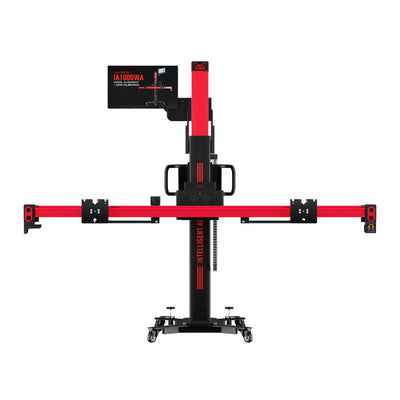

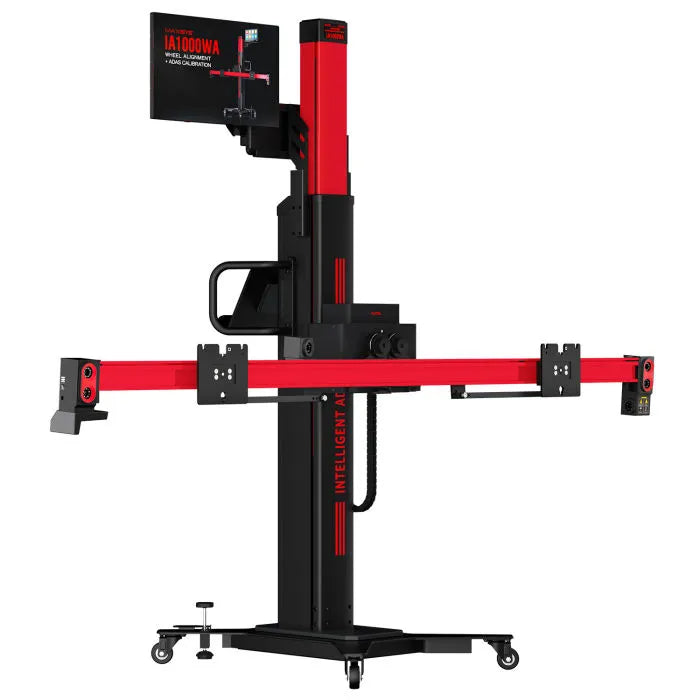

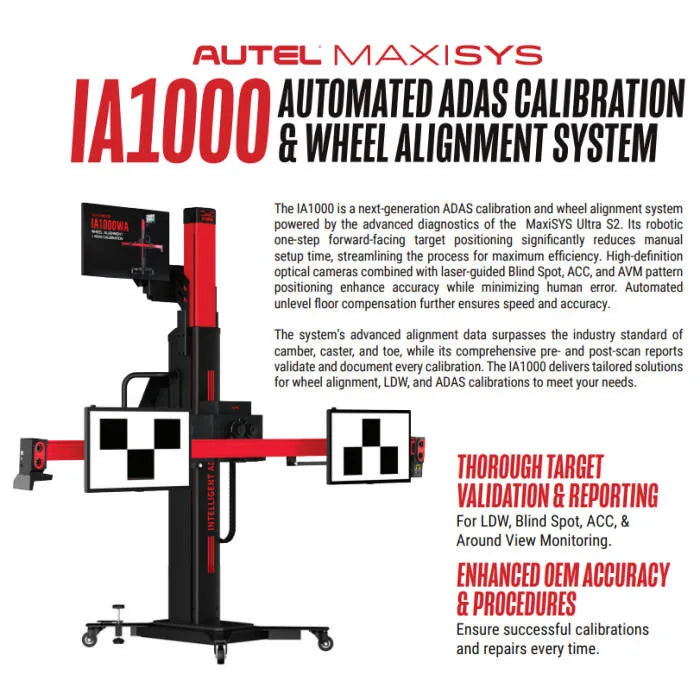

Autel IA1000 Automated Alignment & ADAS Calibration System

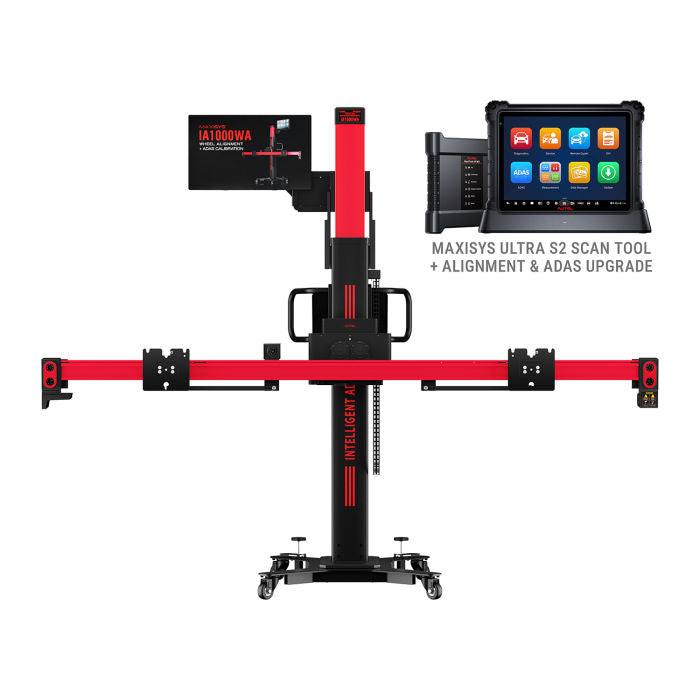

IA1000T Frame Package with MaxiSYS Ultra S2 Tablet

The Autel MaxiSYS IA1000T Frame Package with MaxiSYS Ultra S2 Tablet features the IA1000 automated alignment and ADAS calibration system. Featuring six high-definition cameras and laser-enabled positioning guides, the IA1000 boasts robotic forward-facing camera target positioning, and laser-guided ACC, blind spot calibrator, and AVM mat placement, plus unlevel floor compensation. Automatic pitch, roll, yaw, and front-to-back fine-tuning robotic adjustments improve accuracy and reduce human error. The IA1000, which includes a 24" touchscreen display that attaches to the frame unit, can perform four-wheel alignment and ADAS calibration for U.S., Asian, and European vehicles. Powered by the included MaxiSYS Ultra S2 advanced diagnostics tablet, the IA1000 offers extensive U.S., Asian, and European vehicle 4-wheel alignment coverage, and industry-leading ADAS calibration coverage. The MaxiSYS Ultra S2 tablet ships with the MaxiFlash VCMI2 6-in-1 communication and measurement device and includes IA1000 alignment, and static and dynamic ADAS calibration software coverage. The IA1000 unit provides one-step robotic and vertical LDW target placement via physical targets (Autel targets and patterns sold separately) or with the 27" attachable monitors and Autel LDW digital targets (sold separately), significantly reducing manual operation and setup time. The IA1000T includes one year of free MaxiSYS Ultra S2 software updates and is covered by a one-year limited warranty.

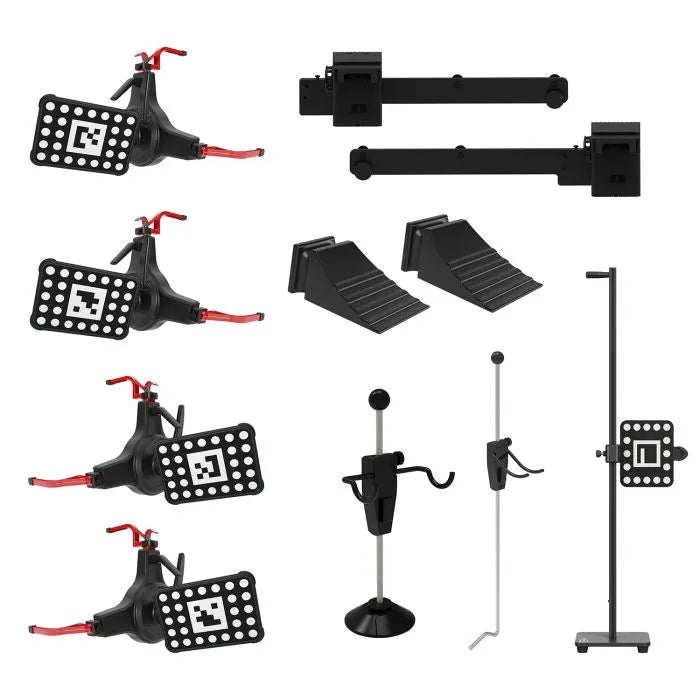

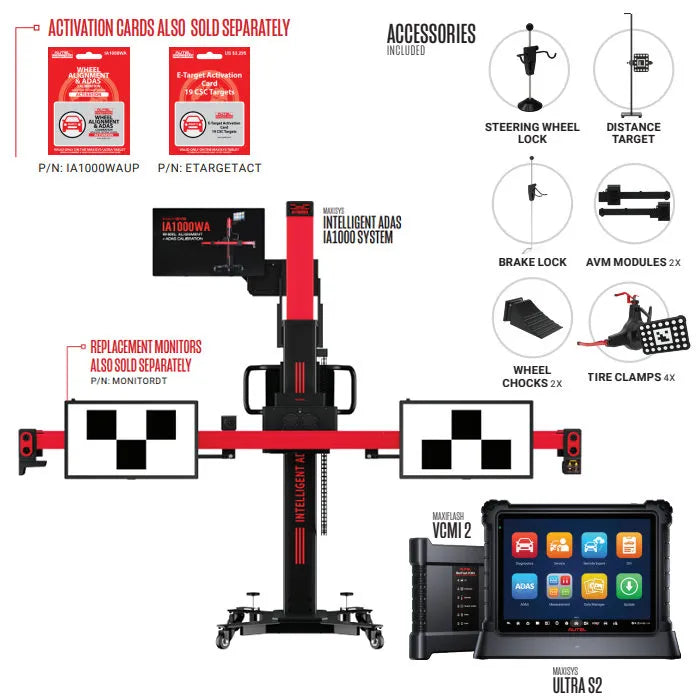

IA1000T Frame Package Includes: IA1000 Calibration Frame, Accessories (Steering Wheel Lock, Brake Lock, 2x Wheel Chocks, Distance Target, 2x AVM Modules, 4x Tire Clamps), MaxiSYS Ultra S2 Tablet, & IA1000 Activation Card.

• Automated Alignment and ADAS Calibration System with robotic forward-facing camera target positioning, laser-guided ACC, blind spot calibrator and AVM mat placement capable of performing four-wheel alignment and ADAS calibrations.
• Includes MaxiSYS Ultra S2 advanced diagnostics tablet with MaxiFlash VCMI2 and IA1000 Alignment and ADAS software upgrade
• Includes 24" touchscreen display that attaches to frame unit, four tire clamps, steering wheel and brake lock, distance target, two wheel chocks, and two AVM-placement lasers.
• Unit provides one-step robotic and vertical LDW target placement via physical targets or available 27" attachable monitors, significantly reducing manual operation and setup time.
• Automatic pitch, roll, yaw, and front-to-back fine-tuning robotic adjustments improve accuracy and reduce human error.
• Compatible with Autel targets, patterns, and calibration components, and with IA1000 digital target monitors. (Sold separately)
• Offers comprehensive four-wheel alignment coverage of U.S., Asian, and European vehicles.
• Equipped with six high-definition cameras and precision-engineered wheel clamps for industry-leading accuracy to 0.02-degrees.
• Industry-leading dynamic and static ADAS component calibration coverage is available with calibration targets, and calibrator purchases.
• Includes one-year limited warranty

The IA1000 is a next-generation ADAS calibration and wheel alignment system powered by the advanced diagnostics of the MaxiSYS Ultra S2. Its robotic one-step forward-facing target positioning significantly reduces manual setup time, streamlining the process for maximum efficiency. High-definition optical cameras combined with laser-guided Blind Spot, ACC, and AVM pattern positioning enhance accuracy while minimizing human error. Automated unlevel floor compensation further ensures speed and accuracy.

The system's advanced alignment data surpasses the industry standard of camber, caster, and toe, while its comprehensive pre- and post-scan reports validate and document every calibration. The IA1000 delivers tailored solutions for wheel alignment, LDW, and ADAS calibrations to meet your needs.

A Streamlined Single System & Workflow
Modern vehicle software, sensors, components, and modules interact over multiple communication networks, requiring an advanced diagnostic tool to correct faults before advancing to any structural analysis and safety system calibrations. Powered by an Autel MaxiSYS Ultra S2 tablet, the IA1000 system delivers the industry’s most comprehensive, key-to-key vehicle servicing available.

Automated Forward-Facing ADAS Calibration
Fully Robotic Target Positioning & Fine Tune Adjustments
The advanced robotics of the IA1000 automatically align target placement (front-back, vertical, horizontal) and crossbar angles (pitch, roll, yaw), significantly reducing setup time, minimizing human error, and improving first-time calibration success rates. Ideal for collision centers, general repair shops, ADAS calibration centers, and dealerships, it enhances efficiency, consistency, and reduces technician workload. The IA1000 ensures faster, more precise target placement, optimized workflows, and increased productivity.

Simply Place The Frame In The Green And Go
Position the system anywhere within the green Distance and Offset tolerances, hit "Next", and the IA1000 automates the rest of the setup.

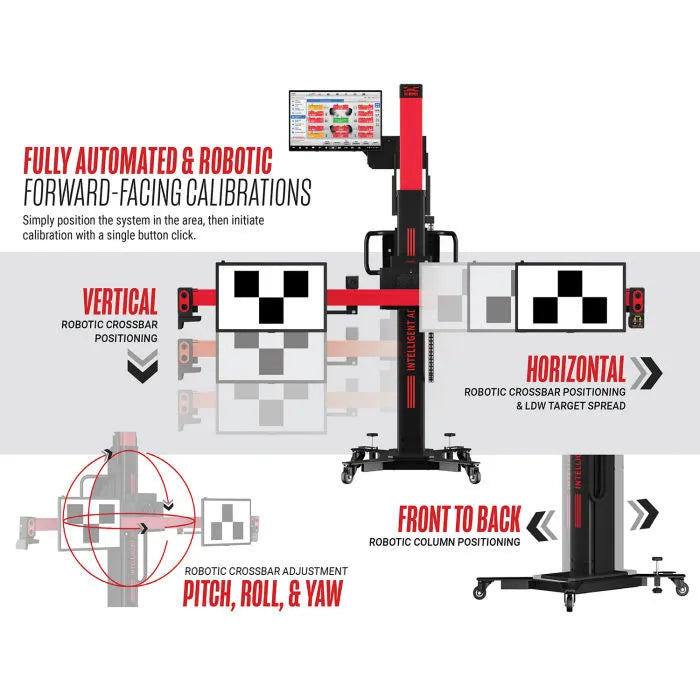

5-Way Robotic Targeting Positioning & Fine-Tune Adjustment
Reduce setup time with precise robotic front-to-back, vertical and horizontal crossbar placement, pitch, roll, and yaw angles, and ADAS target spread.

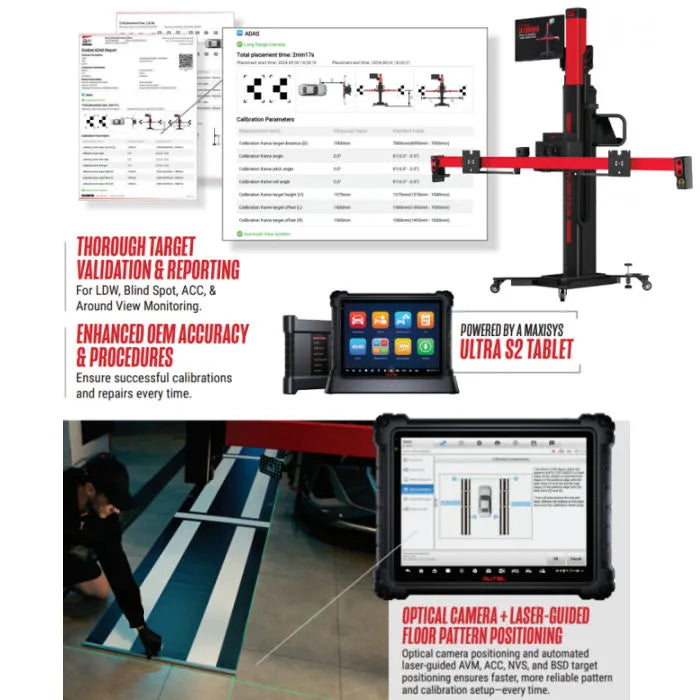

Optical Camera + Laser-Guided Precision
Floor Pattern Positioning
Six HD positioning and tracking cameras accurately map out the vehicle and optical frame positioning and automated laser-guided AVM, ACC, NVS, and BSD target positioning ensures faster, more reliable floor pattern and calibration setup - every time.

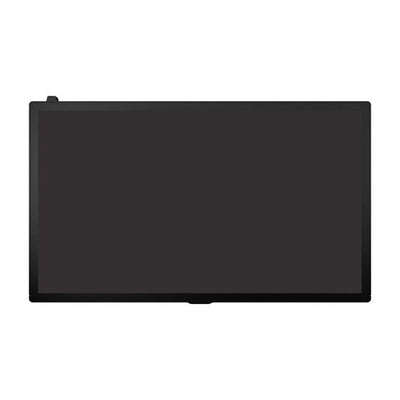

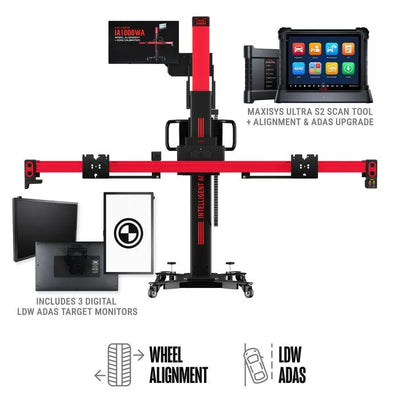

Optional Digital Target Display Monitors
Featuring Self-Adjusting Screen Brightness

• Automated Digital Targets: Automatically projects calibration-specific targets, eliminating manual selection for expedited, error-free results
• Self-Adjusting Screen Brightness: Adaptive display brightness ensures precise calibration, even in challenging lighting conditions
• Extensive OEM-sourced Coverage: A single digital monitor replaces multiple physical targets, significantly minimizing storage needs
• Seamless OTA Updates: Easily access the latest vehicle coverage targets to keep your system up to date

The Modern Wheel Alignment Workflow
Alignment & ADAS Are 2 Pieces Of The Same Puzzle
Every ADAS calibration should start with a wheel alignment inspection, and every calibration requires the vehicle to be properly aligned. Today, eleven of the twenty-eight major auto manufacturers in North America require ADAS calibration following a wheel alignment, including Ford, Volkswagen, Jeep, Kia, Dodge, and Subaru. The IA1000 delivers alignment pre-check, full wheel alignment capabilities, and ADAS calibration in a single system and workflow.

Advanced Alignment & Measurement Data
Go beyond basic camber, caster, and toe, and visualize all measurements, including detailed thrust angle, SAI, toe out on turns, and more. Diagnose issues with frame alignment, engine cradle alignment diagnosis, bent parts, loose parts, and more.

Step-by-step Illustrated ADAS Instructions
Autel was one of the first manufacturers to bring a complete ADAS calibration frame system, comprised of software, hardware, and targeting components, to the aftermarket. Our experience and talent for innovation have enabled us to develop an intuitive, knowledge-based solution that allows technicians in every industry and all skill levels to calibrate ADAS components with precision and efficiency.

Unlevel Floor Compensation
Eliminate Failed Calibrations Due To Uneven Surfaces
Level flooring is one of the critical environmental factors required to achieve successful ADAS calibration. An uneven floor, perhaps due to shop drainage, can result in calibration failure or an unsafe calibration. IA1000 Unlevel Floor Compensation allows for the selection of any type of surface including level floor, unlevel floor, or on a rack, and delivers successful calibration regardless of the flooring status.

Finish Every Repair & ADAS Calibration
Bring All Aspects Of The Workflow In-House With Autel

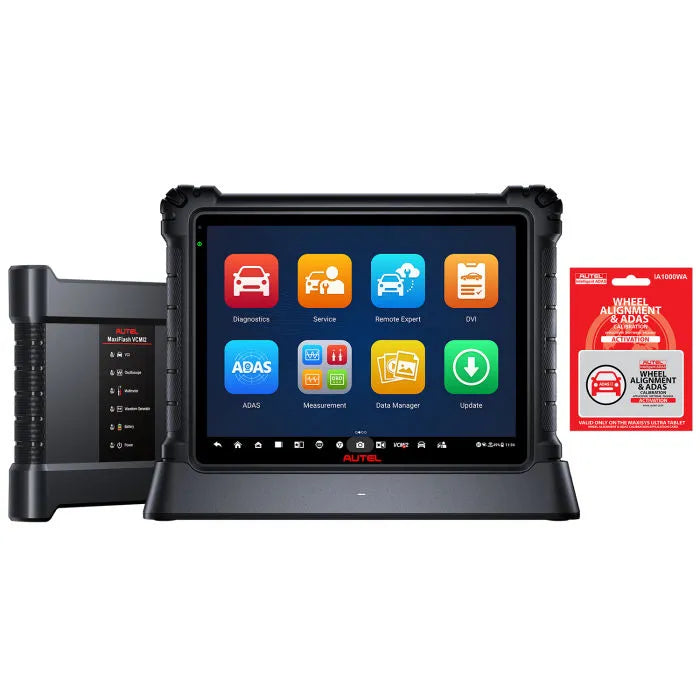

MaxiSYS Ultra S2
Industry-Leading Advanced Diagnostic Tablet
The IA1000 is powered by the MaxiSYS Ultra S2, a 13.7" touchscreen Android-based tablet featuring 512 gigabytes of storage and a 6-in-1 vehicle communication and measurement device. The MaxiSYS Ultra S2 provides comprehensive coverage of U.S., Asian, and European vehicles, 1996 and newer, with advanced diagnostics, including active tests, special functions, and coding and adaptations. Additional features on this flagship Autel advanced diagnostic tablet include Topology 3.0: OE-Style System Analysis of Multi-Speed Communication Protocol Networks, Active Module and Network Analysis: Locate and Directly Ping ECUs to Test Signal Quality and Network Integrity.

Remote Expert
Access OE Services From Your Autel Tablet
Carrying active OE subscriptions for all manufacturers is not possible for many shops. However, access to this software is required for certain modern vehicles and repairs, and for validating pre- and post-scans. Remote Expert is a cloud-based solution offering shops access to OE software and qualified technicians to get the job done quickly and accurately.

Guided ADAS
Eliminate Late Model Software Lag
Pair your Autel MaxiSYS tablet and ADAS frame and targets with a local laptop and OE subscription or OE tool to calibrate ADAS on late model vehicles. Combine the maximized efficiency of Autel optical positioning with the most current OE coverage. If OE services are unavailable, the Autel Remote Expert platform enables access to experienced technicians with OE tools or subscriptions to complete the calibration.

Comprehensive Documentation & Reporting
Validated Target Positioning
No company offers more comprehensive and insurer-ready documentation than Autel. A Pre-scan identifies existing faults and all safety or convenience systems on the vehicle.

The Post-scan includes a detailed report that ensures vehicle owners, sublets, and insurance companies that the faults were repaired, and all OE-required calibrations were performed to OE specifications, requirements, and guidelines.

Expansive ADAS Coverage
Static & Dynamic Calibrations
No company offers more comprehensive and insurer-ready documentation than Autel. A Pre-scan identifies existing faults and all safety or convenience systems on the vehicle.

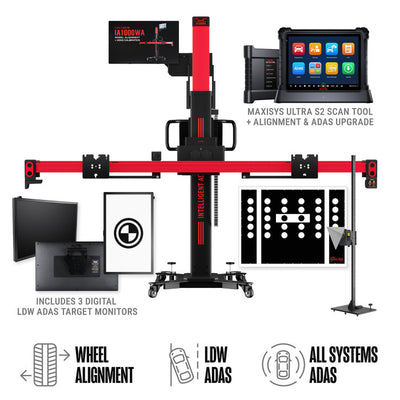

Autel offers comprehensive static calibration packages with Lane Departure Warning targets and patterns for Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo ADAS-equipped vehicles, and Rear Collison Warning and Around View Monitoring mats for numerous vehicle brands including Nissan, Mercedes-Benz, Volkswagen, and Honda, General Motors, Toyota, and Mitsubishi. Available packages also include radar, lidar, and night vision calibrators.
