Autel IA900AS Wheel Alignment + All Systems ADAS Calibration Pkg
In Stock SKU IA900AS UPC 849438014322
OUR PRICE: $36,815.00
Regular Price: $39,334.00
Short Description

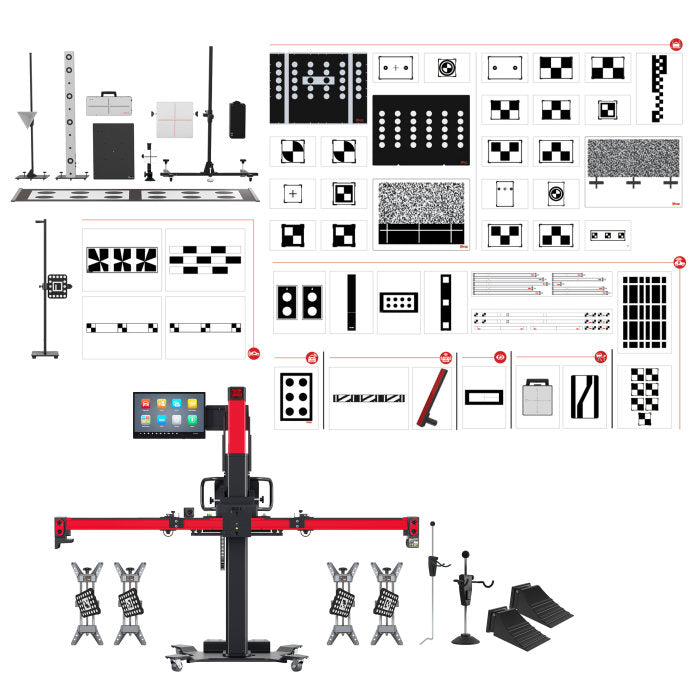

Autel MaxiSYS IA900AS Dual Purpose Four-Wheel Alignment and ADAS Calibration Frame with Touchscreen and All Systems ADAS Calibration Package
MaxiSYS ADAS IA900WA Wheel Alignment and ADAS Frame with All Systems ADAS Calibration package includes the MaxiSYS IA900WA Wheel Alignment and ADAS calibration frame that enables the performance of four-wheel alignment and ADAS component calibration. Includes targets, patterns, and calibration components to calibrate cameras, radar, LIDAR, Night Vision units. Software includes illustrated alignment instructions, live readings, required tools, and adjustment locations display on included 24" touchscreen screen. Alignment coverage for U.S., Asian and European vehicles, 1996 and newer. Six high-resolution positioning and tracking cameras in frame automatically monitor vehicle height on shop lift. Robotic frame movement for efficient use and alignment reading accuracy to 0.02 degrees for precise alignments. Includes four wheel clamps with camera targets, steering wheel lock and wheel chocks. One-year limited warranty.
MaxiSYS ADAS IA900WA Wheel Alignment and ADAS Frame with All Systems ADAS Calibration package includes the MaxiSYS IA900WA Wheel Alignment and ADAS calibration frame that enables the performance of four-wheel alignment and ADAS component calibration. Includes targets, patterns, and calibration components to calibrate cameras, radar, LIDAR, Night Vision units. Software includes illustrated alignment instructions, live readings, required tools, and adjustment locations display on included 24" touchscreen screen. Alignment coverage for U.S., Asian and European vehicles, 1996 and newer. Six high-resolution positioning and tracking cameras in frame automatically monitor vehicle height on shop lift. Robotic frame movement for efficient use and alignment reading accuracy to 0.02 degrees for precise alignments. Includes four wheel clamps with camera targets, steering wheel lock and wheel chocks. One-year limited warranty.
Description
Autel MaxiSYS IA900AS Dual Purpose Four-Wheel Alignment and ADAS Calibration Frame with Touchscreen and All Systems ADAS Calibration Package
Autel's Latest Development in ADAS Calibration Now Includes Wheel Alignment Technology. One Frame Performs 4-Wheel Alignment & ADAS Calibration.
Advanced Driver Assistance System (ADAS) is becoming standard equipment on today’s new vehicles. These systems are designed to assist drivers to prevent collisions by displaying alerts, providing camera images or by taking instantaneous control of the vehicle. The Autel MaxiSys ADAS provides the original complete diagnostic functionality, comprehensive and precise ADAS calibration. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS is an ideal calibration tool for collision repair, glass replacement and repair shops.
MaxiSYS ADAS IA900WA Wheel Alignment and ADAS Frame with All Systems ADAS Calibration package includes the MaxiSYS IA900WA Wheel Alignment and ADAS calibration frame that enables the performance of four-wheel alignment and ADAS component calibration. Includes targets, patterns, and calibration components to calibrate cameras, radar, LIDAR, Night Vision units. Software includes illustrated alignment instructions, live readings, required tools, and adjustment locations display on included 24" touchscreen screen. Alignment coverage for U.S., Asian and European vehicles, 1996 and newer. Six high-resolution positioning and tracking cameras in frame automatically monitor vehicle height on shop lift. Robotic frame movement for efficient use and alignment reading accuracy to 0.02 degrees for precise alignments. Includes four wheel clamps with camera targets, steering wheel lock and wheel chocks. One-year limited warranty.
Features & Specs
Features
- Control IA900 From MaxiSYS UltraWA or 24" Touchscreen
- Crossbar Control Pitch, Roll, Yaw, and Center
- New Folding Crossbar Locking Mechanism
- Self Calibrating Camera
- Built-In Cable Management
- Consolidated Power Supply
- MaxiSYS Tablet Holder with Built-In Charger
- MaxiSYS Interface for Wheel Alignment
- Precise Optical Measurement with 6 High Resolution Cameras
- Self Calibrating Cameras, Always Accurate, Every Time
- Cameras Automatically Track Vehicle Height On Lift
- Frame capable of performing 4-Wheel alignment and ADAS calibration
- Six high-resolution positioning and tracking cameras in frame
- Includes 24" touchscreen display that attaches to frame unit
- MaxiSYS software interface monitors and displays alignment measurements
- Robotic frame movement
- Alignment coverage includes U.S., Asian and European vehicles, 1996 and newer
- Illustrated alignment instructions, live readings, required tools and adjustment locations display on a single screen
- Includes four-wheel clamps with camera targets, steering wheel lock and wheel chocks
- One-year warranty
- Standard Frame, Targets, Patterns, and Components for:
- LDW - Lane Departure Warning
- AVM - Around View Monitoring
- BSD - Blind Spot Detection
- ACC - Adaptive Cruise Control
- LIDAR - Light Detection And Ranging
- NVS - Night Vision
- RCW - Rear Collision Warning

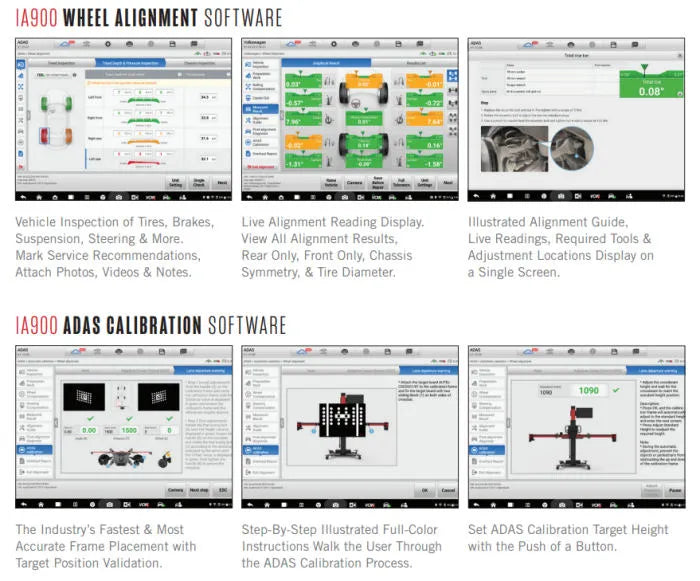

IA900 Wheel Alignment Software
- Vehicle Inspection of Tires, Brakes, Suspension, Steering & More.
- Mark Service Recommendations, Attach Photos, Videos & Notes.
- Live Alignment Reading Display.
- View All Alignment Results, Rear Only, Front Only, Chassis Symmetry, & Tire Diameter.
- Illustrated Alignment Guide, Live Readings, Required Tools & Adjustment Locations Display on a Single Screen.
IA900 ADAS Calibration Software
- The Industry’s Fastest & Most Accurate Frame Placement with Target Position Validation.
- Step-By-Step Illustrated Full-Color Instructions Walk the User Through the ADAS Calibration Process.
- Set ADAS Calibration Target Height with the Push of a Button.
Specifications
- Minimum Height: 6"
- Maximum Height: 7'
- Pallet 1 Shipping Weight: 655 lbs.
- Pallet 1 Shipping Dimensions: 86" x 52" x 42"
- Pallet 2 Shipping Weight: 475 lbs.
- Pallet 2 Shipping Dimensions: 60" x 59" x 44"
- Pallet 3 Shipping Weight: 300 lbs.
- Pallet 3 Shipping Dimensions: 88" x 48" x 40"
- Warranty: One Year Limited
One-Year Limited Warranty
Autel warrants to its customers that this product will be free from all defects in materials and workmanship for a period of one (1) year from the date of the original purchase, subject to the following terms and conditions:
- The sole responsibility of Autel under the Warranty is limited to either the repair or, at the option of Autel, replacement of the scan tool at no charge with Proof of Purchase. The sales receipt may be used for this purpose.
- This warranty does not apply to damages caused by improper use, accident, flood, lightning, or if the product was altered or repaired by anyone other than the Manufacturer Service Center.
- Autel shall not be liable for any incidental or consequential damages arising from the use, misuse, or mounting of the scan tool. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
- All information in this manual is based on the latest information available at the time of publication and no warranty can be made for its accuracy or completeness. Autel reserves the right to make changes at any time without notice.
One-Year Limited Warranty: Store or dealer receipt acts as proof of purchase. In lieu of proof of purchase, tool or tablet is warranted one (1) year from tool/tablet registration.
Repair Cost: If under warranty, your Autel tool will be repaired or replaced free of charge unless damaged (including but not limited to a cracked screen, broken case, chemical exposure or liquid damage) to accident, abuse, misuse, natural disaster, insufficient or excessive electrical supply, abnormal mechanical or environmental conditions or unauthorized disassembly, repair or modification. If the repaired unit is out of warranty, the customer will be contacted and will be responsible for the repair fee.
Accessories/Options
More Information
Autel MaxiSys IA900WA Brochure (.pdf)
