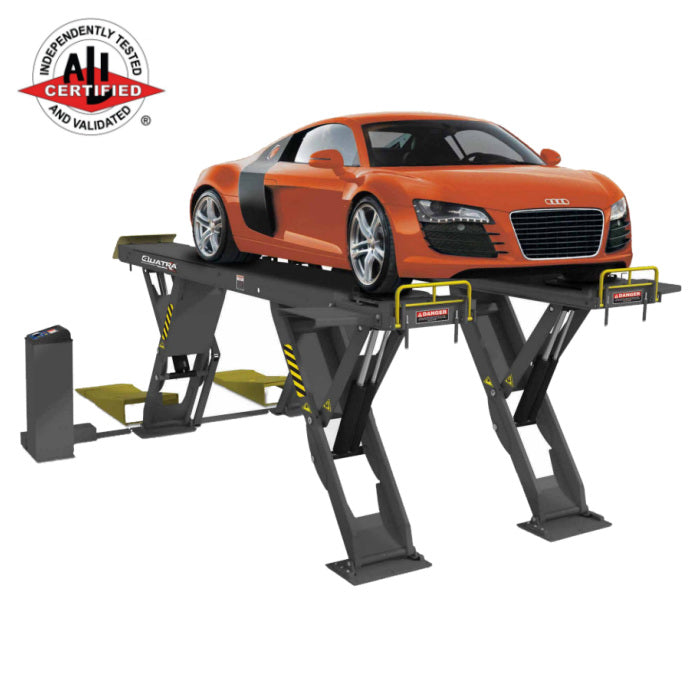

BendPak XR-12000A Scissor Alignment Lift

Description

The Quatra™ Series Pantograph Lifts from  BendPak™ - Raising the Bar The  distinctive Quatra™ series lifts by BendPak™ revolutionize the lifting industry  by offering a 12,000-pound lifting capacity and a true vertical lift for a more compact footprint, better accommodating smaller service  bays and work areas. Their unique quad-opposing  pantograph scissors design eliminates restrictive arm  structures found on other scissors car lift types that typically get in the way. Quatra  lifts provide you with full, unobstructed vehicle access and effortless  workspace entry and exit. More space means more freedom for you to work and  work efficiently which increases productivity and most of all, your profits. No other scissors lift on the market offer the freedom  that BendPak’s Quatra series lifts provide.

The extended length Quatra XR-12000A was designed for  vehicle alignments and general service work and accommodate a wide variety of  wheelbases. Integrated recessed full-floating front radius plates and oversized rear  slip-plates enable you to perform four-wheel alignments on a full spectrum of  vehicles ranging from full-size work trucks to modern mini cars. The Quatra XR-12000A is also compatible with all leading alignment instrumentation, including new 3D  systems and camera type wheel aligners.

Make more money by going straight…up. Quatra™  series alignment car lifts deliver straight-up vertical lifting unlike parallelogram style  scissors lifts that require more floor space due to their lateral lifting  characteristics. Because there  is no forward or rearward movement, the  result is a more compact footprint to accommodate smaller service bays and work  areas.

Compared to parallelogram  and other traditional scissor lifts, the Quatra series delivers: • Increased work space below the car lift and around the runways • Unobstructed access points for easy entry and exit - front,  rear and both sides • Up front walk through for making unhindered wheel alignment  adjustments

Better by design With  an excellent combination of speed and ergonomic design, BendPak’s Quatra pantograph  scissor lifts improve technician efficiency and  productivity which can help you improve overall profitability. Featuring rapid rise and descent speeds, they position vehicles smoothly to any desired height with simple to operate controls. A sophisticated yet simple six-cylinder master-slave  hydraulic circuit provides precise  equalized lifting without the need for complicated electronics that often fail  when subjected to high-use and soiled work environments.

The Quatra XR-12000A incorporates a full-menu of engineering and  design enhancements that provide long term ruggedness and increased dependability.  From the hydraulic cylinders and safety locking mechanisms, to fluid controls  and pneumatics, all integral system components are enclosed within the runways  to help protect them from harmful corrosives and operational damage. With few  moving parts, and an uncomplicated fluid power system, BendPak’s Quatra alignment lifts  offer the most economical and dependable method of lifting, delivering you many  years of trouble free service.

It’s all in the approach When  it comes to positioning vehicles on the auto lift, there is no other lift on the market  that makes it easier. They feature extendable, hinged, collapsible, and  stowable approach ramps - an industry first. The extendable approach ramps  deliver a range of motion from 56” all the way up to an incredible 79” overall  length in mere seconds. Not only do these user favorites make it convenient to  drive ground hugging cars on the lift, when space is tight, their collapsible  and stowable design means you’re able to close the shop doors at the end of the  day.

In  short, the Quatra series lifts by BendPak are the solution for customers who  want one of the industry’s most comprehensive auto lift packages with productivity  and more importantly, profitability enhancing features.

Balanced Lifting Quatra lifts are  equipped with an intelligent hydraulic regulating manifold featuring four,  two-position ball valves to balance hydraulic pressure accurately between the  master and slave cylinders for precise, equalized lifting of the runways. The  manifold valve assembly is located at the power console with removable cover  for simple routine maintenance and adjustment.

It’s what we do It's  not by chance that BendPak is the global leader in lifting systems. Our passion extends well beyond the products we build - it originates from the natural way we do business. BendPak has earned a reputation for consistent quality  through decades of manufacturing experience and uncompromising in-field  support. We thrive on continually building our reputation of service excellence  by finding better ways help our customers reach their goals. Our lifting  products are designed from the outside in, driven by real customer insight.  This focus on customer-driven engineering and product management allows us to  better understand how our equipment is used so we can design products to meet  and exceed our customers’ ever-changing needs. All across the globe, customers  recognize our distinctive blue lifts and ask for them by name because they  represent a combination of performance, productivity, reliability, and value  unlike any other car lift brand on the market.

Business solutions that are easy on  your wallet Trained,  knowledgeable BendPak representatives are positioned throughout the world to  best meet our customers’ needs. Our highly trained authorized dealers not only  help you identify the right equipment for your business, they’ll connect you  with flexible payment options to make acquiring that equipment easier. Various  financing packages and leasing opportunities customized for virtually any  budget help you fulfill your equipment needs while meeting your financial  goals. Our business solutions don’t end there. We work with distribution  channel partners around the globe who share our dedication to excellence. We  also support our dealers with effective, informative marketing and the powerful  BendPak brand — which carries the strength of a proven market leader.
