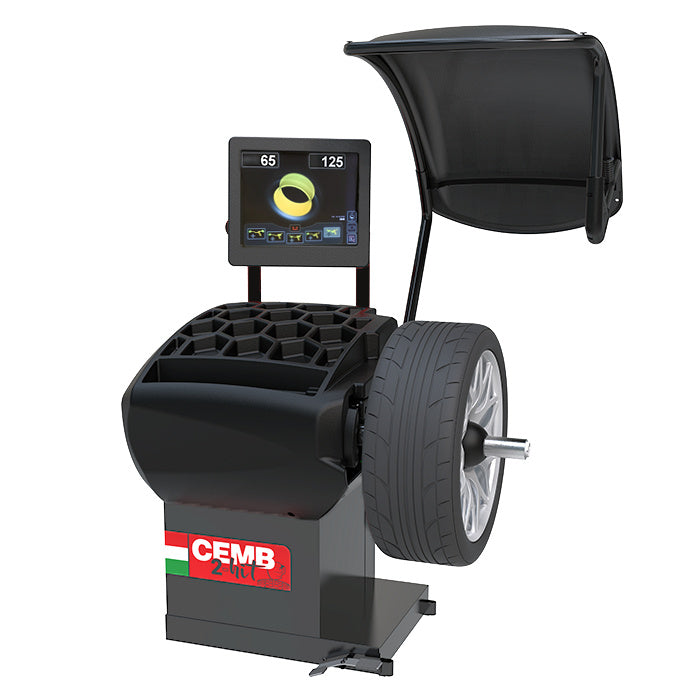

CEMB 2-HIT Tire Dealer Wheel Balancer

In Stock SKU 2-HIT

OUR PRICE: $11,568.00

Regular Price: $12,149.00

$321.33 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

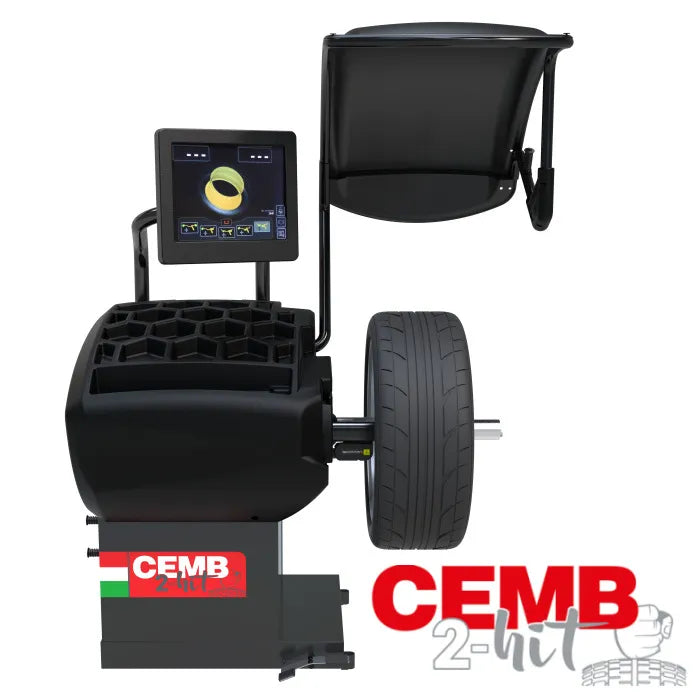

CEMB 2-HIT Tire Dealer Wheel Balancer
AutoAdaptive One Plane Balancing EMS Width Sonar
The CEMB 2-HIT Tire Dealer Wheel Balancer is the result of an innovative project that transforms the wheel balancing process, thanks to the perfect mix of speed, ease of use, strength, and ergonomics. A professional product, so intuitive that it can be used by anyone. The data input is done by manually moving the wheel as indicated on the monitor and confirming the acquisition with a light punch on the tire once the correct planes have been reached. This high-speed wheel balancer is perfect for your tire shop.

Description

CEMB

CEMB 2-HIT Tire Dealer Wheel Balancer
AutoAdaptive One Plane Balancing EMS Width Sonar

The CEMB 2-HIT Tire Dealer Wheel Balancer is the result of an innovative project that transforms the wheel balancing process, thanks to the perfect mix of speed, ease of use, strength, and ergonomics. A professional product, so intuitive that it can be used by anyone. The data input is done by manually moving the wheel as indicated on the monitor and confirming the acquisition with a light punch on the tire once the correct planes have been reached. This high-speed wheel balancer is perfect for your tire shop.

2-HIT Revolutionized Balancing Procedure

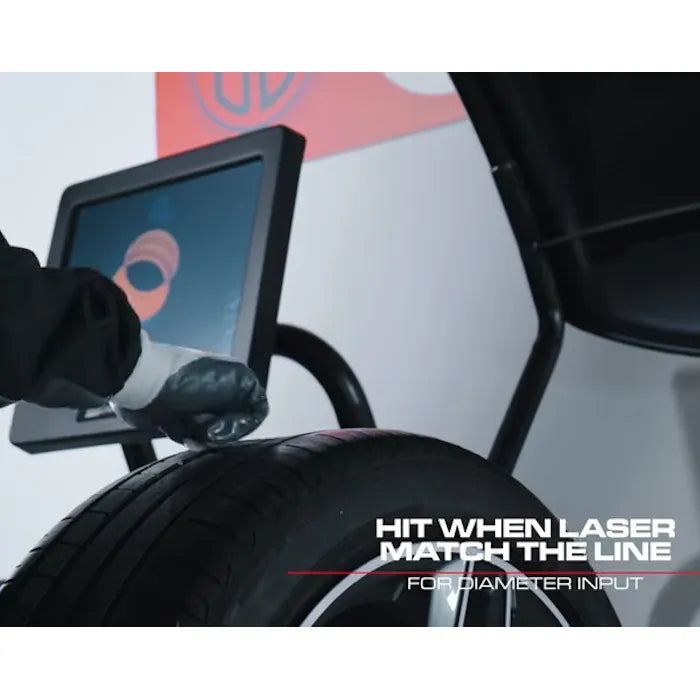

Thanks to the aid of Laser Spotter and a Laser line, 2-HIT allows the input of dimensions by operating directly on the wheel, making the balancing process increasingly user-friendly. The data input is done by manually moving the wheel as indicated on the monitor and confirming the acquisition with a light punch on the tire once the correct planes have been reached.

Innovative

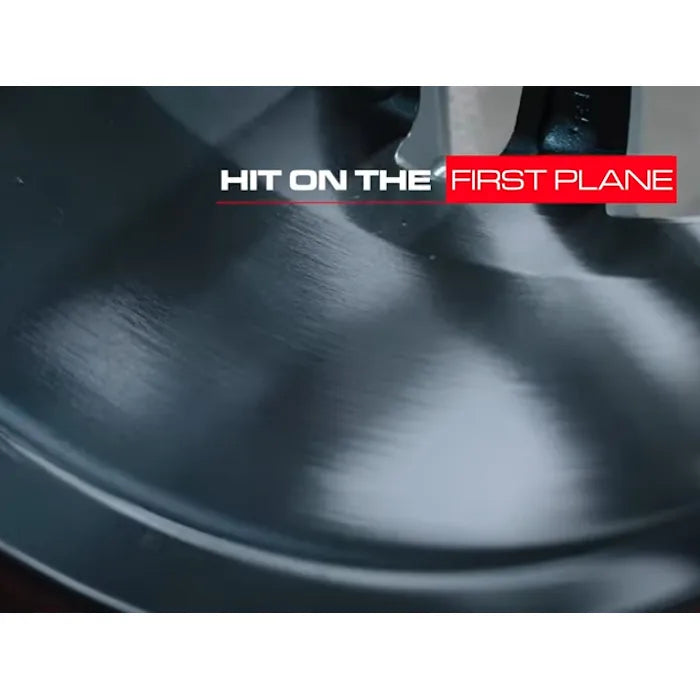

The operator, by following simple on-screen instructions, manually moves the wheel to activate the movement of the LASER SPOTTER on the rim and acquire its dimensions. Once the dimensions are acquired, a light punch on the tire transmits the input to the software to store the information, thus making the process extremely simple and immediate. At this point, it is possible to carry out the unbalance measurement spin. STURDY, since it no longer uses the automatic gauge, eliminates the need for periodic maintenance typical of mechanical devices, traditionally more subject to wear, all to the advantage of greater durability.

Easy To Use
2-HIT uses a unique system which, with the aid of a LASER SPOTTER and a line laser, allows both to acquire the wheel dimensions with extraordinary simplicity and precision, and to indicate the correct position for correcting the unbalance.

Ergonomics
With the 2-HIT, CEMB extends the range of ERGOFAST products by maximizing the concept of ergonomics. Since there is no gauge, the operator is no longer forced to assume awkward postures to acquire dimensions, but has the ability to work in an upright position, reducing physical effort and increasing performance and efficiency.

Quick
Pneumatic Clamping Kit supplied standard. The balancing process has never been so FAST, SIMPLE AND ACCURATE!

Pneumatic Clamping System
The pneumatic clamping feature ensures quick and secure attachment of wheels, minimizing setup time and maximizing efficiency. It enables you to handle high-volume balancing jobs easily, making your operations run smoothly, effectively and productively.

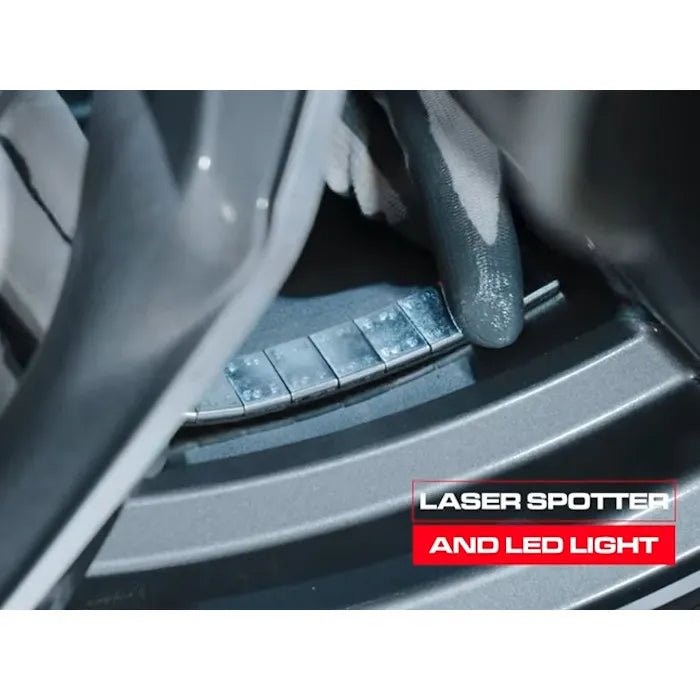

  • Laser Spotter - Unique tool that allows selecting the correction planes with maximum accuracy and then precisely indicates the exact point of application of the weights
  • Laser Matching - Line laser emitter which, together with the laser spotter, allows calculating the diameter of the rim

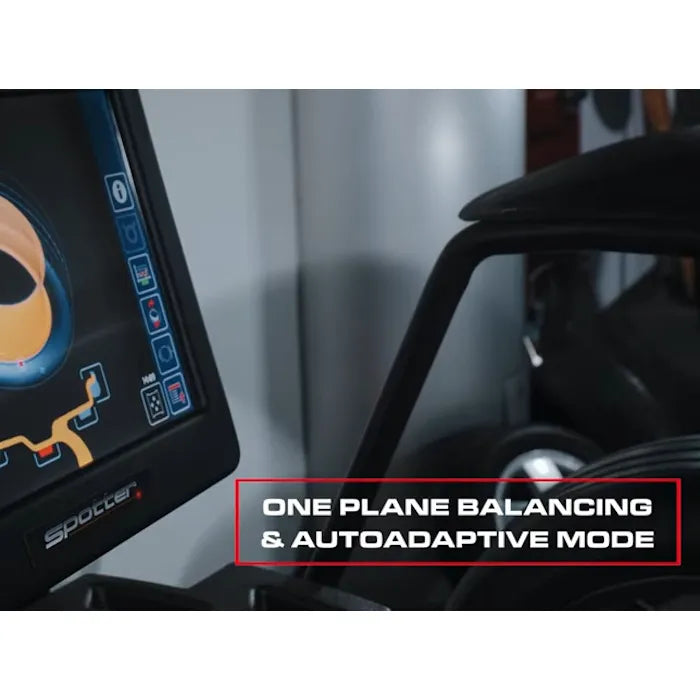

  • OPB One Plane Balancing - Correction of both static and dynamic unbalance on one plane at once and with only one weight
  • AutoAdaptive Mode - The new tolerance calculation system

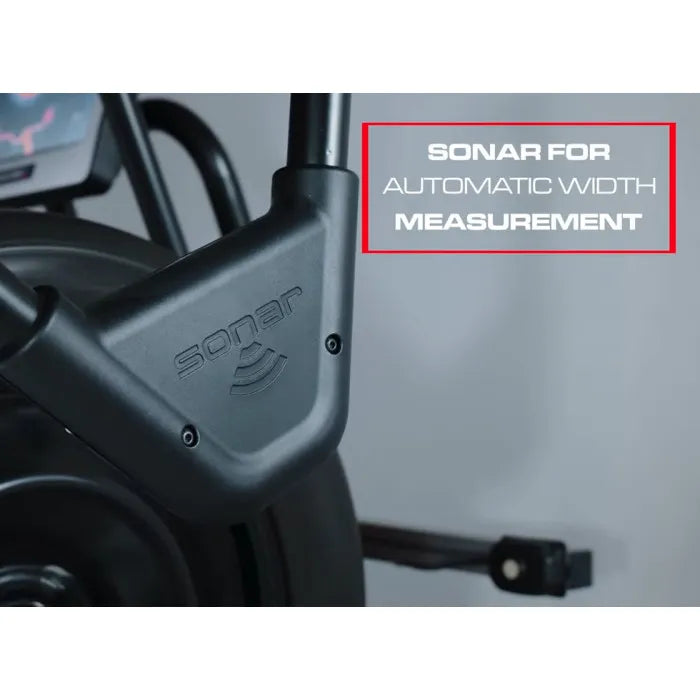

  • LA Sonar - for automatic measurement of the wheel width

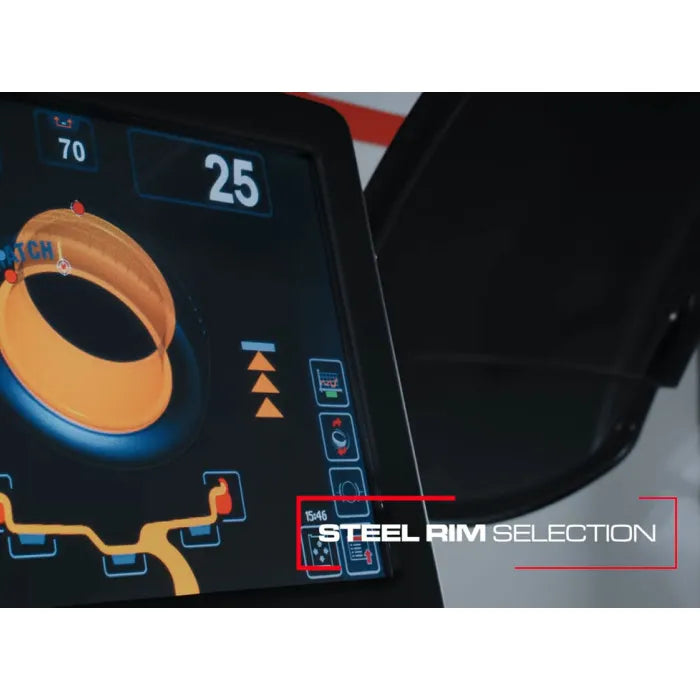

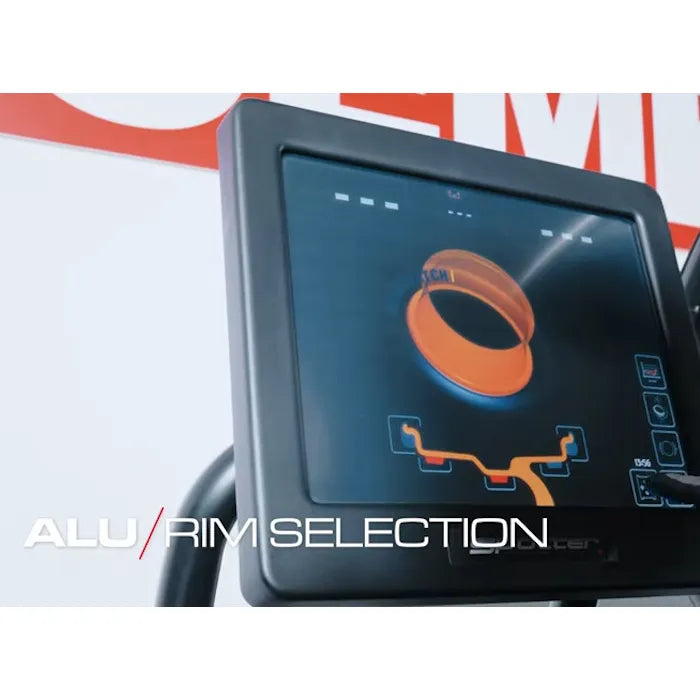

  • ALU-S Balancing Mode - Adhesive weights on the internal rim planes with specific counterweight position indicator
  • EMS Sonar - 1st Harmonic and Peak to Peak automatic and quick eccentricity measurement during the normal balancing cycle

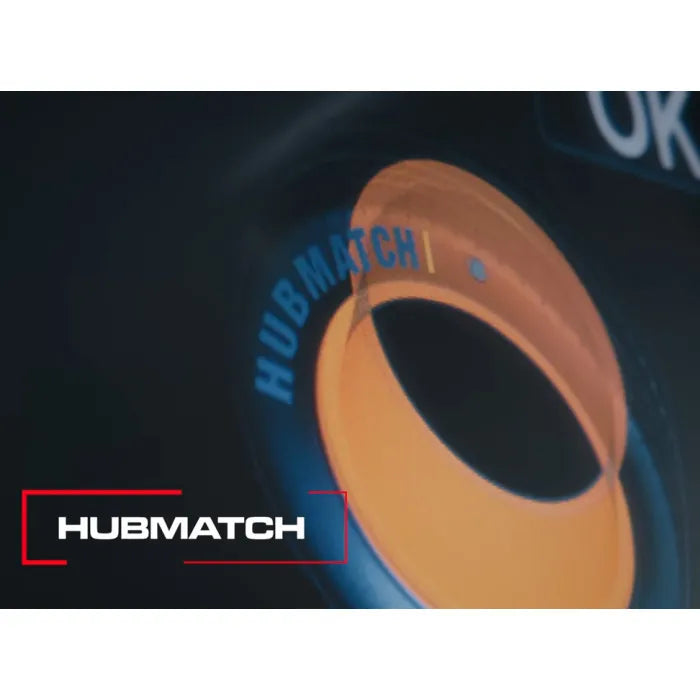

  • HubMatch - During the measuring cycle , the wheel's "maximum eccentricity point" is detected and displayed on monitor, therefore allowing for its reduction during the re-mounting of wheel on vehicle
  • Tire Set - The software indicates the best wheel positioning on the vehicle to get the best ride (conicity) and to minimize wheel vibrations (eccentricity)

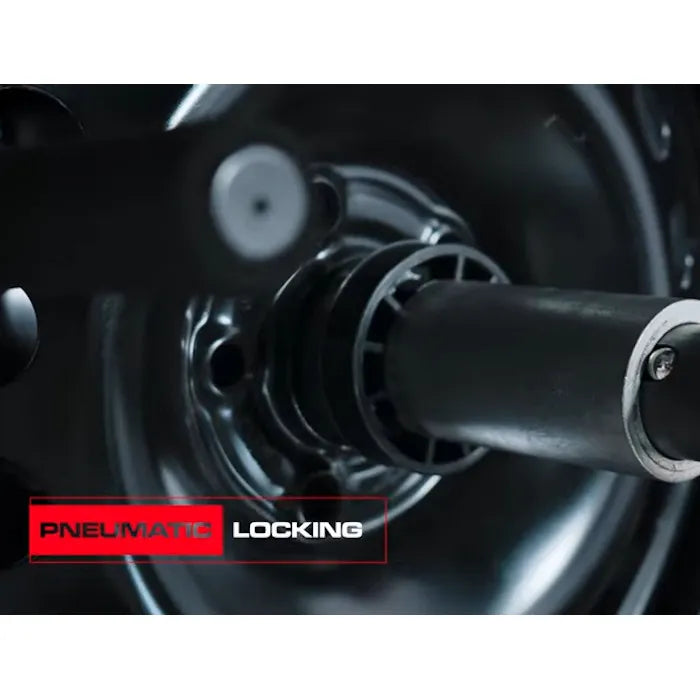

  • Pneumatic Wheel Locking - Floor-to-floor time reduction. Extremely easy and fast to use. Very accurate wheel centering

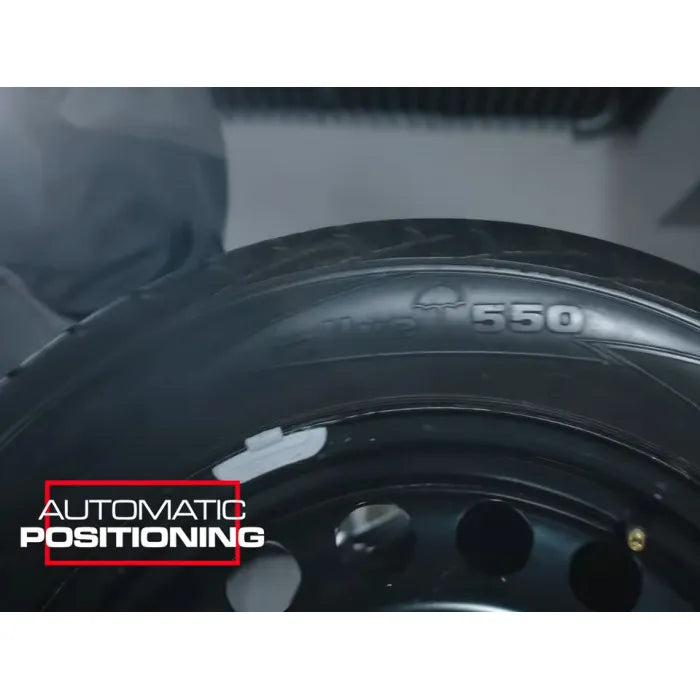

  • Automatic Positioning And Locking - of the wheel in weight position
CEMB wheel balancers constitute a wide range of innovative and patented solutions, recognizable for their capability to combine excellent balancing performances, robustness and ease of use.

Features & Specs

Features

  • One Plane Balancing (OPB)
  • AutoAdaptive Mode
  • EMS Sonar
  • Ergonomic Design
  • HubMatch
  • Laser Spotter
  • Pneumatic Locking
  • Automatic Positioning System
  • Electromagnetic Brake

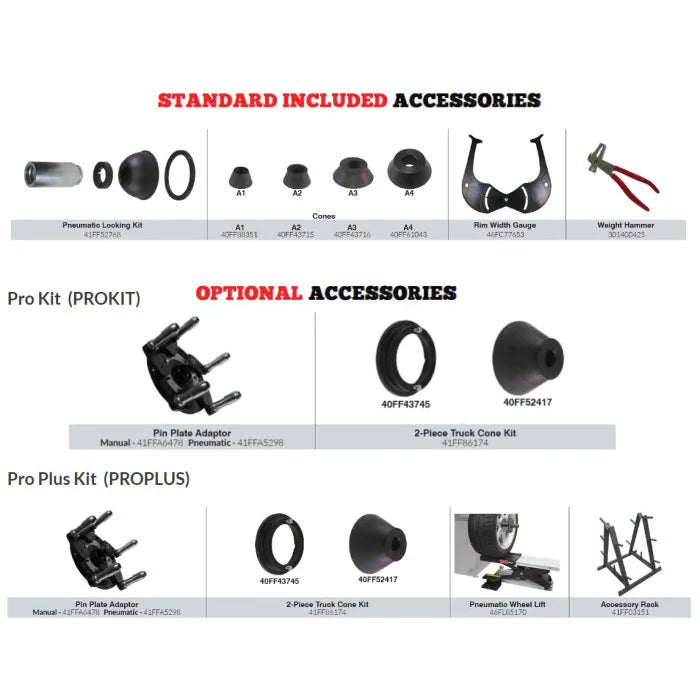

Standard Accessories

  • #46FC77653 Rim Width Gauge
  • #301400425 Weight Hammer
  • #46FF52768 Pneumatic Locking Kit
  • #40FF88351 A1 Cone
  • #40FF43715 A2 Cone
  • #40FF43716 A3 Cone
  • #40FF61043 A4 Cone

Optional Accessories

  • #41FF03151 Accessory Rack
  • #41FFA6478 Pin Plate Adapter
  • #41FF86174 2-Piece Truck Cone Kit
  • #46FL85170 Pneumatic Wheel Lift
  • #PROKIT Optional Pro Accessory Kit
    • #41FFA5298 Pneumatic Pin Plate Adapter
    • #41FF86174 Truck Cone Kit
  • #PROPLUS Optional Pro Plus Accessory Kit
    • #41FFA5298 Pneumatic Pin Plate Adapter
    • #41FF86174 Truck Cone Kit
    • #46FL85170 Pneumatic Wheel Lift
    • #41FF03151 Accessory Rack

Specifications

  • Wheel Clamping: Pneumatic
  • Average Cycle Time: 5 Seconds
  • Max. Rim Diameter: 30" (765 mm)
  • Max. Rim Width: 20" (510 mm)
  • Max. Tire Diameter: 40" (1016 mm)
  • Max. Wheel Weight: 165 lbs. (75 kg)
  • Air Supply: 145 PSI
  • Power Supply: 220V, 1Ph, 50-60 Hz + Shop Air

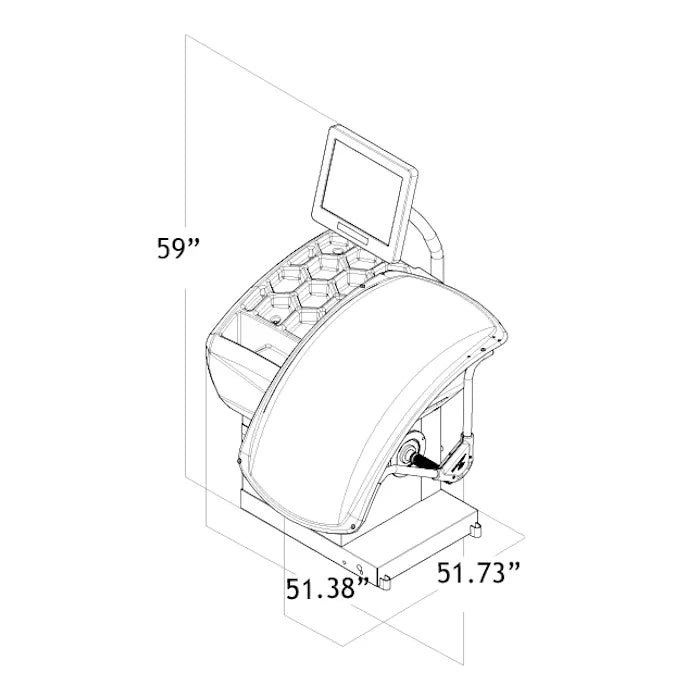

  • Overall Dimensions: 51.73" W X 59" H X 51.73" D
  • Shipping Weight: 485 lbs. (220 kg)
  • Warranty: (2) Years on Parts, (1) Year Labor

CEMB Limited Warranty Statement
The BL Systems Co. (hereinafter "BL") warrants products manufactured and sold by it to be free from defects in material and workmanship for a period of 24 months parts, 60 months Wheel Balancer Motors, and 12 months labor from the date of installation, note: machine calibration is not a warranty item, except that parts sold from the repair or replacement of existing equipment will only be warranted for a period of 90 days from the date of installation.

If upon inspection by BL, any warranted product shall prove defective in materials or workmanship during the warranty period, that product shall be repaired or replaced at BL's option. BL must receive damaged part for full credit. Such repair or replacement shall be BL's sole obligation and the buyer's exclusive remedy under this warranty.

This warranty supersedes all prior oral or written agreements, promises, advertising or representations. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, AND BL EXPRESSLY DISCLAIMS AND EXCLUDES ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITMESS FOR A PARTICULAR PURPOSE. THESE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. BL's liability in contract, in tort (negligence, strict liability, or any other theory) under any warranty, or under any other legal or equitable theory of whatever type, shall not exceed the purchase price paid by buyer, and under no circumstances shall BL be liable of special, indirect, incidental or consequential damages. The amount of the purchase price of the equipment is determined in part by the fact that buyer has agreed to so limit seller's liability. No action arising out of any transaction under this agreement may be brought by purchaser more than one year after the cause of action has accrued. Some states do not allow an exclusion or limitation of consequential or incidental damages, so the above limitation of liability may not apply to you.

Accessories/Options

More Information

CEMB 2-HIT Wheel Balancer Flyer (.pdf)

CEMB 2-HIT Wheel Balancer Brochure (.pdf)



Since 1978 CEMB USA has been located near Atlanta Georgia. Headquarters are now in Gainesville, Georgia near Lake Lanier. CEMB USA's full range of products comes to you fully assembled, including standard, performance, and diagnostic levels. All machines come in a shop neutral color (steel gray) that will match well with existing shop equipment.

CEMB finalizes assembly, calibrates and tests all of our machines before they leave our warehouse so that they are ready to use as soon as they get to your facility. Once in your facility we have a complete sales force of representatives and service centers throughout all of the US to help support our wheel service equipment, along with one of the best warranties in the industry.

CEMB is an Engineering company - we are the innovators - we will continue to develop new & exclusive features and products which others will copy in time as demand grows - we are ahead of the market curve, not reacting to it!
