CEMB ARGOS Touchless Alignment System Full Version
In Stock SKU ARGOS-FULL
OUR PRICE: $102,188.00
Regular Price: $107,299.00
Short Description
CEMB ARGOS Touchless Alignment System
Four Column Full Version
Clampless wheel alignment measurements in just 5 seconds. Without any contact with the vehicle and without getting out of the car, in just 5 seconds ARGOS four columns' carefully measures toe, camber, and thrust angles. All you have to do is stop the vehicle between the ARGOS columns, and a high-tech 3D scanner measurement system does the rest. ARGOS totally revolutionizes the world of wheel alignment: no clamping, no targets nor detectors. No manual operations are required for the different wheel basis, not even a leveled lift is required. No need to perform run out compensation and no need to apply brake pedal lock to measure caster.
Four Column Full Version
Clampless wheel alignment measurements in just 5 seconds. Without any contact with the vehicle and without getting out of the car, in just 5 seconds ARGOS four columns' carefully measures toe, camber, and thrust angles. All you have to do is stop the vehicle between the ARGOS columns, and a high-tech 3D scanner measurement system does the rest. ARGOS totally revolutionizes the world of wheel alignment: no clamping, no targets nor detectors. No manual operations are required for the different wheel basis, not even a leveled lift is required. No need to perform run out compensation and no need to apply brake pedal lock to measure caster.
Description
CEMB ARGOS Touchless Alignment System
Four Column Full Version
Clampless wheel alignment measurements in just 5 seconds. Without any contact with the vehicle and without getting out of the car, in just 5 seconds ARGOS four columns' carefully measures toe, camber, and thrust angles. All you have to do is stop the vehicle between the ARGOS columns, and a high-tech 3D scanner measurement system does the rest. ARGOS totally revolutionizes the world of wheel alignment: no clamping, no targets nor detectors. No manual operations are required for the different wheel basis, not even a leveled lift is required. No need to perform run out compensation and no need to apply brake pedal lock to measure caster.
Measuring in a blink
CEMB is proud to introduce ARGOS, the new generation clampless wheel alignment system.
Clampless wheel alignment measurements in just 5 seconds
Without any contact with the vehicle and without getting out of the car, in just 5 seconds ARGOS carefully measures toe, camber, thrust angles.
How does it work? you just have to stop the vehicle between the ARGOS columns, and a high-tech 3D scanner measurement system does the rest.
ARGOS totally revolutionizes the world of wheel alignment: no clamping, no targets nor detectors. No manual operations are required for the different wheel basis, not even a leveled lift is required. No need to perform run out compensation and no need to apply brake pedal lock to measure caster.
Extreme simplicity
The advanced and user-friendly software, managed through remote control, contributes to grant an outstandingly convenient user- friendly approach , thanks to the automatic start of the measuring process when vehicle enters the working area, to the automatic detection of all procedures and to the automatic pre-selection of the vehicle's specs according to the wheel basis.
Increase your business
By minimizing efforts and time for wheel alignment measurements, ARGOS can check efficiently all of your customers vehicles by generating a clear report of the status of their vehicle, enhancing your business and their satisfaction.
ARGOS is available in three different versions:

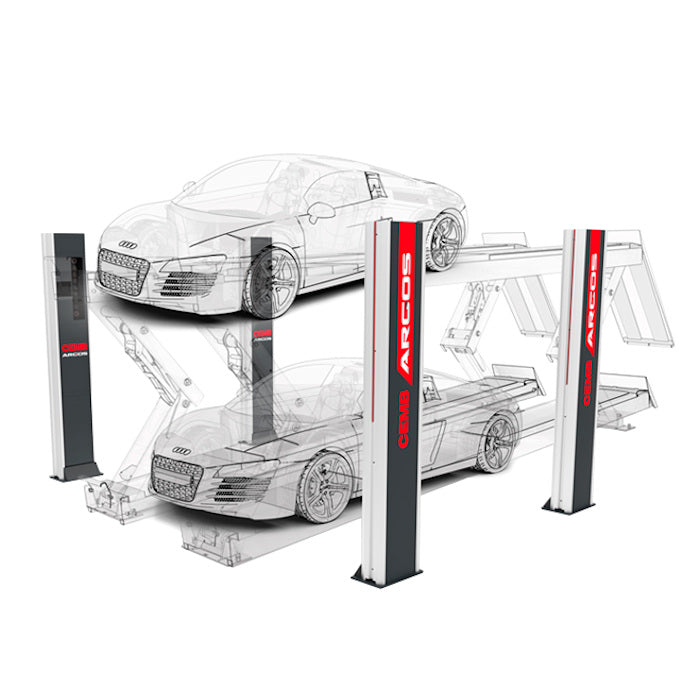

- Full - Four column version measures vehicles on-floor and at a fixed height ideal for both reception lane and adjustments with a lift
- Pit - Four column version measures vehicles on-floor ideal for reception lane and adjustments in a pit

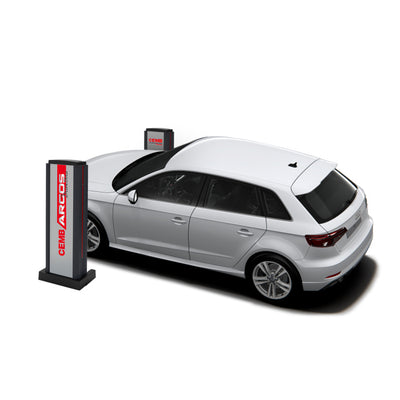

- Drivethru - Two-column version measures vehicles on-floor ideal for reception lane
Features & Specs
Features
- Instant Touchless Measurement on the 4 Wheels without Exiting the Vehicle
- No clamps, targets or sensors
- No manual adjustments for cars with different wheelbases
- Rim run-out not compulsory
- No need to remove hubcups
- Measuring process automatically starts at the arrival of the vehicle
- Measure toe and camber in less than 5 seconds and all data in a few more
- No brake pedal required to measure caster
- Automatic locking and unlocking turntables
- Remote vehicle specs selection
- Outstanding Practicality
- Automatic detection of the ongoing procedures
- Remote software control and measurements visualization
- Automatic pre-selection of vehicles' specifications
- Camera support for the positioning of the vehicle on the turntables
- No leveled lift required
- Fits Around Your Working Space without Interference
- Fitting to every type of lift for wheel alignment or pit
- No obstructions around lift or wheels
- No moving parts, no bulky cabinet
- Increases Your Business by Saving Time
- Eliminate any effort and time for aligner's measurements
- Thorough check all your customers' vehicles
- Find out more vehicles that need adjustments
- Increase turnover and customers' satisfaction

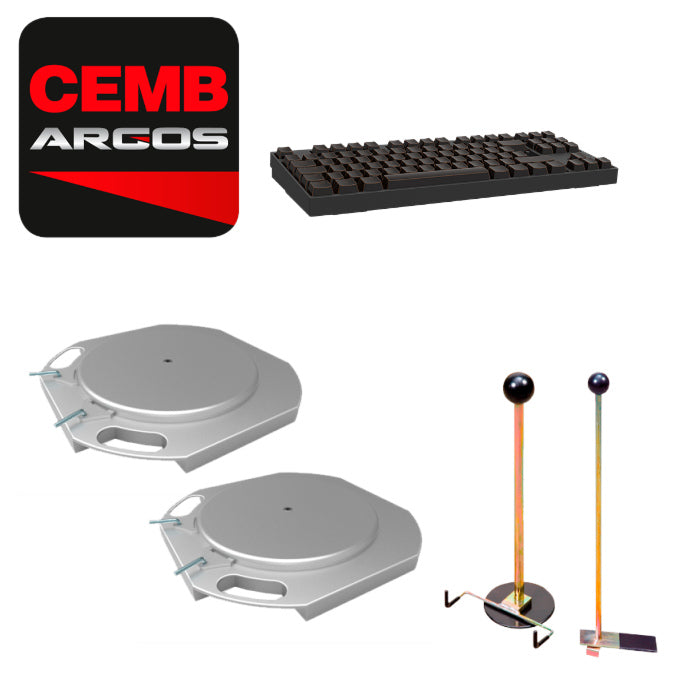

Standard Accessories
- App for remote control via tablet and smartphone
- for Android operating system (from version 7.0) or iOS (from version 10.0)
- it is advisable to use a Samsung tablet
- Steering Lock
- Brake Pedal Lock
- Manual Locking Turnplates
- Drive-on Lift Camera
- Wireless Keyboard for remote control
Specifications
- Power source: 230 VAC single-phase 50/60 Hz - 115 VAC
- Max absorbed power: 0,6 KW
- Max absorbed current: 2,6 A-230V / 5,2 A-115V
- Measurement time: <5 s
- Warranty: (2) Years on Parts, (1) Year Labor
