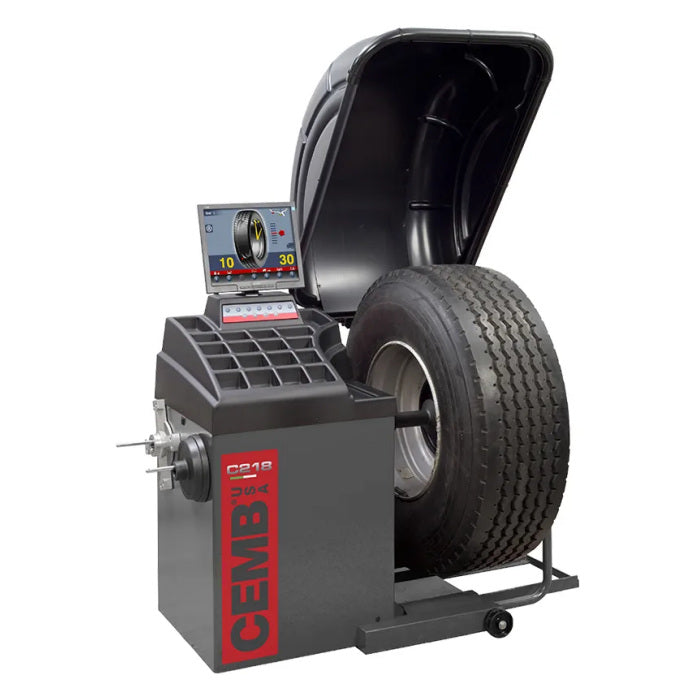

CEMB C218 Heavy Duty Video Truck and Bus Wheel Balancer

Features & Specs

• Computerized wheel balancer for steel and alloy wheels of cars, light trucks, and buses
• Exclusive industrial design wheel-clamping system with 40mm shaft
• Pedal operated pneumatic wheel lift
• Built in wheel lift aids in centering and prevents back strain with heavy wheels
• Powerful and ergonomic (soft) type lift enables excellent centering accuracy of the wheel on shaft
• Fully automatic cycle with breaking
• Self-diagnosis and self-calibration
• Average cycle time 10-22 seconds
• Two speed motor drive for cars, light trucks, and heavy duty commercial applications
• Automatic 2D distance & diameter entry
• Automatic 2D inner data arm provides direct weight placement measurement
• Pneumatic stationary brake for wheel weight positioning
• Manual shaft locking with quick locknut
• "Static" program plus 4 ALU programs for PAX, light alloy or special shaped rims
• Full time static unbalance readings
• Direct weight location program (no re-positioning of stick-on weights)
• Optimization program for compensation of rim and tire unbalance
• One button split & hidden weight program
• Balances up to 30" rim diameter, 20" width, 51" tire diameter, and 550 lbs. weight capacity
• Requires compressed air and 220V, 1 ph
• Made in Italy - final assembly in USA

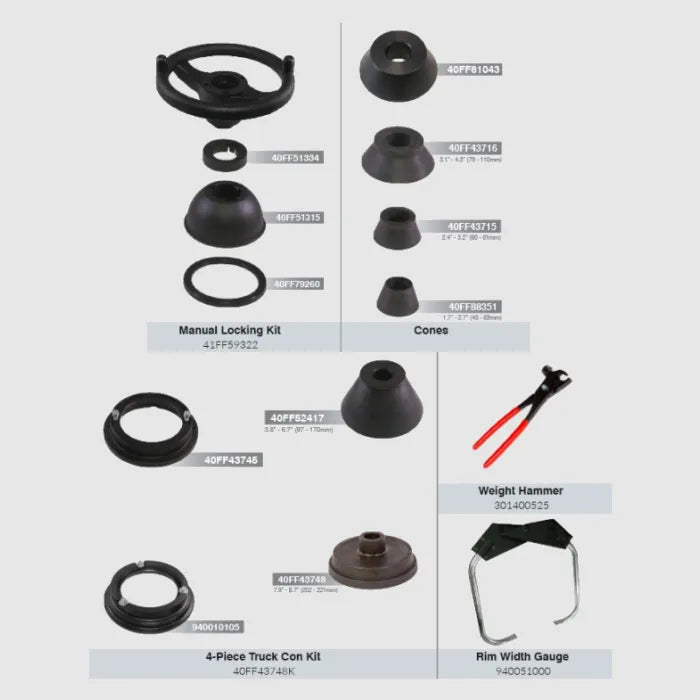

• (4) Piece Manual Locking Kit
• (4) Piece Cone Set
• (4) Piece Truck Cone Set
• Rim Width Gauge
• Weight Hammer

• Power Supply: 220V, 1ph
• Wheel Clamping Type: Manual
• Max. Rim Diameter: 30" (765 mm)
• Max. Rim Width: 20" (510 mm)
• Max. Tire Diameter: 51" (1295 mm)
• Max. Wheel Weight: 550 lbs. (250 kg)

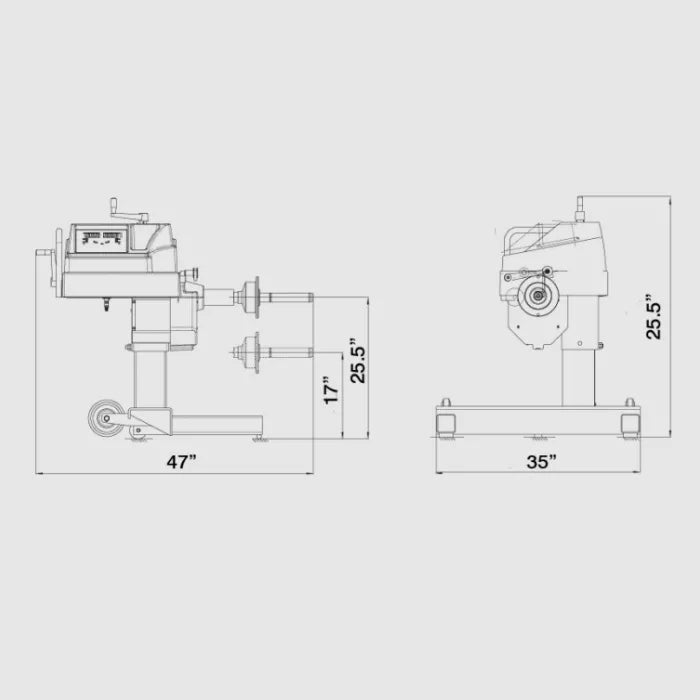

• Overall Dimensions: 59.5" H x 79" W x 60" D
• Shipping Weight: 750 lbs. (340 kg)
• Warranty: (5) Years on Wheel Balancer Motors, (2) Years on Parts, (1) Year Labor

CEMB Limited Warranty Statement
The BL Systems Co. (hereinafter "BL") warrants products manufactured and sold by it to be free from defects in material and workmanship for a period of 24 months parts, 60 months Wheel Balancer Motors, and 12 months labor from the date of installation, note: machine calibration is not a warranty item, except that parts sold from the repair or replacement of existing equipment will only be warranted for a period of 90 days from the date of installation.

If upon inspection by BL, any warranted product shall prove defective in materials or workmanship during the warranty period, that product shall be repaired or replaced at BL's option. BL must receive damaged part for full credit. Such repair or replacement shall be BL's sole obligation and the buyer's exclusive remedy under this warranty.

This warranty supersedes all prior oral or written agreements, promises, advertising or representations. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, AND BL EXPRESSLY DISCLAIMS AND EXCLUDES ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITMESS FOR A PARTICULAR PURPOSE. THESE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. BL's liability in contract, in tort (negligence, strict liability, or any other theory) under any warranty, or under any other legal or equitable theory of whatever type, shall not exceed the purchase price paid by buyer, and under no circumstances shall BL be liable of special, indirect, incidental or consequential damages. The amount of the purchase price of the equipment is determined in part by the fact that buyer has agreed to so limit seller's liability. No action arising out of any transaction under this agreement may be brought by purchaser more than one year after the cause of action has accrued. Some states do not allow an exclusion or limitation of consequential or incidental damages, so the above limitation of liability may not apply to you.
