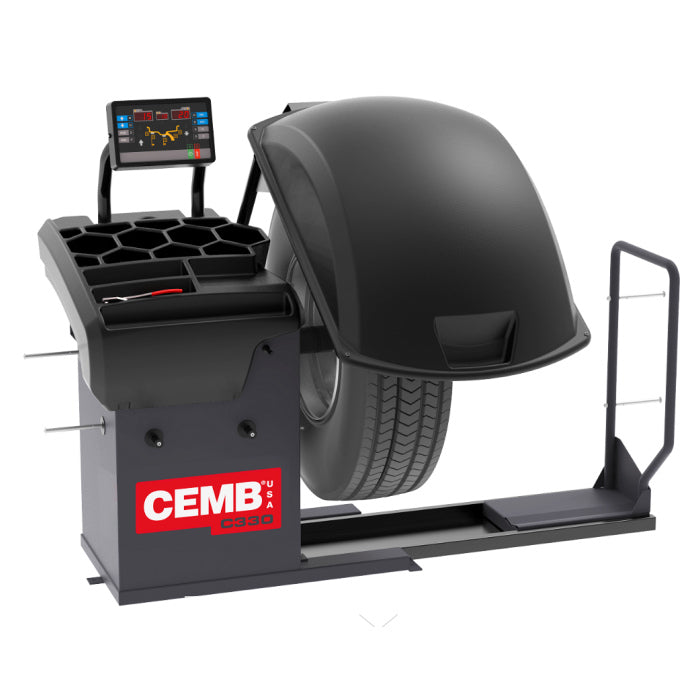

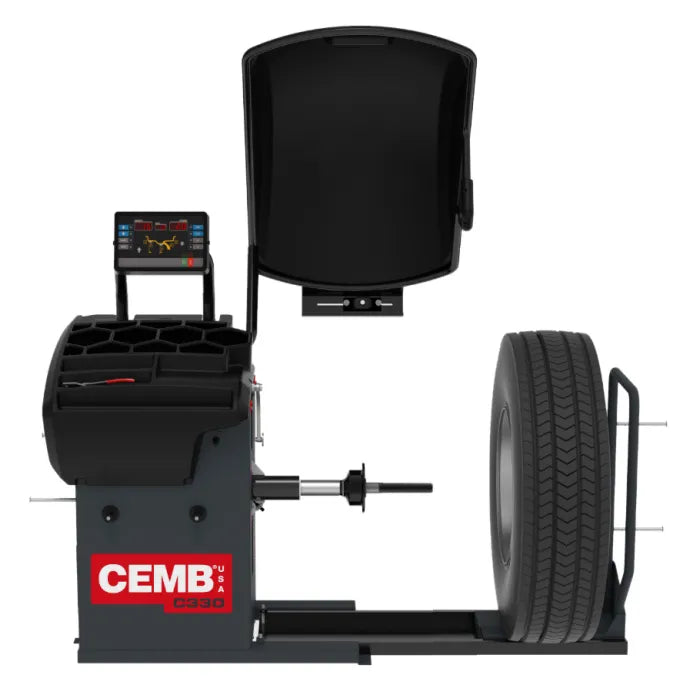

CEMB C330 Automatic Digital Truck Wheel Balancer
In Stock SKU C330
OUR PRICE: $14,143.00
Regular Price: $14,859.00
Short Description
CEMB C330 Automatic Digital Truck Wheel Balancer
Innovative Lifting Spindle 550 lbs. Wheel Capacity
The CEMB C330 Digital Automatic Truck Wheel Balancer is designed for operating on truck, bus and car wheels up to 550 lbs. The innovative lowering spindle shaft which adjusts in height guarantees safe and easy centering even for large wheels, thus making it easier and safer for the operator. The modern and attractive design, with sturdy weight-tray, improved space optimization and the wide availability of programs, make it the most complete solution in its category.
Description
CEMB C330 Automatic Digital Truck Wheel Balancer
Innovative Lifting Spindle 550 lbs. Wheel Capacity
The CEMB C330 Digital Automatic Truck Wheel Balancer is designed for operating on truck, bus and car wheels up to 550 lbs. The innovative lowering spindle shaft which adjusts in height guarantees safe and easy centering even for large wheels, thus making it easier and safer for the operator. The modern and attractive design, with sturdy weight-tray, improved space optimization and the wide availability of programs, make it the most complete solution in its category. Innovative Wheel Lifting Spindle

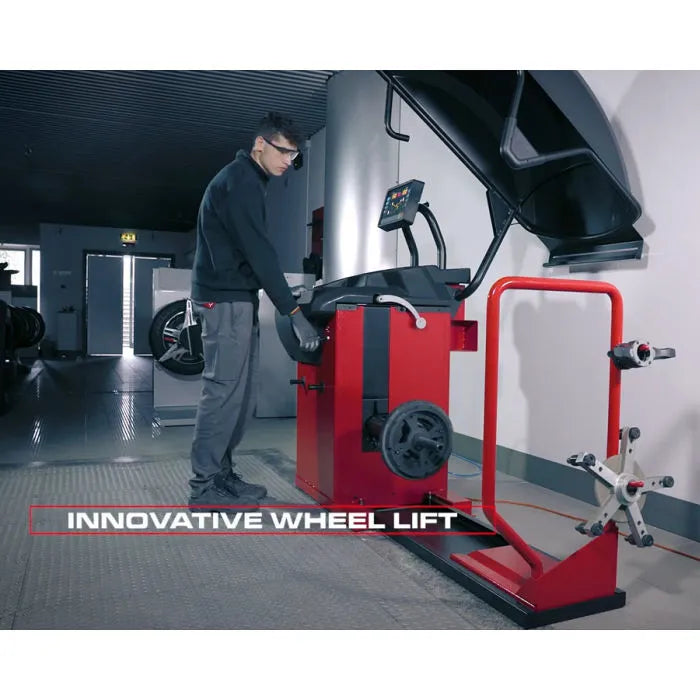

With the new range of truck wheel balancers that has been introduced, the innovative integrated Lifting Spindle allows the operator to work easily and safely even on large wheels. Wheels are loaded onto the spindle, which rises and lowers, when on the ground ensuring perfect centering with minimum effort while preventing the wheel from falling due to the excessive weight. Wheel loading on the lift is very easy and risk-free thanks to the lowest sliding trolley available on the market (only 59 mm).

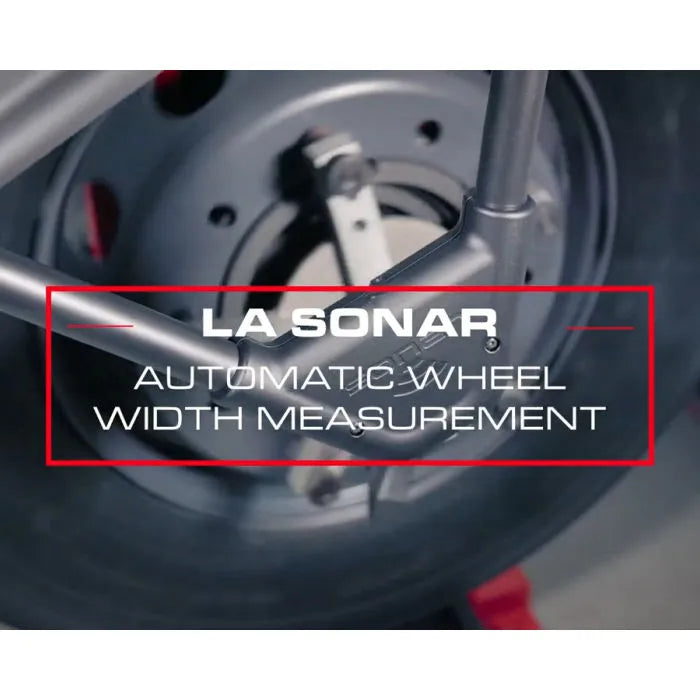

LA Sonar
Quick and practical measuring system. LA sonar device designed for contactless automatic wheel width measurement.
Laser Line
Sophisticated red line laser indicator to facilitate the correct positioning of the adhesive counterweights in the 6 o'clock position, increasing the balancing accuracy.
Automatic Gauge
Extended gauge for diameter and distance measurement of rims up to 32".
Electromagnetic Brake
The electromagnetic brake for the lock of the wheel in the exact weight position facilitates the balancing procedure.
Functional Weight Tray
The sturdy rotational weight tray has been designed to make the most the available space. The differentiated compartments allow a simple housing of cones, clamp weights, adhesive weights, grippers etc…
Perfect Centering, Accurate Balancing
The spindle shaft rises and lowers to facilitate wheel loading, ensuring perfect centering, ideal condition for better balancing accuracy. Loading on the ground, mount the wheel on the spindle, lift.
Safe Wheel Clamping Thanks To Mobile Spindle
No risk for the operator since the wheel, when raises, is already clamped on the spindle, in complete safety.

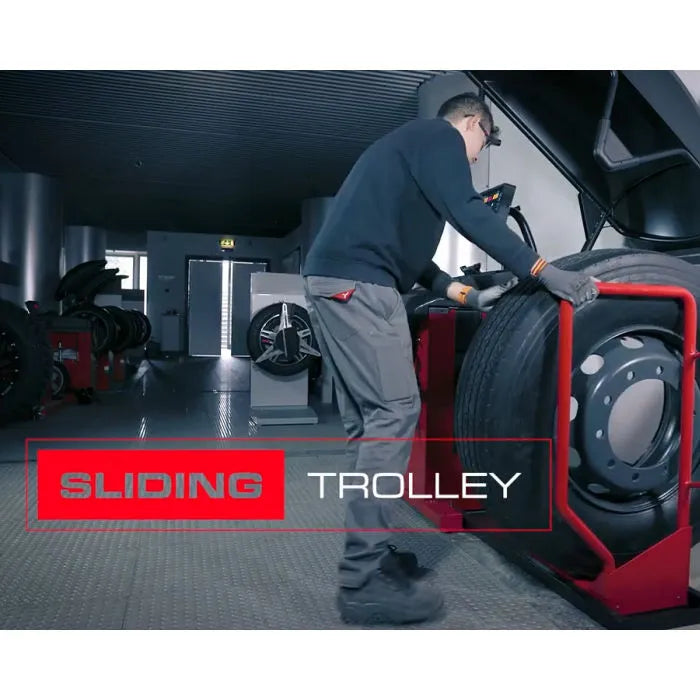

Easier And Faster Wheel Handling
The sliding trolley, with a height of only 59 mm, the lowest available on the market, allows a faster and easier loading of the wheel, with reduced effort for the operator.
CEMB wheel balancers constitute a wide range of innovative and patented solutions, recognizable for their capability to combine excellent balancing performances, robustness and ease of use.
Features & Specs
Features
- Innovative Wheel Lifting Spindle
- Sliding Trolley
- LA Sonar
- Laser Line
- Electromagnetic Brake
- Automatic Gauge

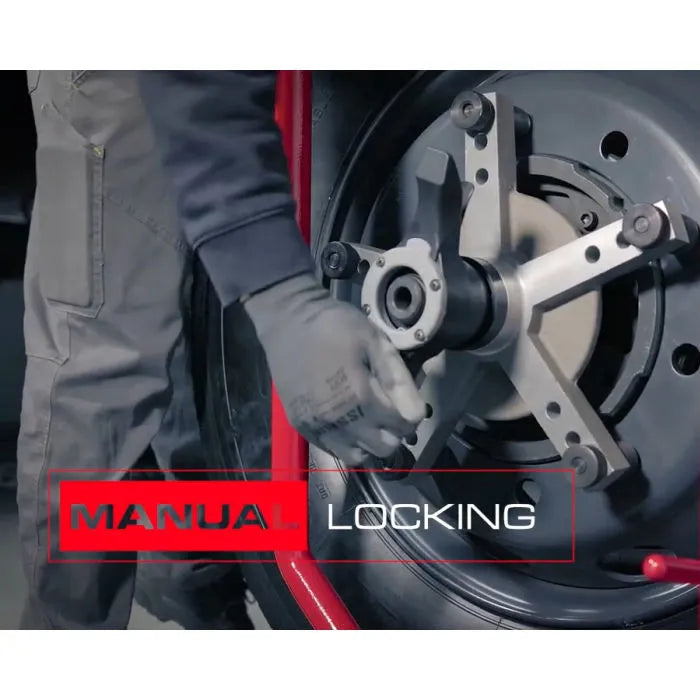

- Manual Locking
- Functional Weight Tray

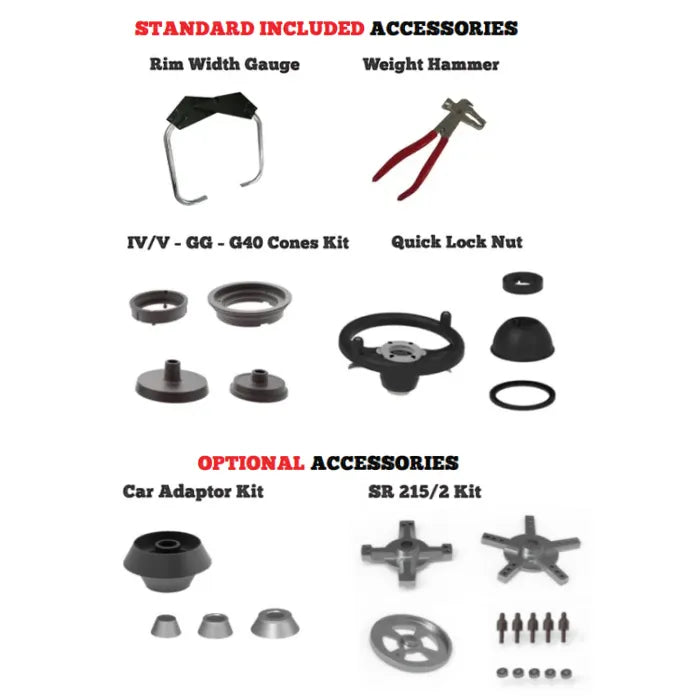

Standard Accessories
- Rim Width Gauge
- Weight Hammer
- IV/V - GG - G40 Cones Kit
- Quick Lock Nut
Optional Accessories
- #41FF073144 Car Adapter Kit
- #41FF67879 SR 215/2 Kit
Specifications
- Max. Rim Diameter: 30" (765 mm)
- Max. Rim Width: 20" (510 mm)
- Max. Tire Diameter: 54" (1372 mm)
- Max. Wheel Weight: 550 lbs. (200 kg)
- Air Pressure: 145 PSI
- Power Supply: 230V, 1Ph, 50-60 Hz

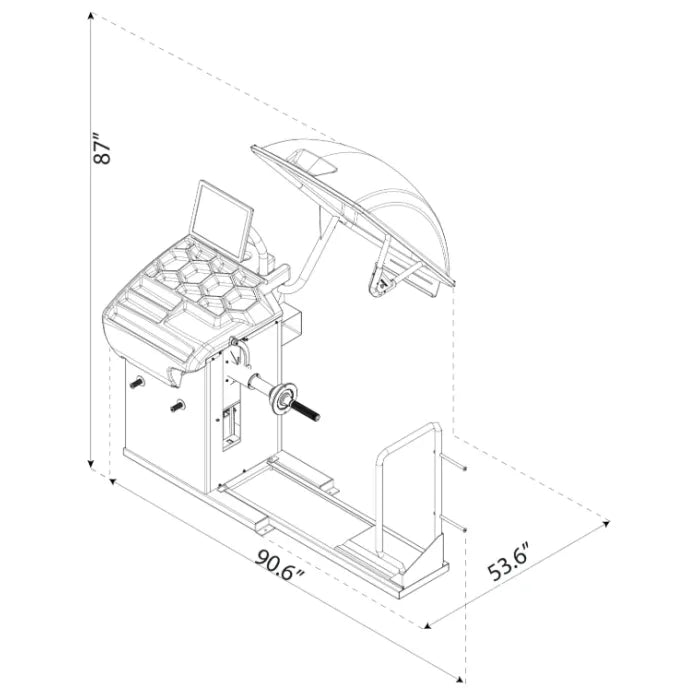

- Overall Dimensions: 90.6" W X 87" H X 53.6" D
- Shipping Weight: 650 lbs. (295 kg)
- Warranty: (2) Years on Parts, (1) Year Labor
CEMB Limited Warranty Statement
The BL Systems Co. (hereinafter "BL") warrants products manufactured and sold by it to be free from defects in material and workmanship for a period of 24 months parts, 60 months Wheel Balancer Motors, and 12 months labor from the date of installation, note: machine calibration is not a warranty item, except that parts sold from the repair or replacement of existing equipment will only be warranted for a period of 90 days from the date of installation.
If upon inspection by BL, any warranted product shall prove defective in materials or workmanship during the warranty period, that product shall be repaired or replaced at BL's option. BL must receive damaged part for full credit. Such repair or replacement shall be BL's sole obligation and the buyer's exclusive remedy under this warranty.
This warranty supersedes all prior oral or written agreements, promises, advertising or representations. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, AND BL EXPRESSLY DISCLAIMS AND EXCLUDES ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITMESS FOR A PARTICULAR PURPOSE. THESE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. BL's liability in contract, in tort (negligence, strict liability, or any other theory) under any warranty, or under any other legal or equitable theory of whatever type, shall not exceed the purchase price paid by buyer, and under no circumstances shall BL be liable of special, indirect, incidental or consequential damages. The amount of the purchase price of the equipment is determined in part by the fact that buyer has agreed to so limit seller's liability. No action arising out of any transaction under this agreement may be brought by purchaser more than one year after the cause of action has accrued. Some states do not allow an exclusion or limitation of consequential or incidental damages, so the above limitation of liability may not apply to you.
Accessories/Options
More Information
CEMB C330 Truck Wheel Balancer Flyer (.pdf)
CEMB C330 Truck Wheel Balancer Brochure (.pdf)
