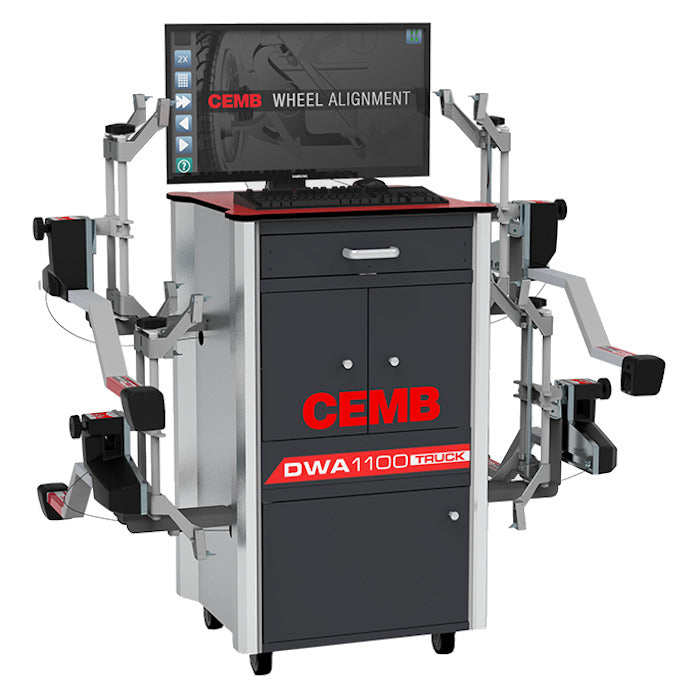

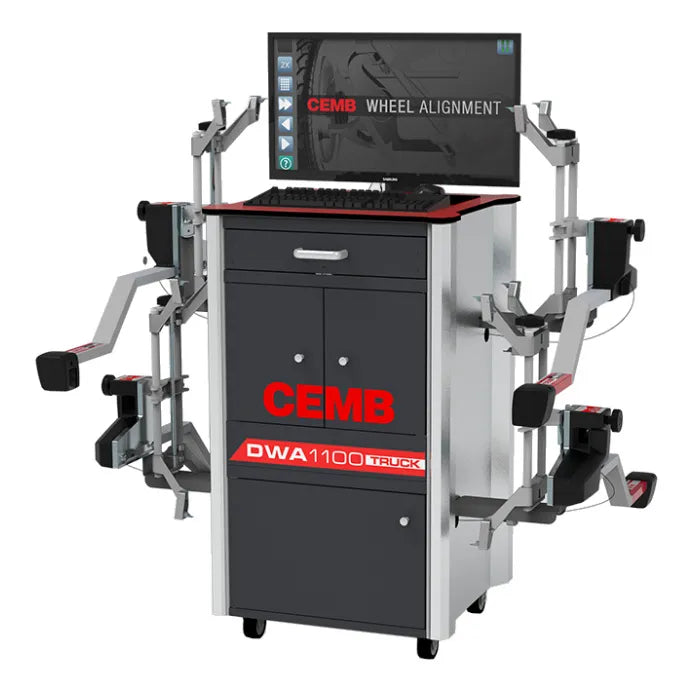

CEMB DWA1100TRUCK Heavy-Duty Wheel Alignment System

Description

CEMB DWA1100TRUCK Heavy-Duty Wheel Alignment System
8-Sensor CCD Truck and Bus Aligner - Complete Version

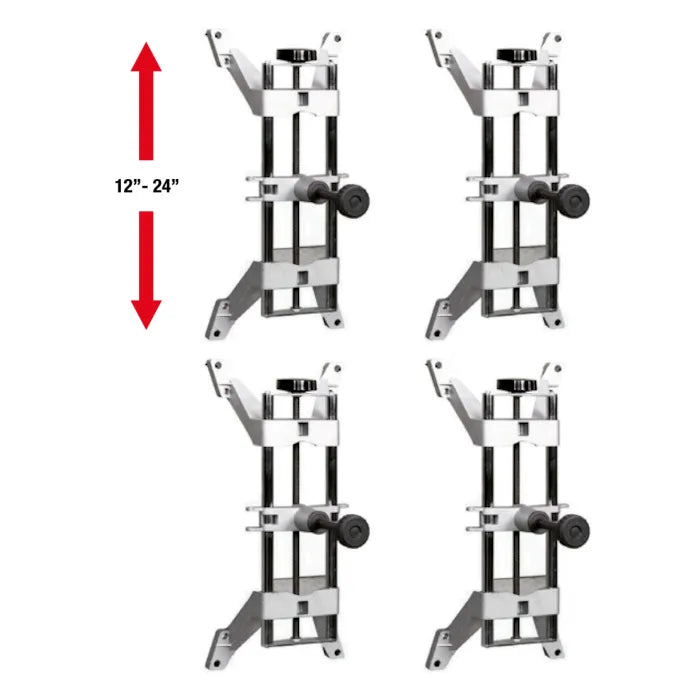

The new 3D-HD wheel alignment system for cars and light weight trucks, comes with a completely redesigned cabinet with drawers and compartments for housing the printer, tools and accessories. It also comes with our new easy to use, but advanced software. Robust wireless eight camera CCD sensors and lightweight wheel clamps with tire grabbers make up this heavy-duty truck and bus eight camera CCD wheel alignment system. Designed with state-of-art electronics and efficient software. The operator can quickly configure the alignment process to align heavy-duty trucks from a single steer axle to seven combined steer and drive axles. CEMB alignment software offers multi-language capability and customized configuration choices.

CCD (Charged Coupled Device) Sensor Technology
CCD Sensor Technology featuring state-of-the-art electronic componentry, enables a quick and accurate measurement of all alignment parameters by simply following a procedure field tested through many years of experience.

Database
The new vehicle model ranking system allows a rapid and clear selection of the different vehicles. The CEMB truck database contains more than 50,000 vehicles and is constantly updated. The 30+ year vehicle database includes heavy-duty truck alignment specifications and alignment spec customization capability.

Lithium Batteries
Lithium batteries featuring a long durability when batteries are charged. The batteries are immune to the "memory effect" and can be recharged at any time.

Radio Communication 2.4 GHz
The radio communication between sensors and computer uses a frequency of 2.4 GHz. This technology features a stable and reliable communication over a lengthy period. There are 7 different channel communications available which can be useful in cases of multiple installations and/or solving interference problems.

MEMS Accelerometer
Together with the CCD cameras, the MEMS accelerometer (derived from the aeronautical field), provides the acquisition of the alignment parameters of wheels. It measures the sensor inclinations according to the two main axles (caster and camber). The accelerometer has completely substituted the previous pendulum-type inclinometers which were very delicate and sensitive to shocks. No more problems due to shocks.

Dedicated Electronics
The system features an industrial type computer, Windows based, solid state SSD Sata, USB interface. No moving parts (DVD/CD) that can cause problems. Direct Shut-Down technology.

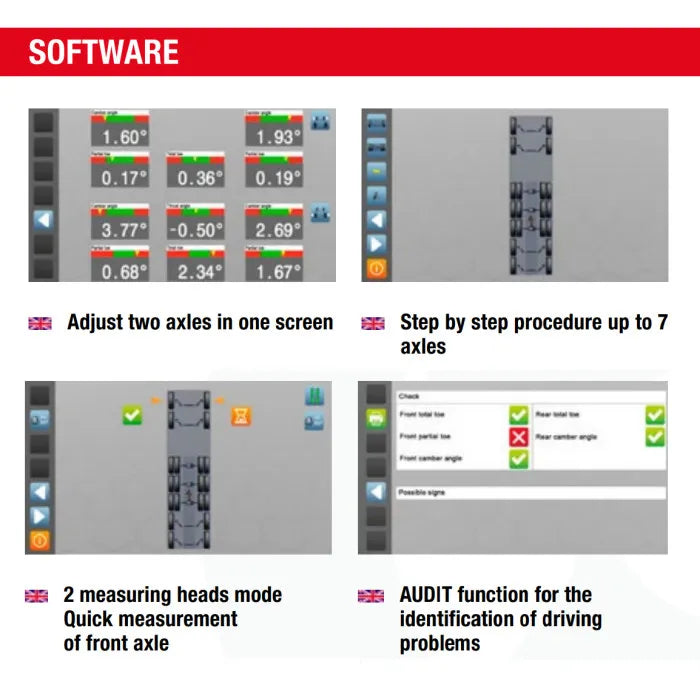

User-Friendly Software
Features very clear and user-friendly graphics. The software system, entirely developed by CEMB, guides the user through all the alignment operations. Complete with AUDIT function for the identification of driving problems, resulting from measures not contemplated in the specifications to support the regulation service.

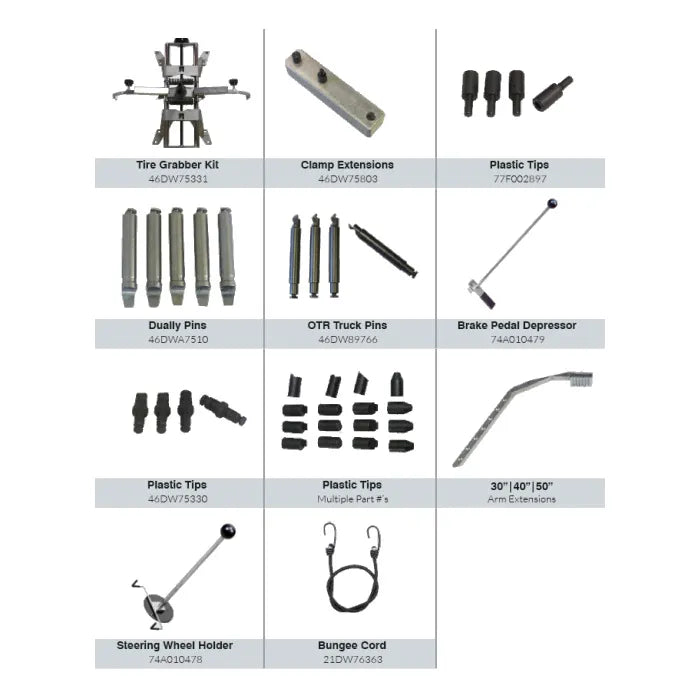

Accessories/Options
