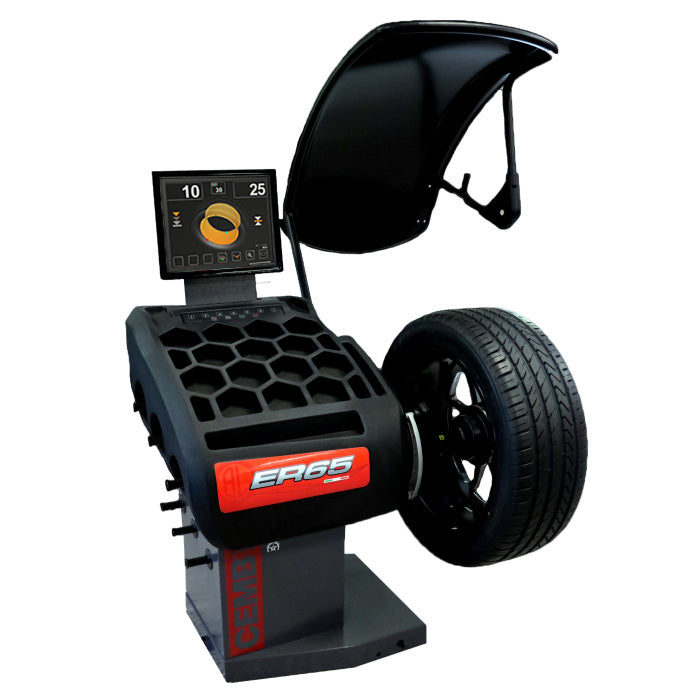

CEMB ER65 Automatic Video Wheel Balancer

In Stock SKU ER65

OUR PRICE: $6,863.00

Regular Price: $7,209.00

$190.63 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

CEMB ER65 Automatic Video Wheel Balancer
LA Sonar Automatic Approach Electromagnetic Brake

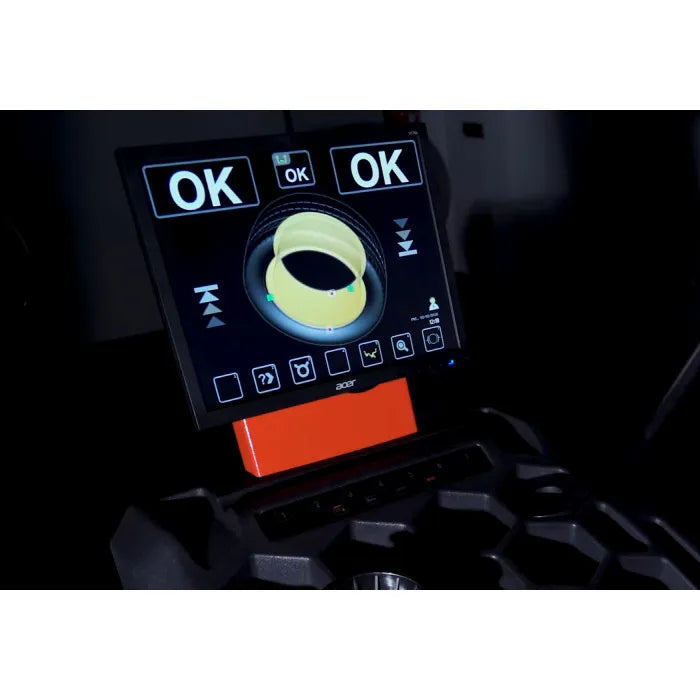

The CEMB ER65 Automatic Video Wheel Balancer with 17" monitor and intuitive graphical display which, combined to its ergonomic weight tray, conveys prestige to the tire shop and transmits a sense of efficiency and professionalism to end users. Features include LA Sonar, Automatic Approach, Laser Pointer, Electromagnetic Brake, and Manual Locking.

Description

CEMB

CEMB ER65 Automatic Video Wheel Balancer
LA Sonar Automatic Approach Electromagnetic Brake

The CEMB ER65 Automatic Video Wheel Balancer with 17" monitor and intuitive graphical display which, combined to its ergonomic weight tray, conveys prestige to the tire shop and transmits a sense of efficiency and professionalism to end users. Features include LA Sonar, Automatic Approach, Laser Pointer, Electromagnetic Brake, and Manual Locking.

  • The ErgoFast range of balancing machines has been developed to offer the operator the best possible working conditions.

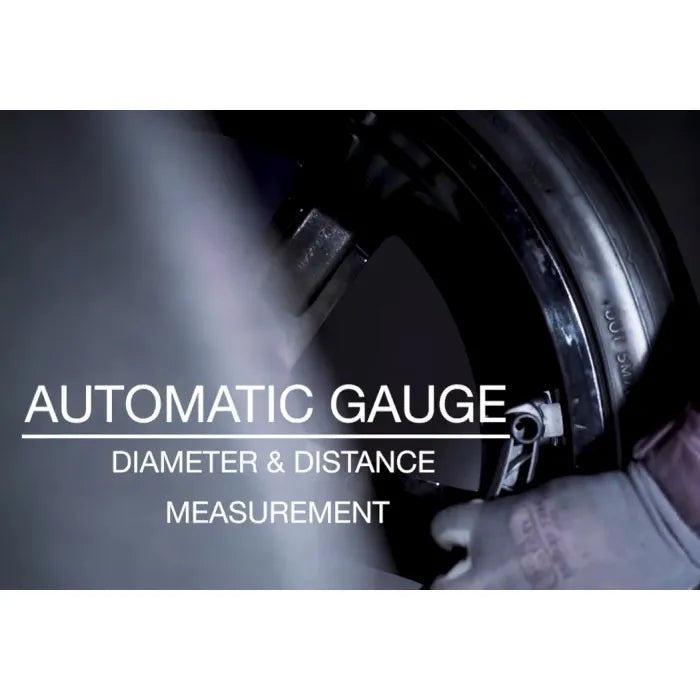

  • The automatic gauge enables detection of distance and diameter (up to 28" rims) with relative activation of desired balancing program (clip-on or stick-on weights).
  • Once the measuring launch is completed, thanks to the Automatic Approach system, the wheel automatically stops around 15° from the exact point of application of the counterweight, allowing the operator to position it correctly with a little movement.

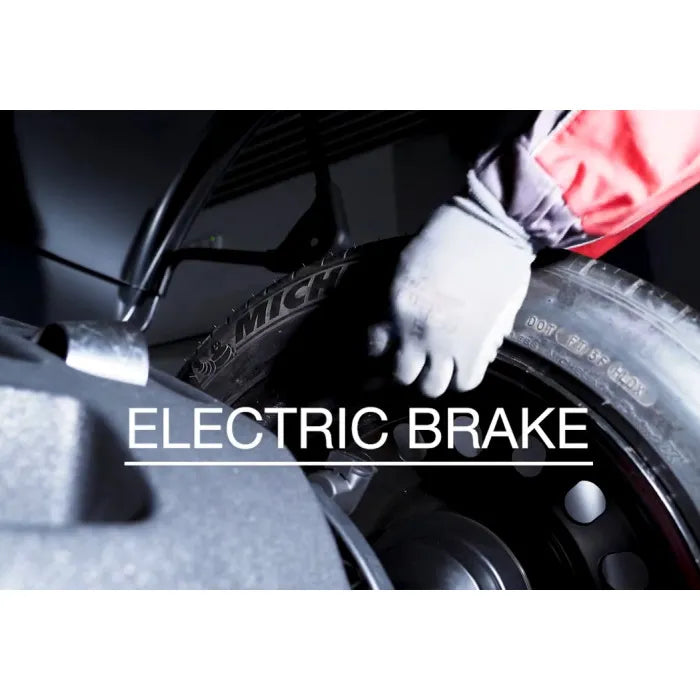

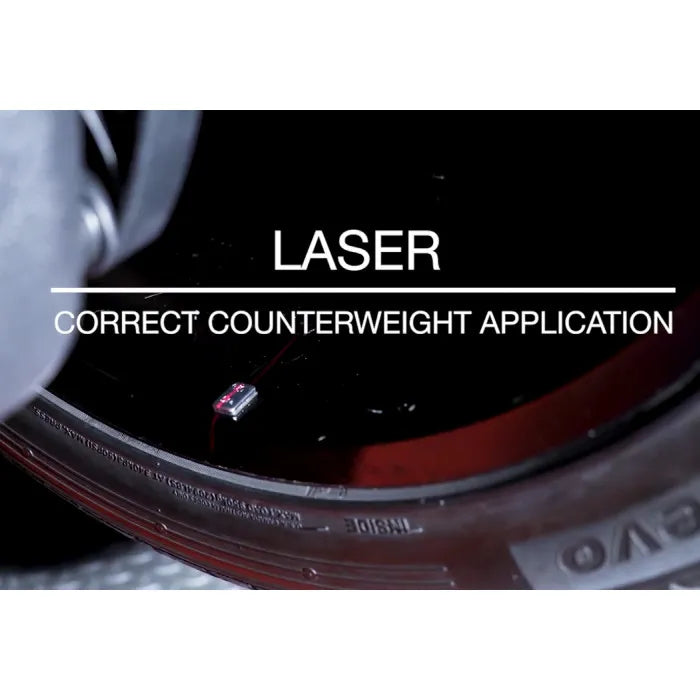

  • Wheel locked in position for weight applications through electric brake and laser beam indicating position guarantee an easy and extremely quick balancing operation.
  • The LA Sonar for width measurement enables an immediate entry of all necessary wheel data.
Automatic Approach To Correction Position
To facilitate and speed up the calibration procedure, CEMB has introduced the automatic approach to the correction position on all balancing machines equipped with electric brake that are not provided with automatic positioning system. Once the measuring launch is completed, the wheel automatically stops around 15° from the exact point of application of the counterweight, allowing the operator to position it correctly with little movement. After the first plane correction, pressing "start" the wheel will be repositioned around the second correction point.

CEMB wheel balancers constitute a wide range of innovative and patented solutions, recognizable for their capability to combine excellent balancing performances, robustness and ease of use.

Features & Specs

Features

  • Automatic Data-Entry Of Distance, Diameter And Rim Width
  • Automatic Approach Software Positions Wheel At Correction Point
  • LA Sonar
  • Manual Locking
  • Electromagnetic Brake
  • Wheel Lock With Laser Pointer For Weight Application
  • Ergonomic Design Saves Shop Space

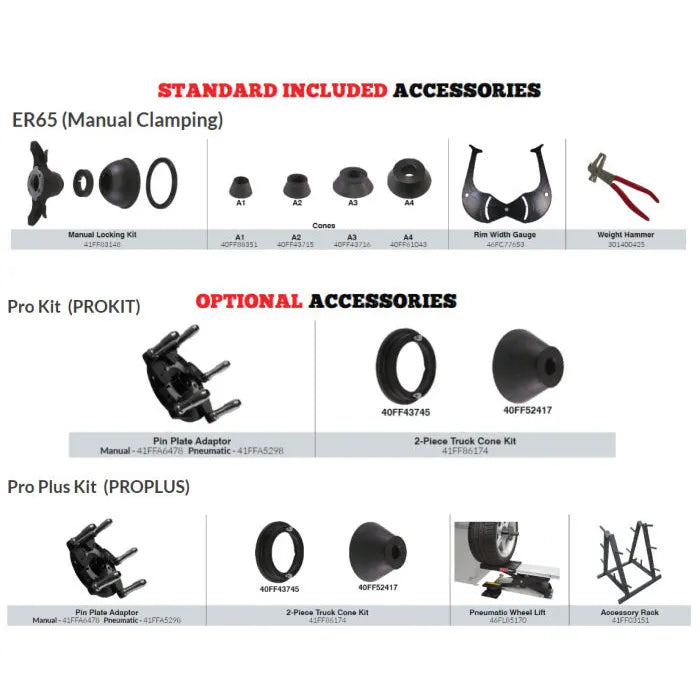

Standard Accessories

  • #46FC77653 Rim Width Gauge
  • #301400425 Weight Hammer
  • #46FF83148 Manual Locking Kit
  • #40FF88351 A1 Cone
  • #40FF43715 A2 Cone
  • #40FF43716 A3 Cone
  • #40FF61043 A4 Cone

Optional Accessories

  • #41FF03151 Accessory Rack
  • #41FFA6478 Pin Plate Adapter
  • #41FF86174 2-Piece Truck Cone Kit
  • #46FL85170 Pneumatic Wheel Lift
  • #PROKIT Optional Pro Accessory Kit
    • #41FFA6478 Manual Pin Plate Adapter
    • #41FF86174 Truck Cone Kit
  • #PROPLUS Optional Pro Plus Accessory Kit
    • #41FFA6478 Manual Pin Plate Adapter
    • #41FF86174 Truck Cone Kit
    • #46FL85170 Pneumatic Wheel Lift
    • #41FF03151 Accessory Rack

Specifications

  • Wheel Clamping Type: Manual
  • Max. Rim Diameter: 30" (765 mm)
  • Max. Rim Width: 20" (510 mm)
  • Max. Tire Diameter: 42" (1067 mm)
  • Max. Wheel Weight: 165 lbs. (75 kg)
  • Shaft Size: 40 mm
  • Power Supply: 115V, 1Ph, 50-60 Hz
  • Overall Dimensions: 48.75" W x 70.3" H x 38" D
  • Shipping Weight: 300 lbs. (136 kg)
  • Warranty: (2) Years on Parts, (1) Year Labor

CEMB Limited Warranty Statement
The BL Systems Co. (hereinafter "BL") warrants products manufactured and sold by it to be free from defects in material and workmanship for a period of 24 months parts, 60 months Wheel Balancer Motors, and 12 months labor from the date of installation, note: machine calibration is not a warranty item, except that parts sold from the repair or replacement of existing equipment will only be warranted for a period of 90 days from the date of installation.

If upon inspection by BL, any warranted product shall prove defective in materials or workmanship during the warranty period, that product shall be repaired or replaced at BL's option. BL must receive damaged part for full credit. Such repair or replacement shall be BL's sole obligation and the buyer's exclusive remedy under this warranty.

This warranty supersedes all prior oral or written agreements, promises, advertising or representations. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, AND BL EXPRESSLY DISCLAIMS AND EXCLUDES ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITMESS FOR A PARTICULAR PURPOSE. THESE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. BL's liability in contract, in tort (negligence, strict liability, or any other theory) under any warranty, or under any other legal or equitable theory of whatever type, shall not exceed the purchase price paid by buyer, and under no circumstances shall BL be liable of special, indirect, incidental or consequential damages. The amount of the purchase price of the equipment is determined in part by the fact that buyer has agreed to so limit seller's liability. No action arising out of any transaction under this agreement may be brought by purchaser more than one year after the cause of action has accrued. Some states do not allow an exclusion or limitation of consequential or incidental damages, so the above limitation of liability may not apply to you.

Accessories/Options

More Information

CEMB ER65 Wheel Balancer Flyer (.pdf)

CEMB ER65 Wheel Balancer Brochure (.pdf)





Since 1978 CEMB USA has been located near Atlanta Georgia. Headquarters are now in Gainesville, Georgia near Lake Lanier. CEMB USA's full range of products comes to you fully assembled, including standard, performance, and diagnostic levels. All machines come in a shop neutral color (steel gray) that will match well with existing shop equipment.

CEMB finalizes assembly, calibrates and tests all of our machines before they leave our warehouse so that they are ready to use as soon as they get to your facility. Once in your facility we have a complete sales force of representatives and service centers throughout all of the US to help support our wheel service equipment, along with one of the best warranties in the industry.

CEMB is an Engineering company - we are the innovators - we will continue to develop new & exclusive features and products which others will copy in time as demand grows - we are ahead of the market curve, not reacting to it!
