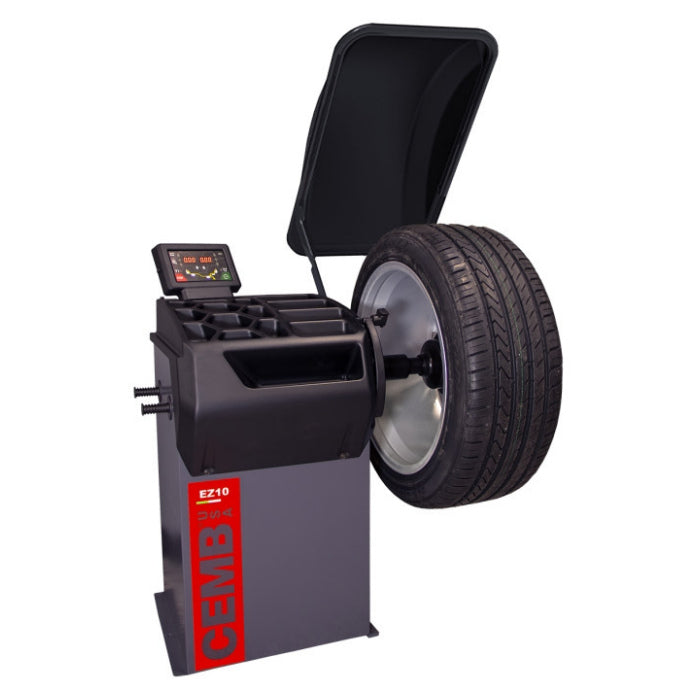

CEMB EZ10 3D Data Entry Wheel Balancer

Name: CEMB EZ10 3D Data Entry Wheel Balancer
Brand: ASEDeals
SKU: EZ10
Price: 4908.0 USD
Availability: InStock

In Stock SKU EZ10

OUR PRICE: $4,908.00

Regular Price: ~~$5,159.00~~

$136.33 / mo

INCLUDES FREE SHIPPING*

Short Description

CEMB EZ10 Space-Saving 3D Data Entry Wheel Balancer
The EZ10 blends existing technical features such as Auto Adaptive mode and Virtual Sonar - with the addition of an electromagnetic brake, which eases operations for counterweight application makes this space-saving wheel balancer unbeatable.

Description

CEMB

CEMB EZ10 3D Data Entry Wheel Balancer

The EZ10 blends existing technical features such as Auto Adaptive mode and Virtual Sonar - with the addition of an electromagnetic brake, which eases operations for counterweight application makes this space-saving wheel balancer unbeatable.

The EZ10 is a Space-Saver wheel balancer, with exclusive direct weight placement. 3D inner data entry arm uses 3D Virtual Sonar and AutoAdaptive enhancement software to provide a faster, higher quality wheel balance service. Eliminates the time and hassle of caliper rim width data entry. Motorized, fast 5-second average cycle time.

AutoAdaptive Mode - The innovative tolerance calculation system AutoAdaptive Mode is based on the evaluation of the residual imbalance limit value corresponding to an acceptable perceived vibration. For each wheel that is balanced, the software AutoAdaptive Mode detects weight and dimensions and calculates the tolerance value that will cancel any vibration perceived on the steering wheel. AutoAdaptive Mode grants the highest comfort when driving, and together with OPB Program, saves balancing time.

Virtual Sonar is the new CEMB software for a 3D wheel measurement which enables, in the absence of an actual sonar device, to detect the rim width. After having detected the first correction plane thanks to the automatic gauge, Virtual Sonar calculates the position of the external plane, according to the measured unbalance and the tolerance calculated with AutoAdaptive mode.

Heavy Duty - The entire range of CEMB balancers is manufactured to the strict high standards imposed by the company. Heavy duty batch balancing use doesn’t hamper even the smallest of CEMB balancers. Thanks to this sturdiness, the choice of an appropriate model is not subject to intensity of use but only to service requested. Each model differs from the other in levels of process automation and analysis capability effect on wheel.

Features & Specs

Features

AutoAdaptive Mode
Virtual Sonar
Automatic Gauge
Multi-Function LED Display Panel
Manual Locking
Electro-Magnetic Brake
Fast 5-Second Cycle Time
Quick Clamping Wing Nut

Specifications

Power Supply: 110V, 1ph, 50/60Hz
Wheel Clamping Type: Manual
Balancing Speed: 100 rpm
Maximum Rim Diameter: 30" (765mm)
Maximum Rim Width: 20" (510mm)
Maximum Tire Diameter: 36" (914mm)
Max Wheel Weight: 165 lbs. (75kg)
Machine Weight: 265 lbs. (120kg)

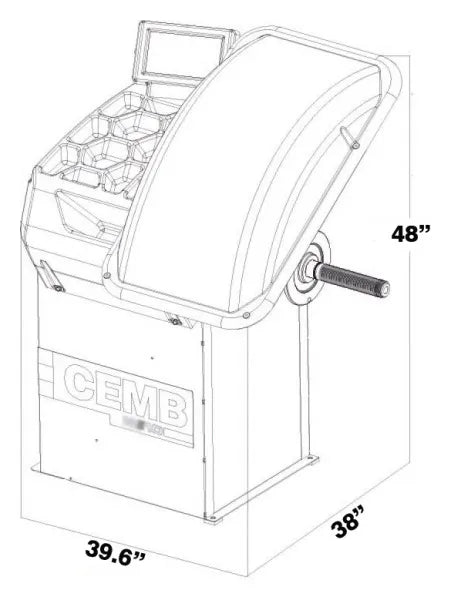

Machine Dimensions: 39.6" W x 48" H x 38" D
Shipping Weight: 280 lbs. (127kg)
Warranty: (5) Years on Balancer Motor, (2) Years on Parts, (1) Year Labor

CEMB Limited Warranty Statement
The BL Systems Co. (hereinafter "BL") warrants products manufactured and sold by it to be free from defects in material and workmanship for a period of 24 months parts, 60 months Wheel Balancer Motors, and 12 months labor from the date of installation, note: machine calibration is not a warranty item, except that parts sold from the repair or replacement of existing equipment will only be warranted for a period of 90 days from the date of installation.

If upon inspection by BL, any warranted product shall prove defective in materials or workmanship during the warranty period, that product shall be repaired or replaced at BL's option. BL must receive damaged part for full credit. Such repair or replacement shall be BL's sole obligation and the buyer's exclusive remedy under this warranty.

This warranty supersedes all prior oral or written agreements, promises, advertising or representations. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, AND BL EXPRESSLY DISCLAIMS AND EXCLUDES ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITMESS FOR A PARTICULAR PURPOSE. THESE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. BL's liability in contract, in tort (negligence, strict liability, or any other theory) under any warranty, or under any other legal or equitable theory of whatever type, shall not exceed the purchase price paid by buyer, and under no circumstances shall BL be liable of special, indirect, incidental or consequential damages. The amount of the purchase price of the equipment is determined in part by the fact that buyer has agreed to so limit seller's liability. No action arising out of any transaction under this agreement may be brought by purchaser more than one year after the cause of action has accrued. Some states do not allow an exclusion or limitation of consequential or incidental damages, so the above limitation of liability may not apply to you.
