CEMB MOVE Compact Wheel Balancer

Name: CEMB MOVE Compact Wheel Balancer
Brand: ASEDeals
SKU: MOVE
Price: 5136.0 USD
Availability: InStock

In Stock SKU MOVE

OUR PRICE: $5,136.00

Regular Price: $5,399.00

$142.66 / mo

INCLUDES FREE SHIPPING*

Short Description

CEMB MOVE Compact Wheel Balancer
The Wheel Balancer That Goes Where You Go
The CEMB MOVE Compact Wheel Balancer is a fully-automatic wheel balancer designed for mobile service, but also perfect for workshops with limited space thanks to its compact size. Its versatility means you can use MOVE anywhere, with the same performance as high-end models. Features include 2-Hit Data Input With laser, Rotating Interface, Virtual Sonar, One Plane Balancing, AutoAdaptive Mode, Electromagnetic Brake, Automatic Approach, Professional Software, ALU-S 3D Balancing Mode, Adhesive Weight Placement With Laser Spotter, and LED Work Light.

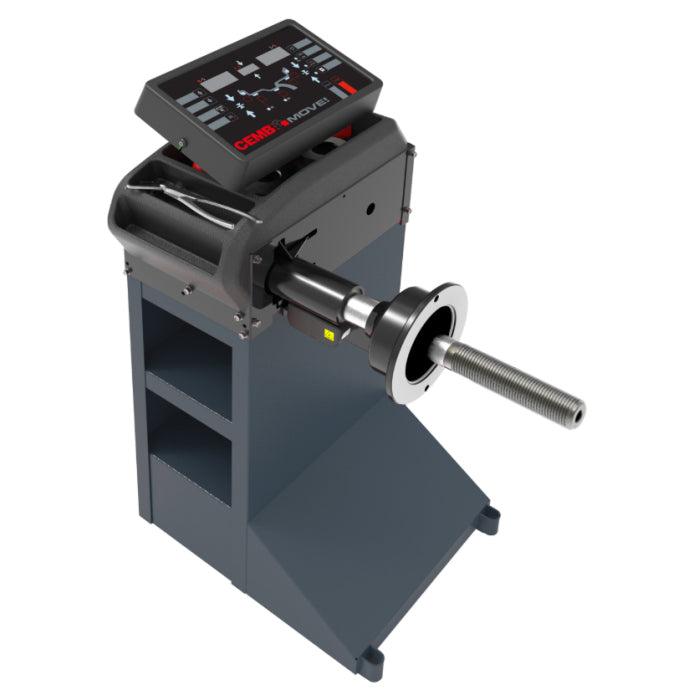

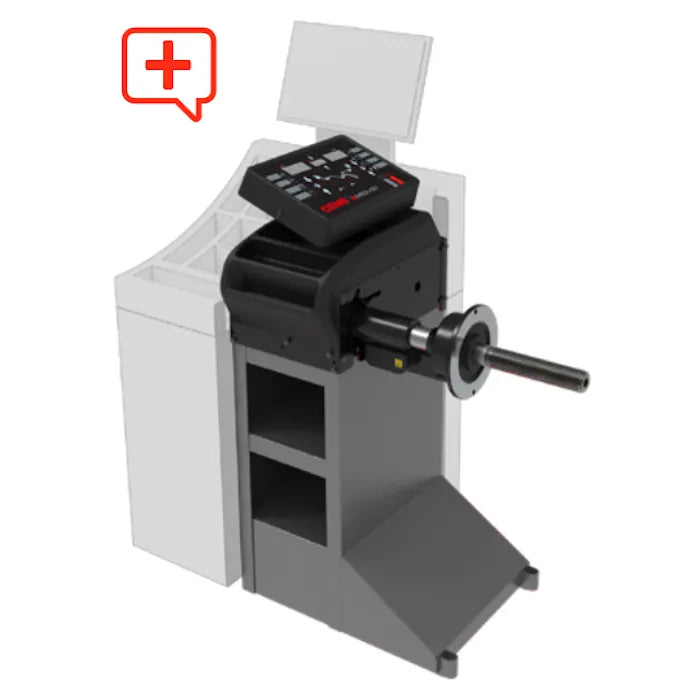

MOVE Includes Base For Vehicle or Shop Installation

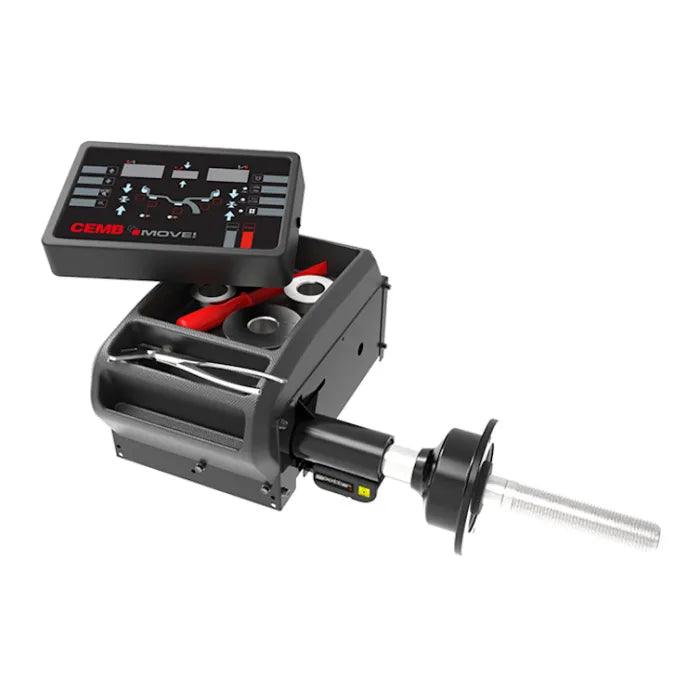

MOVE Can Be Removed From Base And Mounted To Workbench

Description

CEMB MOVE Compact Wheel Balancer
The Wheel Balancer That Goes Where You Go

The CEMB MOVE Compact Wheel Balancer is a fully-automatic wheel balancer designed for mobile service, but also perfect for workshops with limited space thanks to its compact size. Its versatility means you can use MOVE anywhere, with the same performance as high-end models. Features include 2-Hit Data Input With laser, Rotating Interface, Virtual Sonar, One Plane Balancing, AutoAdaptive Mode, Electromagnetic Brake, Automatic Approach, Professional Software, ALU-S 3D Balancing Mode, Adhesive Weight Placement With Laser Spotter, and LED Work Light.

MOVE Includes Base For Vehicle or Shop Installation
MOVE Can Be Removed From Base And Mounted To Workbench

2-Hit Data Input With Lasers
Forget the gauge! Manually rotate the wheel as instructed, and the lasers precisely measure its dimensions. A simple button press sends the data to the software, streamlining the process.

Rotating Interface For Easy Access
The rear knob allows you to lock the machine in place or set intermediate positions as needed. A 90-degree rotation provides complete access to the weight carrier, making adjustments a breeze.

Precise Adhesive Weight Placement With Laser
The Spotter Laser takes the guesswork out of weight placement. It pinpoints the exact correction planes and shows you precisely where to apply the weights. The wheel brake further simplifies the process by locking the wheel in the correction position.

Virtual Sonar For Advanced Measurement
Even without a physical sonar device, the Virtual Sonar software delivers 3D wheel measurement, including rim width detection. This innovative technology ensures accurate balancing, even on complex wheel designs.

One Plane Balancing For Maximum Efficiency
The One Plane Balancing (OPB) feature is a game-changer. It eliminates both static and dynamic imbalance with a single counterweight, saving you time and money. The balancer automatically detects when OPB is possible, maximizing your productivity.

Automatic Approach and Electric Brake
After the measuring launch, the Automatic Approach system effortlessly stops the wheel within 15° of the weight application point. The electric brake then locks the wheel securely, allowing for precise weight placement every time.

Virtual Sonar
Enables 3D wheel measurements by calculating rim width when dealing with metal rims or the absence of sonar.

AutoAdaptive Mode
Introduces a new tolerance calculation system for enhanced accuracy.

Professional Software
Includes SPLIT, OPT, and ALU for advanced functionality.

ALU-S 3D Balancing Mode
Ensures precise placement of adhesive weights on internal rim planes with a dedicated counterweight position indicator.

LED Work Light
Illuminates the inner rim area for improved visibility during operation.

CEMB wheel balancers constitute a wide range of innovative and patented solutions, recognizable for their capability to combine excellent balancing performances, robustness and ease of use.

Features & Specs

Features

2-Hit Data Input With Lasers
Rotating Interface For Easy Access
Virtual Sonar
One Plane Balancing (OPB)
AutoAdaptive Mode
Electromagnetic Brake
Automatic Approach
Professional Software
ALU-S 3D Balancing Mode
Adhesive Weight Placement With Laser Spotter
LED Work Light
Made In Italy Final Assembly In USA
Power Supply 110V 1Ph

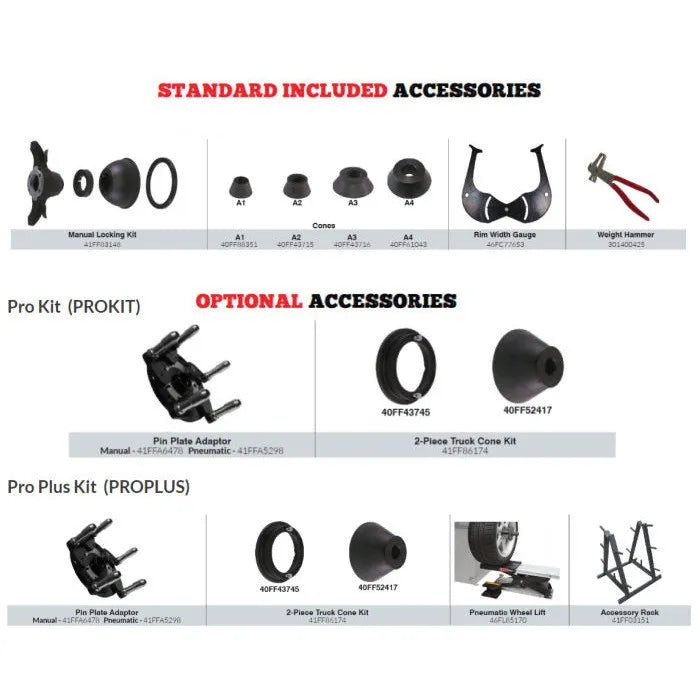

Standard Accessories

#46FC77653 Rim Width Gauge
#301400425 Weight Hammer
#46FF83148 Manual Locking Kit
#40FF88351 A1 Cone
#40FF43715 A2 Cone
#40FF43716 A3 Cone
#40FF61043 A4 Cone

Optional Accessories

#PROKIT Optional Pro Accessory Kit

#41FFA6478 Manual Pin Plate Adapter
#41FF86174 Truck Cone Kit

#PROPLUS Optional Pro Plus Accessory Kit

#41FFA6478 Manual Pin Plate Adapter
#41FF86174 Truck Cone Kit
#46FL85170 Pneumatic Wheel Lift
#41FF03151 Accessory Rack

Specifications

Power Supply: 110V, 1ph, 50/60 Hz
Wheel Clamping Type: Manual
Max. Rim Diameter: 30" (765 mm)
Max. Rim Width: 20" (510 mm)
Max. Tire Diameter: 42" (1,067 mm)
Max. Wheel Weight: 165 lbs. (75 kg)
Shaft Size: 40 mm
Shipping Weight: 100 lbs. (45 kg)
Warranty: (2) Years on Parts, (1) Year Labor

CEMB Limited Warranty Statement
The BL Systems Co. (hereinafter "BL") warrants products manufactured and sold by it to be free from defects in material and workmanship for a period of 24 months parts, 60 months Wheel Balancer Motors, and 12 months labor from the date of installation, note: machine calibration is not a warranty item, except that parts sold from the repair or replacement of existing equipment will only be warranted for a period of 90 days from the date of installation.

If upon inspection by BL, any warranted product shall prove defective in materials or workmanship during the warranty period, that product shall be repaired or replaced at BL's option. BL must receive damaged part for full credit. Such repair or replacement shall be BL's sole obligation and the buyer's exclusive remedy under this warranty.

This warranty supersedes all prior oral or written agreements, promises, advertising or representations. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, AND BL EXPRESSLY DISCLAIMS AND EXCLUDES ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITMESS FOR A PARTICULAR PURPOSE. THESE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. BL's liability in contract, in tort (negligence, strict liability, or any other theory) under any warranty, or under any other legal or equitable theory of whatever type, shall not exceed the purchase price paid by buyer, and under no circumstances shall BL be liable of special, indirect, incidental or consequential damages. The amount of the purchase price of the equipment is determined in part by the fact that buyer has agreed to so limit seller's liability. No action arising out of any transaction under this agreement may be brought by purchaser more than one year after the cause of action has accrued. Some states do not allow an exclusion or limitation of consequential or incidental damages, so the above limitation of liability may not apply to you.

Accessories/Options

More Information

CEMB MOVE Wheel Balancer Spec Sheet (.pdf)

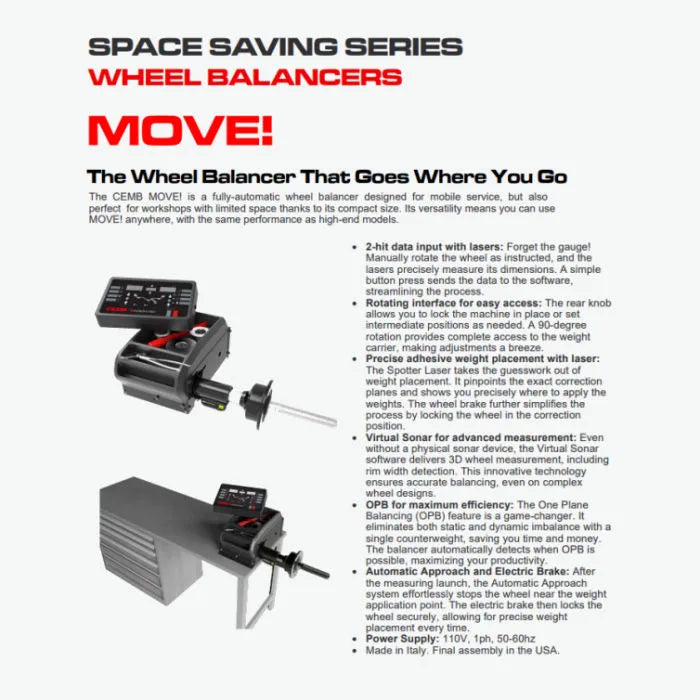

CEMB MOVE Wheel Balancer Brochure (.pdf)

Since 1978 CEMB USA has been located near Atlanta Georgia. Headquarters are now in Gainesville, Georgia near Lake Lanier. CEMB USA's full range of products comes to you fully assembled, including standard, performance, and diagnostic levels. All machines come in a shop neutral color (steel gray) that will match well with existing shop equipment.

CEMB finalizes assembly, calibrates and tests all of our machines before they leave our warehouse so that they are ready to use as soon as they get to your facility. Once in your facility we have a complete sales force of representatives and service centers throughout all of the US to help support our wheel service equipment, along with one of the best warranties in the industry.

CEMB is an Engineering company - we are the innovators - we will continue to develop new & exclusive features and products which others will copy in time as demand grows - we are ahead of the market curve, not reacting to it!
