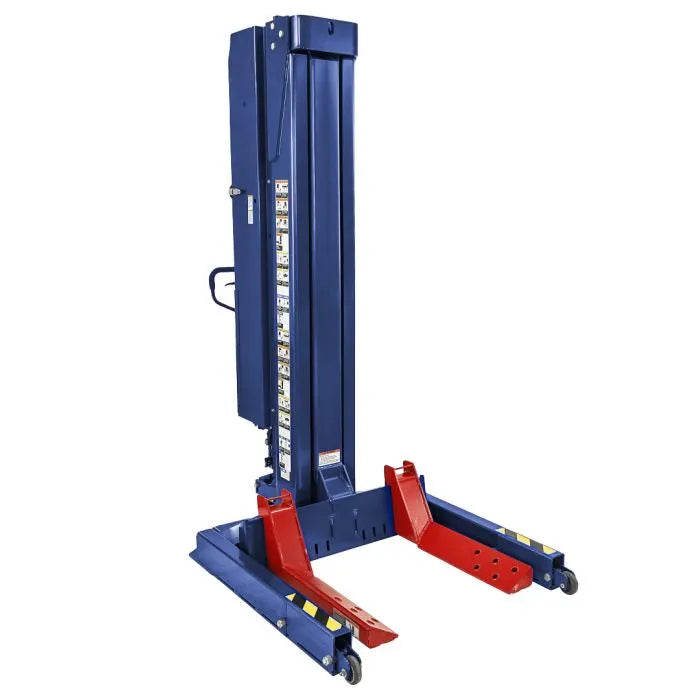

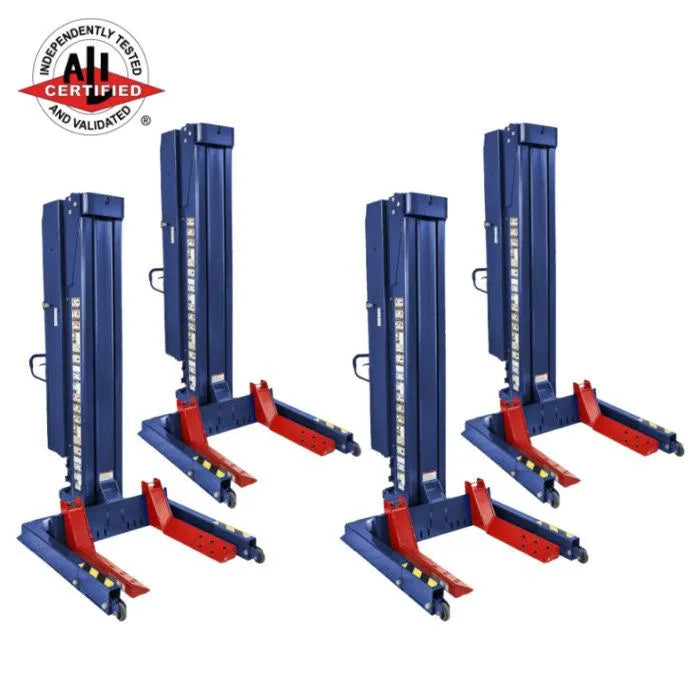

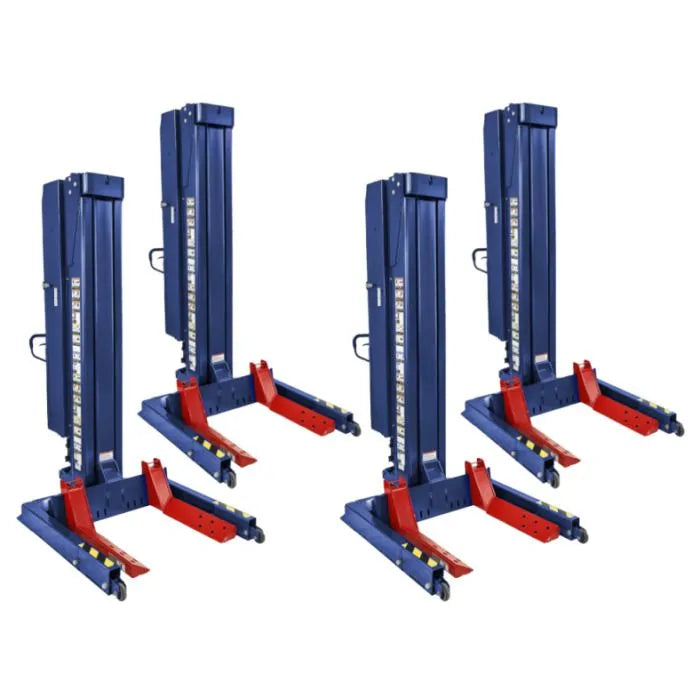

Challenger Lifts CLHM125-XF Wireless Mobile Column Lift Set of 4

Features & Specs

Features

• Set of 4, Connect Up To 8 Column Lifts
• 50,000 lbs. Lifting Capacity (12,500 lbs. per Column)
• Up To 100,000 lbs. Lifting Capacity With 8 Columns
• Operate Wirelessly From Any Column
• 22" Extended Forks Support Recessed Or Dually Tires
• Adjustable To Fit Wheel Diameters From 5" to 24.5"
• Rechargeable Battery Powered
• 110V Charging System
• 25' Charging Cable with Cord Reel
• No Air Required
• Heavy-Duty Tow Handles
• ALI and ETL Certified

Requirements

• 14' 8" Minimum Height
• 14' Recommended Width
• 28' Recommended Depth
• 120-240 VAC @ 50-60 Hz (Charging)

Specifications

• Lifting Capacity: 12,500 lbs. Per Column
• Lifting Capacity Set of 4: 50,000 lbs.
• Height of Lift Unit: 88.5"
• Overall Height at Full Rise: 13' 1 1/8"
• Width of Lift Unit: 44.25"
• Length of Lift Unit: 65.3"
• Max. Lift Height: 4+ Units 69"
• Max. Lift Height (with 2 Units): 32"
• Min. Wheel Diameter: 5"
• Max. Wheel Diameter: 24.5"
• Max. Hydraulic System Operating Pressure: 2,100 PSI
• Lift Speed (Max. Load): 56.7" Per Minute
• Weight of Lift Unit: 1,557 lbs. Per Column
• Footprint of Lift Unit: 719 sq. in.
• Ground Pressure/Lift (Max. Load): 19.6 PSI
• Turning Radius of Lift Unit: 54"
• Operating Peak Power: 4 HP
• Operating Voltage: 24 VDC Nominal
• Charger Voltage Required: 120-240 VAC @ 50-60 Hz
• Charger Amps Required: 2.8 Amps
• Certification: ALI and ETL Certified
• Warranty: (5) Years on Structure, (2) Years on Functional Parts, (2) Years Free AGM Battery Replacement, (1) Year Labor

Challenger Lifts Warranty Statement
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for all reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI's specifications set forth in CLI's installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and in not transferable. This warranty is valid only if the product has been registered with Challenger lifts.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.

The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.

Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latched, valves, and controls.

Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters., sync rails, and plungers.

Note: Warranty registration must be completed online at challengerlifts.com/register-your-lift or warranty period will begin from invoice date of lift purchase.
