Challenger Lifts CLHM-140 Heavy-Duty Mobile Column Lifts Set of 4

Name: Challenger Lifts CLHM-140 Heavy-Duty Mobile Column Lifts Set of 4
Brand: ASEDeals
SKU: CLHM-140 x4
Price: 50595.08 USD
Availability: InStock

In Stock SKU CLHM-140 x4

OUR PRICE: $50,595.08

Regular Price: $53,129.00

$1405.41 / mo

INCLUDES FREE SHIPPING*

Short Description

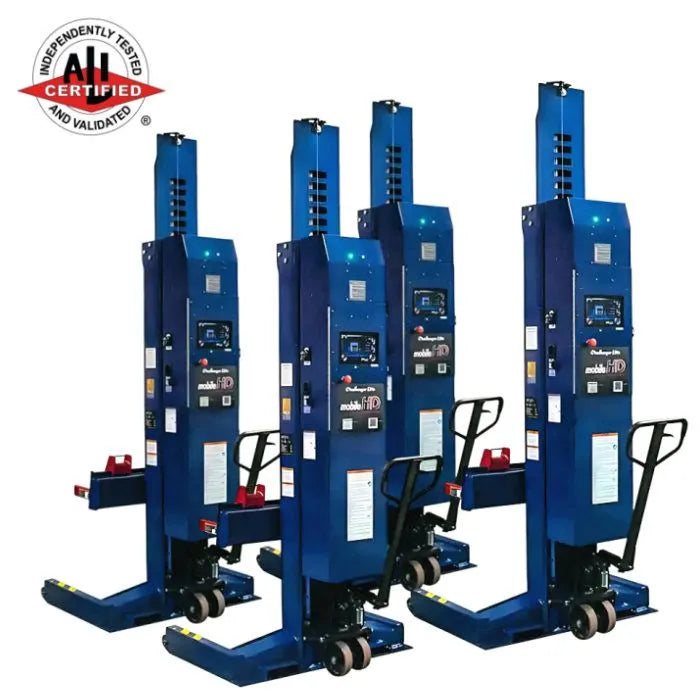

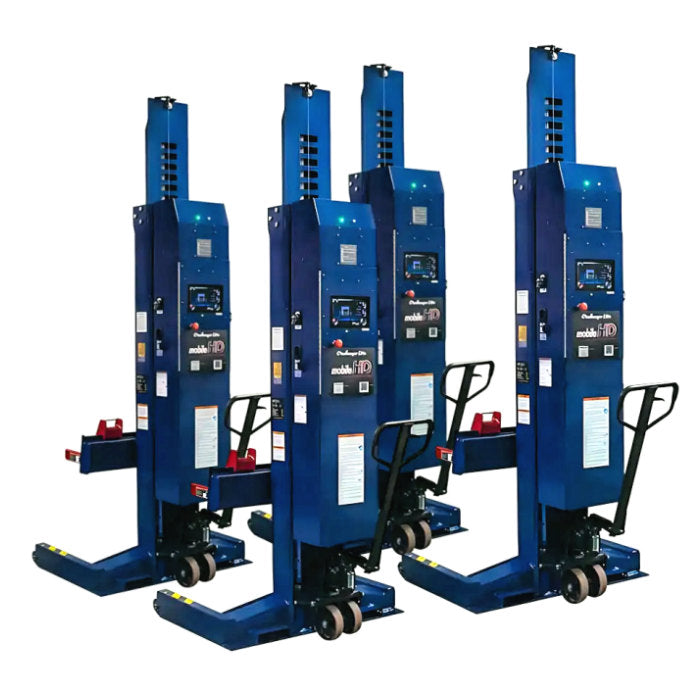

Challenger Lifts CLHM-140 Heavy-Duty Mobile Column Lifts Set of 4
Wireless Heavy-Duty 56,000 lbs. System Lifting Capacity
The Challenger Lifts CLHM-140 Heavy-Duty Mobile Column Lift System is robust, yet easily maneuverable and can be operated on almost any solid surface, indoors or out. The CLHM-140 has a heavy-duty lifting capacity of 14,000 lbs. per column. Mobile column lifts provide the flexibility and convenience to lift any rubber-tired vehicle, from small passenger cars to large 2-, 3- or 4-axle vehicles up to 152,000 pounds with 8 columns. These heavy-duty mobile column lifts are also capable of lifting vehicles of any axle length or wheelbase. With the addition of optional adapters, these easily configurable columns are capable of many additional lifts including forklifts, vehicles with plows attached, wheels-free lifting, vehicle end lifting, and even cab off lifting. Challenger Lifts CLHM-140 Heavy-Duty Mobile Column Lifts are ALI and ETL Certified.

Now Featuring Absorbed Glass Mat Group 27 AGM 12 Volt Batteries

CURRENT LEAD TIME 2-4 WEEKS

Made In USA

Description

Challenger Lifts CLHM-140 Heavy-Duty Mobile Column Lifts Set of 4
Wireless Heavy-Duty 56,000 lbs. System Lifting Capacity

The Challenger Lifts CLHM-140 Heavy-Duty Mobile Column Lift System is robust, yet easily maneuverable and can be operated on almost any solid surface, indoors or out. The CLHM-140 has a heavy-duty lifting capacity of 14,000 lbs. per column. Mobile column lifts provide the flexibility and convenience to lift any rubber-tired vehicle, from small passenger cars to large 2-, 3- or 4-axle vehicles up to 152,000 pounds with 8 columns. These heavy-duty mobile column lifts are also capable of lifting vehicles of any axle length or wheelbase. With the addition of optional adapters, these easily configurable columns are capable of many additional lifts including forklifts, vehicles with plows attached, wheels-free lifting, vehicle end lifting, and even cab off lifting. Challenger Lifts CLHM-140 Heavy-Duty Mobile Column Lifts are ALI and ETL Certified.

AGM Batteries For CLHM/CLMM Mobile Column Lifts
Effective May 2025 all Challenger CLHM / CLMM model lifts will have AGM batteries. (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a (2) Year Free Replacement Warranty. Please note: All lifts shipped will all have matched batteries. All current in stock inventory have been converted to AGM. AGM batteries are less prone to desulfation and degradation helping to alleviate the number one cause of issues on Mobile Columns - forgetting to plug them in. It can't solve forgetfulness, but it will help alleviate some of the side effects.

Features & Specs

Features

Set of 4, Connect Up To 8 Columns
56,000 lbs. Lifting Capacity (14,000 lbs. per Column)
110-Volt Built-In Multi-Stage Charging System
Wireless System For Clutter-Free Work Area Without Cables To Connect, Navigate, Roll-Over Or Replace
Adjustable Wheel Carriage Adapts To Most Tire Sizes
12 Radio Frequencies With A Wide Channel Range Prevents Radio Noise From Interrupting Service
Linear Position Transducers Maintain System Synchronization And Ensure Maximum Reliability
Integrated Touch Screen Control Console At Each Column Allows Operation From Any Unit
Precise Balanced Design, Heavy-Duty Tow Handle And Spring-Loaded Wheels For Easy Mobility
Operates With Absorbed Glass Mat Group 27 AGM 12 Volt Batteries Eliminating The Need For Power Source Hookups And Providing 24-Volt Operation
Integrated Weight Gauges Help Prevent Column Overloading And Verify Lock Engagement
Wide Range Of Accessories Available To Further Customize Your Columns To Lift Specialty Heavy-Duty Trucks, Transit And Municipality Vehicles, Forklifts, Cab Removal Of Standard Pickup Trucks And More

Requirements

14' 8" Minimum Height
14' Recommended Width
28' Recommended Depth
110V Charging Battery Powered
Concrete 4" Thick, Reinforced, Free From Cracks/Seams, 3500+ PSI & Cured For 28+ Days

Specifications

System Lifting Capacity: 56,000 lbs. (Set of 4)
Lifting Capacity Per Column: 14,000 lbs.
Height of Lift Unit: 88.5"
Height of Lift Unit at Full Rise: 157.125"
Width of Lift Unit: 44.25"
Length of Lift Unit: 53.625"
Maximum Lift Height (4 or more units): 69"
Maximum Lift Height (2 units - Normal Mode): 32"
Min-Max Wheel Diameter: 5" - 24.5"
Max. Hydraulic System Operating Pressure: 2,180 psi
Lift Speed (Max Load): 60" per min.
Footprint of Lift Unit: 560 sq. in.
Ground Pressure for each Lift (Max. Load): 27.7 psi
Turning Radius of Lift Unit: 47"
Operating Peak Power: 4HP
Batteries: Absorbed Glass Mat Group 27 AGM 12 Volt
Operating Voltage: 24 VDC nominal
Charger Voltage Required: 120 VAC @ 60 Hz
Charger Amps Required: 1.3 Amps
ALI/ETL Certified: Yes
Colors Available: Blue
Weight of Lift Unit: 1,485 lbs.
Warranty: (5) Years on Structure, (2) Years on Functional Parts, (2) Years Free AGM Battery Replacement, (1) Year Labor

Challenger Lifts Warranty Statement
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for all reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI's specifications set forth in CLI's installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and in not transferable. This warranty is valid only if the product has been registered with Challenger lifts.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.

The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.

Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latched, valves, and controls.

Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters., sync rails, and plungers.

Note: Warranty registration must be completed online at challengerlifts.com/register-your-lift or warranty period will begin from invoice date of lift purchase.
