Challenger Lifts CLMM-5000 Wireless Mobile Column Lifts Set of 4

In Stock SKU CLMM-5000 x4

OUR PRICE: $37,796.24

Regular Price: $39,689.00

$1049.89 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

Challenger Lifts CLMM-5000 Wireless Mobile Column Lifts Set of 4
Medium-Duty 20,000 lbs. Total Lifting Capacity - 5,000 lbs. Per Column

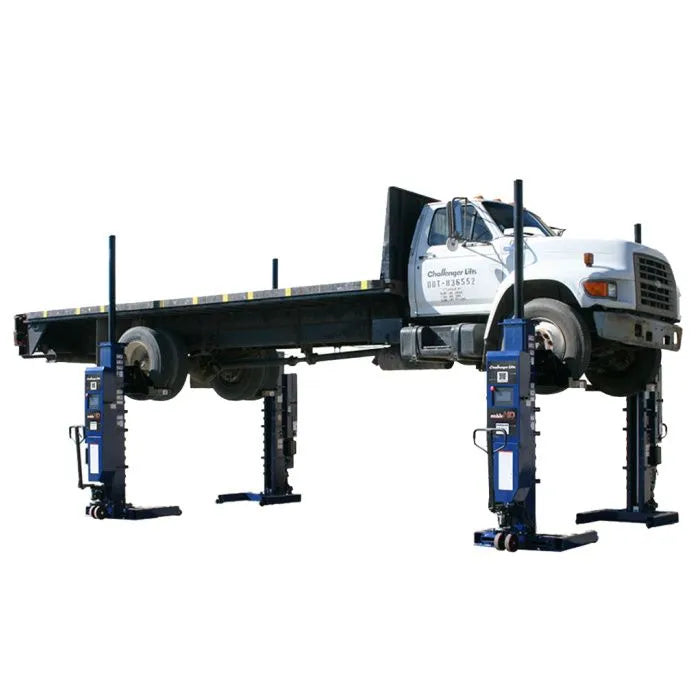

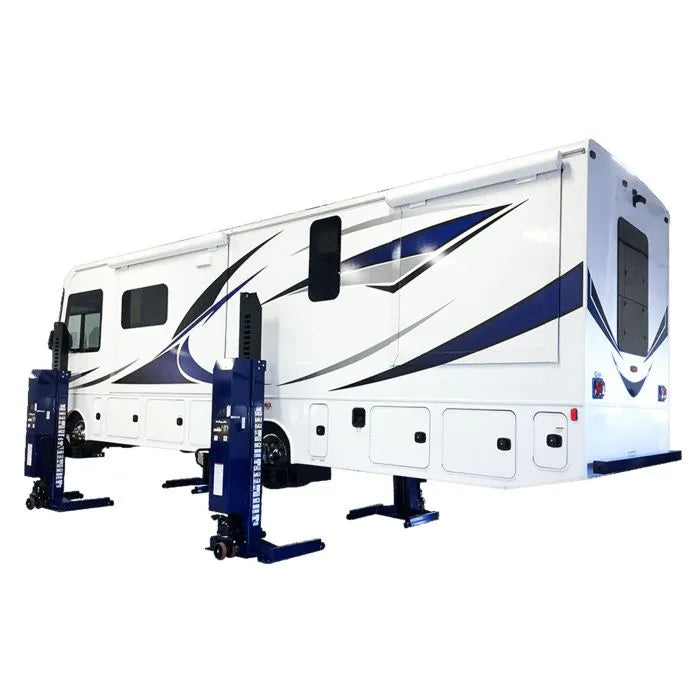

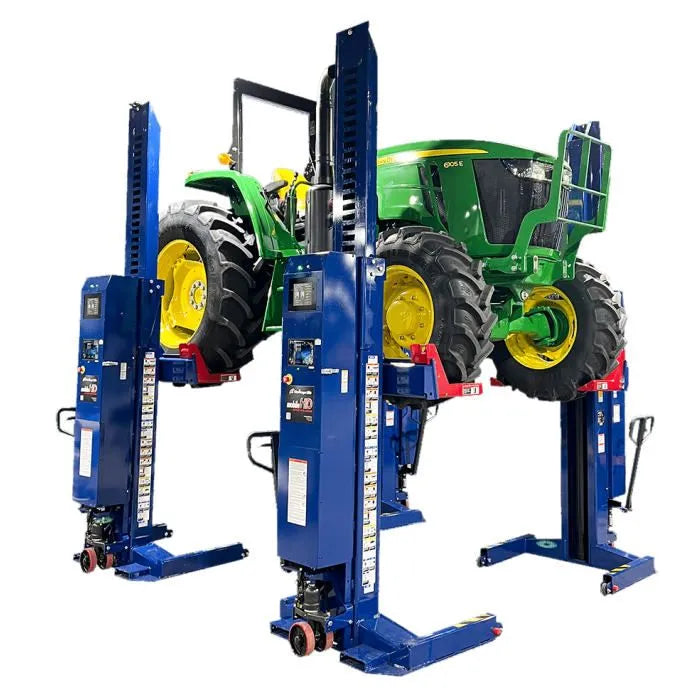

Bring the shop anywhere with Challenger's CLMM-5000 Medium-Duty Wireless Mobile Column Lifting System, capable of lifting 5,000 lbs. per column on any solid surface. Built with heavy-duty tow handles and spring-loaded caster wheels for comfortable maneuverability. Lift any rubber-tired vehicle up to 20,000 lbs. without the need for pits, cables or compressed air! These mobile columns are perfect for servicing EVs.

Now Featuring Absorbed Glass Mat Group 27 AGM 12 Volt Batteries

Made In USA

Description

Challenger Lifts

Challenger Lifts CLMM-5000 Wireless Mobile Column Lifts Set of 4
Medium-Duty 20,000 lbs. Total Lifting Capacity - 5,000 lbs. Per Column

Bring the shop anywhere with Challenger's CLMM-5000 Medium-Duty Wireless Mobile Column Lifting System, capable of lifting 5,000 lbs. per column on any solid surface. Built with heavy-duty tow handles and spring-loaded caster wheels for comfortable maneuverability. Lift any rubber-tired vehicle up to 20,000 lbs. without the need for pits, cables or compressed air! These mobile columns are perfect for servicing EVs.

Experience unparalleled mobility and flexibility with Challenger's cutting-edge medium-duty mobile column lifting system. Revolutionize your workshop capabilities with this state-of-the-art system that enables you to lift any rubber-tired vehicle weighing up to 20,000 lbs. quickly and safely. The CLMM Series allows your shop to service many different vehicle types, from passenger cars and trucks to medium-duty commercial fleet vehicles. The best feature of this portable system is that you can lift anywhere in your shop, turning any flat bay or space into a productive piece of real estate.

The complete under-car clearance also makes these an excellent choice for Electric Vehicle service, allowing you to drop and install batteries or battery packs effortlessly.

The CLMM lifting system has tow handles and spring-loaded wheels, enabling effortless maneuvering across any solid surface. Its wireless connectivity eliminates the clutter and tripping hazards associated with traditional cabled systems, making for a safer working environment and quicker setup process.

Crafted with durability at its core, the CLMM Series will withstand the rigors of daily use in a professional setting, providing excellent value for money and a great return on investment. Whether you're running a full-scale automotive workshop or a mobile repair service, this lifting system is versatile enough to meet the demands of your business, enabling you to lift vehicles safely and efficiently wherever you go.

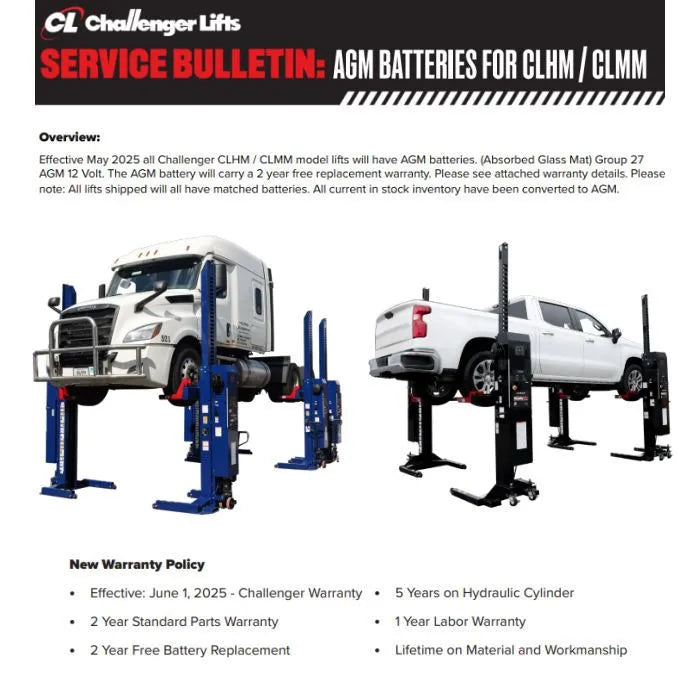

AGM Batteries For CLHM/CLMM Mobile Column Lifts
Effective May 2025 all Challenger CLHM / CLMM model lifts will have AGM batteries. (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a (2) Year Free Replacement Warranty. Please note: All lifts shipped will all have matched batteries. All current in stock inventory have been converted to AGM. AGM batteries are less prone to desulfation and degradation helping to alleviate the number one cause of issues on Mobile Columns - forgetting to plug them in. It can't solve forgetfulness, but it will help alleviate some of the side effects.

Features & Specs

Features

  • 20,000 lbs. Lifting Capacity (5,000 lbs. per Column)
  • Operate From Any Column
  • Retractable Charging Cord
  • Spring-Loaded Caster Wheels
  • No Overhead Restrictions
  • Perfect For Servicing Electric Vehicles
  • Integrated Touch Pad Controls
  • Heavy-Duty Tow Handles
  • Adjustable Forks Handle 6" To 22" Rim Size
  • Absorbed Glass Mat Group 27 AGM 12 Volt Batteries
  • ALI and ETL Certified

Requirements

  • 14' 8" Minimum Height
  • 14' Recommended Width
  • 28' Recommended Depth

Specifications

  • Model Number: CLMM-5000
  • Lifting Capacity Per Column: 5,000 lbs.
  • Height of Lift Unit: 88.5"
  • Height of Lift Unit at Full Rise: 157"
  • Width of Lift Unit: 38.5"
  • Length of Lift Unit: 46.75"
  • Maximum Lift Height (4 units): 69"
  • Maximum Lift Height (2 units - Normal Mode): 32"
  • Min-Max Wheel Diameter: 6" - 22"
  • Max. Hydraulic System Operating Pressure: 2,230 psi
  • Lift Speed (Max Load): 60" per min.
  • Weight of Lift Unit: 870 lbs.
  • Footprint of Lift Unit: 450 sq. in.
  • Ground Pressure for each Lift (Max. Load): 13.04 psi
  • Turning Radius of Lift Unit: 50.5"
  • Operating Peak Power: 4HP
  • Batteries: Absorbed Glass Mat Group 27 AGM 12 Volt
  • Operating Voltage: 24 VDC nominal
  • Charger Voltage Required: 120-240 VAC @ 50-60 Hz
  • Charger Amps Required: 2.8 Amps
  • Colors Available: Black
  • Certification: ALI and ETL Certified
  • Warranty: (5) Years on Structure, (2) Years on Functional Parts, (2) Years Free AGM Battery Replacement, (1) Year Labor

Challenger Lifts Warranty Statement
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for all reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI's specifications set forth in CLI's installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and in not transferable. This warranty is valid only if the product has been registered with Challenger lifts.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.

The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.

Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latched, valves, and controls.

Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters., sync rails, and plungers.

Note: Warranty registration must be completed online at challengerlifts.com/register-your-lift or warranty period will begin from invoice date of lift purchase.

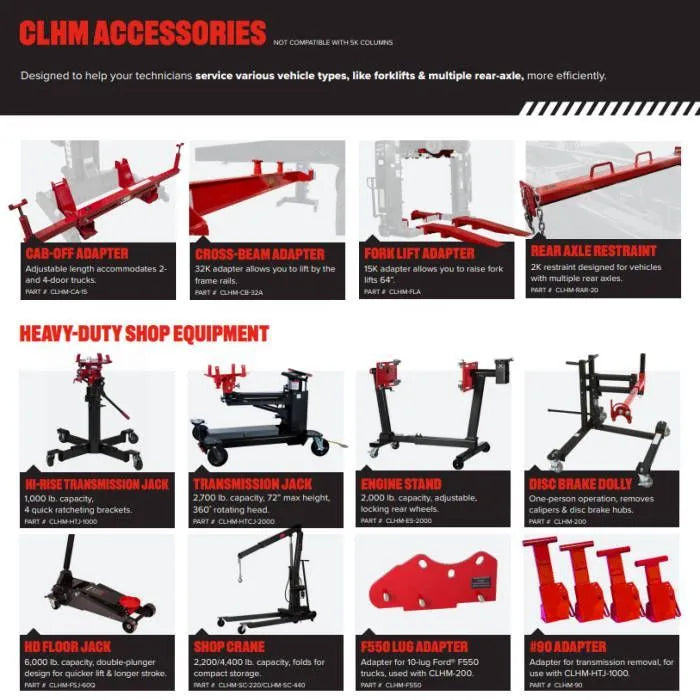

Accessories/Options

More Information

Challenger Lifts Mobile Column Lifts Brochure (.pdf)

Challenger Lifts CLMM-5000 Mobile Column Lift Brochure (.pdf)

Challenger Lifts CLMM-5000 Mobile Column Lift Spec Sheet (.pdf)
