Challenger Lifts EV1220 Standard Inground Lift 12,000 lbs. Capacity

Name: Challenger Lifts EV1220 Standard Inground Lift 12,000 lbs. Capacity
Brand: ASEDeals
SKU: EV1220
Price: 13591.08 USD
Availability: InStock

In Stock SKU EV1220

OUR PRICE: $13,591.08

Regular Price: $14,279.00

$377.53 / mo

INCLUDES FREE SHIPPING*

Short Description

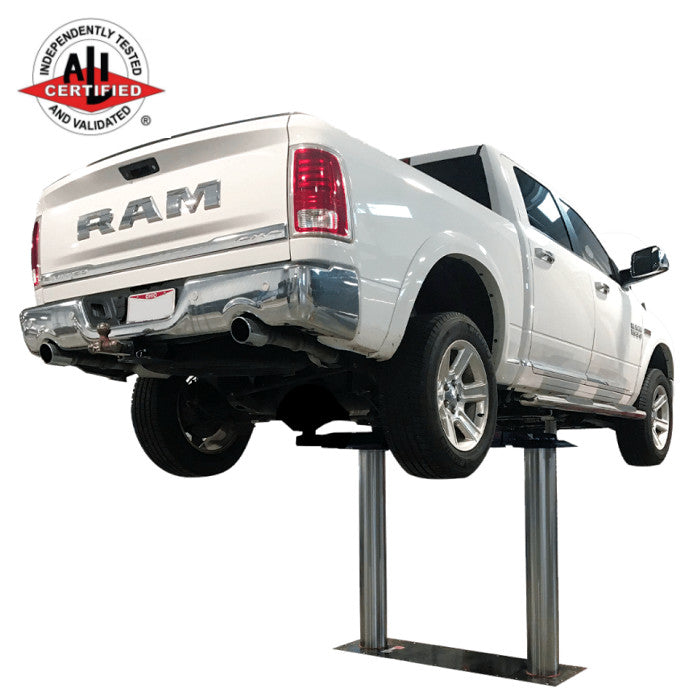

Challenger Lifts EV1220 Standard Inground Lift 12,000 lbs. Capacity
Premium Hydraulic Cassette-Style Inground Lift
Complete Package (Includes: Tub, Frame and Lift)

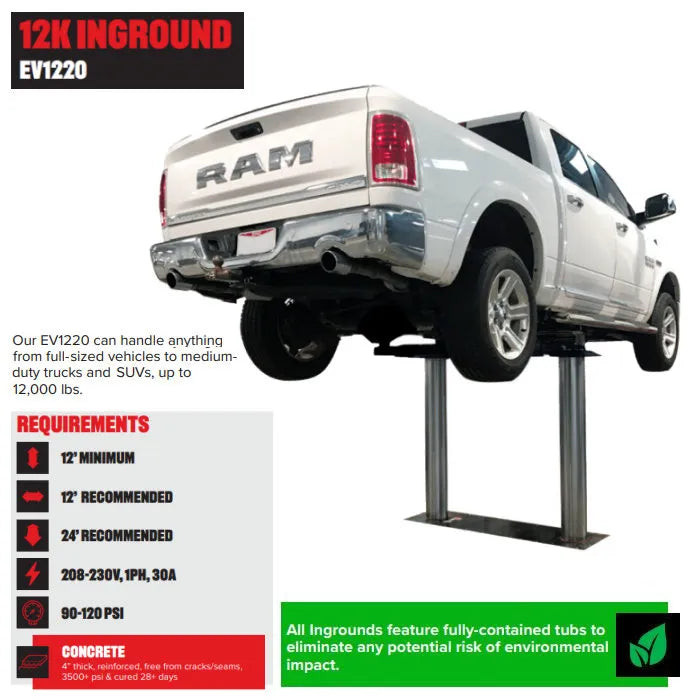

The Challenger Lifts EV1220 electric hydraulic cassette-style 12,000 lbs. capacity inground lift brings flexibility to any professional service facility. With a smaller footprint, your shop can maximize service bays. Able to handle full-sized vehicles to heavy-duty trucks and SUVs, the wide range of capabilities provides an ideal solution for fleet maintenance. The EV1220 comes standard with true 3-stage front and rear arms, which have the ability to lift a larger range of heavier vehicles. Models featuring QuickCycle can rise in just 38 seconds. Expand your service potential with our most versatile, easy-to-operate inground lift. The EV1220 is ALI and ETL Certified. As of 04/21/25, the EV1220 features a new Bucher Power Unit which will only require a 20 Amp Breaker. Scroll down for more details.

All Challenger Inground Lifts are fully contained to eliminate any risk of environmental impact.

EV1220 Model Selection:
EV1220 Base Model (Includes: Tub, Frame and Lift)
EV1220-QC with QuickCycle
EV1220-BMC with Bench Mounted Controls
EV1220-BMC-QC with Bench Mounted Control and QuickCycle

Description

Challenger Lifts Inground Lifts

Challenger Lifts EV1220 Standard Inground Lift 12,000 lbs. Capacity
Premium Hydraulic Cassette-Style Inground Lift
Complete Package (Includes: Tub, Frame and Lift)

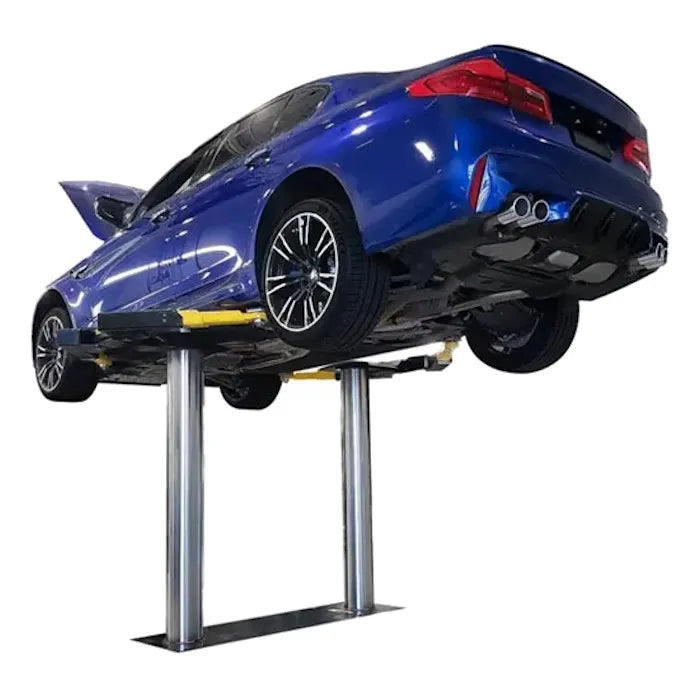

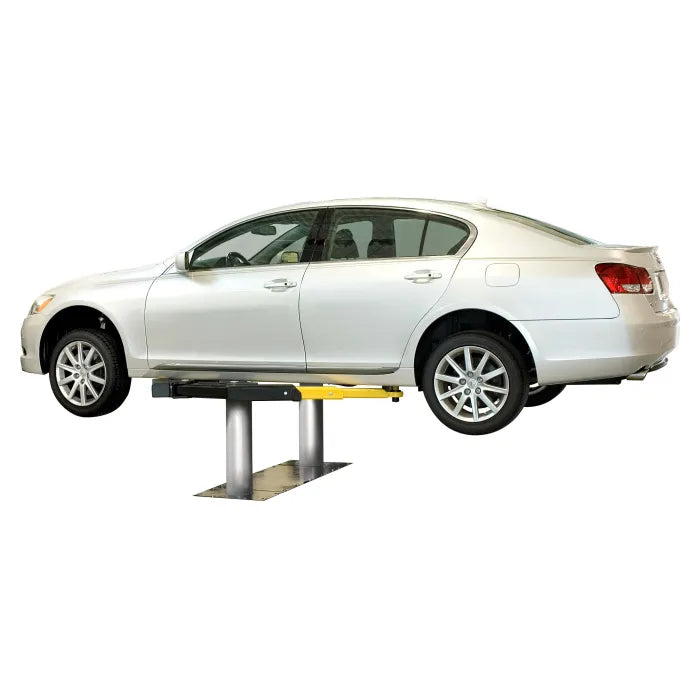

The Challenger Lifts EV1220 electric hydraulic cassette-style 12,000 lbs. capacity inground lift brings flexibility to any professional service facility. With a smaller footprint, your shop can maximize service bays. Able to handle full-sized vehicles to heavy-duty trucks and SUVs, the wide range of capabilities provides an ideal solution for fleet maintenance. The EV1220 comes standard with true 3-stage front and rear arms, which have the ability to lift a larger range of heavier vehicles. Models featuring QuickCycle can rise in just 38 seconds. Expand your service potential with our most versatile, easy-to-operate inground lift. The EV1220 is ALI and ETL Certified.

All Challenger Inground Lifts are fully contained to eliminate any risk of environmental impact.

EV1220 Model Selection:
EV1220 Base Model (Includes: Tub, Frame and Lift)
EV1220-QC with QuickCycle
EV1220-BMC with Bench Mounted Controls
EV1220-BMC-QC with Bench Mounted Control and QuickCycle

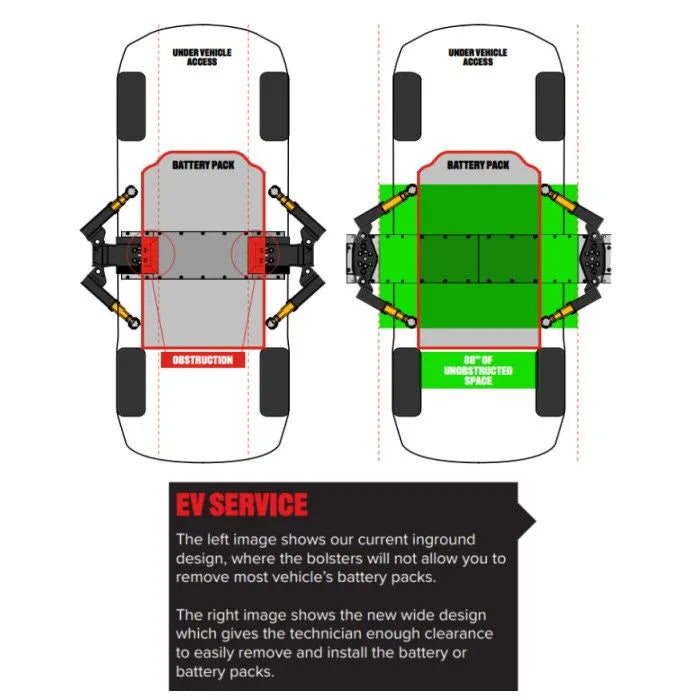

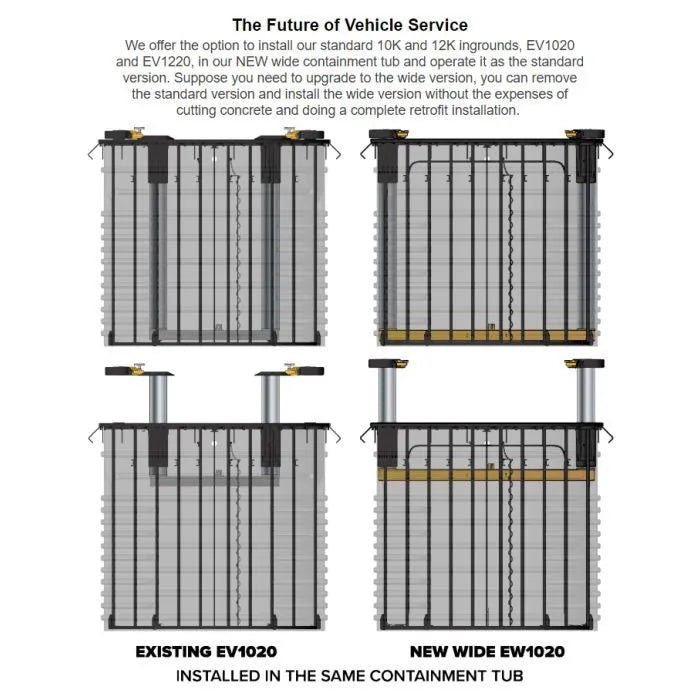

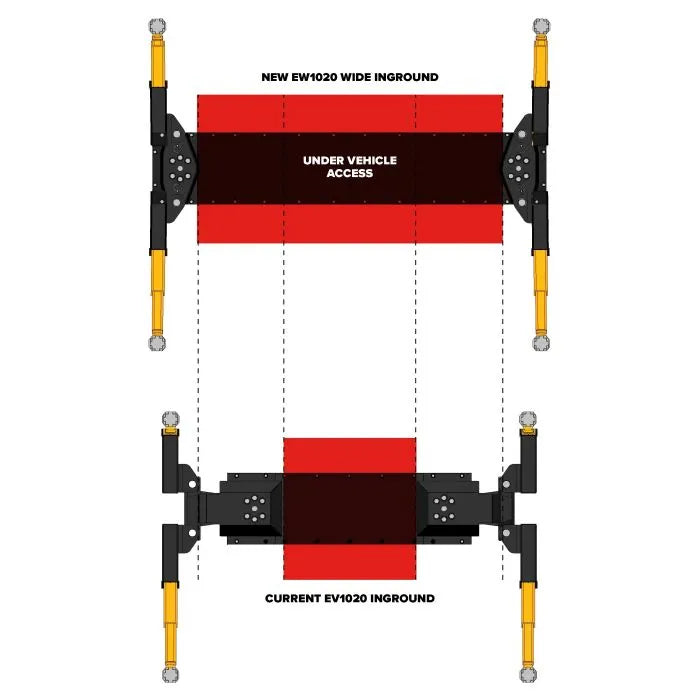

Challenger is at the cutting edge of vehicle lifting technology, and our EV series inground lifts are no exception. Challenger designed these new models to accommodate electric and wide vehicles. Challenger's electric hydraulic cassette-style inground EW & EV series lifts meet the rigorous demands of professional service facilities. Available in 8,000, 10,000, 12,000 and exclusive 15,000 lbs. lifting capacity. Whether you're constructing a new facility or outfitting an existing building, we have an installation application to fit your needs.

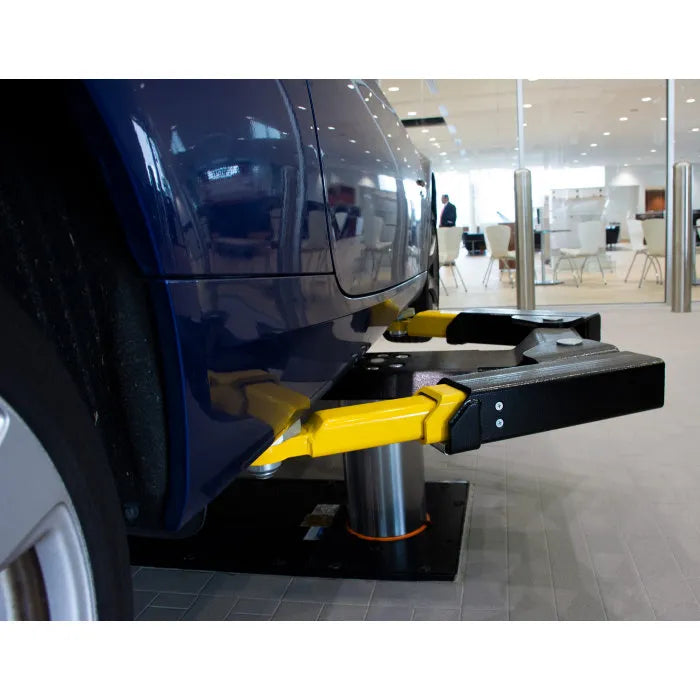

The Challenger Lifts EV1220 Inground Lift is the 12,000 lbs. hydraulic inground lift revolutionizing the automotive service industry. The lift's 3-stage arms and double-telescoping screw pads ensure precise positioning while spotting vehicles.

The EV1220 offers Bench-Mount Controls (BMC) by button or lever as an optional feature. BMC mounts the controls inside a workbench for a cleaner aesthetic look and facilitates more effortless lift operation and control, enhancing technician comfort and productivity.

The QuickCycle upgrade, which decreases the rise and descent time of the lift, is also available for the EV1220. This gets vehicles in the air and on the ground quicker, maximizing the earning potential of your service bay.

Upgrade your service center with the EV1220 and take your capabilities to the next level.

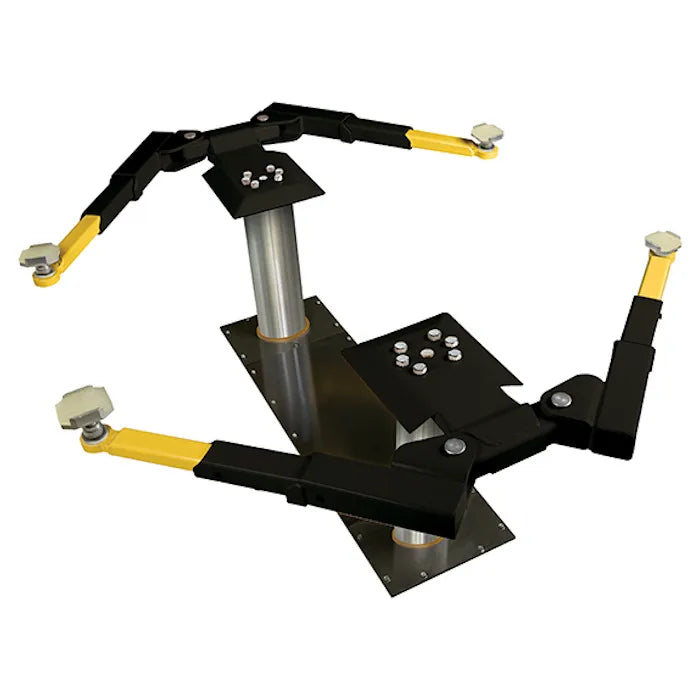

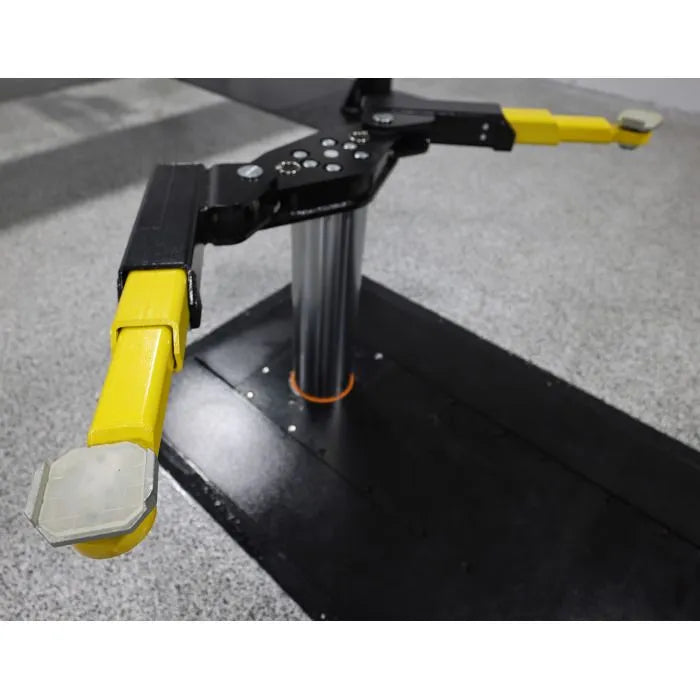

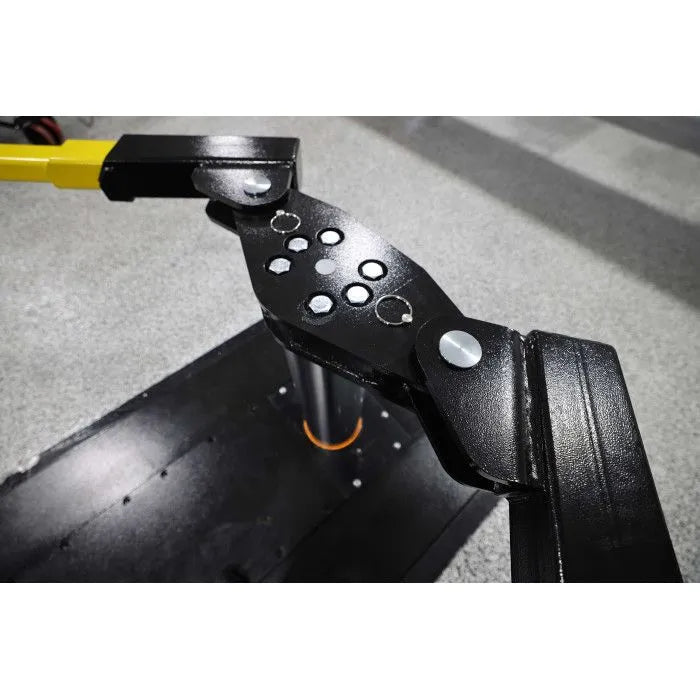

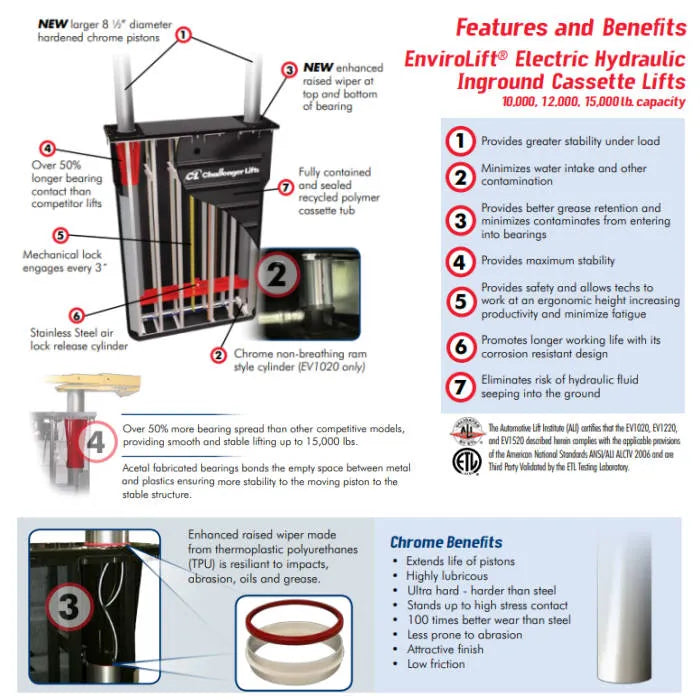

3-Stage Front and Rear Arms - provide access to the lift points of a wide range of cars and trucks, maximizing revenue potential

Premium Double Telescoping Screw Pads - adjust to multiple heights minimizing the need for adapters

8.5" Diameter Chrome Pistons - provide greater stability under load

Chrome Non-Breathing Ram Style Cylinders - provides for longer lift life

Enhanced Raised Bearing Wiper - at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings

Long Bearing Contact - provides increased stability

Mechanical Lock - engages every 3" allowing ergonomic working height for technicians to increase productivity and minimize fatigue

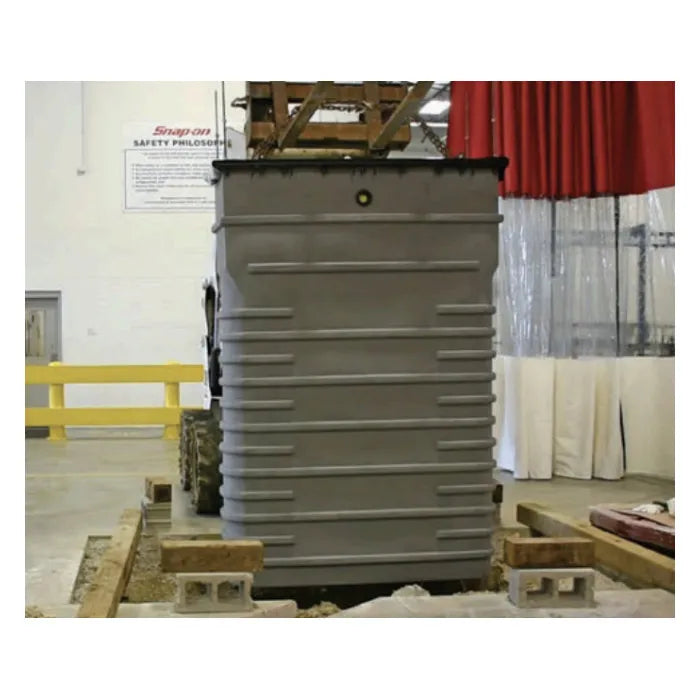

Fully Contained and Sealed Recycled Polymer Cassette Tub - eliminates risk of hydraulic fluid seeping into the ground

87" Drive-Thru Clearance - accommodates wider vehicles, minimizes tire damage and provides for easy drive-on

Premium Powder Coat Finish - on bolsters and arms provides long-lasting durability

Single Concrete Pour Installation - easier install thanks to only needing one concrete pour instead of the current three

WHY CHOOSE AN INGROUND LIFT?

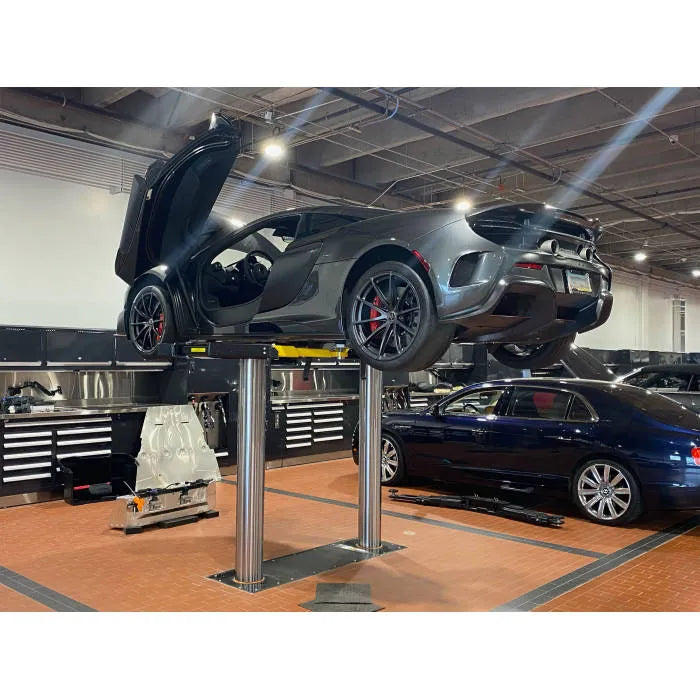

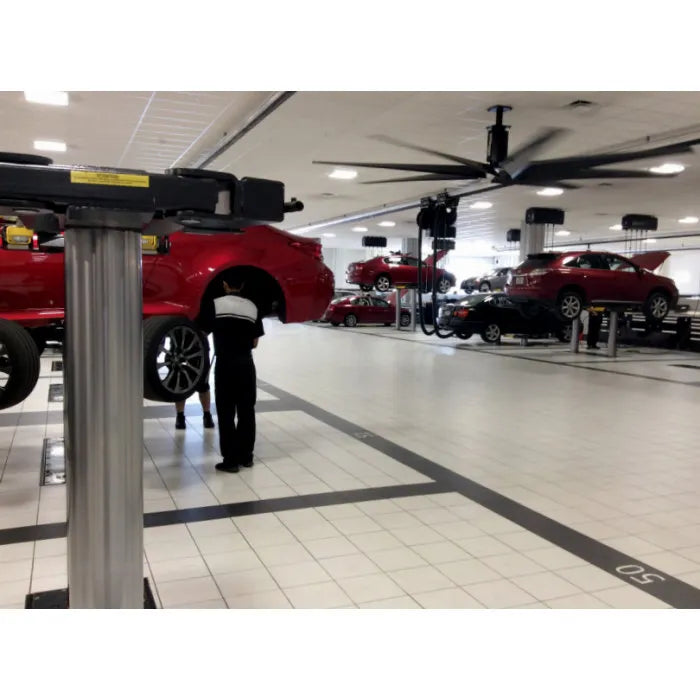

Challenger inground lifts make a strong first impression. The sleek, robust design inspires confidence and invokes the feeling of a showroom. Enjoy unobstructed access all around a lifted vehicle to increase productivity and minimize technician fatigue. The clear workspace is ideal for accurate diagnostic work, and a lack of overhead obstruction eliminates vehicle height restrictions. Open and close vehicle doors freely, without difficult maneuvering or worry of door damage.

With fewer obstructions to maneuver around, inground lifts offer higher service efficiency and reduced stress on technicians. They also eliminate concern over door damage and service restrictions based on a vehicle's height. While lifted, inground lifts provide clear access to vehicle's mechanical components. While lowered, they offer a clear presentation of your facility.

INGROUND VS. ABOVE-GROUND
Secure a higher return on investment. Inground lifts take up less valuable shop space than their above-ground counterparts. If your facility will.

OPTIONAL QUICKCYCLE TECHNOLOGY
The QuickCycle hydraulic enhancement for Challenger inground lifts saves both rise and descent time, allowing you to service more vehicles in the same amount of time. Increase your return on investment by upgrading your 10,000 lbs. or 12,000 lbs. inground lifts.

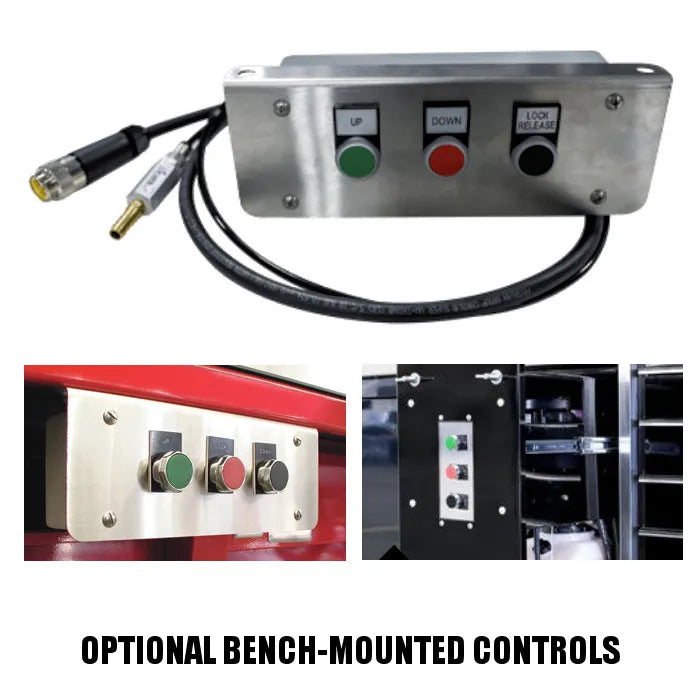

OPTIONAL BENCH-MOUNTED CONTROLS
Optional bench mounted power controls include raise, lower and lock release functions. They mount to many major workbench brands, providing convenient access to inground lift controls. Controls are also available in a lever option for no additional charge.

New Power Unit Service Bulletin
As of 04/21/25, Challenger Lifts will be switching to the Bucher AB-9367-DLH and AB-9858-DLH power units from the current SPX AB-9367 and AB-9858 models. These new Bucher power units will only require a 20 amp breaker. Electrical consumption is becoming more important as customers look to save on electrical installation costs (less breakers) and conserve energy.

Benefits Of The Change:
• Minimum Breaker Required Reduced from 30 to 20 Amp
• Optimize Power Consumption
• By consolidating our 10K and 12K power units, we simplify maintenance procedures and reduce inventory complexity

Features & Specs

Features

12,000 lbs. Lifting Capacity
Complete Package (Includes: Tub, Frame and Lift)
3-Stage Front & Rear Arms
8.5" Diameter Chrome Pistons
Chrome Non-Breathing Ram Style Cylinders
Enhanced Raised Bearing Wiper
Long Bearing Contact Provides Increased Stability
Mechanical Lock Every 3"
Stainless Steel Air Lock Release Cylinder
Fully Contained and Sealed Recycled Polymer Cassette Tub
Premium Double-Telescoping Screw Pads
Widely Spaced Structure
87" Drive-Thru Clearance
Premium Powder Coat Finish on Bolsters & Arms
QuickCycle Available
Express Drive-On Pad Adapter Available

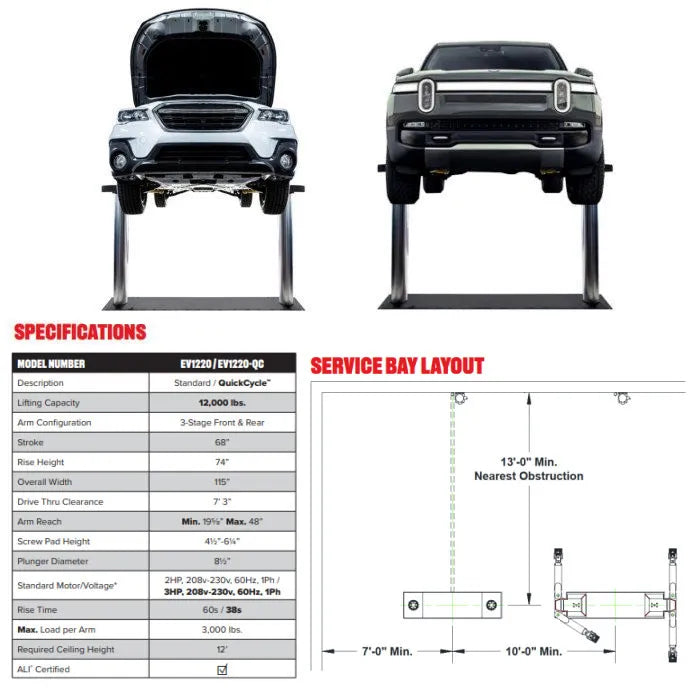

Specifications

Model Number	EV1220	EV1220-QC
Description	Standard	QuickCycle
Lifting Capacity	12,000 lbs.	12,000 lbs.
Arms	3-Stage Front & Rear	3-Stage Front & Rear
Stroke	68"	68"
Rise Height	80.75"	80.75"
Width Overall	115"	115"
Drive-Thru Clearance	87"	87"
Reach (Arm Minimum)	19.625"	19.625"
Reach (Arm Maximum)	48"	48"
Screw Pad Height	5" - 6.75"	5" - 6.75"
Capacity	3,000 lbs. per Arm	3,000 lbs. per Arm
Guide Plunger Diameter	8.5"	8.5"
Motor	2HP	2HP
Voltage	208v-230v, 60Hz, 1Ph	208v-230v, 60Hz, 1Ph
Speed of Rise	60 Seconds	38 Seconds
Air Required	90-120 psi	90-120 psi
ALI/ETL Certified	Yes	Yes
Super Structure Colors	Red, Blue, Black	Red, Blue, Black
Required Ceiling Height	12' Minimum	12' Minimum
Bay Width	12' Recommended	12' Recommended
Bay Depth	24' Recommended	24' Recommended

Warranty: (5) Years on Structure, (2) Years on Functional Parts, (1) Year Labor

Challenger Lifts Warranty Statement
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for all reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI's specifications set forth in CLI's installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and in not transferable. This warranty is valid only if the product has been registered with Challenger lifts.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.

The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.

Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latched, valves, and controls.

Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters., sync rails, and plungers.

Note: Warranty registration must be completed online at challengerlifts.com/register-your-lift or warranty period will begin from invoice date of lift purchase.
