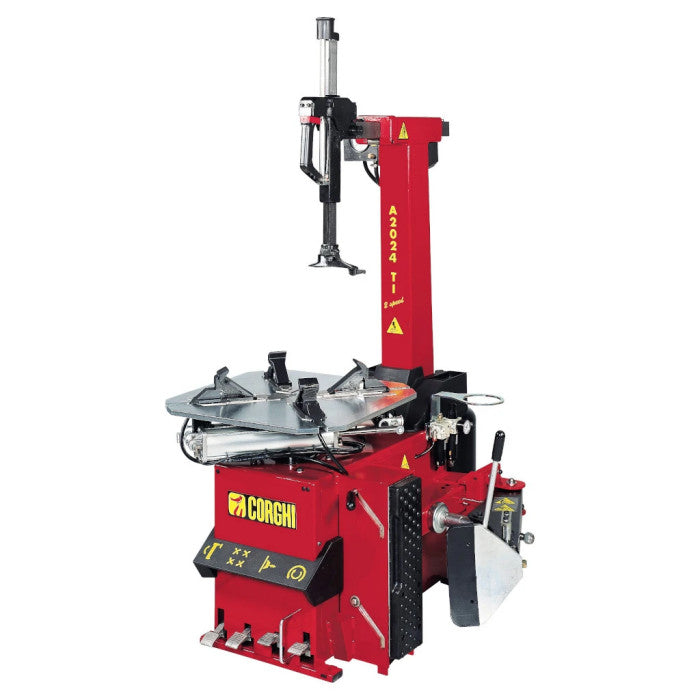

Corghi A2024TI Tilt-Back 24" Tire Changer

Features & Specs

Features

• 2-Speed Turn-Table
• Built-In Table Inflator With Jets In The Jaws
• Unique Mount/Demount Head Does Not Touch The Rim During Operation
• Locking Handle Locks Head Away From The Rim
• Powerful Action Bead-Breaker Blade Follows Bead To Inside Rim Contour
• Heavy-Duty Turntable Rotates In Either Direction
• Rebuildable Stainless Steel Cylinders
• Heavy-Duty Stainless Steel Turntable
• Safe, Fast, Profitable And Affordable
• Pneumatic-Locking Mount/Demount Head
• Sturdy Tilt-Back Tower
• Tire Pressure Sensor Style Rims Changes Safely
• Interchangeable Locking Peaks On Jaws
• Table Top Rotation Double-Speed Rpm 6-16
• Also Available With Air Motor

Standard Accessories

• Lube Bucket
• Lube Brush
• Tire Lever
• M/D Head Bottom Inserts
• Set of Jaw Protectors
• B/B Blade Protector
• Bead Clip
• Set of Inserts
• Tire Lever Cover

Specifications

• Ext. Rim Size: 10"-24"
• Optional w/Adapter: 8"-26"
• Int. Rim Size: 13"-26"
• Voltage: 110V 1 Ph
• Rim Width: 2"-15"
• Max. Tire Diameter: 43"
• Air Pressure: 150 psi
• Bead Breaker Power @ Shoe: 3500 lbs.
• Torque: 737 ft/lbs.
• Shipping Weight: 573 lbs.
• Warranty: (10) Years Transmission Parts, (3) Years Parts and (1) Year Labor

Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.

This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).

Corghi machines are warranted to be free of defects as follows:

Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.

Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.

Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.

Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner's lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.
