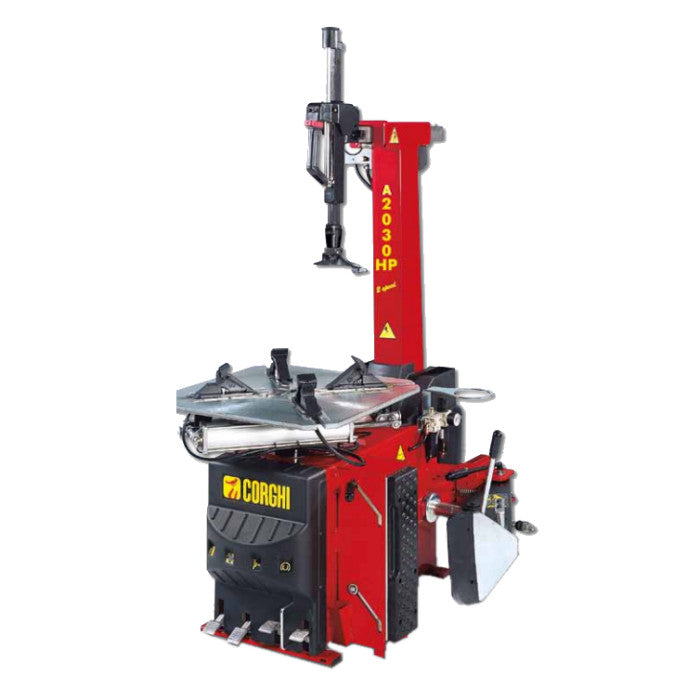

Corghi A2030HP Tilt-Back 26" - 30" Tire Changer

Features & Specs

Features

• Handles Wheels Up To 26"
• Optional Jaw Adapters Available To Change Up To 30"
• Has A Built-In Ergonomic Adjustable Bead Breaker Shovel That Lets You To Adjust The Shovel Upward To Be On The Centerline Of Larger Diameter Wheels
• This Machine Offers The Widest Range And Combination Of Wheels And Tires Of Any Machine On The Market

Specifications

• Turntable Standard 26" | 30" Upgrade Kit
• Internal Clamping Capacity: 13" - 29" | 13" - 29"
• External Clamping Capacity: 10" - 26" | 10" - 26"
• External Clamping With Jaws Adapters: 8" - 30" | 8" - 30"
• External Clamping Without Jaws Adapters: 3.5" - 14" | 3.5" - 14"
• External Clamping With Jaws Adapters: 3.5" - 12" | 3.5" - 12"
• Horizontal Arm Stroke: 8" - 26" | 12" - 30"
• Maximum Tire Diameter: 43"
• Maximum Tire Width: 14"
• Dv Version Rotation Torque: 958,83 lb-ft
• Dv Version Rotation Speed: 6 - 15 Rpm
• Height Above The Ground: 26.57"
• Bead Breaker
• Type: Adjustable Arm With Extending Shoe
• Maximum Opening: 14.9"
• Shoe Force: 15500 N
• Support: Telescopic
• Tool
• Working Range: 8" - 26"
• Column: Pneumatic Tilting
• Head Clamping: Pneumatic
• Power Supply
• Electrical 1Ph Dv Version: 115 V - 0.75 kW
• Operating Pressure: 145 psi
• Weight: 571 lbs.
• Warranty: (10) Years Transmission Parts, (3) Years Parts and (1) Year Labor

Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.

This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).

Corghi machines are warranted to be free of defects as follows:

Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.

Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.

Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.

Disclaimer & Limitation on Liability
