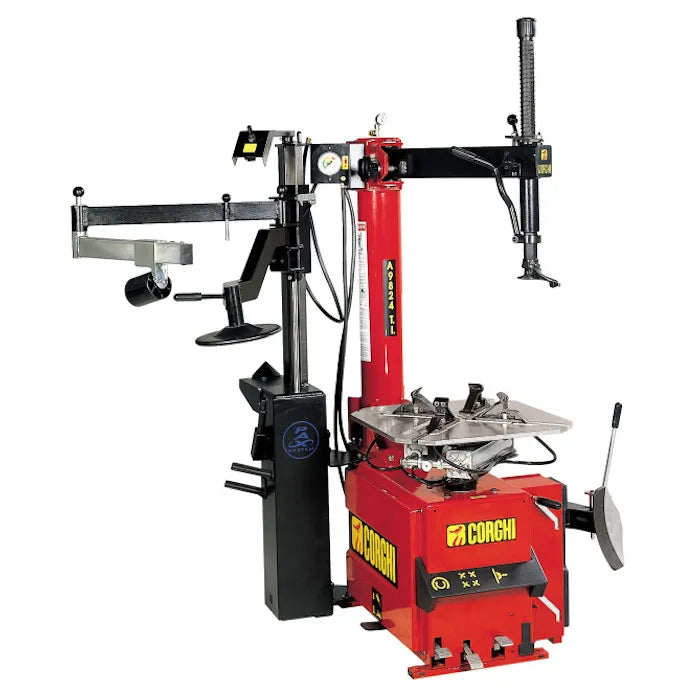

Corghi A9824TI Swing-Arm 24" Tire Changer + PU1500 Assist Arm
In Stock SKU 0-11101764/00 plus 8-11120046
OUR PRICE: $8,780.00
Regular Price: $9,219.00
Short Description
Corghi A9824TI Semi-Automatic Swing-Arm 24" Tire Changer
Passenger, Light Truck Tire Changer
+ Corghi 8-11120046 PU1500 Assist Arm
Superior quality teamed with a sleek design and other unique features allow this machine to achieve speeds up to 50% faster than any other tire changer on the market in its price range. That’s why Corghi was awarded ISO 9001 Quality Certification, industry's most coveted award. Runflat certified by all major tire manufacturers.
The Corghi 8-11120046 PU1500 Assist Arm is a pneumatic power unit that can be installed on the left-hand side of the tire changer in combination with three different accessories to cover the operator's main needs when working on particularly demanding tires (e.g. low profile, run flat etc.). The PU1500 can be installed on either tilting column or swinging arm tire changers, even if already fitted with the SP2000. The independent accessories which complete the power unit and provide its functions are the bead presser and rim clamping kit, the bead lifter kit, and the PAX System wheel kit.
Description
Corghi A9824TI Semi-Automatic Swing-Arm 24" Tire Changer
Passenger, Light Truck Tire Changer
+ Corghi 8-11120046 PU1500 Assist Arm
Superior quality teamed with a sleek design and other unique features allow this machine to achieve speeds up to 50% faster than any other tire changer on the market in its price range. That's why Corghi was awarded ISO 9001 Quality Certification, industry’s most coveted award. Runflat certified by all major tire manufacturers.
The Corghi 8-11120046 PU1500 Assist Arm is a pneumatic power unit that can be installed on the left-hand side of the tire changer in combination with three different accessories to cover the operator's main needs when working on particularly demanding tires (e.g. low profile, run flat etc.). The PU1500 can be installed on either tilting column or swinging arm tire changers, even if already fitted with the SP2000. The independent accessories which complete the power unit and provide its functions are the bead presser and rim clamping kit, the bead lifter kit, and the PAX System wheel kit.
Features & Specs
A9824TI Tire Changer Features
- Built-in table inflator with jets in the jaws
- Unique mount/demount head does not touch the rim during operation
- Locking handle locks head away from the rim
- Powerful action bead-breaker blade follows bead to inside rim contour
- Heavy-duty turntable rotates in either direction
- Rebuildable stainless steel cylinders
- Heavy-duty stainless steel turntable
- Safe, fast, profitable and affordable
- Bead-pressing lever
- Upper arm assembly swings out-of-way
A9824TI Tire Changer Specifications
- Ext. Rim Size: 10"-24"
- Optional w/Adapter: 8"-28"
- Int. Rim Size 13"-26"
- Voltage 110V 1 Ph or Air
- Rim Width 3.5"-14"
- Max. Tire Diameter 47"
- Air Pressure 150 psi
- Bead Breaker Power @ Shoe 3500 lbs
- Torque 737 ft/lbs
- Shipping Weight: 608 lbs.
- Warranty: (10) Years Transmission Parts, (3) Years Parts and (1) Year Labor
PU1500 Assist Arm Features
- Pneumatic Bead Breaker Ideal for:
- Extra Low Profile
- Run Flat
- PAX wheels
- Fully Pneumatic Operation
- For Installation Directly on the Tire Changer
PU1500 Assist Arm Specifications
- Bead Breaker Force on Roller: 7000 N
- Operation: Pneumatic
- Operating Pressure: 10 bar
- Weight: 106 lbs. (48 kg)
Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.
This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).
Corghi machines are warranted to be free of defects as follows:
Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.
Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.
Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.
Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner's lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.
Accessories/Options
Corghi 8-11120032 Bead Press Tool Articulating Arm
OUR PRICE: $1,320.00
Regular Price: $1,389.00
Corghi 8-11120046 PU1500 Assist Arm
OUR PRICE: $2,110.00
Regular Price: $2,219.00
More Information
Corghi A9824TI Tire Changer Brochure (.pdf)
Corghi A9824TI Tire Changer Manual (.pdf)
Corghi PU1500 Helper Arm Brochure (.pdf)
Corghi PU1500 Helper Arm Manual (.pdf)
