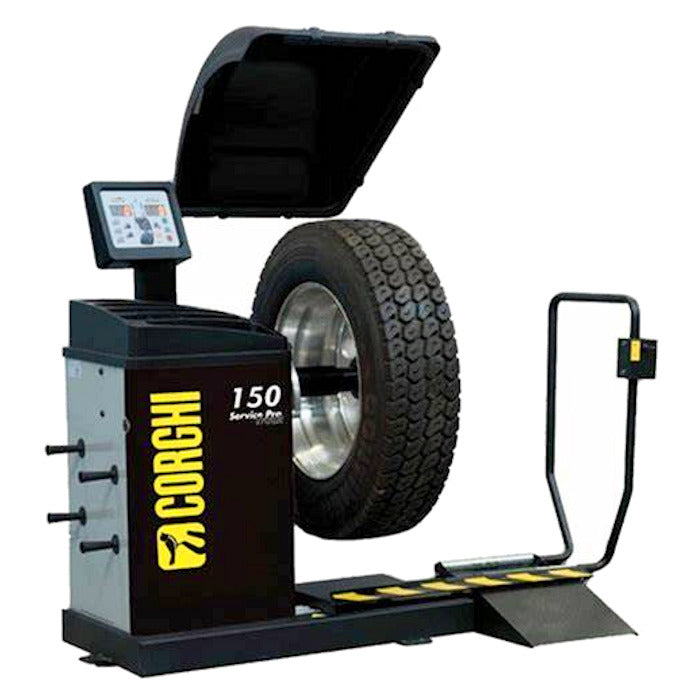

Corghi Service Pro 150 Electronic Truck Wheel Balancer
In Stock SKU 0-21900025/39
OUR PRICE: $10,950.00
Regular Price: $11,499.00
Short Description
Corghi Service Pro 150 Electronic Truck Wheel Balancer
with Integrated Wheel Lift
The Corghi Service Pro 150 is an electronic wheel balancer with a user-friendly, well-lit, easy to read digital display and integrated wheel lift for truck, bus and car wheel balancing.
Corghi 2025 4th Quarter Rebate Promo
When you purchase a Corghi machine between October 1, 2025 through December 31, 2025 you are qualified to receive a 10% Cash Rebate Direct from Corghi USA. Applies to All Corghi Machines, Helper Arms, and Accessories purchased with a machine. Accessories must appear on Invoice with machine. Copy of valid Invoice must be included with the form below and submitted within 2 Weeks of Invoice date or they will not qualify. Cannot be combined with any other promotion.
Corghi 2025 4th Quarter Promo Submission Form (.pdf)
Description
Corghi Service Pro 150 Electronic Truck Wheel Balancer
with Integrated Wheel Lift
The Corghi Service Pro 150 is an electronic wheel balancer with a user-friendly, well-lit, easy to read digital display and integrated wheel lift for truck, bus and car wheel balancing. |
Display User-friendly and well-lit, to enable work even in very bright places. Weight Tray Designed to house lorry/car counterweights and work accessories. Made of highly resistant materials. |
 |
Integrated Wheel Lift Manually activated, without awkward pedals. Lifts wheels weighing up to 200kg, for optimum wheel centring every time. |
 |
Smart Internal Measuring Sesor - FSP - Smart-Arm Electronic acquisition of the geometric wheel data. Thanks to the FSP (Fast Selection Program) function, borrowed from the current car wheel balancers, the balancing program is automatically activated for spring or adhesive counterweights, avoiding the need to use the keypad. |
 |
Automatic Cycle with Automatic Position Search (RPA) Spins and brakes the wheel automatically. At the end of the cycle, the wheel is brought to the balancing weight application position (RPA). The whole process is managed via new inverter technology that ensures better spin speed control for improved measuring stability. |
 |
Application of the Adhesive Counterweights - ALU1P - ALU2P The machine works on the basis of the operator's preferences. The adhesive counterweights can be positioned in three different ways:
|
Functions and Special Programs
Service Pro 150 is equipped with all the most advanced programs:
- (7) Balancing Programs for Alloy Rims
- Hidden Weight for Hiding Weights Behind Spokes
- (2) Multi-Operator Work Environments
- 'Visual Inspection' Function to Check for Geometric Wheel Flaws
- Energy Savings with Standby Mode
- Software Update via USB Pendrive
Features & Specs
Features
- Wheel Dimension Detection
- User-Friendly, Modern, Well-Lit Display
- Highly Resistant Weight Tray
- Manually Activated Scissor Lift
- Smart Internal Measuring Sensor FSP Smart-Arm
- Automatic Cycle with Automatic Position Search RPA
- Quick Counterweight Application, Precise Balancing, Maximum Visibility, Ergonomics
- (2) Spin Speeds with Inverter Brake
Functions and Special Programs
- (7) Balancing Programs for Alloy Rims
- Hidden Weight for Hiding Weights Behind Spokes
- (2) Multi-Operator Work Environments
- 'Visual Inspection' Function to Check for Geometric Wheel Flaws
- Energy Savings with Standby Mode
- Software Update via USB Pendrive
Specifications
- Power Supply Voltage: 230V / 1ph / 50hz, 115V / 1ph/ 60hz
- Motor Power: 370 W
- Shaft Diameter: 40 mm / 1.6"
- Pneumatic Air Supply: 8-12 bar / 116 psi
- Rim Diameter: 9-28" (automatic) - 8"-35"
- Rim Width: 2"-20"
- Max. Wheel Diameter: 1200 mm / 47"
- Max. Wheel Weight: 200 kg / 441 lbs.
- Rotation Speed: 120 rpm (Car) / 80 rpm (Truck)
- Average Measurement Time: 8 sec (Car) / 20 sec (Truck)
- Balancing Precision: 0.035 oz (Car) / 0.35 oz (Truck)
- Machine Weight: 265 Kg / 584 lb
- Warranty: (3) Years Parts and (1) Year Labor
Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.
This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).
Corghi machines are warranted to be free of defects as follows:
Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.
Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.
Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.
Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner's lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.

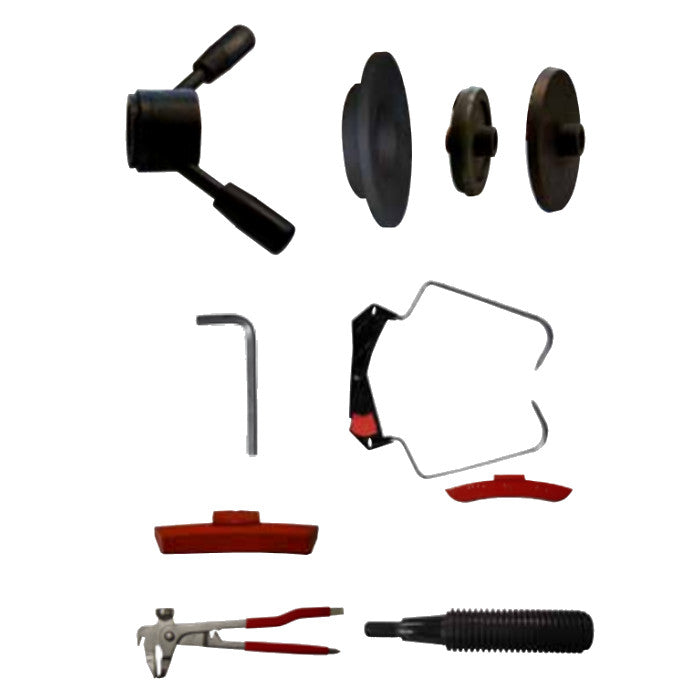

Accessories/Options
ESCO Auto Tire Balancing Beads 6 Oz Bags Case of 24
OUR PRICE: $143.00
Regular Price: $159.00
More Information
Corghi Service Pro 150 Truck Wheel Balancer Brochure (.pdf)
Corghi Service Pro 150 Truck Wheel Balancer Manual (.pdf)
