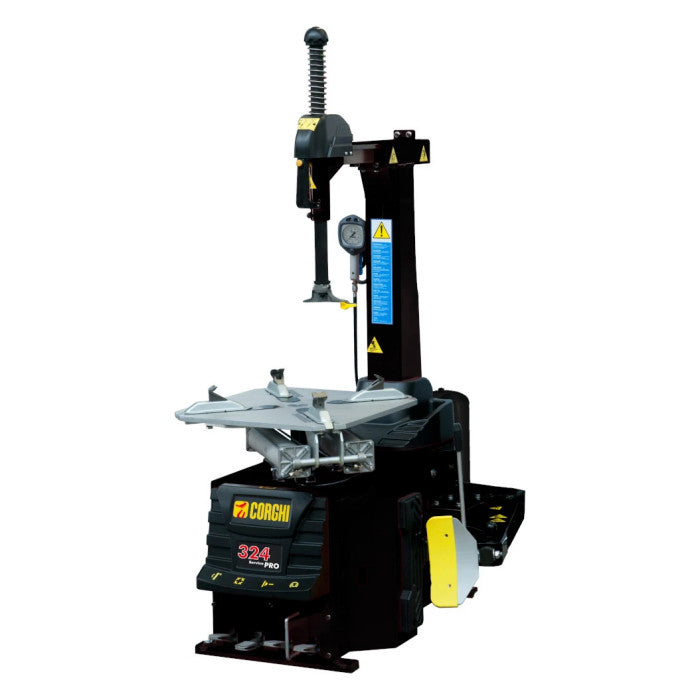

Corghi Service PRO324 Tilt-Back 24" Tire Changer
In Stock SKU 0-11901304/00
OUR PRICE: $4,790.00
Regular Price: $5,029.00
Short Description
Corghi Service Pro 324 Automatic Tilt-Back 24" Tire Changer
The Corghi Service Pro 324 is an automatic tilt-back tire changer for passenger cars and light transport vehicles. Services rims up to 24". Strong and reliable.
Description
Corghi Service Pro 324 Automatic Tilt-Back 24" Tire Changer
The Corghi Service Pro 324 is an automatic tilt-back tire changer for passenger cars and light transport vehicles. Services rims up to 24". Strong and reliable.
Features & Specs
Features
- Automatic
- Tilt-Back Tower
- Services Rims up to 24"
Specifications
- Outside Clamp: 11"- 24"
- Inside Clamp: 13"- 26"
- Max. Wheel Diameter: 43.3" / 1100 mm
- Tire Width: 3"- 14"
- Bead-Breaker Opening: 15" / 380 mm
- Bead-Breaking Power: 3372 lbf / 15000 N
- Working Air Pressure: 116-145 psi / 8 - 10 bar
- Motor Power: 1.1 hp - 1.47 hp / 0.85 kW - 1.1 kW
- Chuck Rotation Speed: 7 rpm - 2V 6.5-13 rpm
- Noise Level Running: <70 dB
- Net Weight Machine: 562 lbs. / 255 kg
- Gross Weight Machine: 650 lbs. / 295 kg

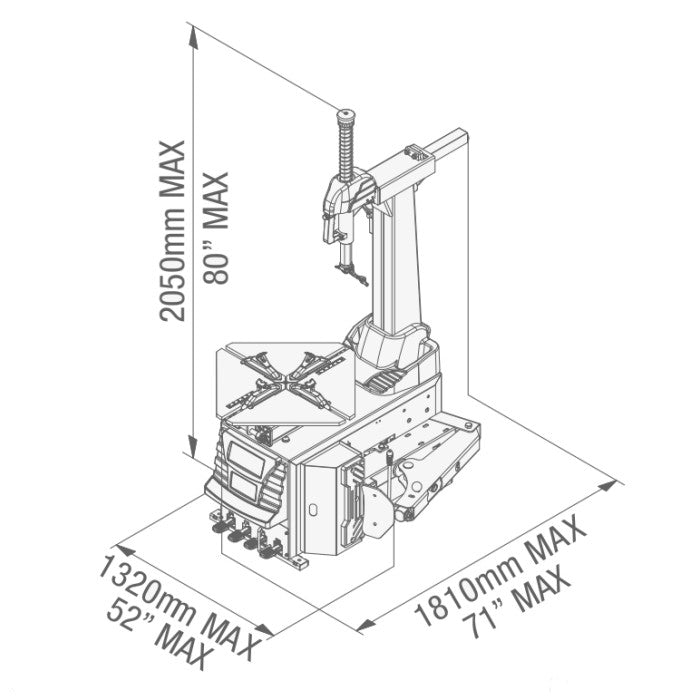

- Max Dimension: (LxPxH) 45" x 36" x 40" / 1150 x 920 x 1000 mm
- Warranty: (3) Years Parts and (1) Year Labor
Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.
This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).
Corghi machines are warranted to be free of defects as follows:
Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.
Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.
Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.
Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner's lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.

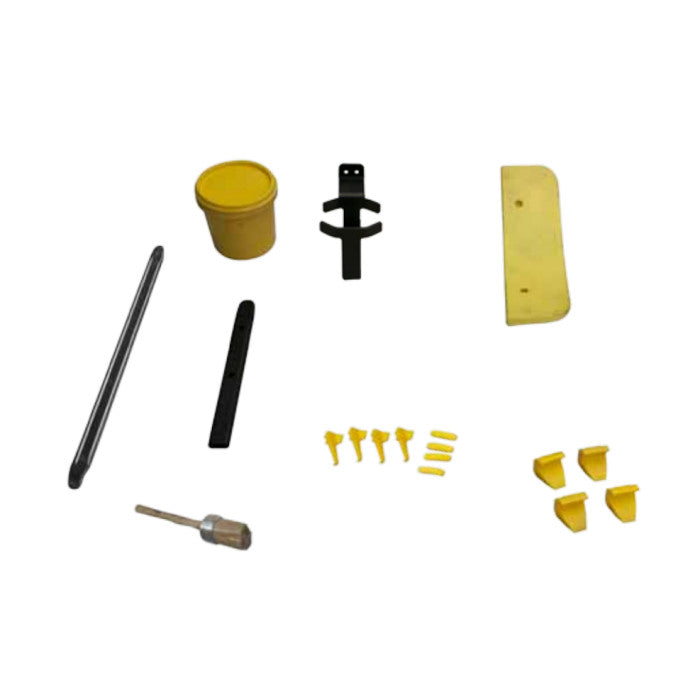

Accessories/Options
More Information
Corghi Service Pro 324 Tire Changer Brochure (.pdf)
Corghi Service Pro 324 Tire Changer Manual (.pdf)
