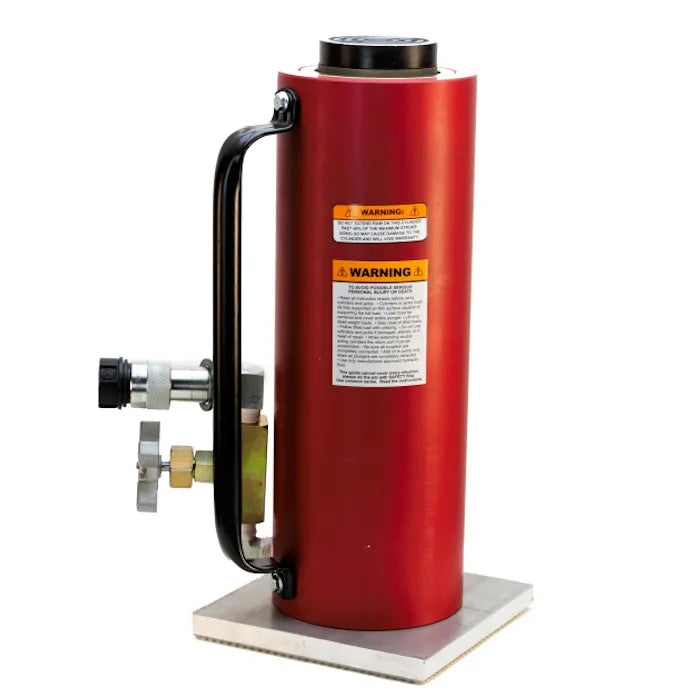

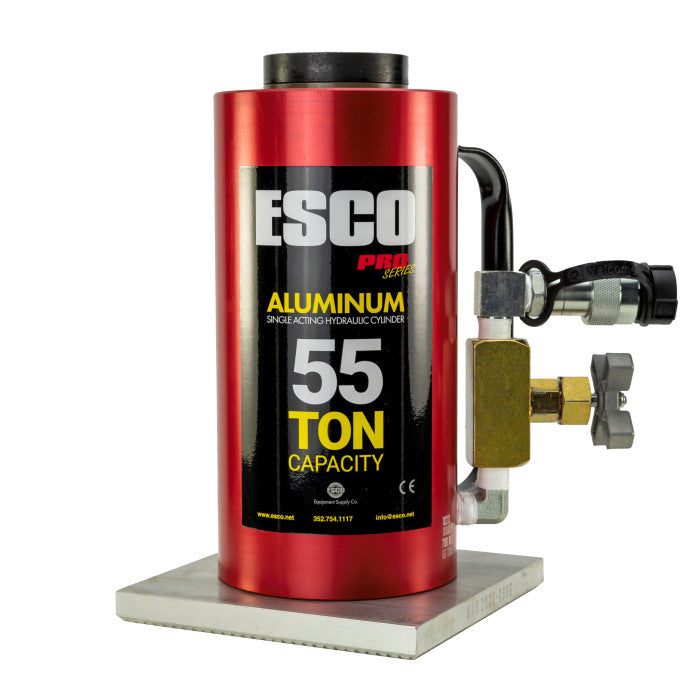

ESCO 10312 HD Lightweight 55-Ton Tall Hydraulic Jack
In Stock SKU 10312 UPC 816904021696
OUR PRICE: $994.00
Regular Price: $1,049.00
Short Description
ESCO 10312 HD Lightweight 55-Ton Hydraulic Jack
The ESCO Professional Aluminum Jack Cylinder Series are designed for high-capacity, precision lifting applications. The Heavy-Duty construction provides longevity and reliability when faced with continual use in the shop or field. The ESCO 55-Ton Jacks are ideal for technicians who work on large equipment including: trucks, tractors, mining and construction equipment.
The ESCO 10312 HD Lightweight 55-Ton Hydraulic Jack is the perfect jack for off highway tire work.
The ESCO Professional Aluminum Jack Cylinder Series are designed for high-capacity, precision lifting applications. The Heavy-Duty construction provides longevity and reliability when faced with continual use in the shop or field. The ESCO 55-Ton Jacks are ideal for technicians who work on large equipment including: trucks, tractors, mining and construction equipment.
The ESCO 10312 HD Lightweight 55-Ton Hydraulic Jack is the perfect jack for off highway tire work.
Description
ESCO 10312 HD Lightweight 55-Ton Hydraulic Jack
The ESCO Professional Aluminum Jack Cylinder Series are designed for high-capacity, precision lifting applications. The Heavy-Duty construction provides longevity and reliability when faced with continual use in the shop or field. The ESCO 55-Ton Jacks are ideal for technicians who work on large equipment including: trucks, tractors, mining and construction equipment.The ESCO 10312 HD Lightweight 55-Ton Hydraulic Jack is the perfect jack for off highway tire work.
Tool Fact
Lightweight aluminum structure is ideal for any fleet truck, service bay or shop. Upgraded Stop-Ring promotes point-loading prevention and reduces internal damage to piston.

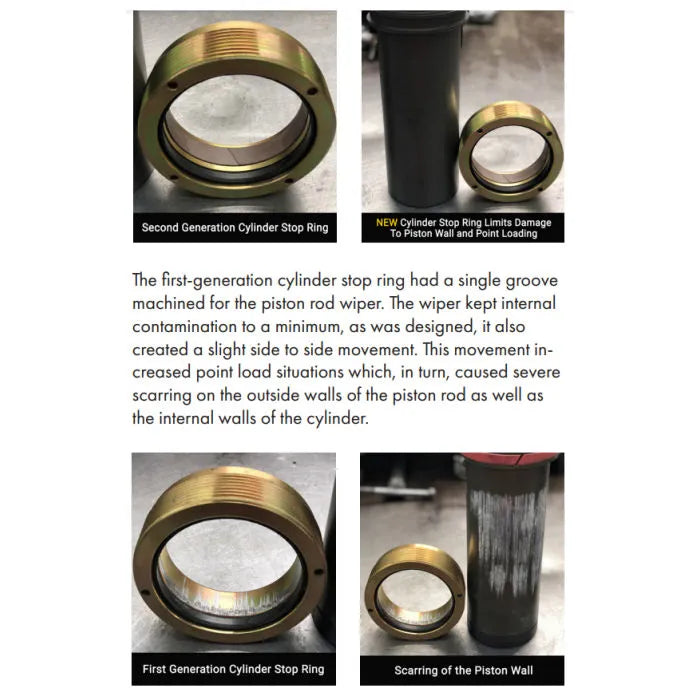

New Cylinder Stop Ring Limits Damage To Piston and Point Loading
The first-generation cylinder stop ring had a single groove machined for the piston rod wiper. The wiper kept internal contamination to a minimum, as was designed, it also created a slight side to side movement. This movement increased point load situations which, in turn, caused severe scarring on the outside walls of the piston rod as well as the internal walls of the cylinder.
Features & Specs
Features
- Lightweight Aluminum Constructed Hydraulic Cylinder
- Must-Have For Heavy Lifting Applications
- Perfect Jack For Off Highway Tire Work
- For Use With 10,000 PSI Pumps

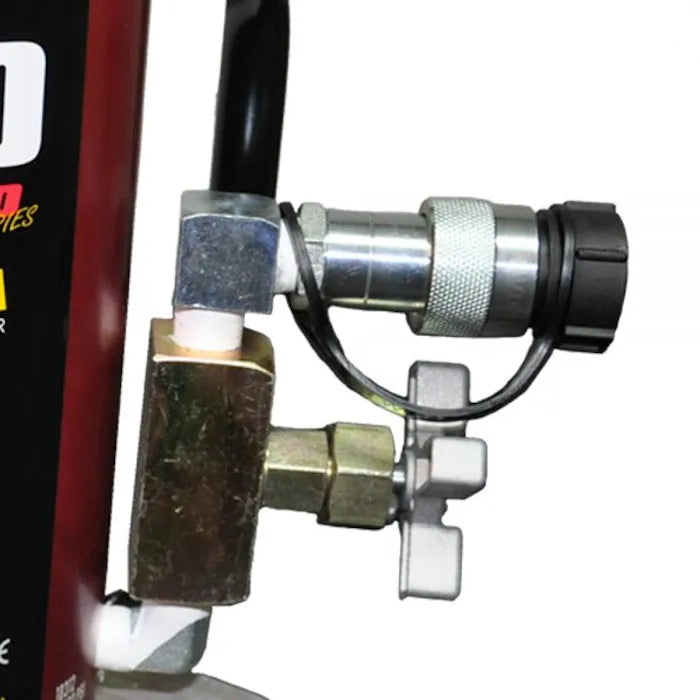

- Ships Completely Assembled With Valve, Coupler, And 8" X 8" (203mm X 203mm) Base
- Ideal For OTR, Mining, Agricultural And Construction Applications
- Robust 11/16" Cylinder Wall For Heavy-Duty Use
- 6" (152mm) Stroke
- 3-Year Extended Warranty
Specifications
- Lifting Capacity: 55 Tons
- Stroke: 6" (152mm)
- Max Pressure: 10,000 PSI
- Min. Height: 12" (308mm) - Includes Base Plate
- Max. Height: 18" (460mm) - Includes Base Plate

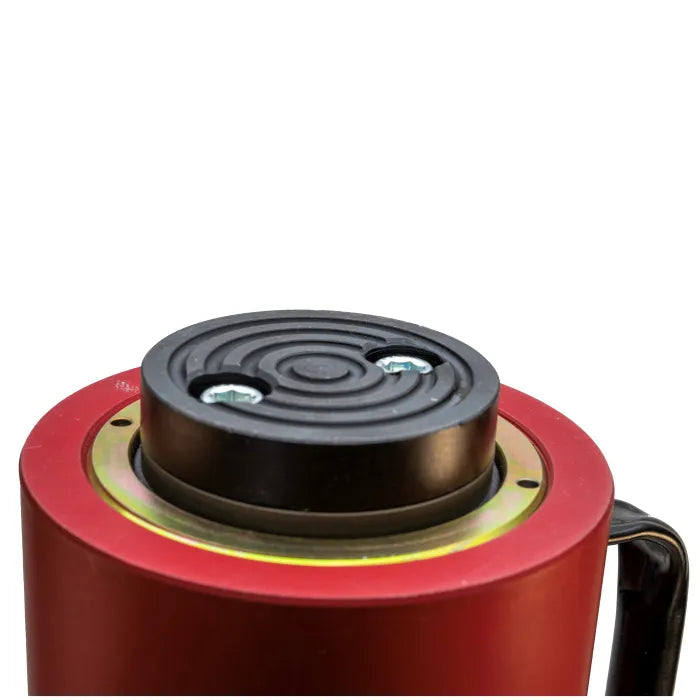

- Saddle Diameter: 3" (79mm)
- Cylinder Width: 5.25" (133mm)
- Cylinder Wall: 11/16" (17mm)
- Base Plate: 8" x 8" (203 x 203mm)
- Weight: 33 lbs. (15 kg)
- Warranty: (3) Year Limited*
*Must Register Product to Qualify for 3-Year Warranty Extension.
ESCO Limited Warranty Statement
Products sold by Equipment Supply Company (ESCO) are warranted to be free from defects in material and workmanship under proper use, application, and maintenance in accordance with ESCO's written recommendations, instructions, and specifications for a period of 1 year (365 days) from the date of shipment to the end user, unless otherwise noted. ESCO's obligation under this warranty is limited to, and the sole remedy for any such defect shall be the repair or replacement (at ESCO's discretion) of unaltered parts returned to ESCO, freight prepaid, and proven to have such defect, provided such defect occurs within the 90-day warranty period (or otherwise noted) and is reported within 14 days of occurrence.
This is the only authorized ESCO warranty and is in lieu of all other express or implied warranties or representations, including any implied warranties of merchantability or fitness. Warranty claims must be submitted and be processed in accordance with ESCO's established warranty claim procedure. In no event will ESCO be liable for business interruptions, loss of sales and/or profits, personal injury, costs of delay, or for any other special, indirect, incidental or consequential losses, costs, or damages.
Accessories/Options

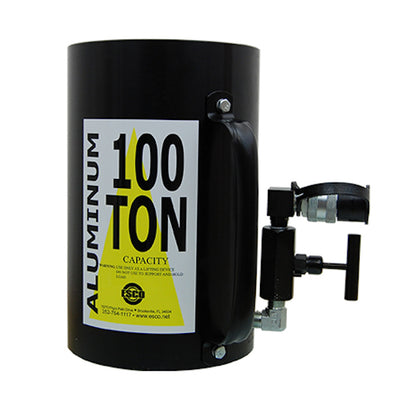

ESCO 10300 HD Lightweight 100-Ton Hydraulic Jack
