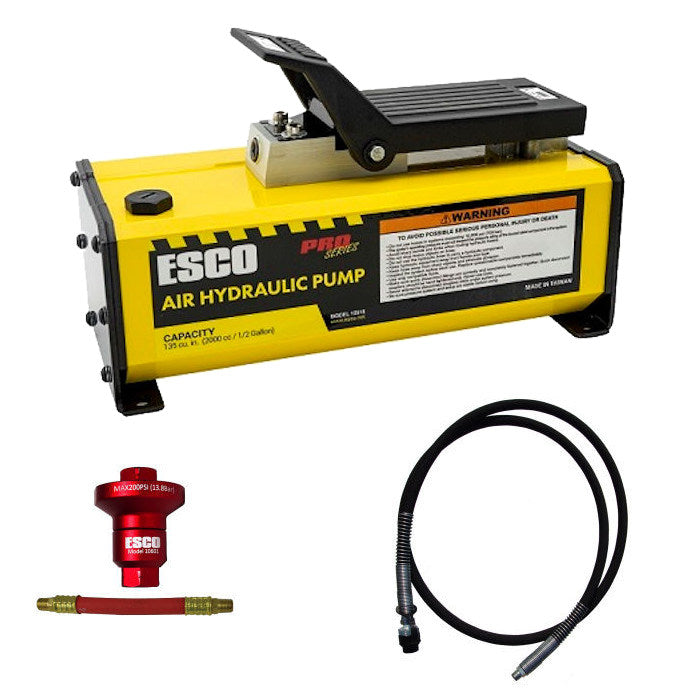

ESCO 10518C ½ Gallon Air Hydraulic Pump Kit

Features & Specs

Kit Includes

• #10518 - ½ Gallon Hydraulic Air Pump
• #10604 - 8' Hose Assembly with Hose Coupler
• #10601K - Air Pressure Reducer with 6" Whip-Hose

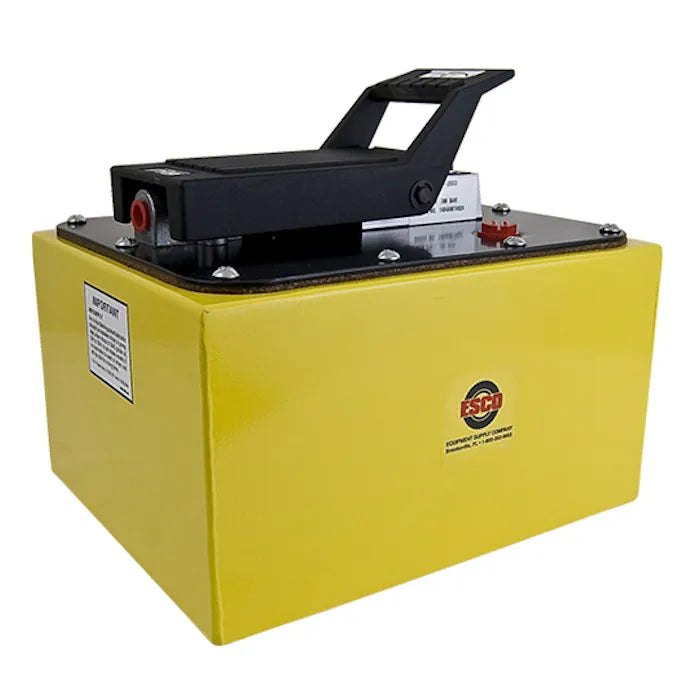

#10518 ½ Gallon Hydraulic Air Pump Features

• For Use With A Variety Of Hydraulic Rams, Cylinders, Presses, Bead Breakers, And Other Hydraulic Equipment Requiring 10,000 Psi For Operation
• Equipped With An Air Exhaust Muffler For Quiet Pumping Of The Air Motor
• Air And Oil Inlet Filters For Reducing The Risk Of Damage From Contamination
• Durable, Lightweight Design Great For Service Trucks, Shop Environments, Or Out In The Field
• Internal Pressure Relief Valve System (Load Limit Device) For Overload Protection

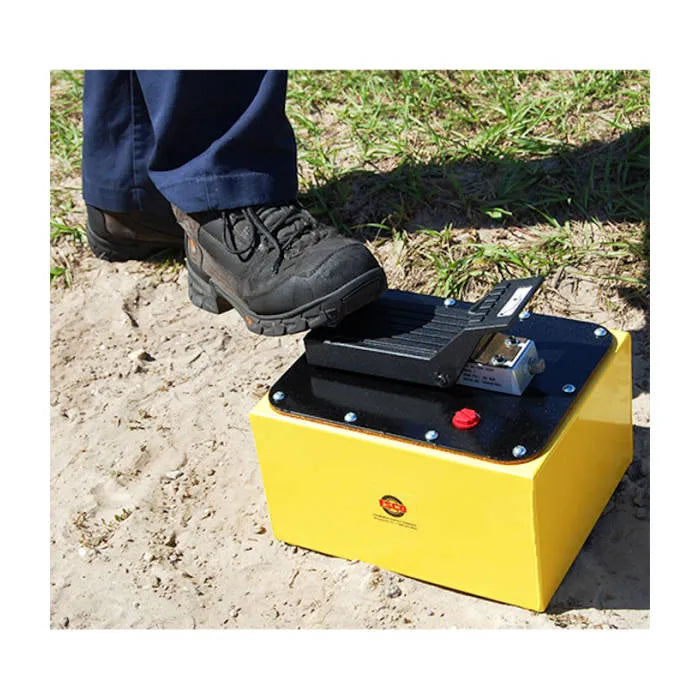

• Foot Pedal Design - For Hands-Free Use Of Hydraulic Pump
• Engineered With Durable Lightweight And Corrosive-Resistant Plastic Components - Increasing The Life Of The Air Motor And Hydraulic Pump
• Designed With Mountable Feet For Service Trucks, Shops, Presses, Or Other Hydraulic Applications
• Includes Installable Fluid Level Dipstick To Check That The Appropriate Amount Of Hydraulic Fluid Is Installed
• 3-Year Extended Warranty

#10518 ½ Gallon Hydraulic Air Pump Specifications

• Hydraulic Pressure: 10,000 PSI
• Usable Oil Capacity (Cubic In.): 135
• Output Flow Rate (No Load): 80.5 Cu. In. Per Min.
• Output Flow Rate (Load): 12.8 Cu. In. Per Min.
• Air Pressure Range: 40-170 PSI
• Air Consumption (scfm): 24
• Valve Function: Increase / Release Hydraulic Fluid Pressure
• Sound Level (dbBa): 85
• Reservoir Material: Aluminum
• Air Inlet Size: 1/4"-18 NPT
• Hydraulic Hose Inlet Size: 3/8"-18 NPTF
• Bottom Plate Screw Hole Size (4): 3/8"
• Bottom Plate Length (from hole center): -11.73"
• Bottom Plate Width (from hole center): -4.33"
• Dimensions (Product): 12.5" L x 5.75" W x 8" H
• Dimensions (Packaging): 15" L x 7" W x 8.5 H"
• Weight: 22 lbs.
• Warranty: (3) Years Limited*

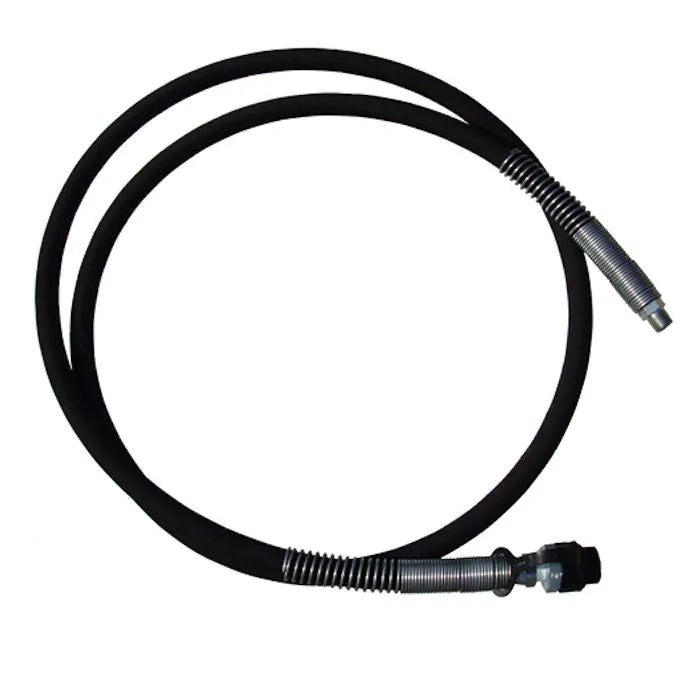

#10604 8' Hose Assembly with Hose Coupler Features

• Hydraulic Hose With Swivel Fitting - Hose Won't Kink
• Reinforced With Two Layers Of Braided Steel
• Withstands Extreme Temperatures of -40°F
• Use With Any 10,000 PSI Pump, Ram Or Bead Breaker
• Includes Half Coupler

#10604 8' Hose Assembly with Hose Coupler Specifications

• Hose Length: 8' (96")
• Max. Air Pressure: 10,000 PSI
• Type: 3/8" 18 Male
• Attachments Included: Model #10605 Half Coupler
• Weight: 5 lbs. (2.2 kg)

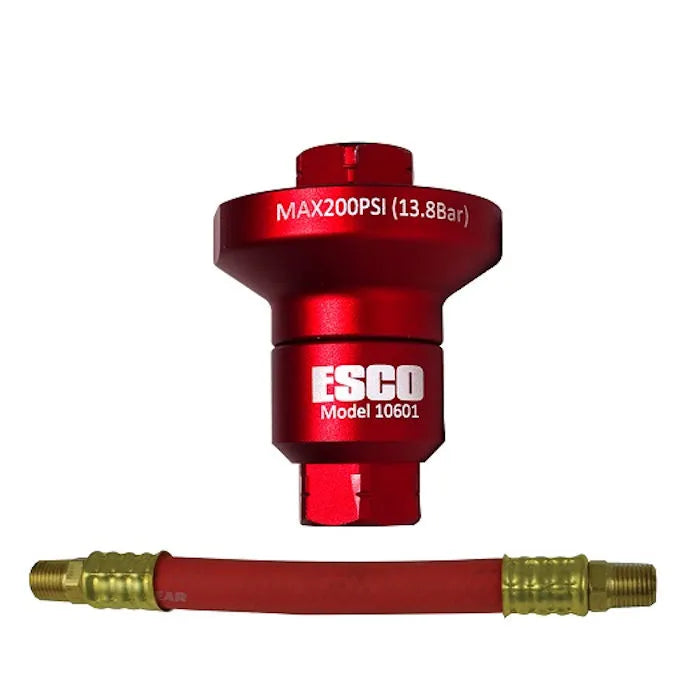

#10601K Air Pressure Reducer with 6" Whip-Hose Features

• Maintain A Tools Recommended Working Air Pressure
• Tamper-Proof Preset Value 110 Psi
• Assist In Lengthening The Life Of Hydraulic Pumps & Lifting Equipment
• Promotes Safe & Accurate Application
• Easy Installation & Usage
• Can Be Used In Conjunction With Multiple ESCO Products

#10601K Air Pressure Reducer with 6" Whip-Hose Specifications

• Application: Hydraulic Tools
• Air Pressure: 110 PSI
• Max. PSI: 200 PSI (13.8 BAR)
• Air Inlet Size: 1/4" NPT
• Accuracy: +/- 10%
• Hose Length: 6" (152.4mm)
• Weight: 2 lbs. (0.09 kg)
• Warranty: (1) Year Limited

*Must Register Product to Qualify for 3-Year Warranty Extension.
