ESCO 10771 10-30-50 Ton 3-Stage Long Service Jack
In Stock SKU 10771 UPC 816904022112
OUR PRICE: $2,524.00
Regular Price: $2,659.00
Short Description
ESCO 10771 10-30-50 Ton 3-Stage Long Service Jack

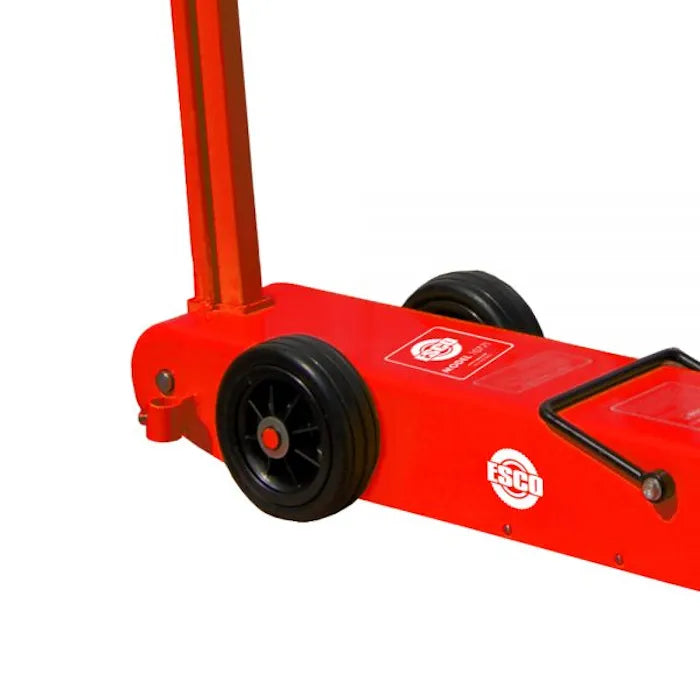

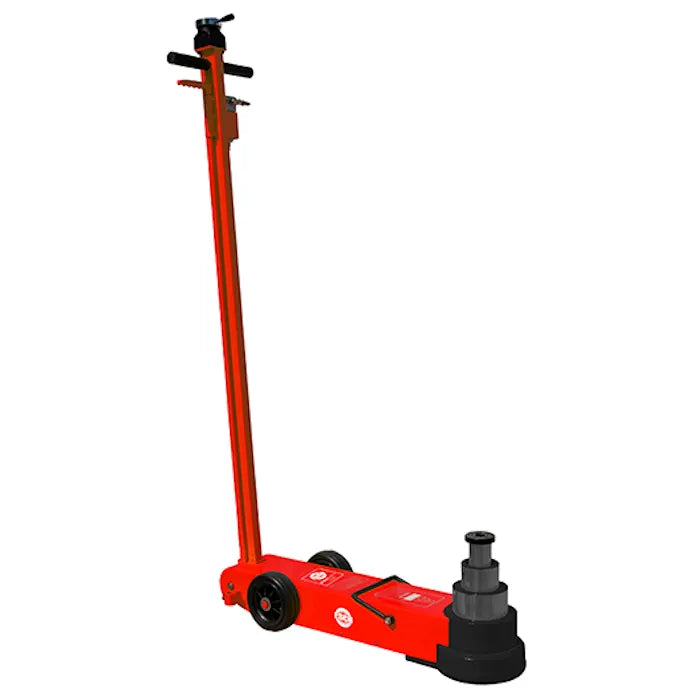

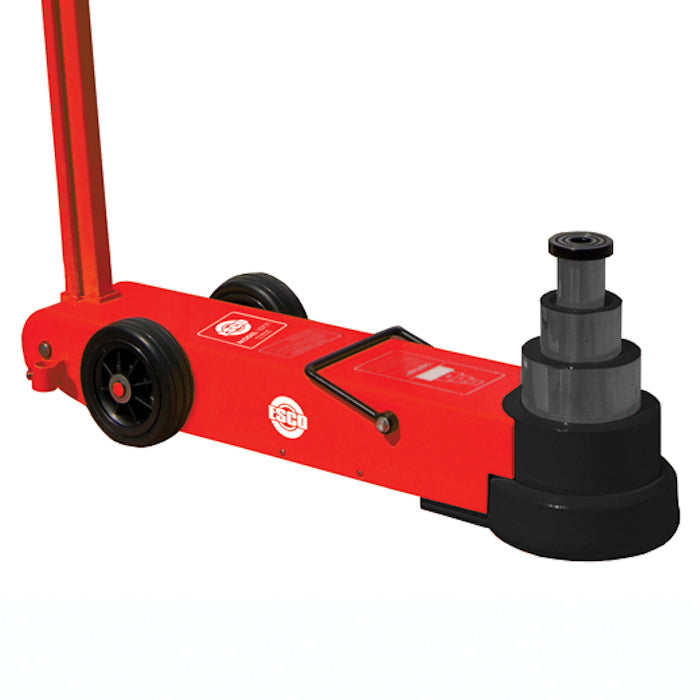

The ESCO 10771 3-Stage Long Service Jack is designed for lifting low buses and other low clearance vehicles. Wide base provides maximum stability with convenient usage. The 10771 features 3-stages 50-ton, 30-ton, and 15-ton.
The ESCO Line of Air Hydraulic Lifting Equipment is designed with the heavy duty tire service market in mind. With lifting capacities from 20 Ton and up to 50 Tons, There is a Jack that will fit any service technician's needs. Each jack designed uniquely for specific application including: Commercial truck, Bus, Tractor & Farm Equipment, and much more.
Description
ESCO 10771 10-30-50 Ton 3-Stage Long Service Jack
The ESCO 10771 3-Stage Long Service Jack is designed for lifting low buses and other low clearance vehicles. Wide base provides maximum stability with convenient usage. The 10771 features 3-stages 50-ton, 30-ton, and 15-ton.The ESCO Line of Air Hydraulic Lifting Equipment is designed with the heavy duty tire service market in mind. With lifting capacities from 20 Ton and up to 50 Tons, There is a Jack that will fit any service technician's needs. Each jack designed uniquely for specific application including: Commercial truck, Bus, Tractor & Farm Equipment, and much more.
Features & Specs
Features
- Designed For Lifting Low Buses And Other Low Clearance Vehicles
- Maximum Stability
- Convenient Usage
- 3 Stages 50-Ton / 30-Ton / 15-Ton
Specifications
- Lifting Capacity: 50/30/10 Ton
- Air Pressure: 90-130 PSI
- Min. Height: 5.5" (140mm)
- Max. Height: 11.9" (302mm)
- Hoisting Height: *2.2" (50 Ton) - 2.04" (30 Ton) - 2.2" (15 Ton)

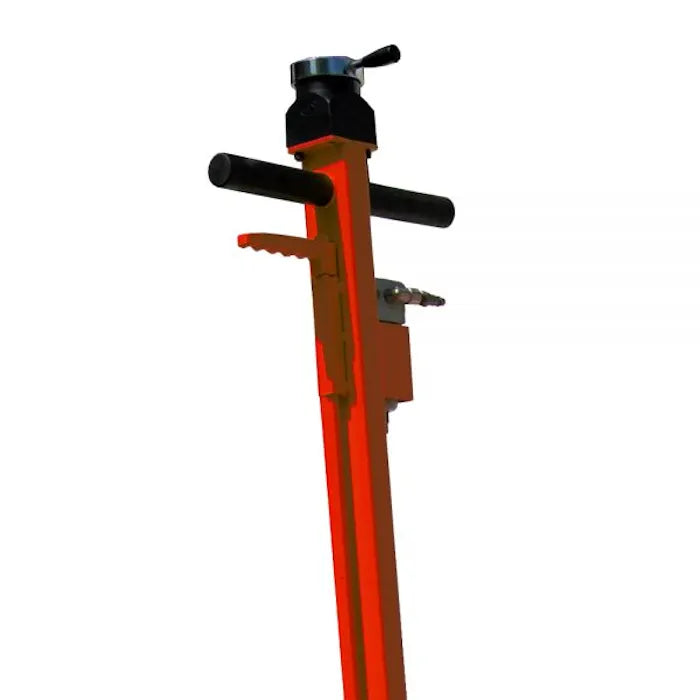

- Handle Length: 55" (1397mm)
- Extensions Included: 0.78" - 4.33" - 1.5" (20mm - 110mm - 40mm)
- Weight: 143 lbs. (65 kg)
- Warranty: (1) Year Limited
*Maximum Height Without Extensions
ESCO Limited Warranty Statement
Products sold by Equipment Supply Company (ESCO) are warranted to be free from defects in material and workmanship under proper use, application, and maintenance in accordance with ESCO's written recommendations, instructions, and specifications for a period of 1 year (365 days) from the date of shipment to the end user, unless otherwise noted. ESCO's obligation under this warranty is limited to, and the sole remedy for any such defect shall be the repair or replacement (at ESCO's discretion) of unaltered parts returned to ESCO, freight prepaid, and proven to have such defect, provided such defect occurs within the 90-day warranty period (or otherwise noted) and is reported within 14 days of occurrence.
This is the only authorized ESCO warranty and is in lieu of all other express or implied warranties or representations, including any implied warranties of merchantability or fitness. Warranty claims must be submitted and be processed in accordance with ESCO's established warranty claim procedure. In no event will ESCO be liable for business interruptions, loss of sales and/or profits, personal injury, costs of delay, or for any other special, indirect, incidental or consequential losses, costs, or damages.
