ESCO 20415-A Universal Demount Tool Agricultural HD Tire Kit

Features & Specs

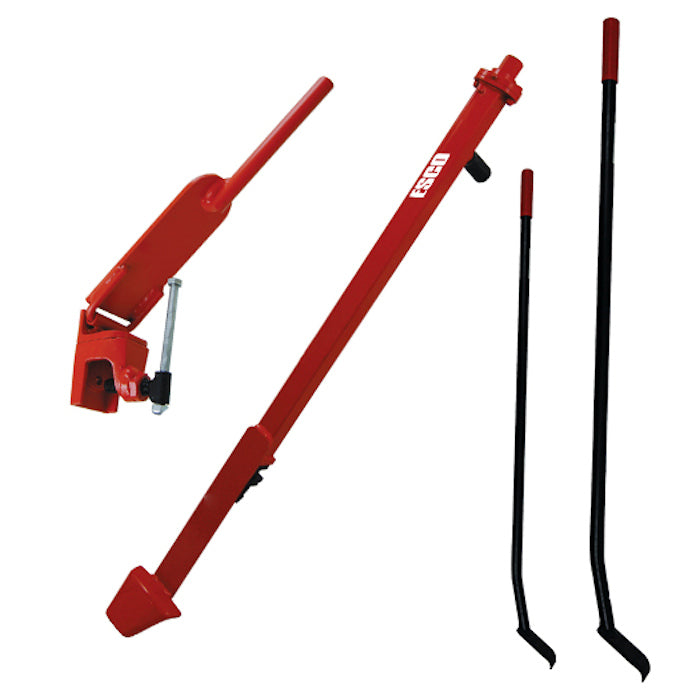

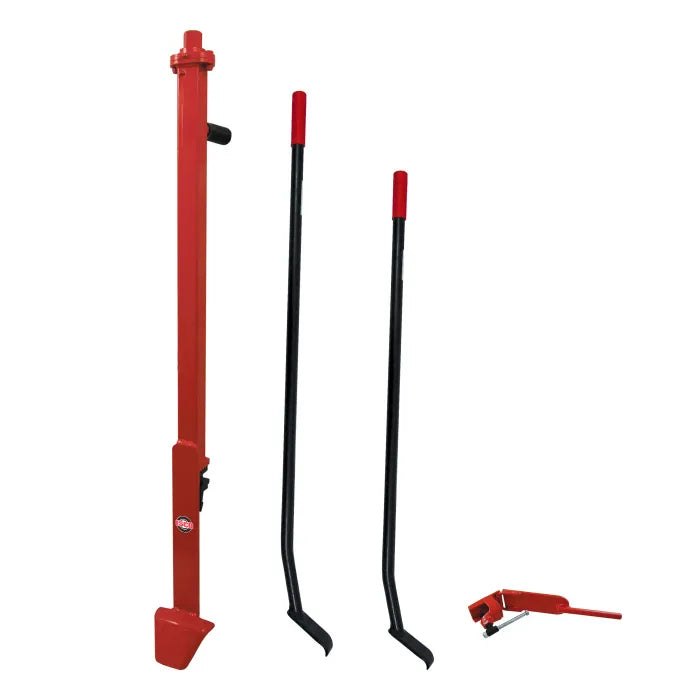

Kit Includes

• #20408 - Universal Impact Driven Demounter
• #20403 - 35" Heavy-Duty Mounting Bar
• #20404 - 52" Heavy-Duty Mounting Bar
• #20405 - Agricultural Tire Bead Holder

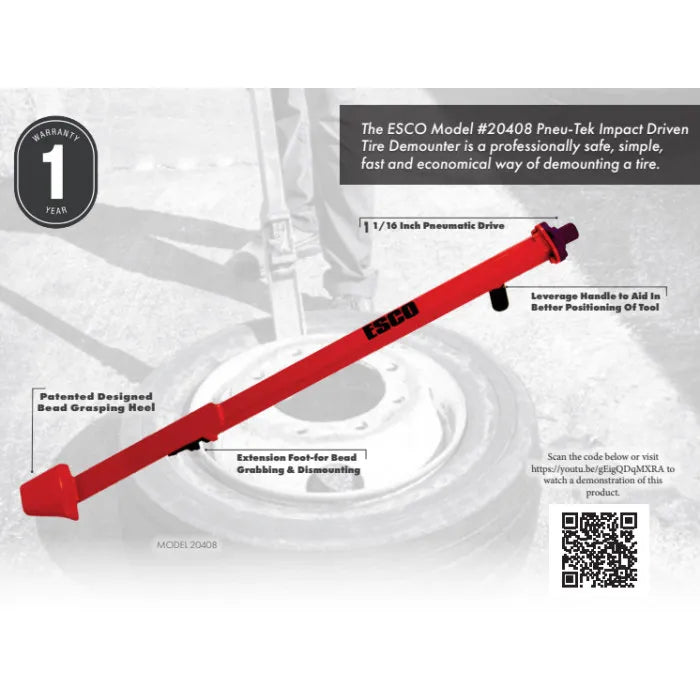

#20408 Universal Impact Driven Demounter Features

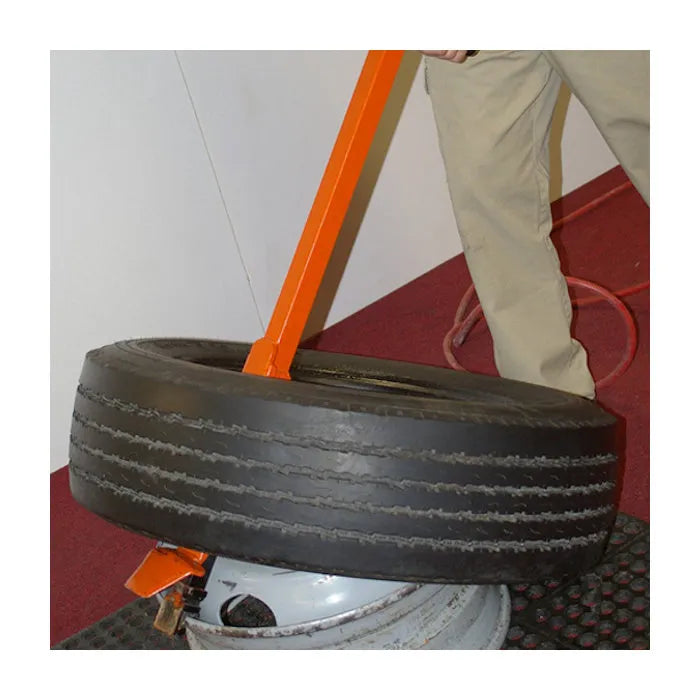

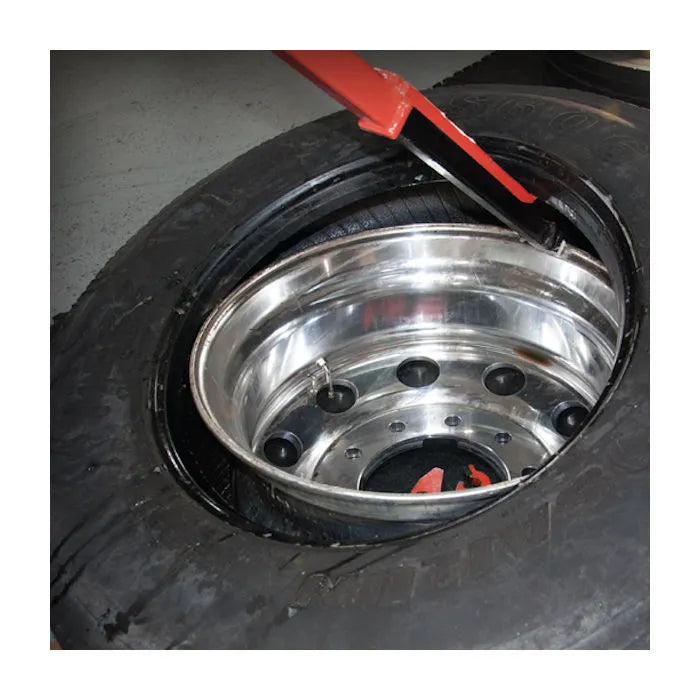

• Demounts And Mounts Agricultural / Heavy Duty Tires
• Safe, Simple, Fast, Economical, And The Most Universal Tire Demounter On The Market
• Works As A Hand-Held Tire Machine And Shines Where Other Tools Fall Short
• Tackles The Hard 19.5" Reverse Hubs And Grader Tires
• Can Be Used On All Tire Sizes From 10" ATV Tires And Up
• Great For Agricultural Tires, One-Piece Grader, Loader, Forestry And Back Hoe Tires
• Comes With 1 1/16" Socket

#20408 Universal Impact Driven Demounter Specifications

• Material: Steel
• Impact Socket Size: 1-1/16" (27mm) (Included)

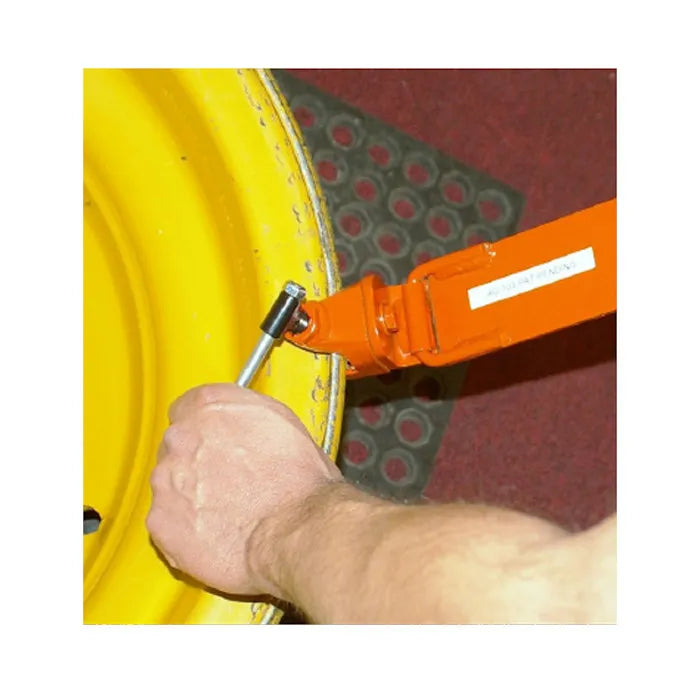

• Operate: Air or Battery Impact Gun
• Length: 44" (1117mm)
• Height: 6" (152mm)
• Width: 8" (203mm)
• Weight: 21 lbs. (9 kg)
• Warranty: (1) Year Limited

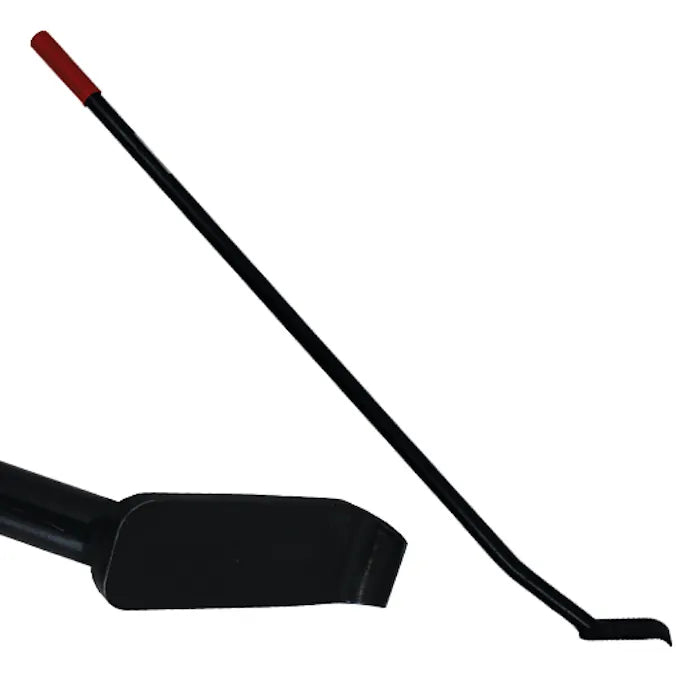

#20403 35" Heavy-Duty Mounting Bar Features

• The Shorter 35" Heavy Duty Mounting Bar Makes It Easier To Handle When Mounting On The Machine Or In A Vertical Position

#20403 35" Heavy-Duty Mounting Bar Specifications

• Length: 35" (889mm)
• Weight: 6 lbs. (3 kg)

#20404 52" Heavy-Duty Mounting Bar Features

• The Longer 52" Heavy Duty Mounting Bar Gives You More Leverage When Mounting In A Horizontal Position On The Ground.

#20403 35" Heavy-Duty Mounting Bar Specifications

• Length: 52" (1321mm)
• Weight: 8 lbs. (4 kg)

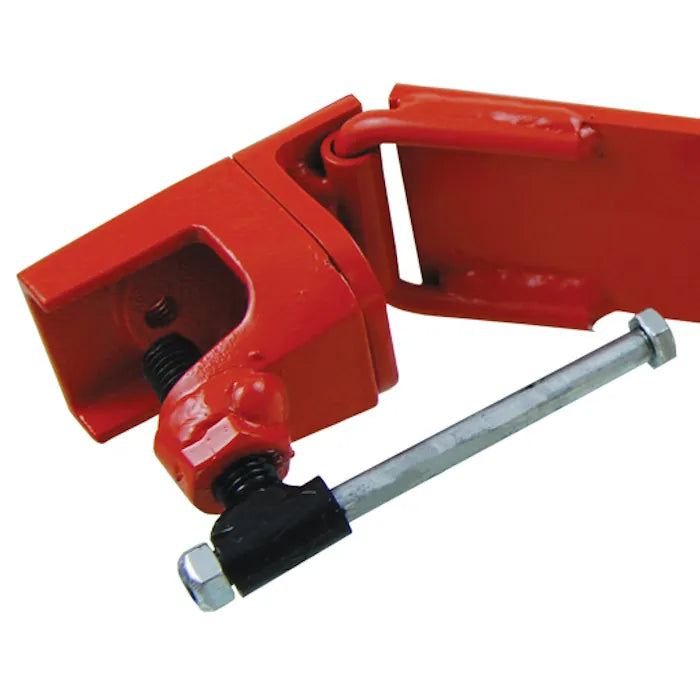

#20405 Agricultural Tire Bead Holder Features

• Designed For Use On Agricultural And Tractor Tires
• Unique Design Allows For Bead To Be Positioned Onto Rim With "Flip-Handle"
• Lightweight And Easy To Use

#20405 Agricultural Tire Bead Holder Specifications

• Weight: 5 lbs. (2.25 kg)

ESCO Limited Warranty Statement
Products sold by Equipment Supply Company (ESCO) are warranted to be free from defects in material and workmanship under proper use, application, and maintenance in accordance with ESCO's written recommendations, instructions, and specifications for a period of 1 year (365 days) from the date of shipment to the end user, unless otherwise noted. ESCO's obligation under this warranty is limited to, and the sole remedy for any such defect shall be the repair or replacement (at ESCO's discretion) of unaltered parts returned to ESCO, freight prepaid, and proven to have such defect, provided such defect occurs within the 90-day warranty period (or otherwise noted) and is reported within 14 days of occurrence.

This is the only authorized ESCO warranty and is in lieu of all other express or implied warranties or representations, including any implied warranties of merchantability or fitness. Warranty claims must be submitted and be processed in accordance with ESCO's established warranty claim procedure. In no event will ESCO be liable for business interruptions, loss of sales and/or profits, personal injury, costs of delay, or for any other special, indirect, incidental or consequential losses, costs, or damages.
