ESCO 10211 Giant Tire Bead Breaker Kit with 2 Gallon Pump

Features & Specs

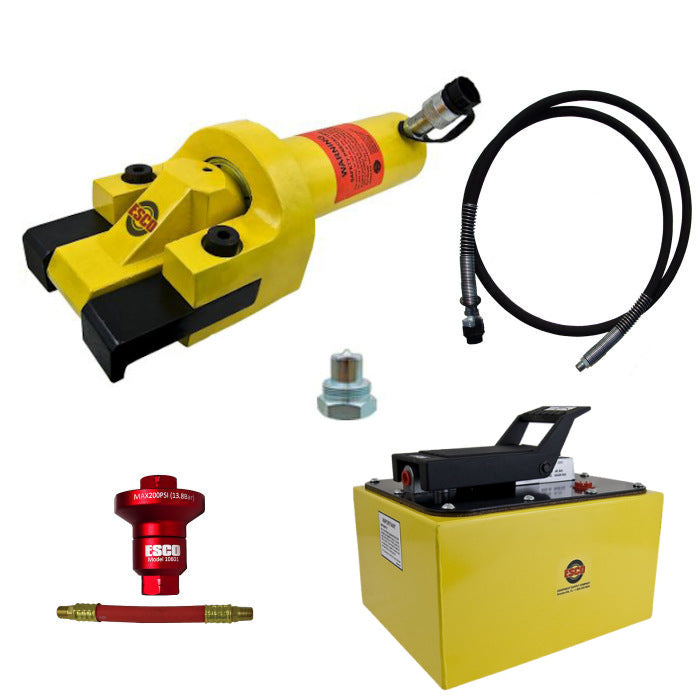

Kit Includes

• #10103 - Giant Tire Bread Breaker Tool
• #10594 - 2 Gallon Turbo II Hydraulic Air Pump
• #10611 - 18' Hydraulic Hose
• #10601K - Air Pressure Reducer with 6" Whip-Hose

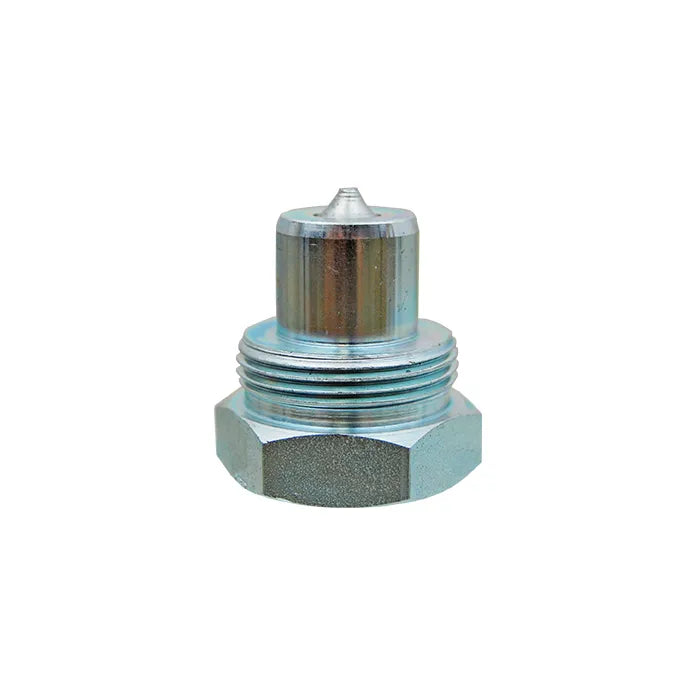

• #10605 - Male Coupler with Female Threads

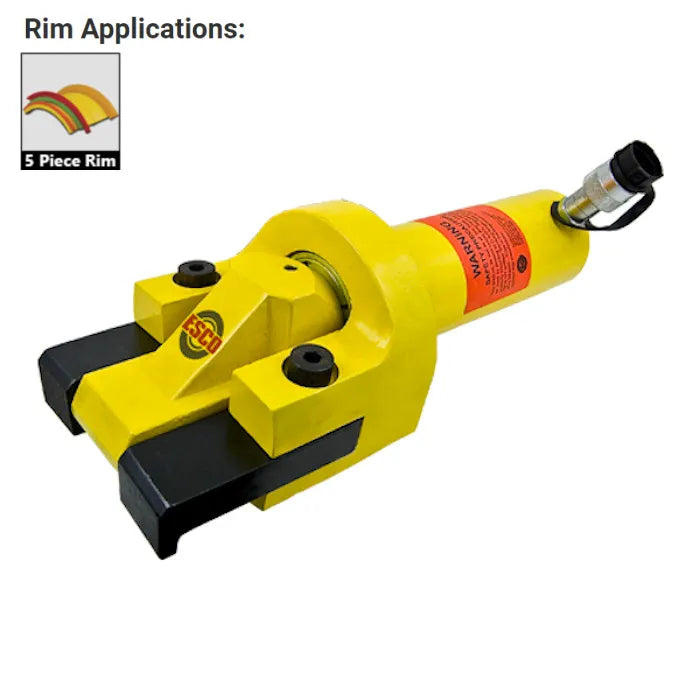

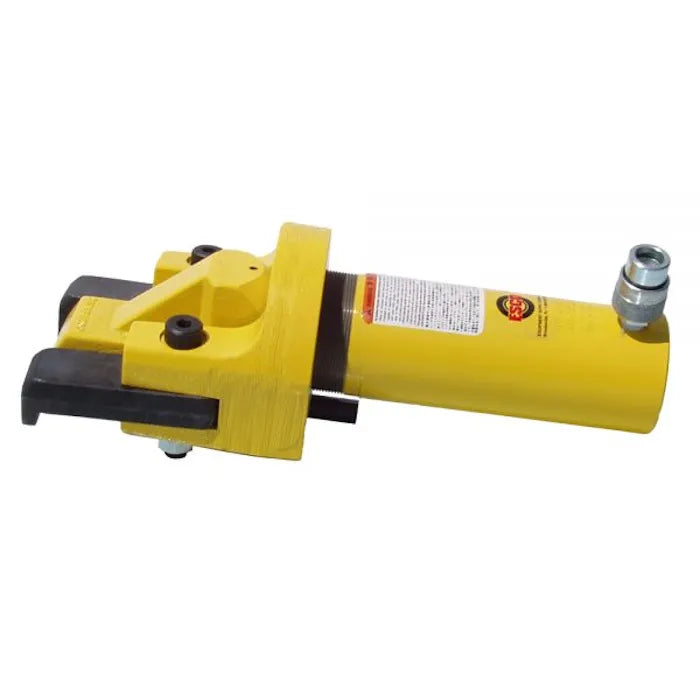

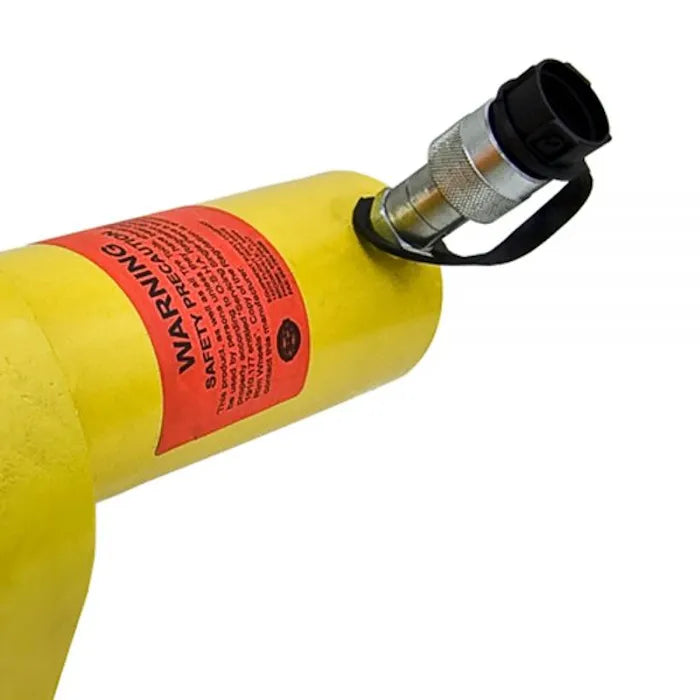

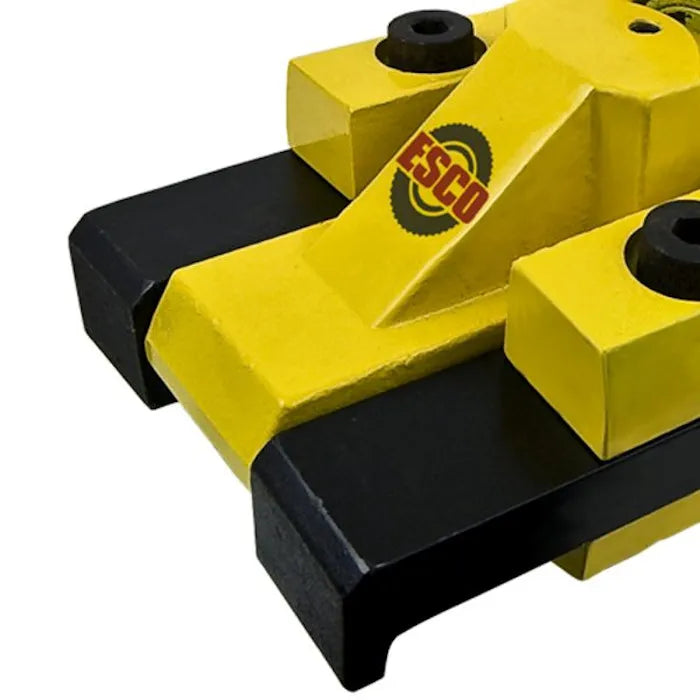

#10103 Giant Tire Bead Breaker Tool Features

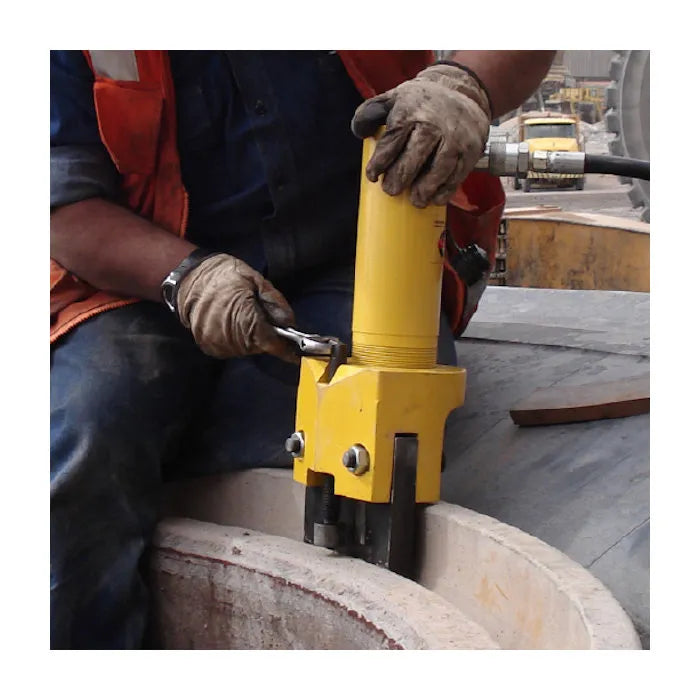

• Works On 5-Piece Rims 39", 45", 51", 57", And 63" Wheel Sizes
• 6" Stroke (152 mm)/li>
• 25 Ton Hydraulic Ram
• Used With 10,000 Psi Air/Hydraulic Pump
• In Some Cases You Must First Use #10105 Or #10100 Bead Breakers To Start The Movement Of The Rim Flange; The #10103 Can Then Be Used
• The #10627 Kit Converts The #10103 Into A #10103L, Which Is Capable Of Working On 63" Rims
• 3-Year Extended Warranty

#10103 Giant Tire Bead Breaker Tool Specifications

• Ram Tonnage: 25 Tons
• Stroke: 6" (152mm)
• Max Pressure: 10,000 PSI
• Length: 16.5" (419mm)
• Width: 6.5" (165mm)
• Weight: 54 lbs. (25 kg)
• Warranty: (3) Years Limited*

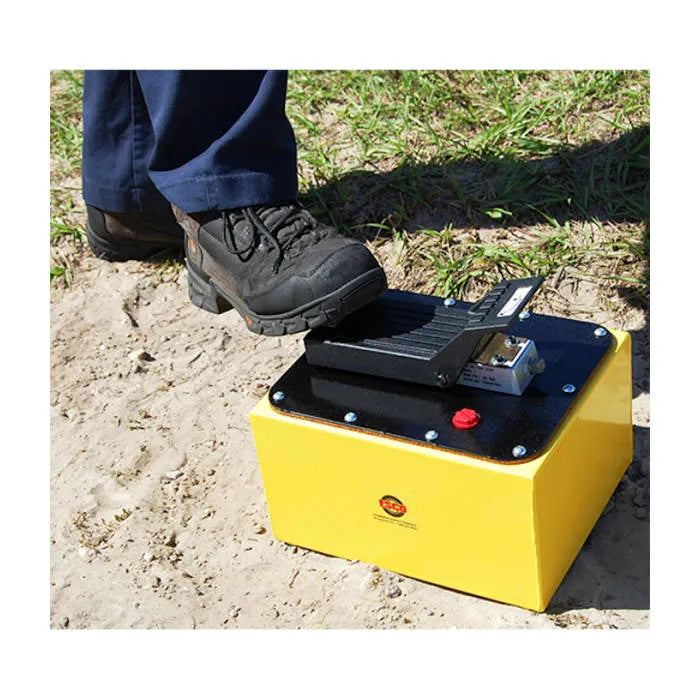

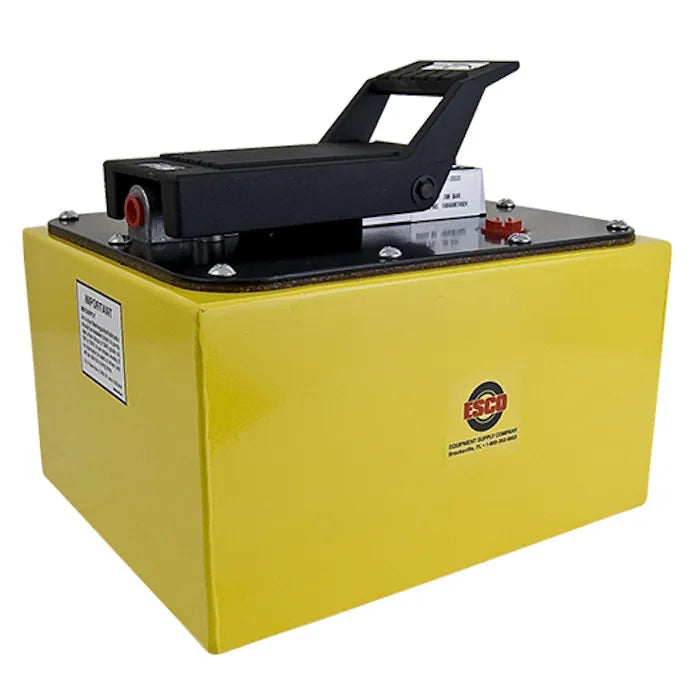

#10594 2 Gallon Turbo II Hydraulic Air Pump Features

• For Use With A Variety Of Hydraulic Rams, Cylinders, Presses, Bead Breakers, And Other Hydraulic Equipment Requiring 10,000 Psi For Operation
• Rugged 2 Gallon Metal Reservoir
• 10,000 Psi Hydraulic Pressure
• Shipped With Premium Hydraulic Oil
• Maximum Oil Capacity For Any Application
• 3-Year Extended Warranty

#10594 2 Gallon Turbo II Hydraulic Air Pump Specifications

• Oil Capacity: 2 Gallon
• Material: Metal
• Max. Pressure: 10,000 PSI
• Weight: 34 lbs. (15 kg)
• Warranty: (3) Years Limited*

#10611 18' Hydraulic Hose Features

• Hydraulic Hose With Swivel Fitting - Hose Won't Kink
• Reinforced With Two Layers Of Braided Steel
• Withstands Extreme Temperatures of -40°F
• Use With Any 10,000 PSI Pump, Ram Or Bead Breaker

#10611 18' Hydraulic Hose Specifications

• Hose Length: 18' (216")
• Max. Air Pressure: 10,000 PSI
• Type: 3/8" 18 Male
• Weight: 9 lbs. (4 kg)

#10601K Air Pressure Reducer with 6" Whip-Hose Features

• Maintain A Tools Recommended Working Air Pressure
• Tamper-Proof Preset Value 110 Psi
• Assist In Lengthening The Life Of Hydraulic Pumps & Lifting Equipment
• Promotes Safe & Accurate Application
• Easy Installation & Usage
• Can Be Used In Conjunction With Multiple ESCO Products

#10601K Air Pressure Reducer with 6" Whip-Hose Specifications

• Application: Hydraulic Tools
• Air Pressure: 110 PSI
• Max. PSI: 200 PSI (13.8 BAR)
• Air Inlet Size: 1/4" NPT
• Accuracy: +/- 10%
• Hose Length: 6" (152.4mm)
• Weight: 2 lbs. (0.09 kg)
• Warranty: (1) Year Limited

*Must Register Product to Qualify for 3-Year Warranty Extension.

ESCO Limited Warranty Statement
Products sold by Equipment Supply Company (ESCO) are warranted to be free from defects in material and workmanship under proper use, application, and maintenance in accordance with ESCO's written recommendations, instructions, and specifications for a period of 1 year (365 days) from the date of shipment to the end user, unless otherwise noted. ESCO's obligation under this warranty is limited to, and the sole remedy for any such defect shall be the repair or replacement (at ESCO's discretion) of unaltered parts returned to ESCO, freight prepaid, and proven to have such defect, provided such defect occurs within the 90-day warranty period (or otherwise noted) and is reported within 14 days of occurrence.

This is the only authorized ESCO warranty and is in lieu of all other express or implied warranties or representations, including any implied warranties of merchantability or fitness. Warranty claims must be submitted and be processed in accordance with ESCO's established warranty claim procedure. In no event will ESCO be liable for business interruptions, loss of sales and/or profits, personal injury, costs of delay, or for any other special, indirect, incidental or consequential losses, costs, or damages.
