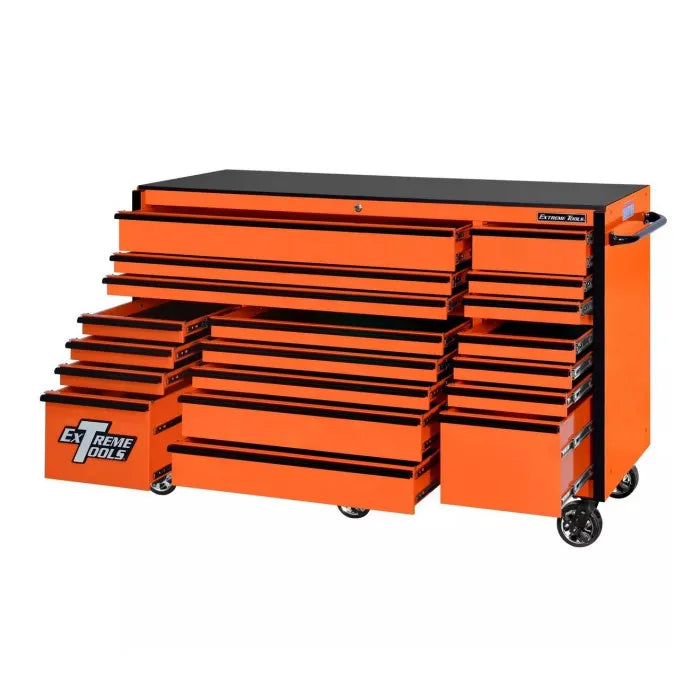

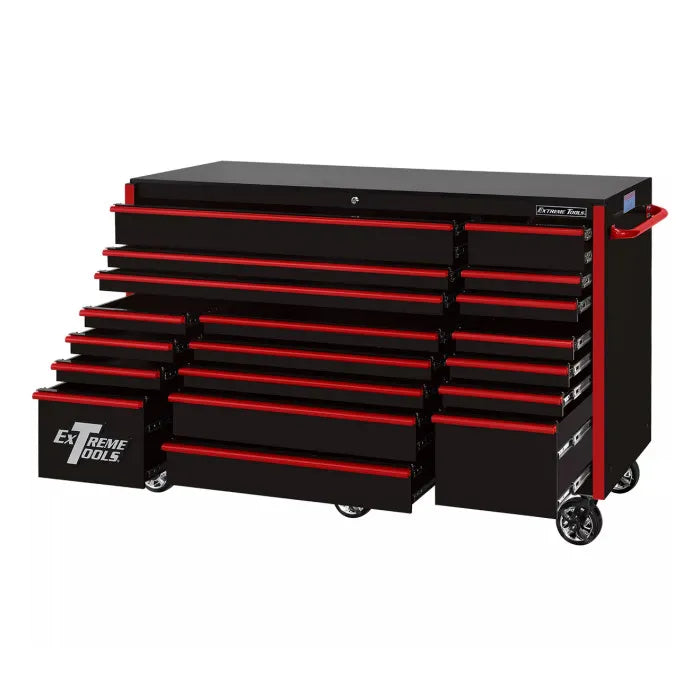

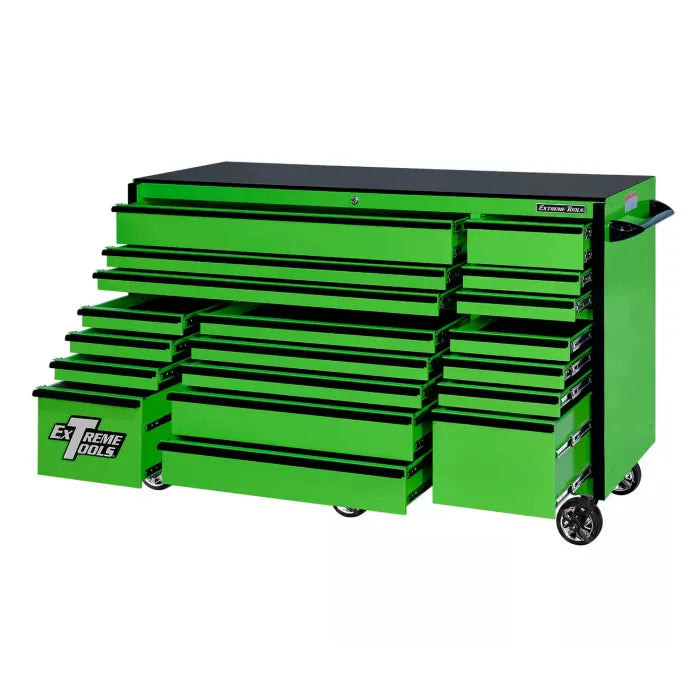

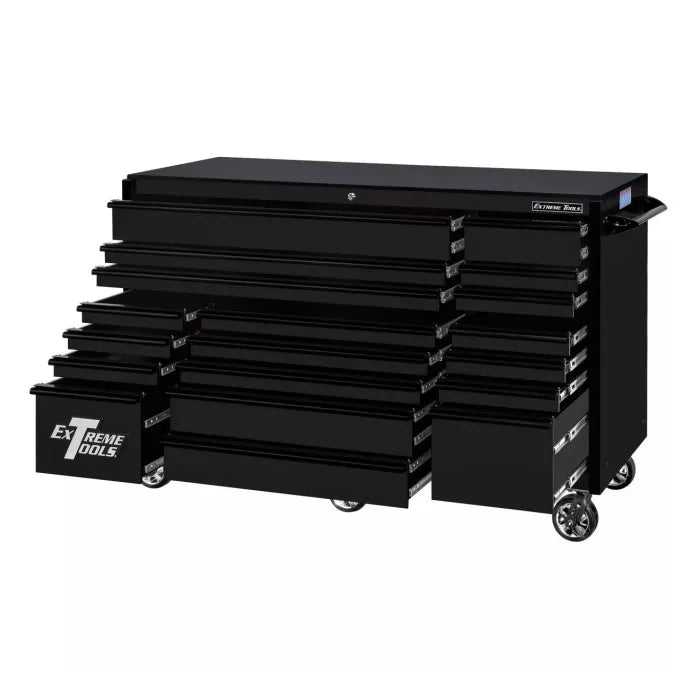

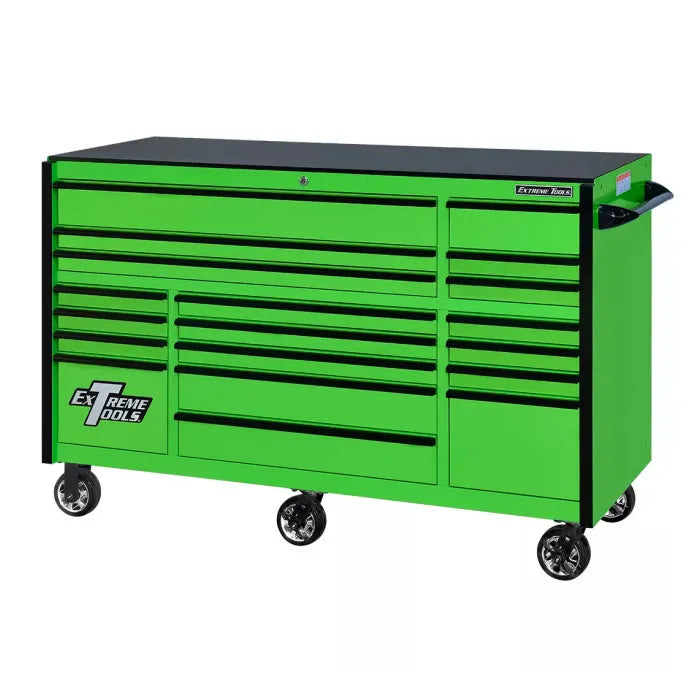

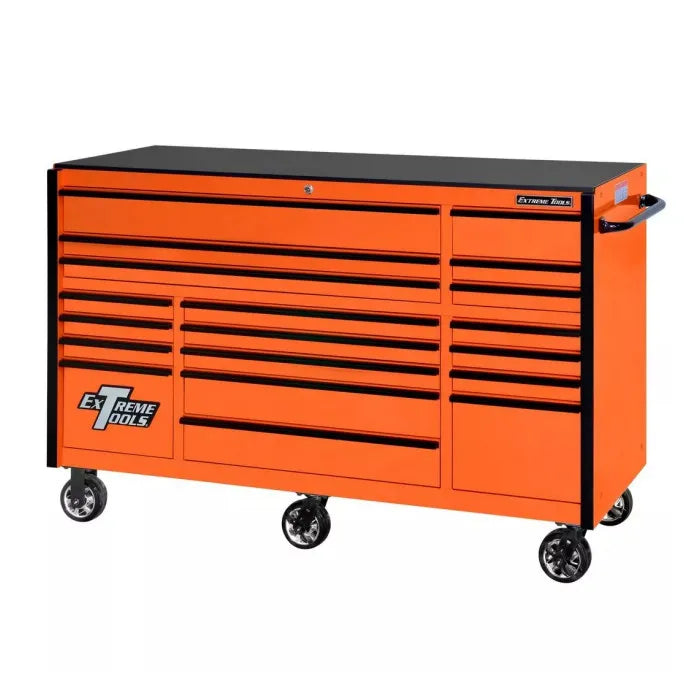

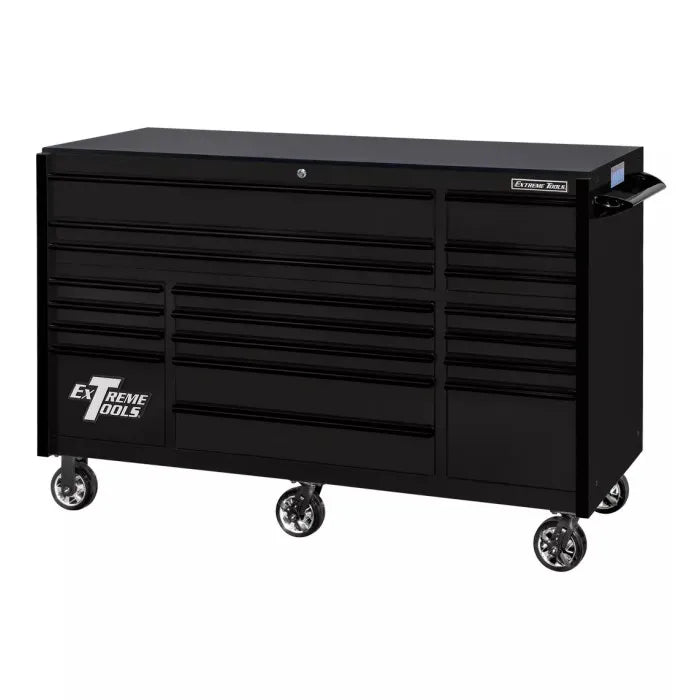

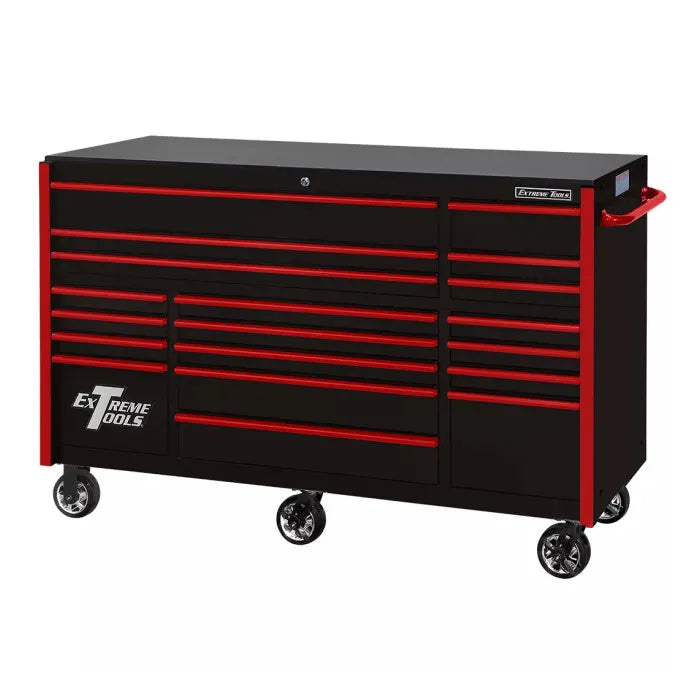

Extreme Tools RX Pro 72" Rolling Cabinet

Features & Specs

Features

• 3 Extra wide drawers with added support bar to fit large tools
• Full-width, polished extruded aluminum drawer pulls
• Patented Quick Release self-latching drawer pulls keep drawers closed even when moving
• 25" Cabinet depth
• Full-extension ball bearing slides on drawers allow drawers to open and close smoothly
• Ball bearing slides load rated 150 lbs. per set of slides drawer
• Deep drawers with 2 sets of slides hold up to 300 lbs.
• Heavy duty steel caster channel/bottom frame construction
• AkzoNobel high gloss powder coat finish
• Tubular, coded security lock and keys
• Tubular stainless steel side handle on roller cabinet included
• Six 6"x 2" Caster (4 locking swivels and 2 rigid)
• PVC drawer liners included

Drawer Inside Dimensions

• 1 Drawer: 50.5"W x 22.1"D x 5.1"H
• 2 Drawers: 50.5"W x 22.1"D x 2.2"H
• 8 Drawers: 14.8"W x 22.1"D x 2.2"H
• 2 Drawers: 14.8"W x 22.1"D x 11.0"H
• 3 Drawers: 33.1"W x 22.1"D x 2.2"H
• 2 Drawers: 33.1"W x 22.1"D x 5.1"H
• 1 Drawer: 14.8"W x 22.1"D x 5.1"H

• Overall Dimensions: 72"W x 25"D x 47"H
• Total Capacity: 21.73cubic feet

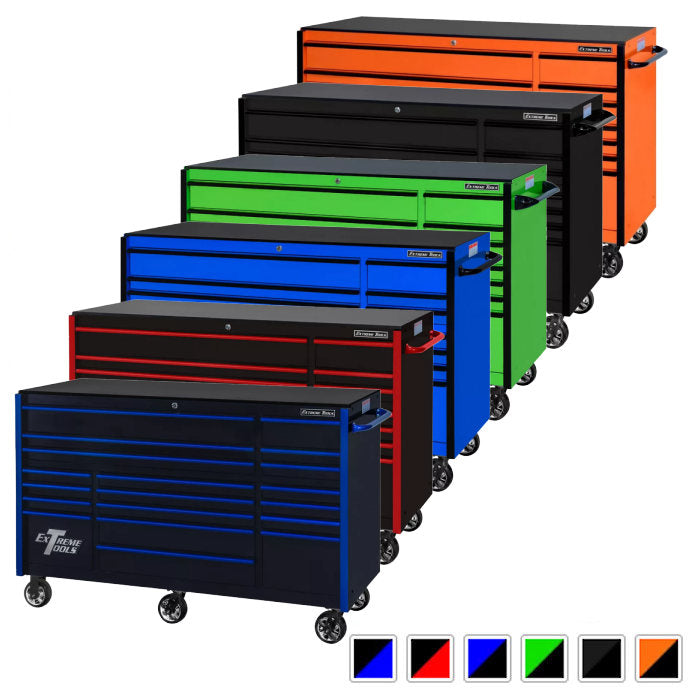

• Color Selection: Black-Blue, Black-Red, Blue-Black, Green-Black, Matte Black-Black, Orange-Black
• Top Panel: 19 gauge
• Bottom Panel: 21 gauge
• Top Reinforce Support: 21 gauge
• Inner Panel: 19 gauge
• Drawer Front: 18 gauge
• Drawer Back: 21 gauge
• Drawer Body: 18, 21 gauge
• Caster Channel Gauge: 14
• Number of Drawers: 12
• Sets of Drawer Slides: 19 (Full-extension ball bearing slides)
• Drawer Load Rating: 150 lbs. per set of slide
• Drawer Pulls: High polished AL extrusion Quick Release
• Drawer Liner: Quiet ride foam
• Finish: German AkzoNobel High Gloss Powder Coat
• Vertical Side Trim: 2 polished AL trims to be installed by using 3M adhesive on outer vertical frame
• Cabinet Handle: Matching color of steel finish formed tubing handle
• Lock Style: ABA Tubular coded lock and chrome plated bezel & keys EX01, EX02, EX03 and EX04
• Caster Type: 6 Mag wheel casters: 4 lockable swivel, 2 rigid
• Drawer Handle: polished AL extrusion parts per drawings and sample parts
• Work Surface: 15 mm MDF top with both side lamination and PVC glued edges
• Series: RX Professional Series
• Size: 72"
• Product Materials: Steel / Aluminum
• Caster Capacity: 900 lbs. per caster
• Caster Size: 6"x 2"
• Side Handles: 1
• Back Panel: 18 gauge
• Side Panels: 18 gauge
• Net Weight: 661 lbs.
• Shipping Weight: 835 lbs.
• RX Series Warranty: (5) Years Structural, (1) Year Finish & Aluminum Components

Extreme Tools Inc. Limited Warranties Tool Storage Products
Extreme Tools, Inc. Limited Warranties warrant our products to be free from defects in workmanship and materials under normal use from the date of original purchase for the specified period of time as outlined below by product series or individual item:

• EX Professional Series: Limited Lifetime Warranty (excludes electronic components-see below):
• Includes EX2404SC, EX5501HC, EX5510CH, EX5511RC, EX7201HC, EX7215CH, EX7217RC, EX7612RC only
• EX Standard Series: Limited 5-Year Warranty (excludes electronic components-see below)
• PWS Series: Limited 5-Year Warranty (excludes electronic components-see below)
• Please note: PWS4105 41" Deluxe Extreme Portable Workstation is not weather proof and is not meant to be used/transported as a road box - warranty does NOT cover damage/defect from outdoor or on road use.
• RX and THD Series: Limited 5-Year Structural Warranty, Limited One-Year Warranty on finish and aluminum components
• (excludes electronic components-see below)
• TX Series:
• a.) Pit Boxes: Limited 5-Year Structural Warranty; Limited One-Year Warranty on hydraulic and wheel components;
• b.) Road Boxes: Limited One-Year Warranty on structural components, Limited 90-Day Warranty on finish, aluminum and electronic components
• Please note: Extreme Tools Road Boxes are intended for on road use only. Product damage may occur during off-road transport/usage and is not considered to be a defect in product. Off-road usage is not covered by the Limited One-Year Warranty and will void product warranty.
• EX3106TC Tool Cart: Limited 1-Year Warranty
• 90 Day Limited Warranty: all electrical components contained in or on any Extreme Tools tool box or accessory

Limited Warranties, no matter the duration, do not apply to products that have been subjected to abnormal use. Abnormal use includes, but is not limited to misuse, abuse, damage by accident, modification, unreasonable use, neglect, lack of maintenance, situations when a unit is pulled using a mechanical vehicle, used in any type of over the road usage, rolled over large drops, used in a corrosive environment, modified with non-Extreme Tools parts, overloaded or used in a manner other than for tool storage.

To activate your warranty, a copy of the receipt must be mailed along with the warranty card completely filled out and returned to Extreme Tools within 30 days of purchase. Extreme Tools obligation to repair or replace defective parts in accordance with the terms set forth herein shall be at the discretion of Extreme Tools and is the buyer's sole and exclusive remedy. Extreme Tools shall not be liable for any damage for loss of the product or consequential damages of any kind. The company neither assumes nor authorizes any other person to assume for it, any other liabilities beyond the conditions set forth in this warranty, in connection with the product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you believe product is defective, please call Extreme Tools at 630.369.9303 or email warranty@extremetools.com. We will require pictures of the defect, the model number, the serial number, the date of purchase and a description of the issue. If the product is defective, we will replace the defective part at no cost to you. Please do not ship your product back to the store, distributor, or to Extreme Tools unless we send you written instructions for return. In the event that it becomes necessary for your product to be returned, we will notify you as to how to proceed with a return goods number (RGA). A copy of your original purchase receipt must accompany the return.

Extreme Tools shall not be liable for, nor shall this warranty include or apply to, any loss or damage caused by or resulting from the following; (1) Use of the product in a manner other than as specified in this product manual; use of the product beyond its rated capacity or specifications; (2) Modification, alteration or repair not performed by Extreme Tools or its authorized subcontractors or third parties approved by Extreme Tools ; (3) Floods, Fires, earthquakes, tornado, vandalism or other acts of nature, including windstorms, lightning and hail damage or any other insurable loss under standard fire and extended coverage plans; (4) Abuse, misuse, negligence handling, improper or inadequate maintenance, tampering, or accident; chemicals that can damage powder coat finish or causing rust; (5) Accessories, alterations, attachments or other devices not furnished by the company or (6) Failure of buyer to follow operating procedures or the instructions of the company, or to provide a suitable operating environment. All customers receiving shipments of Extreme Tools products are responsible to inspect shipments before accepting. Extreme Tools will not be responsible after shipment of product is accepted if product is damaged or has missing parts.

Warning

• Do not open more than one drawer at a time.
• Keep children away from tool boxes
• Lock drawers before moving
• Apply brakes on casters when not moving unit.
• Do not step in or on drawer.

Tools and materials shown on Extreme Tools or any other website are not included unless specified.
