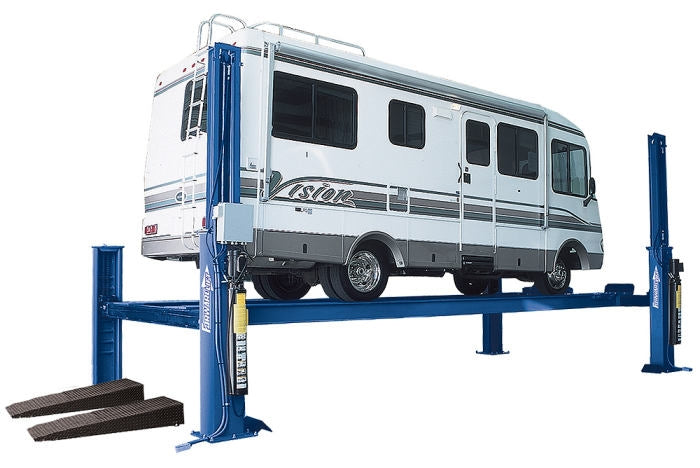

Forward Lift CR40 Four Post Heavy Duty Lift

Features & Specs

Features

• Safety locking latches in each leg for maximum lifting security
• Heavy-duty chains ensure runways are level throughout the lifting process
• I-beam construction in runways for maximum capacity
• Fully adjustable runway track width to accommodate any vehicle
• 24" non-skid runway surface allows a sure grip for tires and technicians
• Two 2-HP motors and two cylinders provide the stability and tremendous lifting power required for the largest vehicles
• Front wheel stops can easily be replaced with optional drive-thru ramps
• Low maintenance - proven durability
• Alignment designs available

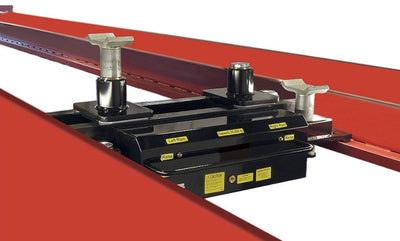

• High capacity rolling jacks available
• Internal Air Line Kit
• Standard 3-phase motor kit

Specifications

• Capacity: 40,000 lbs. (18411kg)
• Rise: 68" (1727mm)
• Maximum Wheelbase: 300" (7620mm)
• Overall Length: 412" (10465mm)
• Overall Width: 171" (4343mm)
• Width Between Columns: 142" (3607mm)
• Overall Height: 154" (3912mm)
• Runway Width: 24" (610mm)
• Runway Height: 9" (229mm)
• Width Between Runways (Min/Max): 40" - 82" (1016mm - 2083mm)
• Rise Time: 100 seconds
• Voltage: 208/230V 3-Ph
• Amperage: 25
• Motor: 2HP x 2
• Warranty: (5) Years on Structure, (1) Year on Parts, (1) Year Labor

Forward Lift Warranty Statement
All Forward Lift products are warranted to the original owner. Forward lifts are warranted for 5 years from invoice date on structural components (columns, arms, runways, and carriages) to be free of defects in material and workmanship. Non-structure items (cylinder, power unit and parts) are warranted for 12 months from invoice date. Forward Lift shall pay for reasonable costs of labor and transportation for replacement of said parts for the first twelve months.

All accessories are warranted for 1 year from invoice date to the original owner (parts only). Optional twenty four month Extended parts warranty (non-structural items) is available upon request at an additional charge. This warranty shall not apply unless the product is installed, operated, used and maintained in accordance with Forward Lift specifications set forth in the installation, operation and maintenance instructions. This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall Forward Lift or any sales agent be liable for any special, consequential or incidental damages of any kind including damages for breach of or delay in performance of the warranty. This warranty shall be governed under the laws of the State of Indiana, and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson. This warranty does not apply to the following:

• Normal wear and tear items such as cables, sheaves, sliders, plastic and rubber components.
• Normal maintenance and adjustments as required by the owner's manual.
• Failure to follow installation and operation instructions or user neglect or abuse.
• Damage to components incurred during transportation or unloading.
• Any lift that has been altered from the original design or improperly repaired.
• Cosmetic defects or blemishes that do not interfere with functionality of the lift.
• Damage caused by improper lifting or overloading.
• Damage caused by corrosion of any kind.

*Specifications subject to change without notice or liability.
