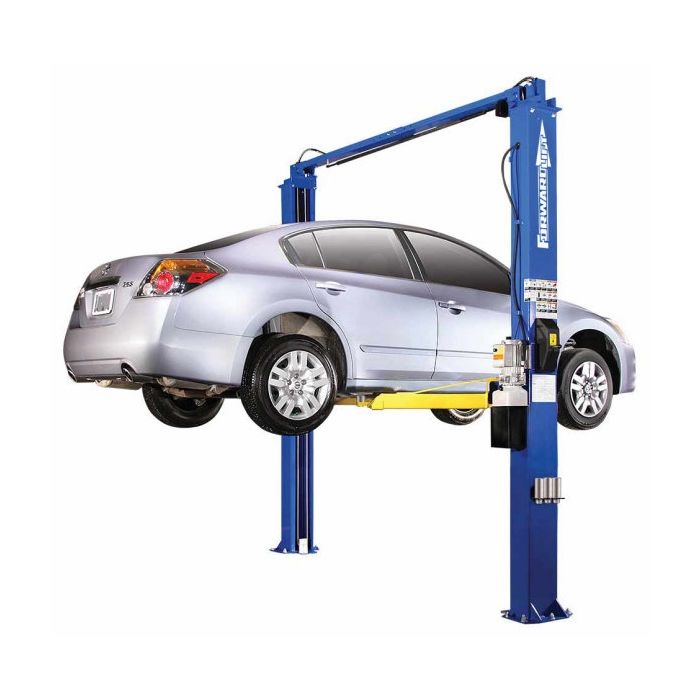

Forward Lift DP10A Two Post Lift

Features & Specs

Features

• 10,000 lbs. capacity for raising most passenger cars, trucks and vans
• Direct-Pull Lifting - high efficiency, low maintenance technology
• Closed loop hydraulic system - preventing hydraulic contamination
• Powder coat, oven baked finish - more durable than conventional coatings
• Third party tested by ETL and certifed by ALI
• Padded shut-off bar
• Spring operated arm restraints, disengage at floor level

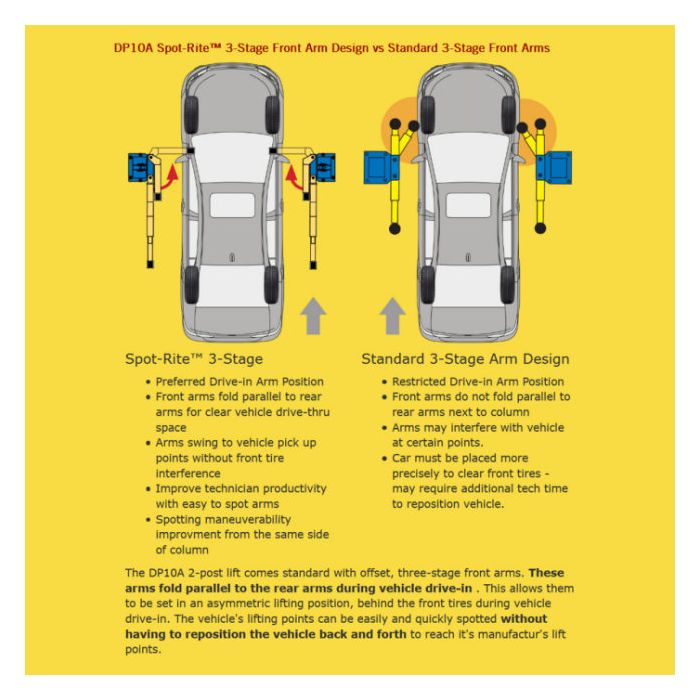

• Low profile arms
• Single point release lock in each column, resets on upstroke

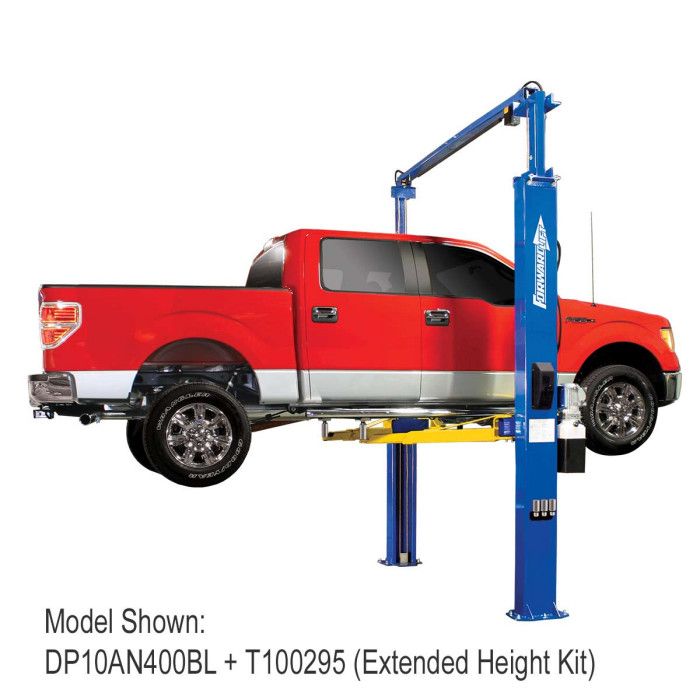

• Optional high rise and extended height available
• Door bumpers included

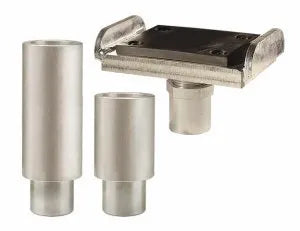

• Includes adapter extensions and storage bracket
• Available In Powder Coat Blue & Red

Specifications

• Capacity: 10,000 lbs. (4535kg)
• Max. Rise w/5" extension: 76-1/4" (1937mm)
• Overall Height: 143" (3632mm)
• Overall Width: 131" or optional 137" (3327mm / 4380mm)
• Drive Through Clearance: 99" or optional 105" (2515mm / 2667mm)
• Overhead Switch Height: 137-5/8" (3496mm)
• Front Reach: 23"- 44-1/2" (584mm – 1130mm)
• Rear Reach: 36"- 58" (914mm – 1473mm)
• Min/Max Adapter Height: 3-3/4" (95mm) no adapter extension
• Min/Max Adapter Height: 8-3/4" (222mm) w/5" adapter extension
• Width Inside Column: 109" or optional 115" (2769mm / 2921mm)
• Voltage: 208/230, 15 amps; 208/230, 16 amps
• Motor: 1ph/2HP/60Hz
• Ceiling Height Required: 144" (3658mm)
• Warranty: (5) Years on Structure, (1) Year on Parts, (1) Year Labor

Forward Lift Warranty Statement
All Forward Lift products are warranted to the original owner. Forward lifts are warranted for 5 years from invoice date on structural components (columns, arms, runways, and carriages) to be free of defects in material and workmanship. Non-structure items (cylinder, power unit and parts) are warranted for 12 months from invoice date. Forward Lift shall pay for reasonable costs of labor and transportation for replacement of said parts for the first twelve months.

All accessories are warranted for 1 year from invoice date to the original owner (parts only). Optional twenty four month Extended parts warranty (non-structural items) is available upon request at an additional charge. This warranty shall not apply unless the product is installed, operated, used and maintained in accordance with Forward Lift specifications set forth in the installation, operation and maintenance instructions. This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall Forward Lift or any sales agent be liable for any special, consequential or incidental damages of any kind including damages for breach of or delay in performance of the warranty. This warranty shall be governed under the laws of the State of Indiana, and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson. This warranty does not apply to the following:

• Normal wear and tear items such as cables, sheaves, sliders, plastic and rubber components.
• Normal maintenance and adjustments as required by the owner's manual.
• Failure to follow installation and operation instructions or user neglect or abuse.
• Damage to components incurred during transportation or unloading.
• Any lift that has been altered from the original design or improperly repaired.
• Cosmetic defects or blemishes that do not interfere with functionality of the lift.
• Damage caused by improper lifting or overloading.
• Damage caused by corrosion of any kind.

*Specifications subject to change without notice or liability.
