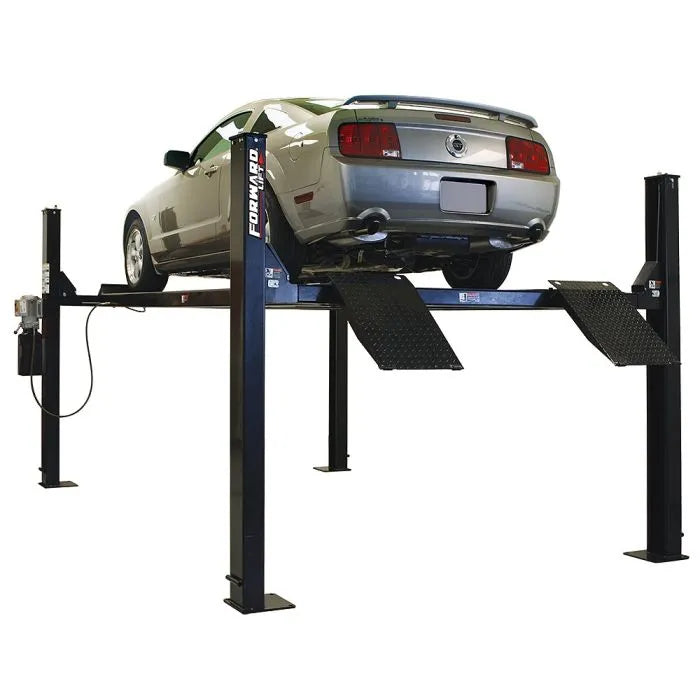

Forward Lift EFP8 Four Post Home / Hobby Car Lift
8,000 lbs. Capacity
The EFP8 is a Forward Lift so it has been engineered to perform and built to last! The EFP8 features an 8,000 lbs. lifting capacity, and an exclusive adjustable lock ladder leveling system which enables level runways at all lock heights - even on uneven floors. The EFP8 has multiple lock positions which allow you to work at a comfortable height or store a vehicle at a height that works with your ceiling height. The power unit can be mounted to any column that works best for your garage. The power unit can be mounted on the front of the column for additional space with the optional 90° power unit bracket. Forward Lift's EFP8 is ALI and ETL Certified.

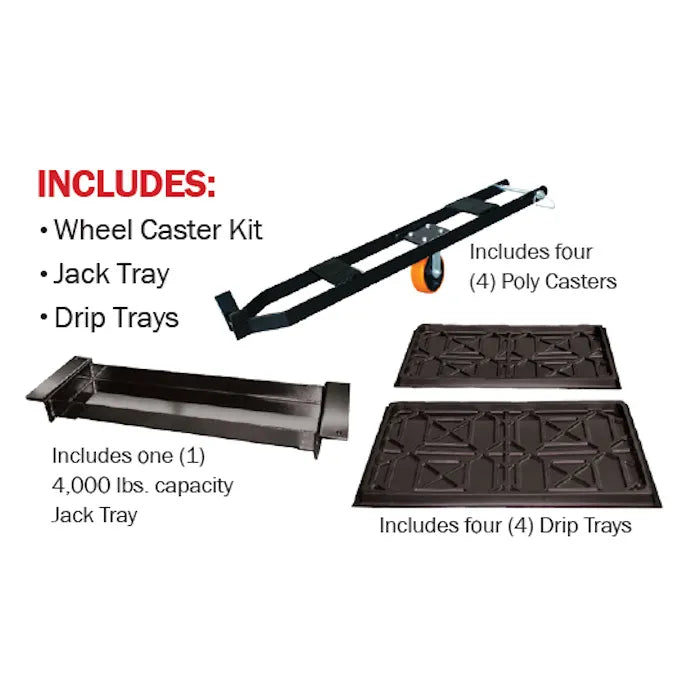

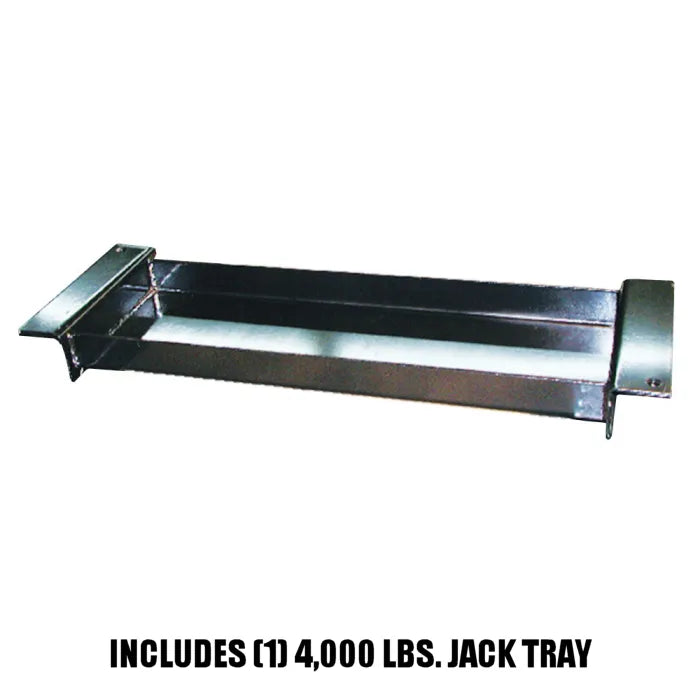

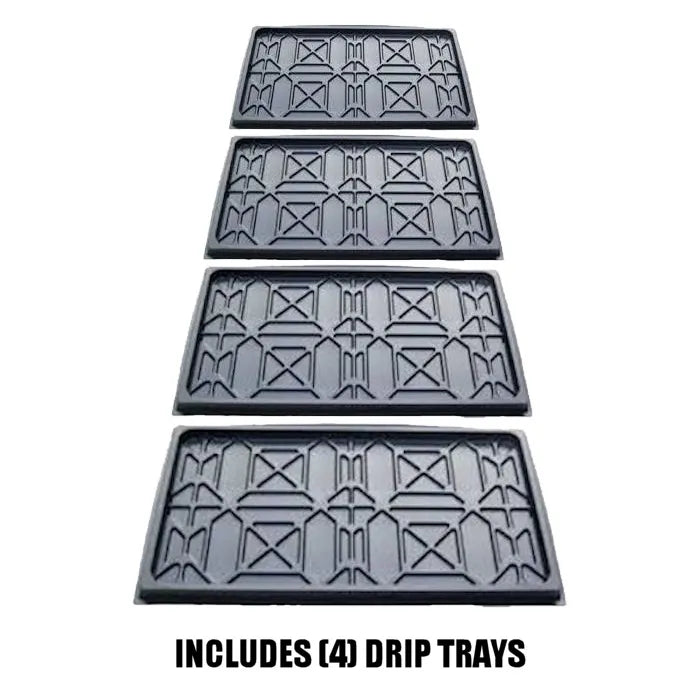

Includes: (2) Approach Ramps, (1) 4,000 lbs. Jack Tray, (4) Poly Caster Wheel Kit, and (4) Drip Trays.

Description

Forward Lift

Forward Lift EFP8 Four Post Home / Hobby Car Lift
8,000 lbs. Capacity

The EFP8 is a Forward Lift so it has been engineered to perform and built to last! The EFP8 features an 8,000 lbs. lifting capacity, and an exclusive adjustable lock ladder leveling system which enables level runways at all lock heights - even on uneven floors. The EFP8 has multiple lock positions which allow you to work at a comfortable height or store a vehicle at a height that works with your ceiling height. The power unit can be mounted to any column that works best for your garage. The power unit can be mounted on the front of the column for additional space with the optional 90° power unit bracket. Forward Lift's EFP8 is ALI and ETL Certified.

Includes: (2) Approach Ramps, (1) 4,000 lbs. Jack Tray, (4) Poly Caster Wheel Kit, and (4) Drip Trays.

Newly Designed 300 Series Features
  1. Runway width has increased to 20" to better accommodate vehicles with wide tracks and tires. As a result, the outside of runway to outside of runway distance will increase 3"to 78". The inside runway clearance will stay the same at 38". Additionally, the runway will also be formed upward on the inside to support drip trays, jacking tray, rolling jacks and floor panels.
  2. New jacking tray (part# H4D-6000G) and new pro-floor 8 panels (part# PP8S3-5000) are 3/8" shallower to work with the new runway design.
  3. The RJ40 rolling jack replaces the RJ35 and has ends with rollers, just like the RRJ45, to work with the new runway design.
  4. Runways and ramps will be constructed of flat powder painted steel instead of diamond plate.
  5. The power unit will also be able to be mounted on the front or rear column.
These improvements strengthen the link of the 8,000 lbs. capacity EP8 and the 9,000 lbs. capacity EFP9 lifts, which already comes with these improvements, creating high customer value across the entire enthusiast four-post product family.

What Forward Thinkers Look For In A Four Post Lift

You look for solid construction and Forward Lift has that, with our sturdy cable systems and network of pulleys you won't have to worry about problems once the lift is installed. Unlike other lifts that just throw more weight at the overall structure we engineer performance into our lifts. Powder coated paint finishes and textured surfaces also keep your lift looking great for years to come. Greaseless pivot pins and sheave systems mean you work more on the vehicle being lifted rather than the lift.

Engineering Excellence. Forward's U.S. engineers have over 29 years of combined experience designing automotive lifts for service and repair shops. Forward's philosophy is to own our designs rather than use someone else’s off the shelf product.

Product Integrity. 21st century design tools allow us to create, control and validate our designs to ensure maximum performance. Forward lifts are thoroughly tested to meet quality and durability standards. All product families are proof load tested to 1-1/2 times rated capacity and rigorously cycle tested.

Features & Specs

Features
  • 8,000 lbs. Capacity

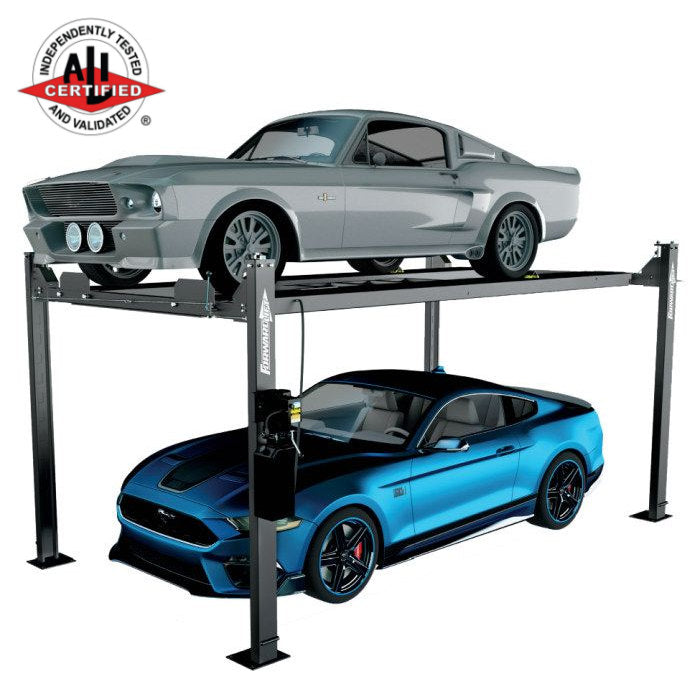

  • ALI/ETL Certified
  • Exclusive Adjustable Lock Ladder Leveling System
  • Enables Level Runway at All Lock Heights - Even on Uneven Floors
  • Multiple Height Lock Positions to Work At Comfortable Height

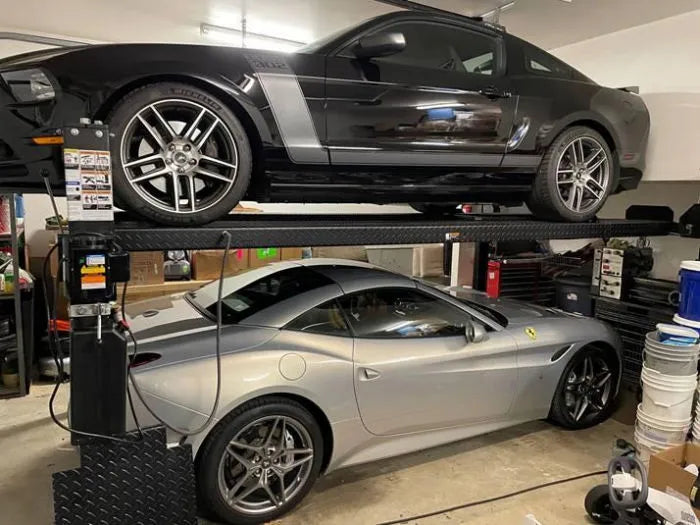

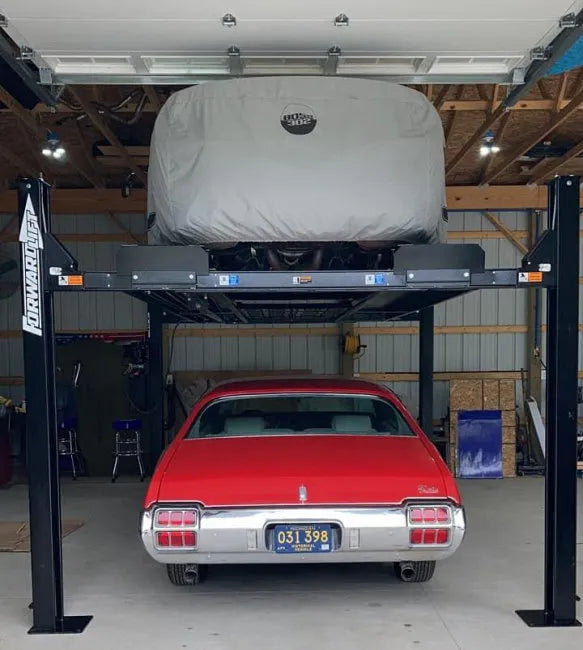

  • Store Vehicle at Height that Works with Your Ceiling Height
  • Power Unit and Single Point Lock Release on Same Column
  • Mount Power Unit and Lock Release to Column that Works Best for Your Garage
  • Durable Black Powder Coat Finish
  • Includes Steel Approach Ramps
  • Includes 4,000 lbs. Jack Tray

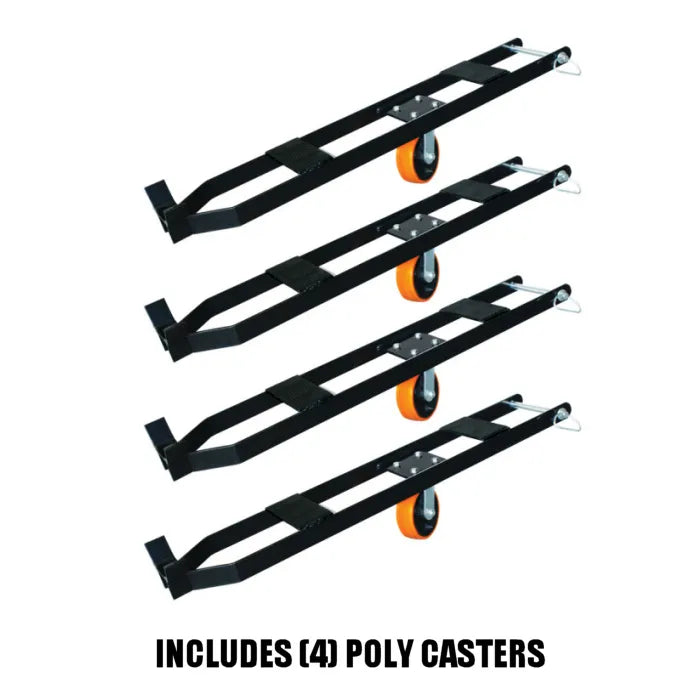

  • Includes Poly Caster Wheel Kit
  • Includes Drip Trays
  • Commercial Grade Lift - Perfect for Shop or Home Use

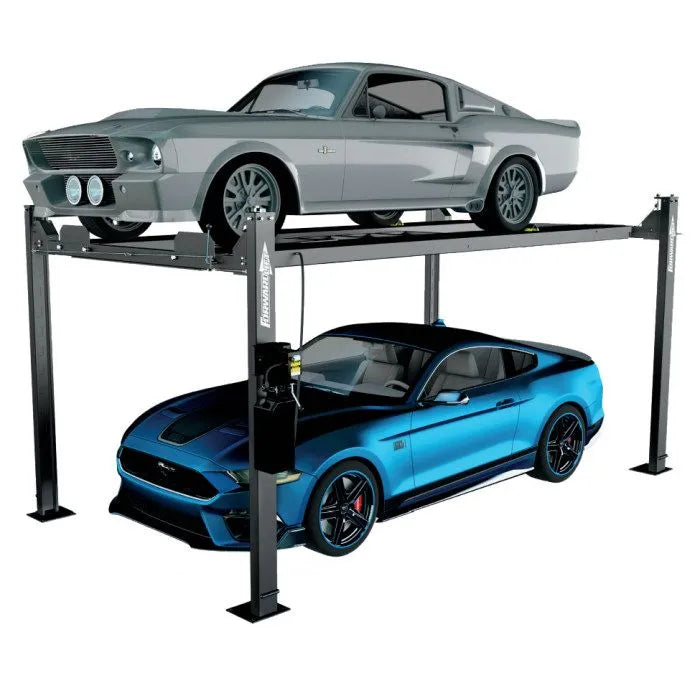

  • Double Your Parking Space Instantly!
  • Powered with Standard 115V Plug Included
Newly Designed 300 Series Features
  • Runway Width Increased to 20"
  • Runway Formed Upward to Support Drip Trays, Jacking Tray, and Floor Panels
  • New Jacking Tray 3/8" Shallower to Work with the New Runway Design
  • New Optional RJ40 Rolling Jack to Work with the New Runway Design
  • Runways and Ramps Constructed of Flat Powder Painted Steel Instead of Diamond Plate
  • Power Unit Able to be Mounted on the Front or Rear Columns
These improvements strengthen the link of the 8,000 lbs. capacity EP8 and the 9,000 lbs. capacity EFP9 lifts, which already comes with these improvements, creating high customer value across the entire enthusiast four-post product family.

Optional Accessories

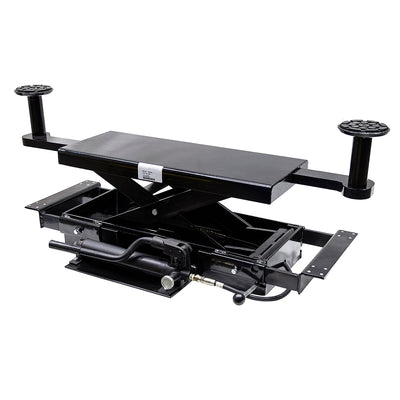

  • RJ40 4,000 lbs. Capacity Rolling Jack with Hydraulic Hand Pump
  • 90° Power Unit Bracket Moved Power Unit to Front of Column for More Space

Specifications

  • Capacity 8,000 lbs.
  • Maximum Rise: 72 1/2"
  • Clearance Under Runway: 68"
  • Overall Length with Approach Ramps: 17' 3 1/2"
  • Overall Length without Approach Ramps: 14' 7 1/2"
  • Overall Width with Motor: 9' 7"
  • Overall Width without Motor: 8' 7 1/2"
  • Approach Ramp Length: 37"
  • Runway Width: 20"
  • Runway Length: 169 1/2"
  • Runway Height: 4 1/2"
  • Drive Thru Width: 80 1/2"
  • Column Height: 6' 9 1/2"
  • Clearance Between Columns: 94"
  • Clearance Between Runways: 38"
  • Outside Runway to Outside Runway: 78"
  • Motor: 115VAC, 1HP
  • Certifications: ALI/ETL Gold Certified
  • Warranty: 5 Years Structure, 1 Year Functional, 1 Year Labor
  • Extended Warranty Available: Additional $90.00 for 18 month Extended Parts Warranty

Forward Lift Warranty Statement
All Forward Lift products are warranted to the original owner. Forward lifts are warranted for 5 years from invoice date on structural components (columns, arms, runways, and carriages) to be free of defects in material and workmanship. Non-structure items (cylinder, power unit and parts) are warranted for 12 months from invoice date. Forward Lift shall pay for reasonable costs of labor and transportation for replacement of said parts for the first twelve months.

All accessories are warranted for 1 year from invoice date to the original owner (parts only). Optional twenty four month Extended parts warranty (non-structural items) is available upon request at an additional charge. This warranty shall not apply unless the product is installed, operated, used and maintained in accordance with Forward Lift specifications set forth in the installation, operation and maintenance instructions. This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall Forward Lift or any sales agent be liable for any special, consequential or incidental damages of any kind including damages for breach of or delay in performance of the warranty. This warranty shall be governed under the laws of the State of Indiana, and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson. This warranty does not apply to the following:

  • Normal wear and tear items such as cables, sheaves, sliders, plastic and rubber components.
  • Normal maintenance and adjustments as required by the owner's manual.
  • Failure to follow installation and operation instructions or user neglect or abuse.
  • Damage to components incurred during transportation or unloading.
  • Any lift that has been altered from the original design or improperly repaired.
  • Cosmetic defects or blemishes that do not interfere with functionality of the lift.
  • Damage caused by improper lifting or overloading.
  • Damage caused by corrosion of any kind.
