Forward Lift I12N303 Pro 143" Two Post Lift 12,000 lbs. Capacity

Name: Forward Lift I12N303 Pro 143" Two Post Lift 12,000 lbs. Capacity
Brand: ASEDeals
SKU: I12N303
Price: 10435.0 USD
Availability: InStock

In Stock SKU I12N303

OUR PRICE: $10,435.00

Regular Price: $10,959.00

$299.00 / mo

INCLUDES FREE SHIPPING*

Short Description

Forward Lift I12N303 Pro 143" Two Post Lift 12,000 lbs. Capacity
Symmetrical Columns with Three-Stage Front & Rear Arms

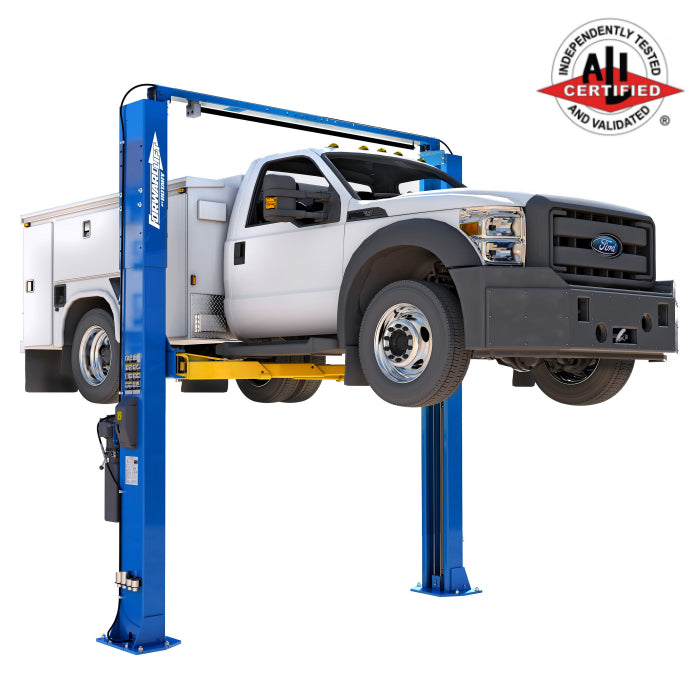

Forward's I12 two post lift is gold certified with a 12,000 pound capacity for raising most passenger cars, trucks and vans. With two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize down-time. Cylinders are located in each column concealed within the carriage itself. Durable powder coat finish provides exceptional protection from the wears a shop will see over the years. Forwards spring operated arm restraints are just one feature that keep these heavy duty lift arms constantly performing at their peak. The I12 Two Post Lift is ALI and ETL Certified.

Forward's I12 Pro models now feature a new improved high-speed motor power unit.

CURRENT LEAD TIME 2 WEEKS

Description

Forward Lift I12N303 Pro 143" Two Post Lift 12,000 lbs. Capacity
Symmetrical Columns with Three-Stage Front & Rear Arms

Forward's I12 two post lift is gold certified with a 12,000 pound capacity for raising most passenger cars, trucks and vans. With two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize down-time. Cylinders are located in each column concealed within the carriage itself. Durable powder coat finish provides exceptional protection from the wears a shop will see over the years. Forwards spring operated arm restraints are just one feature that keep these heavy duty lift arms constantly performing at their peak. The I12 Two Post Lift is ALI and ETL Certified.

Forward's I12 Pro models now feature a new improved high-speed motor power unit.

The I12 is a commercial grade car lift and should not be confused with any other cheap two post vehicle lifts. This is a Forward lift so it has been engineered to perform and built to last!

The I12 lift is certified by ALI (Automotive Lift Institute) to meet American National Standard.

Front & Back Three-Stage Arms
This I12 has our special three-stage arm design in the front and back arms, which provides added versatility regarding the types of vehicles you need and want to service. Forward's spring-operated arm restraints are just one feature that keeps these heavy-duty lift arms constantly performing at their peak.

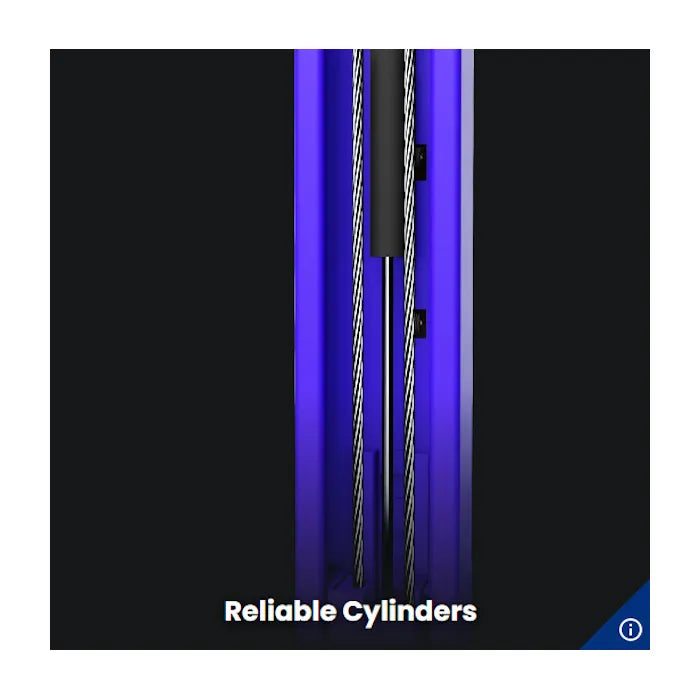

Reliable Cylinders
The cylinders on this lift are well-engineered and reliable. There are hydraulic cylinders in each column. They operate using direct pull-lifting technology. They are top-mounted and full-stroke. The cylinder rod is concealed inside the carriage.

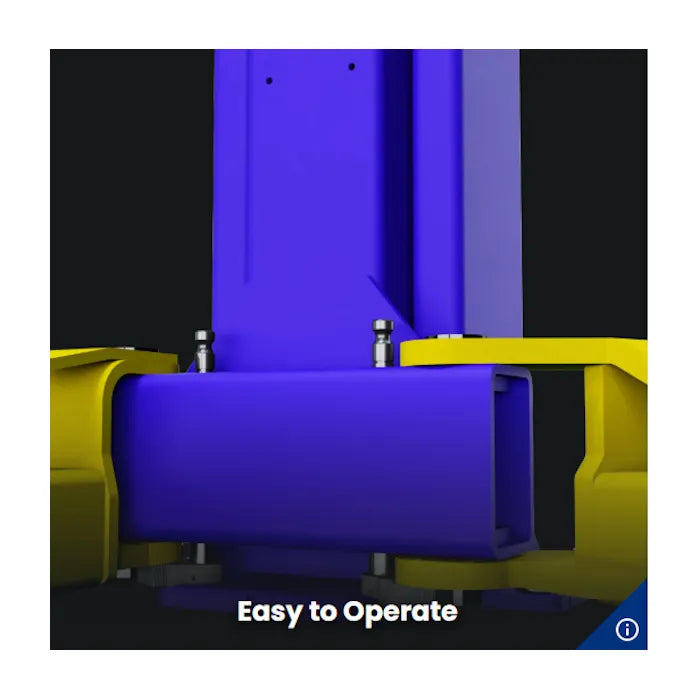

Easy To Operate
This lift features a single-point lock release for easy operation.

Engineering Excellence
Forward's U.S. engineers have over 29 years of combined experience designing automotive lifts for service and repair shops. Forward's philosophy is to own our designs rather than use someone else's off the shelf product.

Product Integrity
21st century design tools allow us to create, control and validate our designs to ensure maximum performance. Forward lifts are thoroughly tested to meet quality and durability standards. All product families are proof load tested to 1-1/2 times rated capacity and rigorously cycle tested.

Features & Specs

New Features

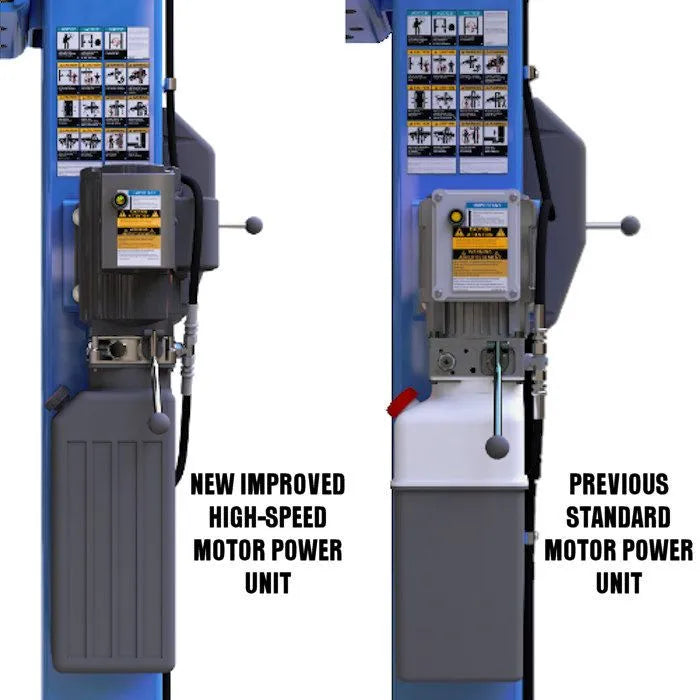

New Improved High-Speed Motor Power Unit

Features

12,000 lbs. Lifting Capacity
Symmetrical Column Design
3-Stage Front and 3-Stage Rear Arms

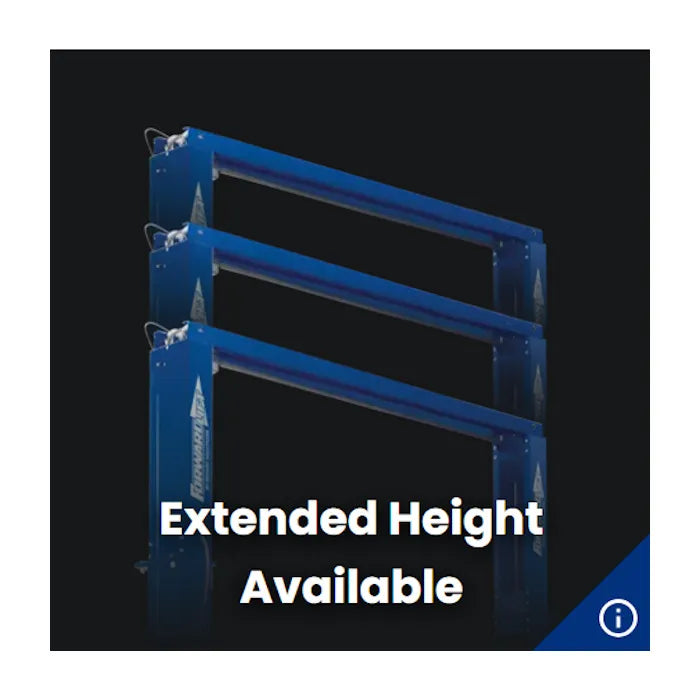

Four Height Configuration Models For Most Ceiling Heights
Adjustable Width Options
Overhead Cable Equalization
Single Point Lock Release
Hydraulic Cylinders In Each Column
Top-Mounted Cylinder Rod Concealed Inside Carriage
Spring-Operated Arm Restraints Disengage At Floor Level

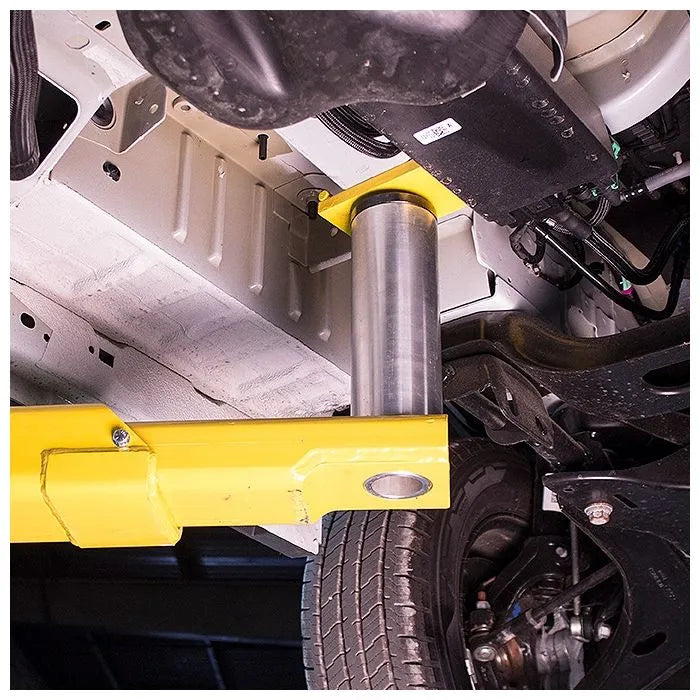

Includes Large Low-Profile Rubber Padded Drop-In Adapters

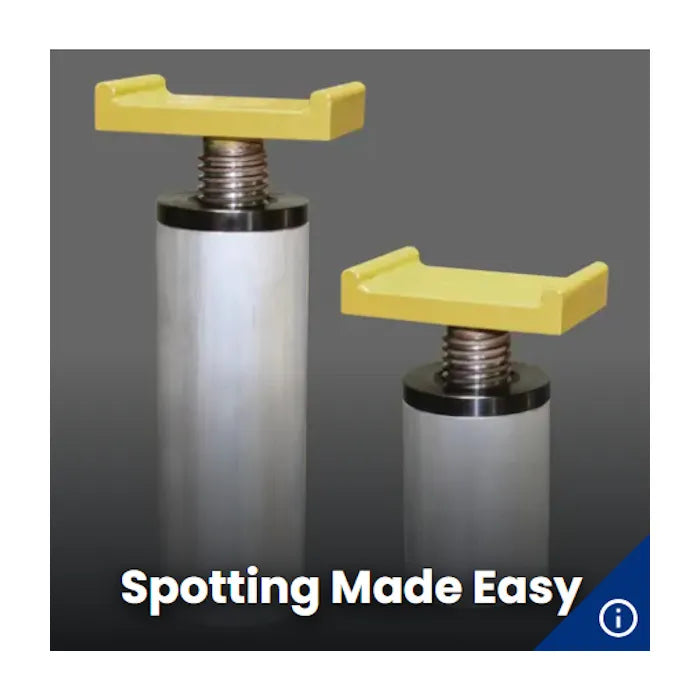

Includes 1-3/4", 3-1/2", And 5" Extensions

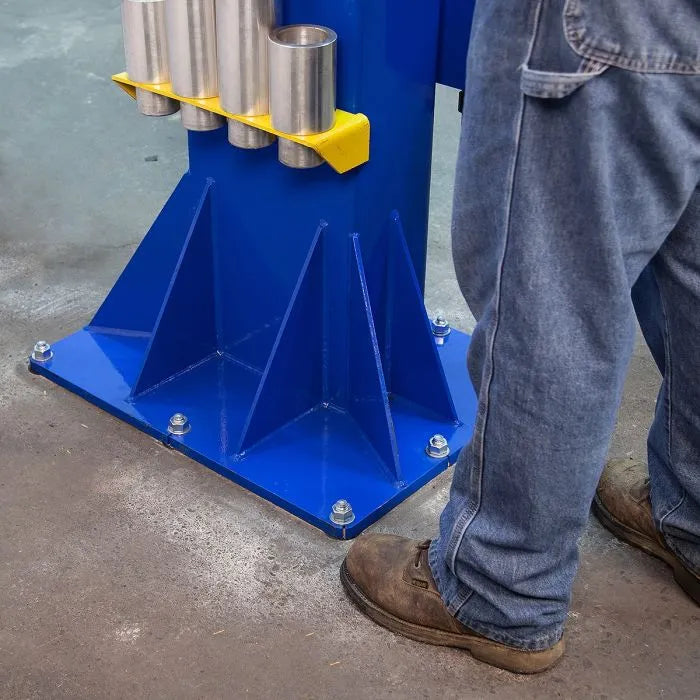

Includes Adapter Storage Bracket
Durable Powder Coated Oven Baked Finish
Third Party Tested by ETL And Certified By ALI

Specifications

Model Number	I12N300	I12N301	I12N302	I12N303
Lifting Capacity	12,000 lbs.	12,000 lbs.	12,000 lbs.	12,000 lbs.
Maximum Rise	77-1/2" With 5" Extension	77-1/2" With 5" Extension	77-1/2" With 5" Extension	77-1/2" With 5" Extension
Overall Height	13' 10"	14' 10"	12' 10"	11' 11"
Overall Width	11' 8" or 12' 2"	11' 8" or 12' 2"	11' 8" or 12' 2"	11' 8" or 12' 2"
Drive Through Clearance	102-3/4" or 108-3/4"	102-3/4" or 108-3/4"	102-3/4" or 108-3/4"	102-3/4" or 108-3/4"
Overhead Switch Height	160-1/8"	172-1/8"	148-1/8"	137-1/8"
Arm Configurationg	3-Stage Front 3-Stage Rear	3-Stage Front 3-Stage Rear	3-Stage Front 3-Stage Rear	3-Stage Front 3-Stage Rear
Front Arm Reach Min / Max	27-5/8" / 59"	27-5/8" / 59"	27-5/8" / 59"	27-5/8" / 59"
Rear Arm Reach Min / Max	27-5/8" / 59"	27-5/8" / 59"	27-5/8" / 59"	27-5/8" / 59"
Minimum Pad Height	4-3/4"	4-3/4"	4-3/4"	4-3/4"
Maximum Pad Height	9-3/4" With 5" Extension	9-3/4" With 5" Extension	9-3/4" With 5" Extension	9-3/4" With 5" Extension
Width Inside Columns	114-7/8" or 120-7/8"	114-7/8" or 120-7/8"	114-7/8" or 120-7/8"	114-7/8" or 120-7/8"
Voltage / Amps	208-230V, 17 Amps	208-230V 17 Amps	208-230V 17 Amps	208-230V 17 Amps
Motor / Phase	2 HP, 1 Ph	2 HP, 1 Ph	2 HP, 1 Ph	2 HP, 1 Ph
Ceiling Height Required	168"	180"	156"	145"
Colors Available	Blue, Red or Black	Blue, Red or Black	Blue, Red or Black	Blue, Red or Black

Specifications subject to change without notice or liability.
*Optional 3-phase available at additional cost.

Warranty: (5) Years on Structure, (1) Year on Parts, (1) Year Labor

Forward Lift Warranty Statement
All Forward Lift products are warranted to the original owner. Forward lifts are warranted for 5 years from invoice date on structural components (columns, arms, runways, and carriages) to be free of defects in material and workmanship. Non-structure items (cylinder, power unit and parts) are warranted for 12 months from invoice date. Forward Lift shall pay for reasonable costs of labor and transportation for replacement of said parts for the first twelve months.

All accessories are warranted for 1 year from invoice date to the original owner (parts only). Optional twenty four month Extended parts warranty (non-structural items) is available upon request at an additional charge. This warranty shall not apply unless the product is installed, operated, used and maintained in accordance with Forward Lift specifications set forth in the installation, operation and maintenance instructions. This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall Forward Lift or any sales agent be liable for any special, consequential or incidental damages of any kind including damages for breach of or delay in performance of the warranty. This warranty shall be governed under the laws of the State of Indiana, and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson. This warranty does not apply to the following:

Normal wear and tear items such as cables, sheaves, sliders, plastic and rubber components.
Normal maintenance and adjustments as required by the owner's manual.
Failure to follow installation and operation instructions or user neglect or abuse.
Damage to components incurred during transportation or unloading.
Any lift that has been altered from the original design or improperly repaired.
Cosmetic defects or blemishes that do not interfere with functionality of the lift.
Damage caused by improper lifting or overloading.
Damage caused by corrosion of any kind.

*Specifications subject to change without notice or liability.
