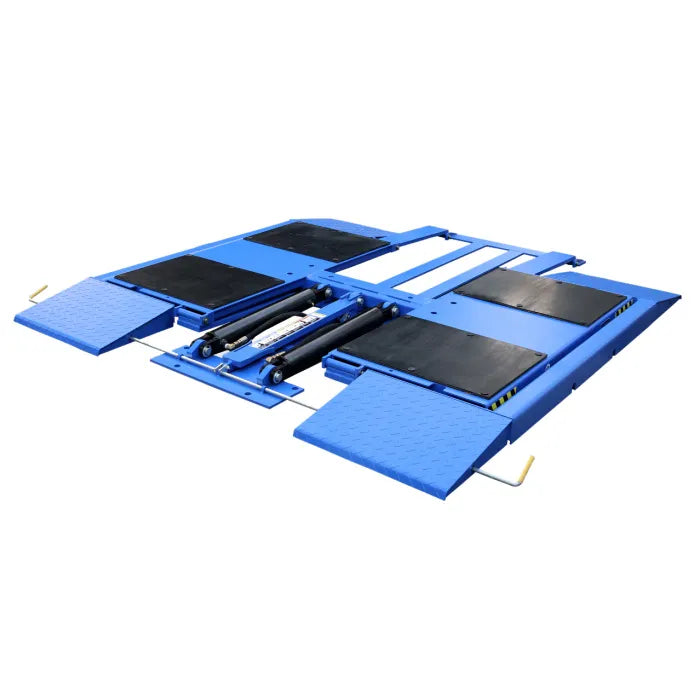

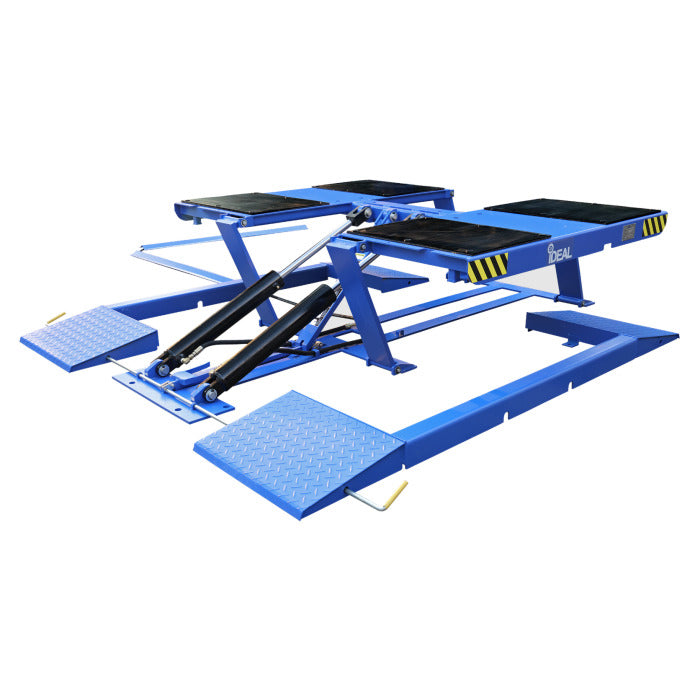

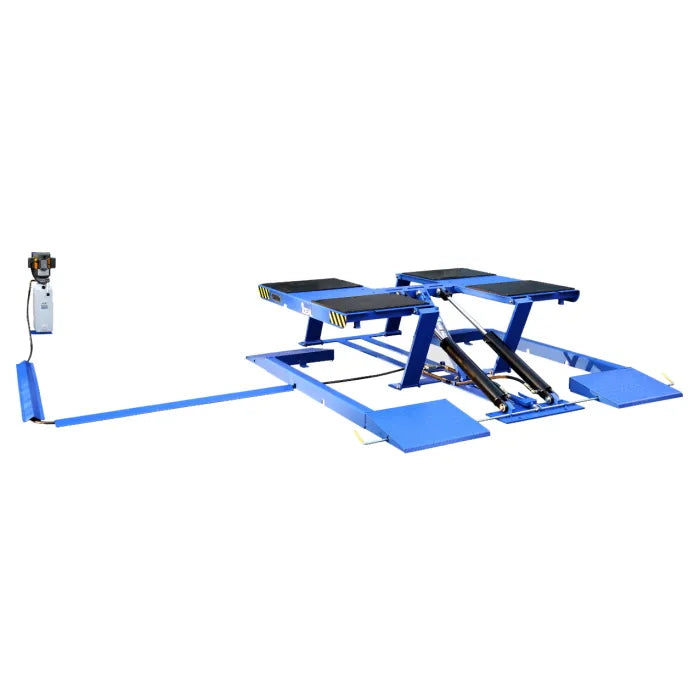

iDEAL LR-10K-TLPAD Low-Rise Commercial Pad Lift
In Stock SKU LR-10K-TLPAD UPC 850049063456
OUR PRICE: $4,590.00
Regular Price: $4,819.00
Short Description
iDEAL LR-10K-TLPAD Low-Rise Commercial Pad Lift
High Performance 10,000 lbs. Lifting Capacity
The iDEAL LR-10K-TLPAD is a 10,000 lbs. low-rise, high performance commercial, vehicle frame contact lift designed for cars, SUVs, vans & trucks. The LR-10K-TLPAD Pad Lift includes the latest in design and safety features including twin hydraulic cylinders, three locking height positions with dual latch releases, durable rubber contact pads, protective hose covers and outer drive-over fixed platform frame allowing for wheel service repairs for a wider range of vehicles, including uni-body vehicles using the included multi-height adapters and rubber pads. The versatility of the pad lift design allows vehicles to be driven-on the pad lift in either direction, while also having the ability to position the hose and power unit to either side of the pad lift, allowing for the best fit in a shop or garage. Easy lift operation is provided with high quality electric / hydraulic 115V DURO power unit, mounted to a pedestal post combined with dual point manual lock release. Optional 220V DURO power unit is also available for faster speed of rise.
High Performance 10,000 lbs. Lifting Capacity
The iDEAL LR-10K-TLPAD is a 10,000 lbs. low-rise, high performance commercial, vehicle frame contact lift designed for cars, SUVs, vans & trucks. The LR-10K-TLPAD Pad Lift includes the latest in design and safety features including twin hydraulic cylinders, three locking height positions with dual latch releases, durable rubber contact pads, protective hose covers and outer drive-over fixed platform frame allowing for wheel service repairs for a wider range of vehicles, including uni-body vehicles using the included multi-height adapters and rubber pads. The versatility of the pad lift design allows vehicles to be driven-on the pad lift in either direction, while also having the ability to position the hose and power unit to either side of the pad lift, allowing for the best fit in a shop or garage. Easy lift operation is provided with high quality electric / hydraulic 115V DURO power unit, mounted to a pedestal post combined with dual point manual lock release. Optional 220V DURO power unit is also available for faster speed of rise.
Description
iDEAL LR-10K-TLPAD Low-Rise Commercial Pad Lift
High Performance 10,000 lbs. Lifting Capacity
The iDEAL LR-10K-TLPAD is a 10,000 lbs. low-rise, high performance commercial, vehicle frame contact lift designed for cars, SUVs, vans & trucks. The LR-10K-TLPAD Pad Lift includes the latest in design and safety features including twin hydraulic cylinders, three locking height positions with dual latch releases, durable rubber contact pads, protective hose covers and outer drive-over fixed platform frame allowing for wheel service repairs for a wider range of vehicles, including uni-body vehicles using the included multi-height adapters and rubber pads. The versatility of the pad lift design allows vehicles to be driven-on the pad lift in either direction, while also having the ability to position the hose and power unit to either side of the pad lift, allowing for the best fit in a shop or garage. Easy lift operation is provided with high quality electric / hydraulic 115V DURO power unit, mounted to a pedestal post combined with dual point manual lock release. Optional 220V DURO power unit is also available for faster speed of rise.
Features & Specs
Features
- 10,000 lbs. Capacity
- Low Rise, Commercial Grade Pad Lift
- Ideal For Express Tire & Wheel Service
- Surface Mount Install Configuration
- Integrated Outer Frame & Ramps Provide Drive-On & Off Clearance For Wide Vehicles
- Latch Release Handles On Each Side Of Lift
- Dual Hydraulic Lift Cylinders
- Diamond Plate Ramps
- Durable Rubber Platform Contact Pads
- 3 Locking Height Positions
- (2) Metal Hose Covers 55" Long
- (4) Standard Heavy-Duty Multi-Position Height Adapters
- (4) Standard 1.5" Rubber Pads

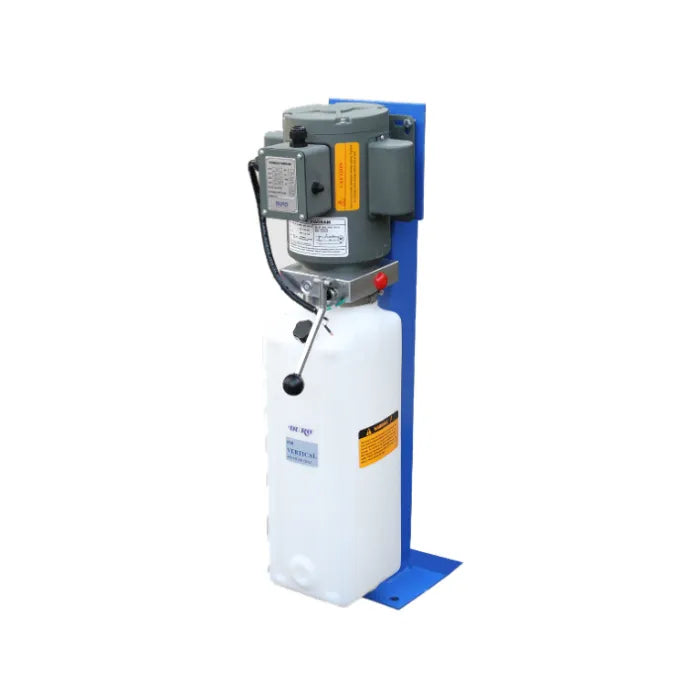

- High Quality DURO Power Unit
- Power Unit Pedestal Stand
- Durable Powder Coat Finish

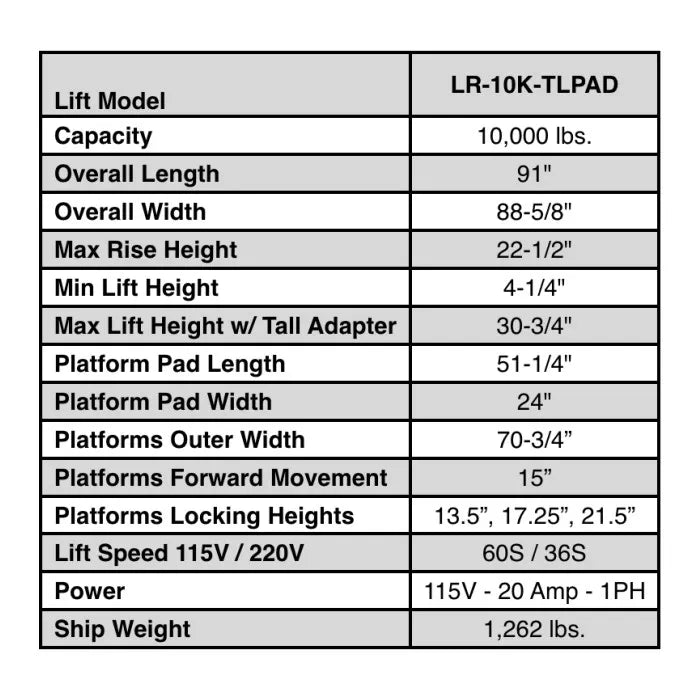

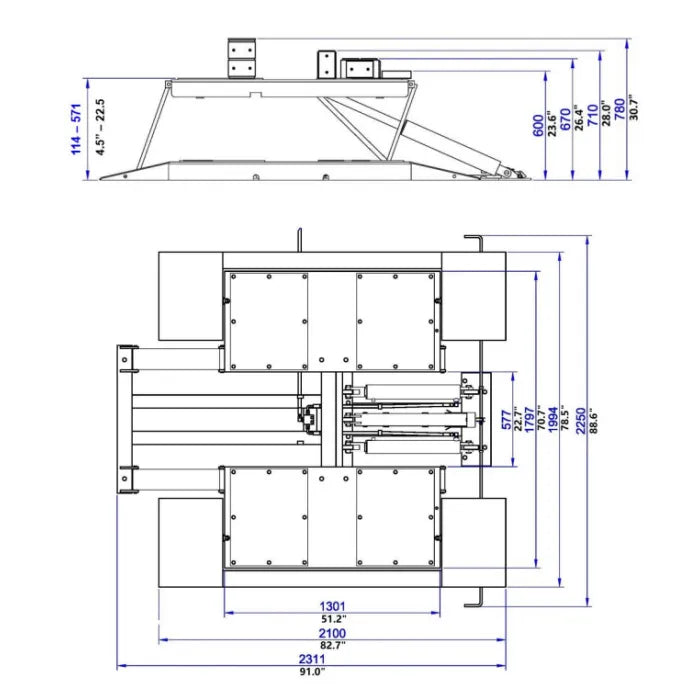

Specifications
- Capacity: 10,000 lbs.
- Overall Length: 91"
- Overall Width: 88-5/8"
- Max Rise Height: 22-1/2"
- Min Lift Height: 4-1/4"
- Max Lift Height with Tall Adapter: 30-3/4"
- Platform Pad Length: 51-1/4"
- Platform Pad Width: 70-3/4"
- Platform Outer Width: 70-3/4"
- Platforms Forward Movement: 15"
- Platform Locking Heights: 13-1/2", 17-1/4", 21-1/2"
- Lift Speed Standard 115V: 60 Seconds
- Lift Speed Optional 220V: 36 Seconds
- Power: 115V - 1 Ph - 20 Amp
- Shipping Weight: 1,262 lbs.
- Warranty: 5 Years Structure, 1 Year Parts, No Labor
*Optional 220V Power Unit For Increased Lift Speed
Structural Warranty
The following parts and structural components carry a five year warranty: Columns, Top Rail, Uprights, Arms, Swivel Pins, Legs, Carriages, Tracks, Overhead Beam, Cross Rails.
Limited (1) Year Warranty
Tuxedo Distributors, LLC (iDEAL) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations
This warranty does not cover:
- Parts needed for normal maintenance
- Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
- Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
- On-site labor
Accessories/Options

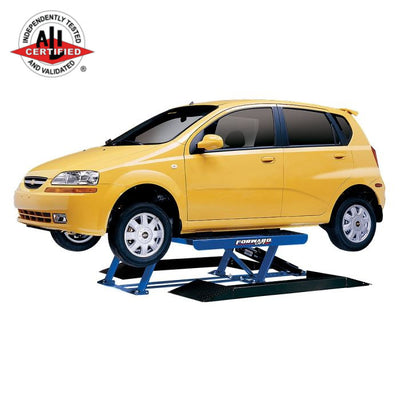

Forward Lift TL07 Low-Rise Pad Lift
OUR PRICE: $4,661.00
Regular Price: $4,899.00

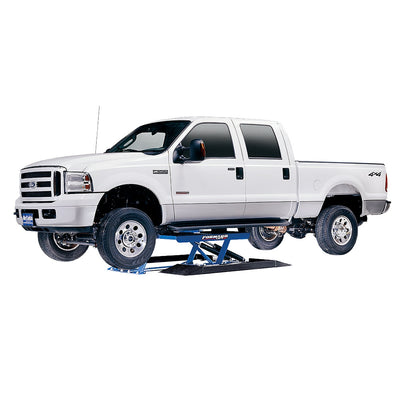

Forward Lift TL10 Low-Rise Pad Lift
