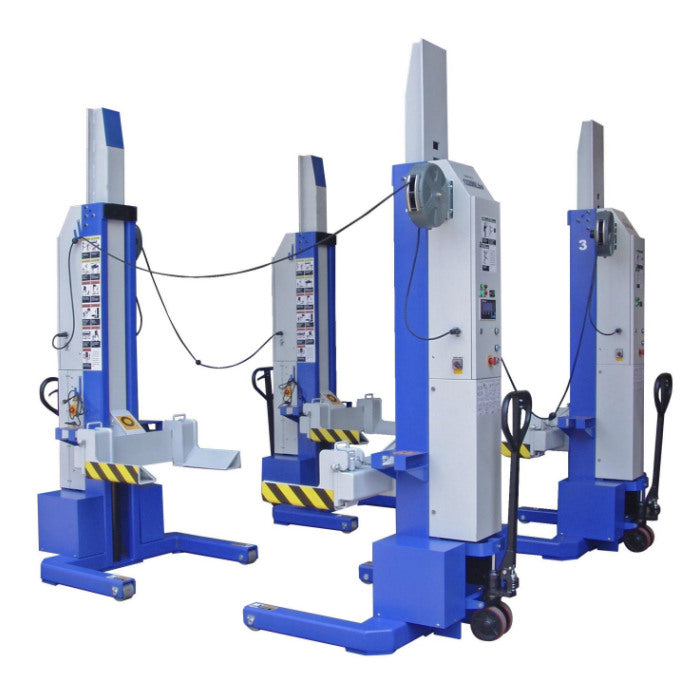

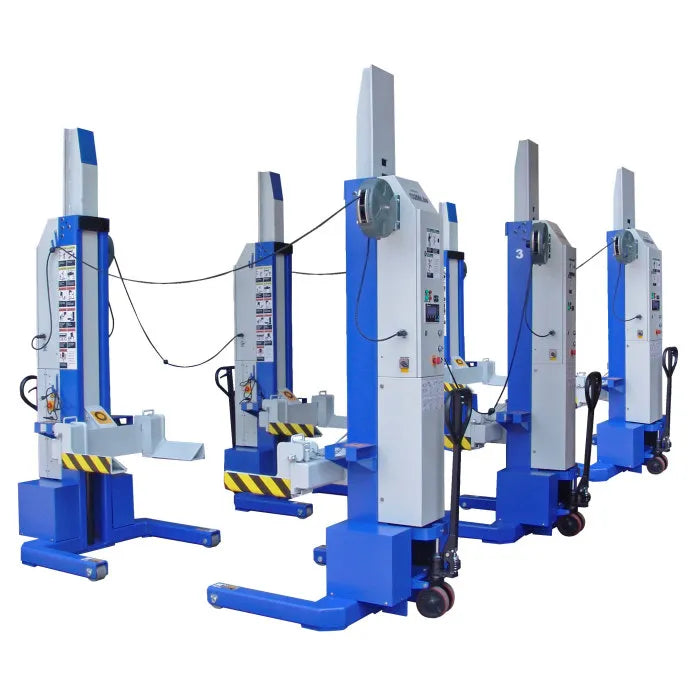

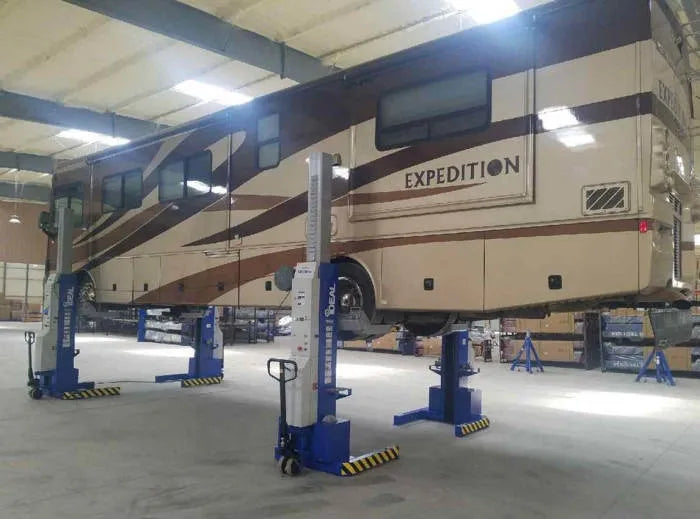

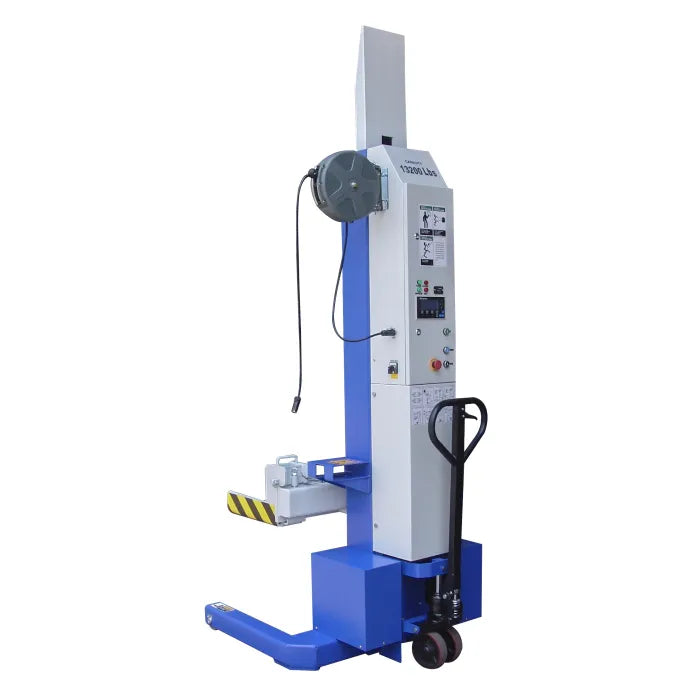

iDEAL MSC-13K-B-452 Mobile Column Vehicle Lifts Set of 4

Features & Specs

Features

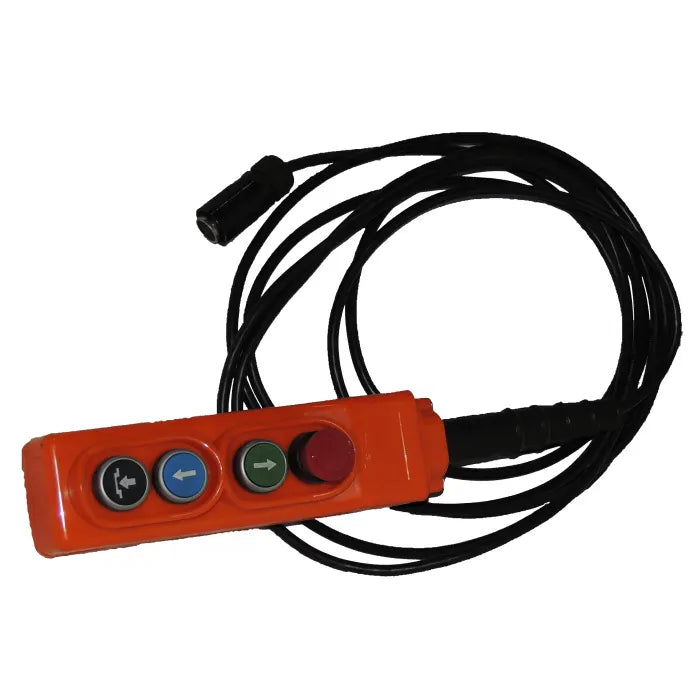

• Easy To Use Master Controller For Individual Or Paired Synchronized Operation
• Siemens PLC And Electro-Optical Encoder Provide Continuous Synchronization Of All Columns

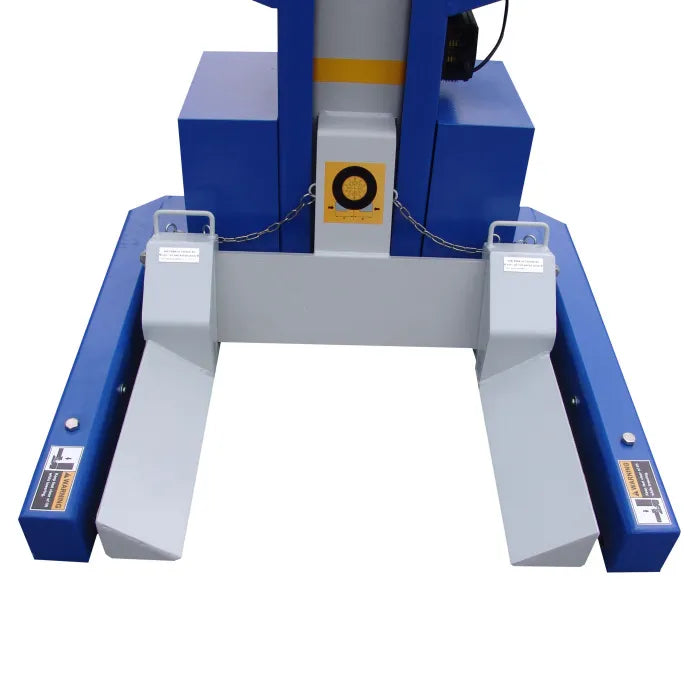

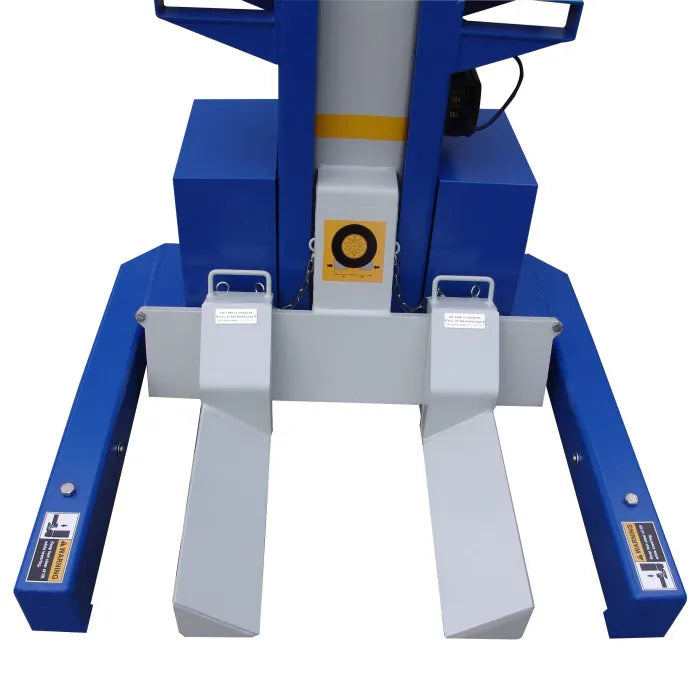

• Adjustable Lifting Forks Accommodate The Widest Range Of Wheels
• Easily Positioned With Pallet Jack Style Wheel
• Heavy-Duty Hydraulic System
• Large Carriage Bearings Provide Durable, Fast And Easy Lifting

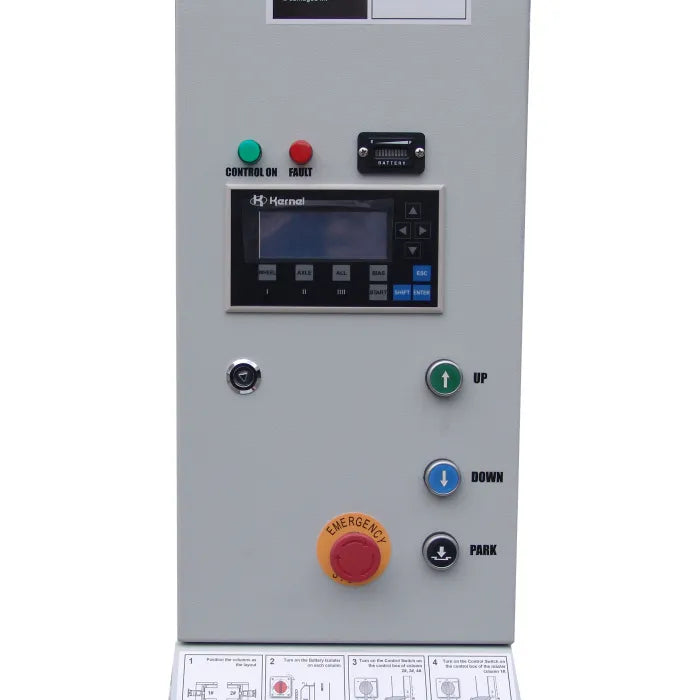

• LCD Screen With Keyboard Offers Easy To Read Visuals Of Settings And Lifting Height
• Independent Mechanical Locking System
• Emergency Switch On Each Column
• Independent Mechanical Locking System And Emergency Switch On Each Column Provide Highest Safety Assurance
• Optional Jack Stands Available
• Batteries Sold Separately

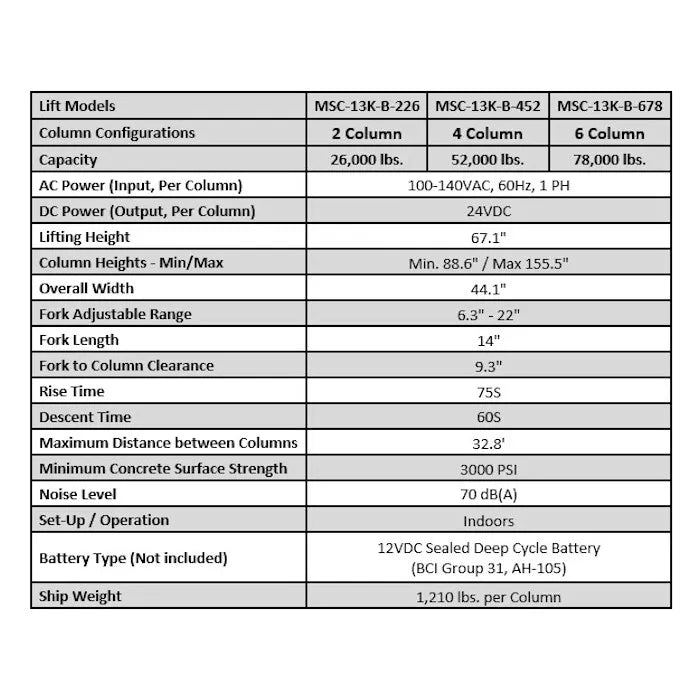

Specifications

• Capacity: 52,800 lbs. (4 Columns)
• AC Power (Input, Per Column): 100-140VAC, 60Hz, 1 PH
• DC Power (Output, Per Column): 24VDC

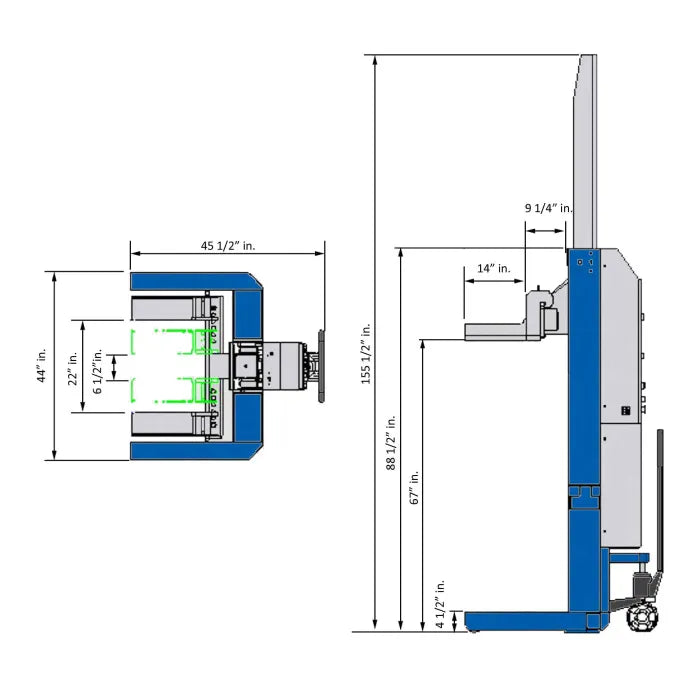

• Lifting Height: 67.1"
• Column Overall Height Min: 88.6"
• Column Overall Height Max: 155.5"
• Overall Width: 44.1"
• Fork Adjustable Range: 6.3"- 22"
• Fork Length: 14"
• Fork to Column Clearance: 9.3"
• Rise Time: 75 Seconds
• Descent Time: 60 Seconds
• Maximum Distance between Columns: 32' 8"
• Minimum Concrete Surface Strength: 3000 PSI
• Noise Level: 70 dB(A)
• Set-Up / Operation: Indoors
• Ship Weight: 1,210 lbs. (per Column)
• Warranty: (5) Years Structure, (1) Year Parts, No Labor

* Batteries Not Included

Battery Specifications

• Battery Dimensions: 14.2" x 7.5" x 11.8" Tall Max
• Battery Cover Size: 14.56" x 8.27" x 13"
• Deep Cycle Batteries: Type 27 or 31 Series
• Batteries Per Column: (2) 12V DC
• Rating: 120 AMP / HR
• Starting Current: 350 CCA - 500 CCA

Structural Warranty
The following parts and structural components carry a five year warranty: Columns, Top Rail, Uprights, Arms, Swivel Pins, Legs, Carriages, Tracks, Overhead Beam, Cross Rails.

Limited (1) Year Warranty
Tuxedo Distributors, LLC (iDEAL) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.

Other Limitations
This warranty does not cover:

• Parts needed for normal maintenance
• Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
• Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
• On-site labor
